Shim Front diff?

[Jools]

Stung into FOMOS (fear of missing out Schui) having just sold my 2 Procats, I've started to resurrect the partscat I put aside years ago. (The bits left over from the restos with a fabricated carbon/kevlar chassis and fabricated rear trans casing and plates).

It has the earlier front trans housing without the belt tension plate adjustment slots. I believe the method was to shim the trans casing to achieve good belt tension. (I did put aside a later housing, so I could rip it all apart and fit that though I dunno if I'd be able to use the existing bearings), But I'm curious to know how / where you would shim the front trans casing to get good tension?
Since I've 'been away', it's great to see that Schumacher have the re-re, so looks like plenty of parts are now available... hopefully the re-re parts will fit the original Procats. (Need to get upper front wishbones, wing/suspension mounts at minimum).

Well I'm in the process of fitting the later housing. But I'm still interested in the shimming location with a housing without the adjustment slot.
I am also wondering about the bearings, they swapped over fine, almost too easy, and I do wonder what's to stop the bearing outers spinning in the plastic housings, - there's not much 'fit'.
I've probably got the wrong end of the stick (said the actress) but anyway...

[Retro rc]

Hey jools pretty much everything from the re re procat will fit just the main chassis and rear gearbox housing have a different hole spacing.

I’d just get the procat rere front gearbox with the adjustment plate or even better the re re Ali front gearbox set I used it on my xls / bosscat runner.


Here’s the build thread

https://www.rc10talk.com/viewtopic.php?f=28&t=47808

[Jools]

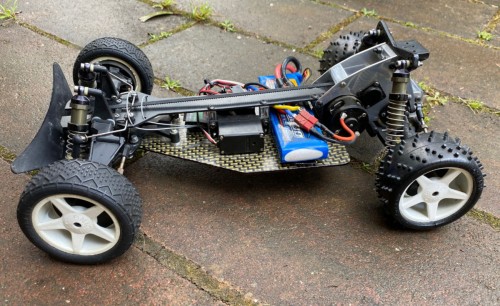

Well it's coming together (how nice to be building a Schui again!)
I had in stock (HTF did that happen!?) a correct later front trans casing so with that now fitted I can now adjust the belt tension.
Bitsa of course, -homemade carbon/Kevlar chassis plates, fabricated alloy rear diff housing plates and acrylic casings (ooh transparent- see those whizzing belts!)
Ready for a test drive, but it's too wet at the mo, but it goes... seemingly nicely -the cat will affirm that.
Next - an order to Schumacher to get a few parts (re-re- great! some parts I could not get 'back in the day - but better now hopefully) - def' front upper wishbones, I probably will splash out on a new body kit, plus rear susp/wing mount.
I hope unzud Craig enjoys my 2 Procats (in the mail), sad to part with those, but I feel very lucky to have got the parts together years ago to build this ol' bitza.

[Retro rc]

Well that’s different for sure. Never seen anyone use the cougar steering levers on a cat before

Would love to see more pics

[ChocoTaco73]

If you're still wondering about the early front housing adjustment there were no shims. You just had to loosen the 8 screws that attach the top and bottom chassis plates at the front, move the housing to tighten/loosen the front belt, then tighten the 8 screws back down. Kinda silly but it did the trick.

[Jools]

Right that makes sense Choco- (though it's a bit of a 'klutzy' solution compared with other pretty sophisticated Schui engineering solutions eh?)
Yes Retro... as I said it's very much a bitsa! Made from all sorts of miscellaneous parts left over from 2 Procat and 2 Cougar restos plus a fair bit of fabrication.
Seems to work though, mind you I haven't used it 'in anger' yet.

[1911Colt]

Any updates on this one? How did it run? Cougar steering work out ok? Did you add a belt cover or run it exposed? With my luck I would not get very far with an exposed belt.
