How many versions of the RC10T were there?

[Soncho Ponza]

thats great info on the arms thanks

[aeiou]

My 7001 kit came with those early arms and boy were they fragile. The first revision wasn't much better. I think it was the 3rd or 4th trip to the parts counter when I finally got a set of RPM arms. I raced that truck for several years with the RPM arms, and that same set is still on the truck today. And, no, I never really learned how to drive without hitting stuff.

[Rusty-Racing]

Really good info on the a-arms Ill make sure I pick up a set of the later t2 arms or find some rpms before i start racing my rc10t

[Charlie don't surf]

My 7001 kit came with those early arms and boy were they fragile. The first revision wasn't much better. I think it was the 3rd or 4th trip to the parts counter when I finally got a set of RPM arms. I raced that truck for several years with the RPM arms, and that same set is still on the truck today. And, no, I never really learned how to drive without hitting stuff.

Speaking of fragile early parts, these were another problem area

zzz 019.jpg

These things are .070 ( 7001 1st-2nd ) and they loved to break as well, that might expain why I still have more than one set NIP

[Charlie don't surf]

Since Paul brought the RPM arm thing up, it made me think about the differences in those arms as well The arms around 91-92 made by RPM had one mounting hole and an open center

zzz 032.jpg

The next version 92-96 ( white ) 96-present ( other ) had 2 mounting holes, and bracing in the center of the arm

zzz 033.jpg

The rears were un-changed other than color

zzz 031.jpg

Of course, there is still the ball cup differences, the other shock towers, the turn buckles etc

[aeiou]

My 7001 kit came with those early arms and boy were they fragile. The first revision wasn't much better. I think it was the 3rd or 4th trip to the parts counter when I finally got a set of RPM arms. I raced that truck for several years with the RPM arms, and that same set is still on the truck today. And, no, I never really learned how to drive without hitting stuff.

Speaking of fragile early parts, these were another problem area

The attachment zzz 019.jpg is no longer available

These things are .070 ( 7001 1st-2nd ) and they loved to break as well, that might expain why I still have more than one set NIP

My truck still has the original paper-thin shock towers that came in the kit. How they survived, I have no idea. I was certainly upside down enough.

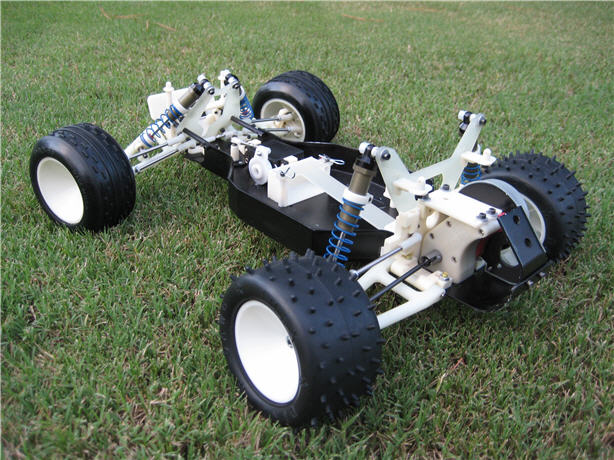

Here's my old truck all cleaned up in its final as-raced configuration. It has the B tub with both offset and inline battery box holes. Oh, there were some chassis differences, too. Right, Reggie?

[Charlie don't surf]

Yup Early B stamp/Black A stamp chassis on the left, Later B stamp on the right-(Kinwald screws set into the battery holes for a better example)

[Sir]

7001- Early RC10T
1) Early B stamp offset battery, early ball cups, early stealth brace, paper thin non webbed
arms, thin shock towers,15 deg steering blocks and Pro-55/Pro-90/& narrow tires
2) Same chassis, ball cups, thin webbed arms, standard stealth brace, 20 deg blocks, T/A
narrow/multi rib/paddle spike rears. Both with AE 6122 body


7035- RC10T Team Truck
1) In line B stamp, full hex ball cups, standard nylon stealth brace, 20 deg blocks, thin
webbed arms, thin 2 hole towers, Narrow/multi/paddle tires
2) Same but with thick webbed updated arms, thicker 3 hole front/4 hole rear tower
aluminum front inline axles and 30 deg blocks, plus universals
3) C stamp, same as above but black composite thick webbed arms, graphite stealth
brace. And solid wheels plus multi rib front/Pro-90 All with the 6135 team truck body

7011- RC10T sport truck
1) B stamp, same as #1 7035 except thick webbed arms, Gold shocks, MSC and 6122
shell
2) C stamp, same as above but thick black composite arms, and graphite brace
3) C stamp, all black with t2 type arms and composite towers




6 different types of arms- 3 towers /thin non webbed, thin webbed, medium webbed and thick webbed and black composite thick webbed ( not T2 type ) and late T2 type

Would you be able to know which model and variant came out on what year?

[marlo]

So a 7001 would never have had a" b "tub with inline holes?

[Charlie don't surf]

So a 7001 would never have had a" b "tub with inline holes?

I'm not giving out anymore info until I see some trucks and buggies of yours in posts-

[klavy69]

So a 7001 would never have had a" b "tub with inline holes?

I'm not giving out anymore info until I see some trucks and buggies of yours in posts-

believe me marlo...he is relentless when it comes to this

Todd

[marlo]

pic's up. thanks
