RC500 belt drive system and 2 speed transmission needed

Post by **polarbear** » Wed Feb 17, 2010 12:54 am

Anywhere I can get the subject manuals?
Thanks,
PB

Post by **pancar** » Tue Mar 16, 2010 4:37 am

Did you find what you needed? If not, I have a set here I can scan for you.

Tom

Post by **polarbear** » Sun Mar 21, 2010 11:18 pm

No yet. Would be grateful if you provide.

Thanks a lot.

Post by **pancar** » Tue Mar 23, 2010 12:45 am

PM sent with the information.

Thanks, Tom

Post by **polarbear** » Fri Apr 02, 2010 5:09 am

ANY PROGRESS?

Post by **a01butal** » Fri Apr 02, 2010 10:12 am

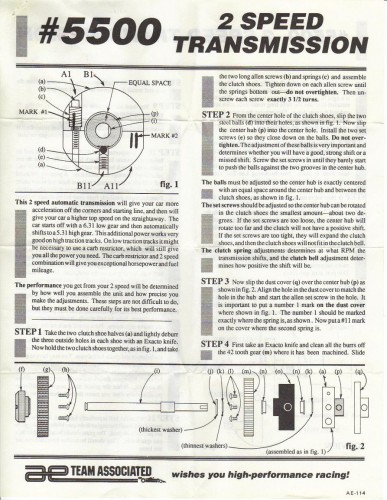

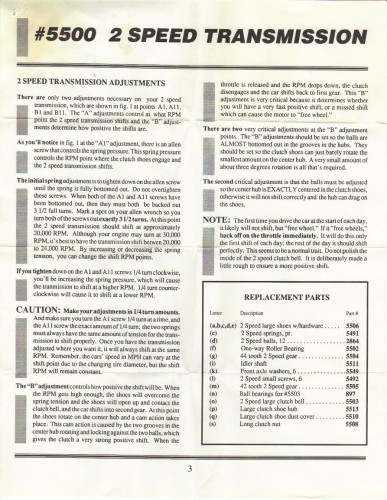

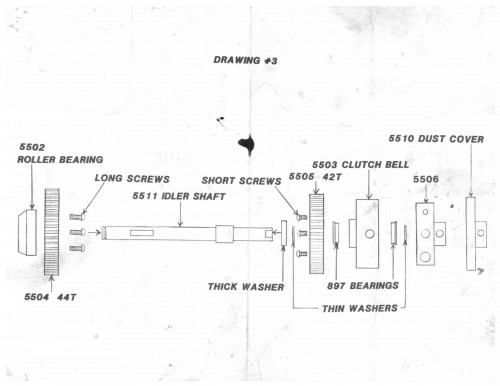

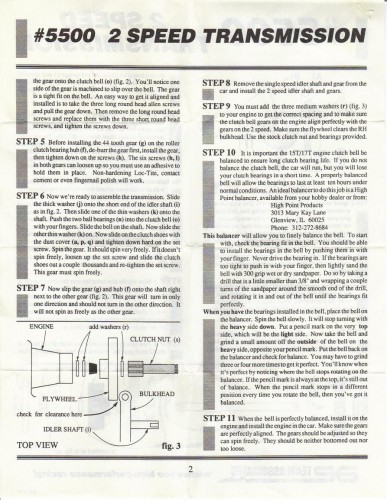

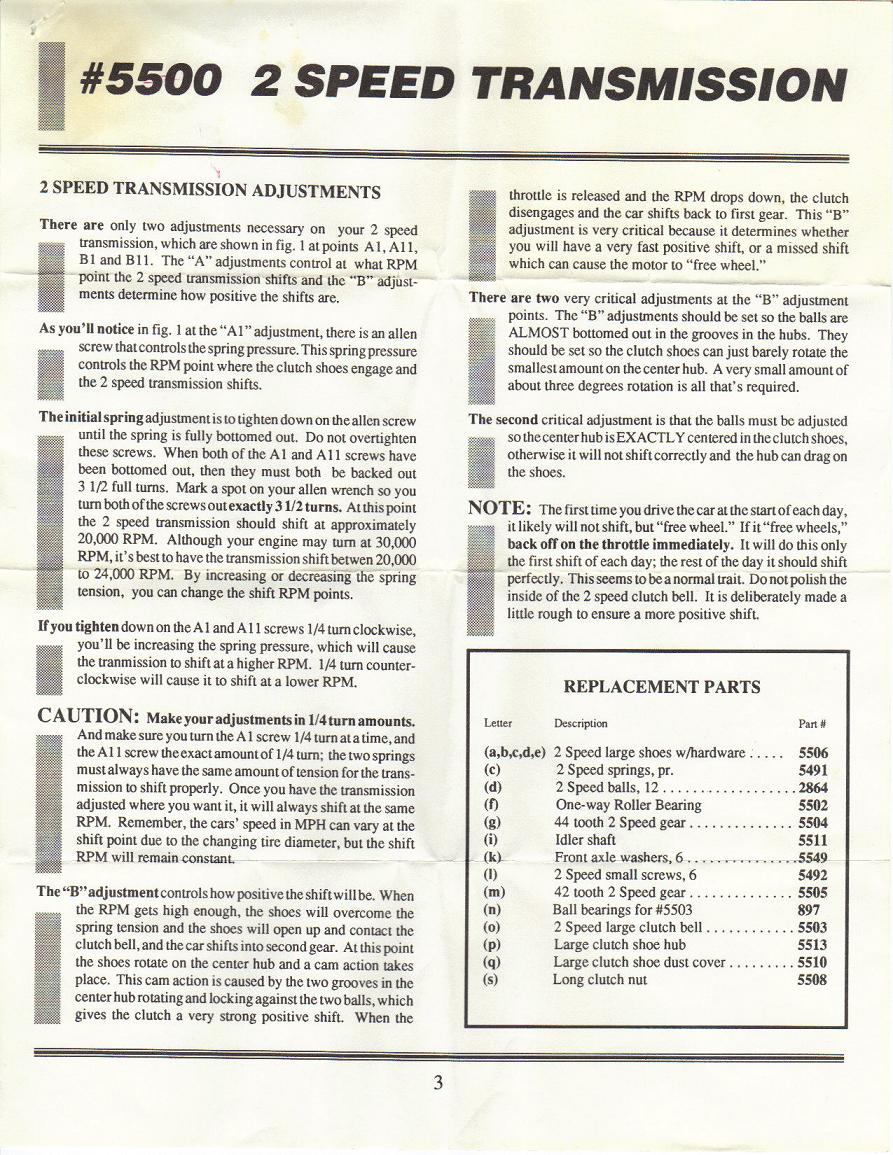

Here's the RC500 2 speed trans instructions, hope this helps:

Post by **pancar** » Sat Apr 03, 2010 4:54 am

polarbear wrote:ANY PROGRESS?

I sent you a message on Mar 22 regarding this, should still be in your inbox.

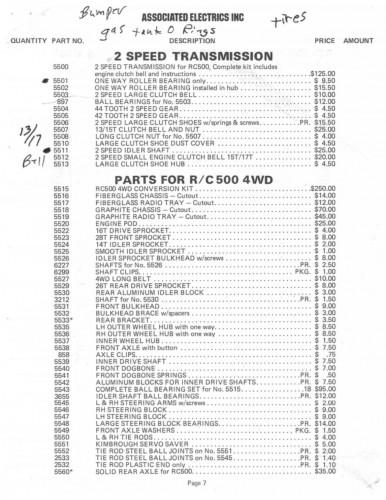

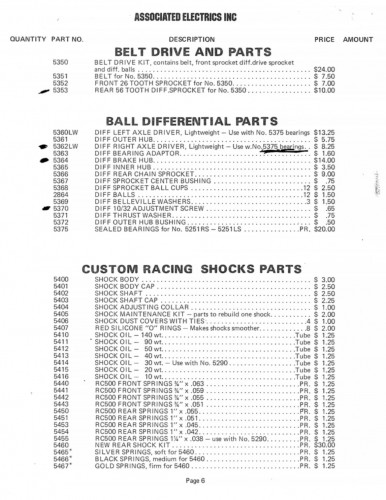

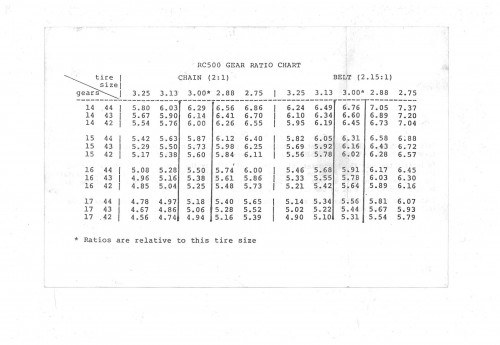

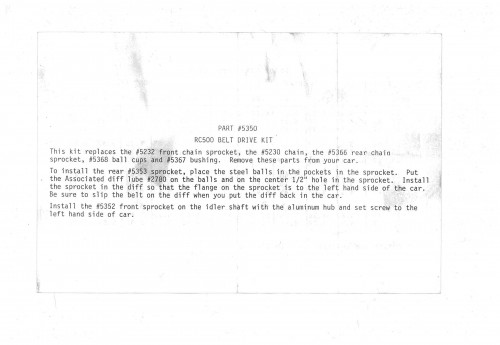

Anyway, here are the belt drive instructions. Not much to see, there were no pictures only text and gear chart, but I have also included a portion of the catalog with the part #'s for the belt drive and 2-speed.

Tom

Post by **pancar** » Sat Apr 03, 2010 5:26 am

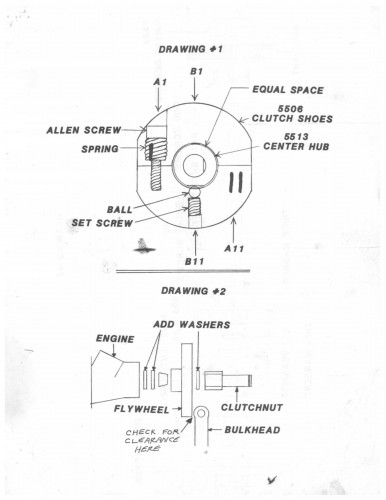

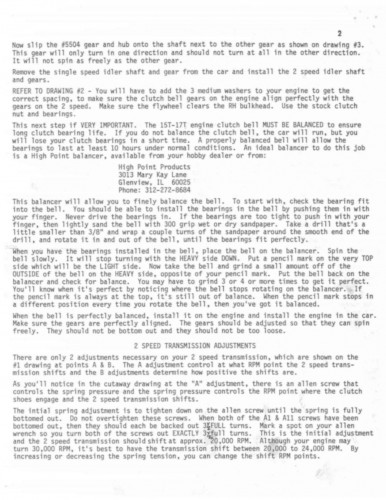

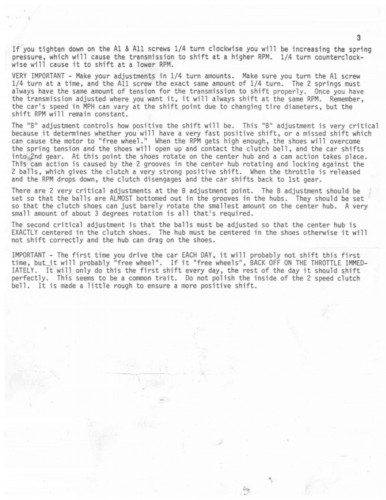

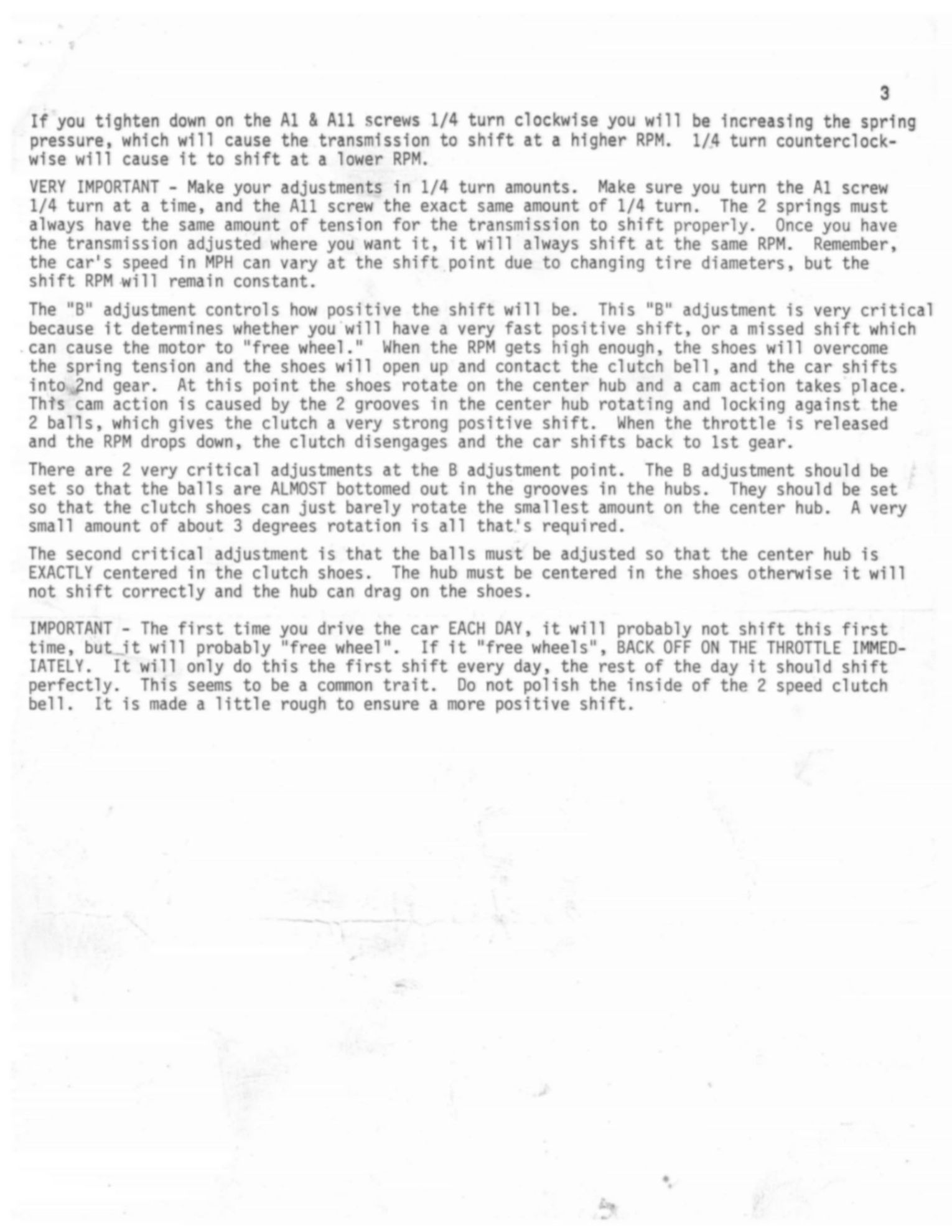

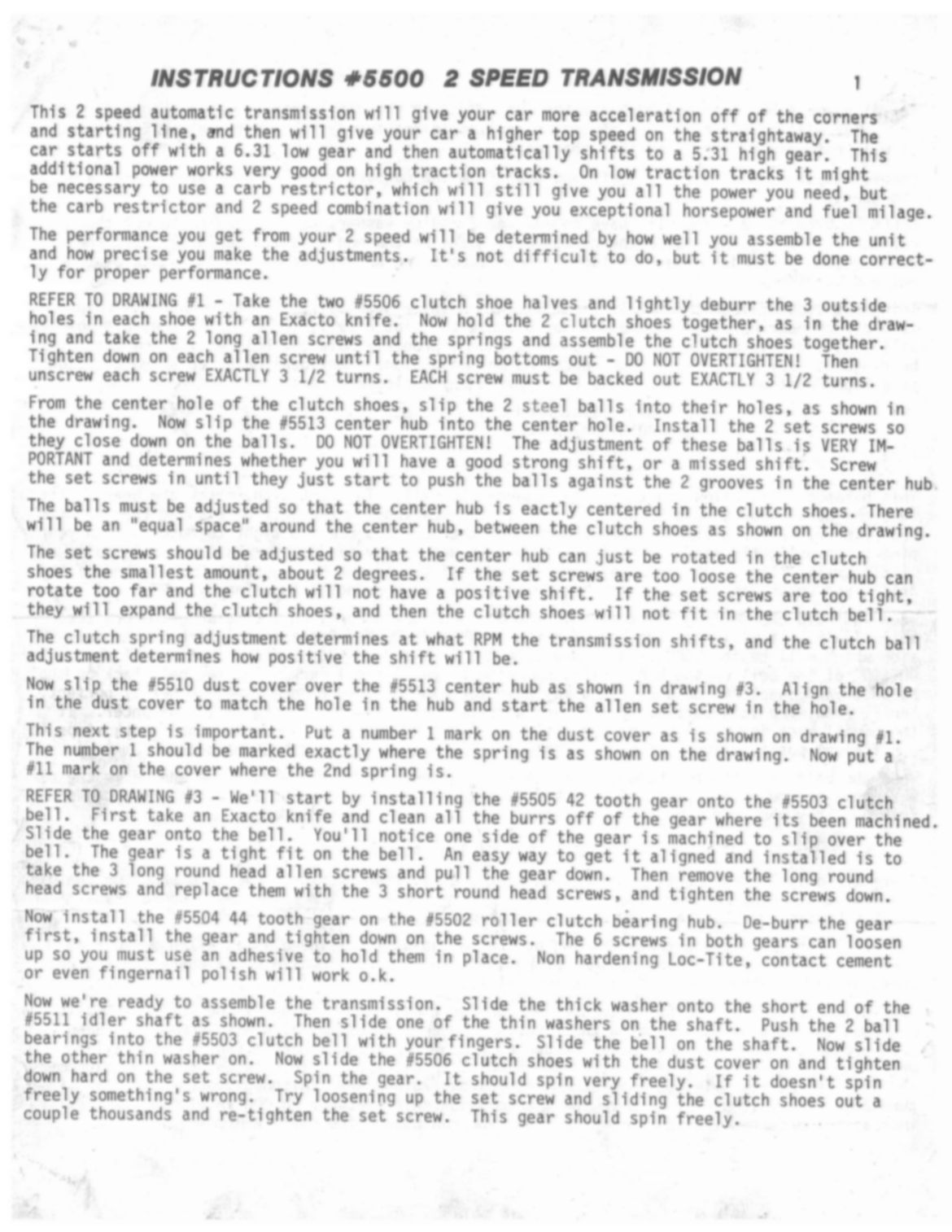

As long as I'm at it, here is an older version of the instructions as compared to the set provided by a01butal. Not sure if they contain the same information, so here they are just in case.

Polarbear, we would love to see some pictures of your car. It's been a while since I've had mine (a 2wd and a 4wd 2 speed). Still have one of the old bodies around here somewhere.

Thanks, Tom
