Hi all,
Just got myself another project. A very nice Junior T.
However it is missing a body and the rear body mount.
Since I recently got myself a (cheap) 3D printer I´d like to try to print a rear body mount to use until I get a hold of a genuine one.
Now I need your help. I need someone with a Junior T or a JrxT to take some measurement for me.

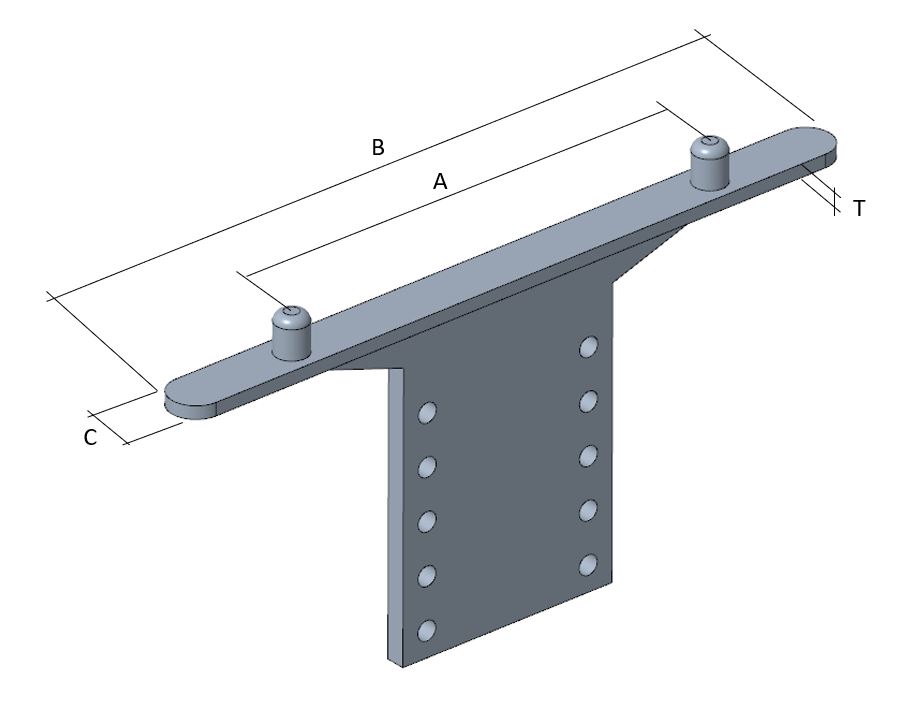

I´ve made a quick sketch:
I have the most measurements figured out already but I need help to find "A", "B", "C" and "T".
Thanks!
Need help with some measurements please.
-
- Approved Member
- Posts: 90
- Joined: Sun Jun 28, 2020 3:15 pm
- Location: Sweden
- Has thanked: 52 times
- Been thanked: 100 times
Need help with some measurements please.
Johan
My Jrx2: https://www.rc10talk.com/viewtopic.php?f=27&t=45835
Scrapheap Junior: https://www.rc10talk.com/viewtopic.php?f=27&t=46034
JRX-PRO - The racer: https://www.rc10talk.com/viewtopic.php?f=27&t=46890
My Jrx2: https://www.rc10talk.com/viewtopic.php?f=27&t=45835
Scrapheap Junior: https://www.rc10talk.com/viewtopic.php?f=27&t=46034
JRX-PRO - The racer: https://www.rc10talk.com/viewtopic.php?f=27&t=46890
-
- Super Member
- Posts: 677
- Joined: Sun Oct 06, 2019 11:33 pm
- Location: Ill-Noise, USA
- Has thanked: 946 times
- Been thanked: 563 times
-
- Approved Member
- Posts: 90
- Joined: Sun Jun 28, 2020 3:15 pm
- Location: Sweden
- Has thanked: 52 times
- Been thanked: 100 times
Re: Need help with some measurements please.
That was quick!!!
Thanks BattleTrak!
Thanks BattleTrak!
Johan
My Jrx2: https://www.rc10talk.com/viewtopic.php?f=27&t=45835
Scrapheap Junior: https://www.rc10talk.com/viewtopic.php?f=27&t=46034
JRX-PRO - The racer: https://www.rc10talk.com/viewtopic.php?f=27&t=46890
My Jrx2: https://www.rc10talk.com/viewtopic.php?f=27&t=45835
Scrapheap Junior: https://www.rc10talk.com/viewtopic.php?f=27&t=46034
JRX-PRO - The racer: https://www.rc10talk.com/viewtopic.php?f=27&t=46890
-
- Approved Member
- Posts: 90
- Joined: Sun Jun 28, 2020 3:15 pm
- Location: Sweden
- Has thanked: 52 times
- Been thanked: 100 times
Re: Need help with some measurements please.

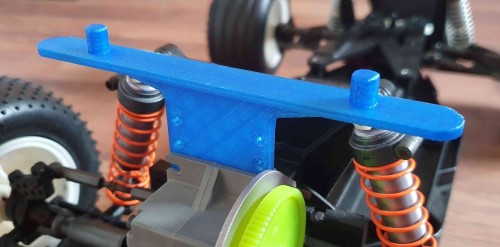

Proof of concept seems ok:
Forgot to put a big radius on the actual tabs that go through the body, but otherwise ok.
The printer had blue filament in it so that´s why the Clod rere blue!
Forgot to put a big radius on the actual tabs that go through the body, but otherwise ok.
The printer had blue filament in it so that´s why the Clod rere blue!
