Oreo Cookie OIN, Composite Craft I heart (early) 90s Tribute
- Y'ernat Al
- Approved Member
- Posts: 921
- Joined: Wed Jan 14, 2009 1:15 am
- Location: Spokane WA
- Has thanked: 7 times
- Been thanked: 16 times
Oreo Cookie OIN, Composite Craft I heart (early) 90s Tribute
I wasn't into R/C at all during the 1990's, I was in college and the RC10 was already up in the attic. But I have recently become interested in the early 1990's stealth cars, Kinwald tubs etc., thanks to a few really nice builds on here. Basically I have dripping paint scheme envy, and I think I found a cure..

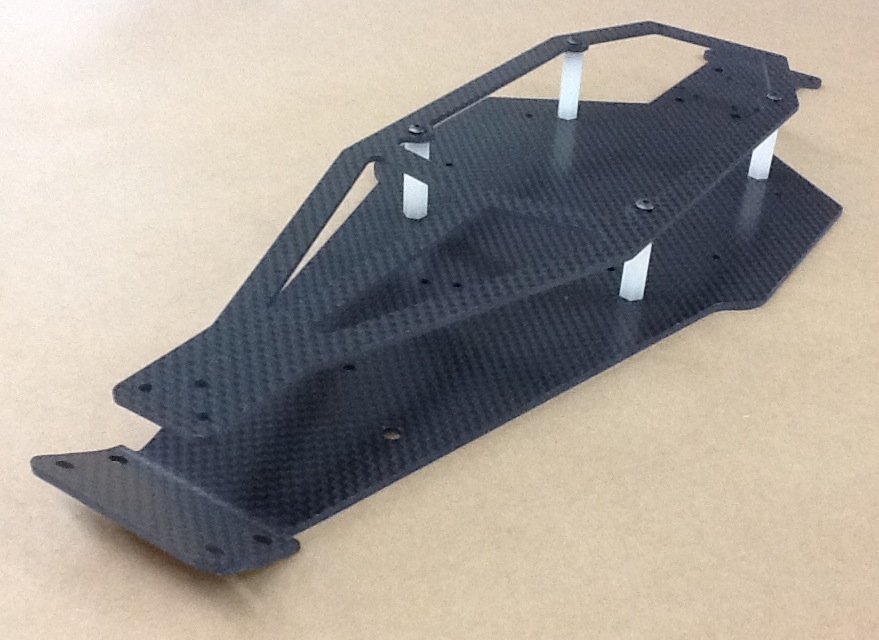

From Kim at CC, this is on the way...
With McMaster-Carr part # 91780A174 - Aluminum Female Threaded Hex Standoff, 1/4" Hex, 2" length, 4-40 Screw size, I have a front mounting bar too.
From Kim at CC, this is on the way...
With McMaster-Carr part # 91780A174 - Aluminum Female Threaded Hex Standoff, 1/4" Hex, 2" length, 4-40 Screw size, I have a front mounting bar too.
- losiXXXman
- Approved Member
- Posts: 936
- Joined: Sat Aug 29, 2009 9:53 am
- Location: Cary, NC
- Been thanked: 5 times
Re: Composite Craft - I love the (early) 90's Tribute Build
I could be mistaken, but I think 2" standoffs are a little tall. I think the Losi and I know my Ultimo Pro use 1" ones. Cool project, will be watching..
- Y'ernat Al
- Approved Member
- Posts: 921
- Joined: Wed Jan 14, 2009 1:15 am
- Location: Spokane WA
- Has thanked: 7 times
- Been thanked: 16 times
Re: Composite Craft - I love the (early) 90's Tribute Build
To clarify, I'm getting the "standoffs" in the pic from Kim. Mcmaster sells "standoffs" of different lengths and materials, pre-tapped at the end. The 2" aluminum one from MC will have to be shaved a bit at each end, then I can fit it in the 10T front bulkhead, and then I can tap two 4-40 holes at the top for the upper plate connection. You'll see. I have some really different stuff planned for this one.losiXXXman wrote:I could be mistaken, but I think 2" standoffs are a little tall. I think the Losi and I know my Ultimo Pro use 1" ones. Cool project, will be watching..
- jwscab
- Super Member
- Posts: 6495
- Joined: Wed Jan 28, 2009 9:42 am
- Location: Chalfont, PA
- Has thanked: 10 times
- Been thanked: 447 times
Re: Composite Craft - I love the (early) 90's Tribute Build
I have dimensions of the front brace.
1.8" wide, #4 holes drilled and tapped with a c-c spacing of .6" centered in the 1.8". I turned the two ends until the hex was gone approx .4" on each side to look like the original.
of course, if you have the parts in front of you, you shouldn't need them.
1.8" wide, #4 holes drilled and tapped with a c-c spacing of .6" centered in the 1.8". I turned the two ends until the hex was gone approx .4" on each side to look like the original.
of course, if you have the parts in front of you, you shouldn't need them.
- Y'ernat Al
- Approved Member
- Posts: 921
- Joined: Wed Jan 14, 2009 1:15 am
- Location: Spokane WA
- Has thanked: 7 times
- Been thanked: 16 times
Re: Composite Craft - I love the (early) 90's Tribute Build
Thanks J, I was planning on about 1 and 13/16 if I remember right. I do have a small collection of parts together, so I'm good to go. Thanks! I don't have a lathe, so I'll be hex from one end to the other, which is fine with me.jwscab wrote:I have dimensions of the front brace if you want them.
- Seabass
- Business Member
- Posts: 1402
- Joined: Mon Jul 27, 2009 8:34 pm
- Location: Mississippi
- Been thanked: 12 times
Re: Composite Craft - I love the (early) 90's Tribute Build
Very nice, look forward to seeing the finished product.
Jake
Jake
- Y'ernat Al
- Approved Member
- Posts: 921
- Joined: Wed Jan 14, 2009 1:15 am
- Location: Spokane WA
- Has thanked: 7 times
- Been thanked: 16 times
Re: Composite Craft - I love the (early) 90's Tribute Build
Thanks Jake. Hope things are good with you these days.
I have pretty close to everything I need. I want to run a double decker composite craft chassis to see what it's like. The biggest curve ball is going to be a T2 (yeah a 1994/95!) T2 tranny in there (admittedly B1.5/SCR8P inspired). I just have to mill out a square into which it sits. I have a solution for the top plate connection at the back. I'll need to resolve some hole pattern issues. I'll need to figure out the rear arm mount problem too, as the rpm worlds mounts are really designed to be tucked in there up against the stealth which has a different footprint than the T2 tranny. I think I can solve it, for yet another angle on the B1.5 concept. If I'm 100% successful I'll have adjustable rear toe in and maybe even an adjustable wheel base Wish me luck.
I have pretty close to everything I need. I want to run a double decker composite craft chassis to see what it's like. The biggest curve ball is going to be a T2 (yeah a 1994/95!) T2 tranny in there (admittedly B1.5/SCR8P inspired). I just have to mill out a square into which it sits. I have a solution for the top plate connection at the back. I'll need to resolve some hole pattern issues. I'll need to figure out the rear arm mount problem too, as the rpm worlds mounts are really designed to be tucked in there up against the stealth which has a different footprint than the T2 tranny. I think I can solve it, for yet another angle on the B1.5 concept. If I'm 100% successful I'll have adjustable rear toe in and maybe even an adjustable wheel base Wish me luck.
- scr8p
- Administrator
- Posts: 16525
- Joined: Tue Feb 07, 2006 9:46 pm
- Location: Northampton, PA
- Has thanked: 28 times
- Been thanked: 957 times
Re: Composite Craft - I love the (early) 90's Tribute Build
careful, you're not allowed to copy the car in the first pic. says so right on it.
- longboardnj
- Approved Member
- Posts: 1337
- Joined: Sun Jun 29, 2008 11:52 am
- Location: new jersey
- Been thanked: 2 times
Re: Composite Craft - I love the (early) 90's Tribute Build
scr8p wrote:careful, you're not allowed to copy the car in the first pic. says so right on it.
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: Composite Craft - I love the (early) 90's Tribute Build
"Imitation is the most sincere form of plagiarism." -Alf
Can't wait to see it!
Can't wait to see it!
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
- Y'ernat Al
- Approved Member
- Posts: 921
- Joined: Wed Jan 14, 2009 1:15 am
- Location: Spokane WA
- Has thanked: 7 times
- Been thanked: 16 times
Re: Oreo Cookie OIN, Composite Craft I heart (early) 90s Tri
I came up with a name (Oreo OIN) for this buggy during the mock up. I was up 'til 230am last night, as I just couldn't put down the Dremmel, 4-40 tap or file .
The T2 tranny fit to the CC chassis with some relatively easy mods. Well I gues milling out a nice square in the chassis (I didn't simply cut a hole) was a bit tricky, but otherwise it came together nice. Note that using the narrower rearward (stealth tranny) holes worked fine, but to anyone who tries it - use short screws...they will otherwise interfere with the diff gear.)
I had to build one part from scratch , a piece of nylon cut and drilled to the T2 bulkhead to provide a support for the upper deck (and soon a kydex speed control shelf). Note I also run the deck lower, cutting the standoffs down and mounting it under the front mount..made from a 2" nylon standoff Kim sent with the chassis. The JConcepts Illusion "Fast Pack" body that I got on sale (its for an XXX-CR) fits really nice. The paint vision involves Oreo Cookie livery and Kinwaldesque colors, but really stretched 'cause that's how the body looks - moving while standing still.
The T2 tranny fit to the CC chassis with some relatively easy mods. Well I gues milling out a nice square in the chassis (I didn't simply cut a hole) was a bit tricky, but otherwise it came together nice. Note that using the narrower rearward (stealth tranny) holes worked fine, but to anyone who tries it - use short screws...they will otherwise interfere with the diff gear.)
I had to build one part from scratch , a piece of nylon cut and drilled to the T2 bulkhead to provide a support for the upper deck (and soon a kydex speed control shelf). Note I also run the deck lower, cutting the standoffs down and mounting it under the front mount..made from a 2" nylon standoff Kim sent with the chassis. The JConcepts Illusion "Fast Pack" body that I got on sale (its for an XXX-CR) fits really nice. The paint vision involves Oreo Cookie livery and Kinwaldesque colors, but really stretched 'cause that's how the body looks - moving while standing still.
- flipwils11
- Approved Member
- Posts: 1904
- Joined: Sun Feb 14, 2010 10:30 pm
- Location: St Paul, MN
- Been thanked: 15 times
Re: Oreo Cookie OIN, Composite Craft I heart (early) 90s Tri
I've never cared for the standard, flat graphite chassis but I like this with the top deck and the other attention to detail. Can't wait to see it with wheels and a painted body.
- shodog
- Approved Member
- Posts: 3816
- Joined: Thu Oct 05, 2006 3:09 pm
- Location: Washington
- Has thanked: 3 times
- Been thanked: 86 times
Re: Oreo Cookie OIN, Composite Craft I heart (early) 90s Tri
That carbon weave is sweet, did they just cut that for you?
- Y'ernat Al
- Approved Member
- Posts: 921
- Joined: Wed Jan 14, 2009 1:15 am
- Location: Spokane WA
- Has thanked: 7 times
- Been thanked: 16 times
Re: Oreo Cookie OIN, Composite Craft I heart (early) 90s Tri
Yep. Kim at CC will do it for you. They are (mis-advertised) as 10T chassis' in the Composite Craft facebook page. You just call them and order one up. They one-off them too, because I asked if I could have one without the steering servo saver notch and he said no problem at all.shodog wrote:That carbon weave is sweet, did they just cut that for you?
