RC10 Sand Scorcher

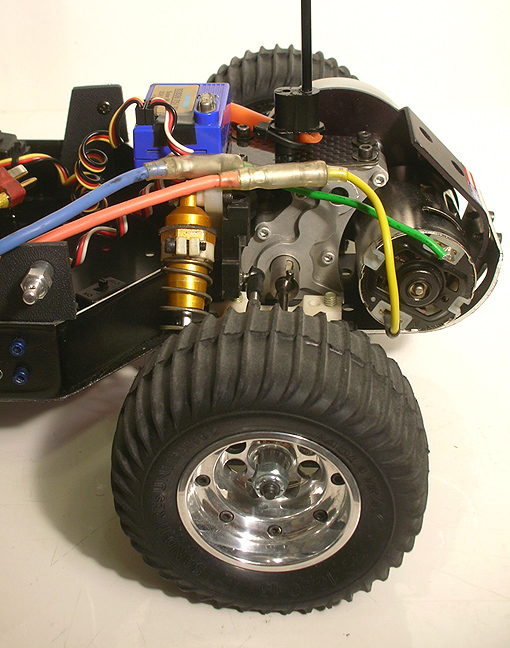

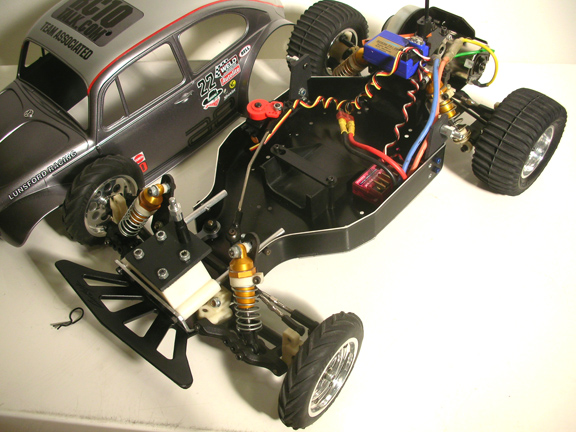

I finally completed my RC10 Sand Scorcher project. I started by taking a NIB black chassis and cutting 1 inch off the front. The front body mount is a chopped CRP RC10 truck body mount with a chopped body mount mounted to a Tamiya F201 body mount. It's got Losi aluminum bell cranks, Lunsford titanium turnbuckles, RPM front arms, Andy's rear arms and Technacraft wheels. The rear tires are Grasshopper tires, the fronts are vintage Proline. I used an oval lowering kit for the rear, because I didn't really want a big shock tower showing through the rear windows of the body. The tranny is an original Stealth, but it's got an aluminum case, the only one I've ever seen. It's dimensions are slightly different than the stock plastic case, in that the holes on the top are slightly more forward. So, I had to cut a custom tranny brace out of carbon fiber. Since there was no shock tower in the way, I extended the tranny brace forward to include a reciever mount. With an inch removed from the front of the chassis, I couldn't mount a servo up there. I ended up getting a micro servo, but even it would not fit in the smaller space. So, I mounted mid-way back on the wall of the chassis and took an old Tamiya link (I think from a Clodbuster) and bent it slightly to clear the battery cup. Believe it or not, this is a very effective steering set up, this car steers tighter than anything I've ever driven, including four wheel steering vehicles. The side body mounts are custom cut Kydex with Tamiya F201 body mounts scewed in to the side of the chassis.

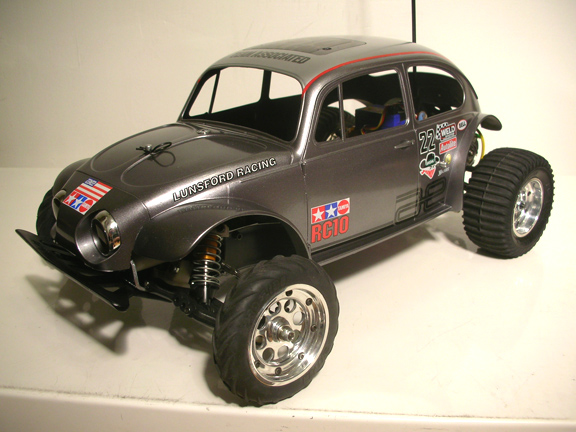

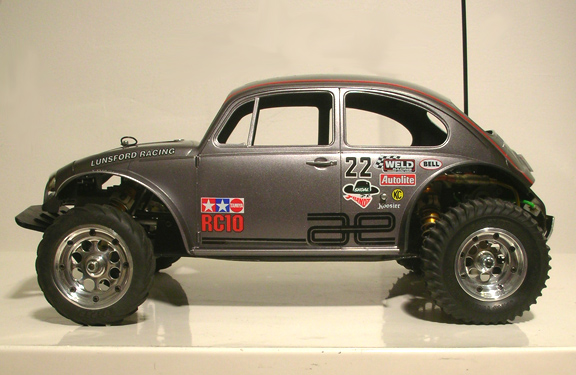

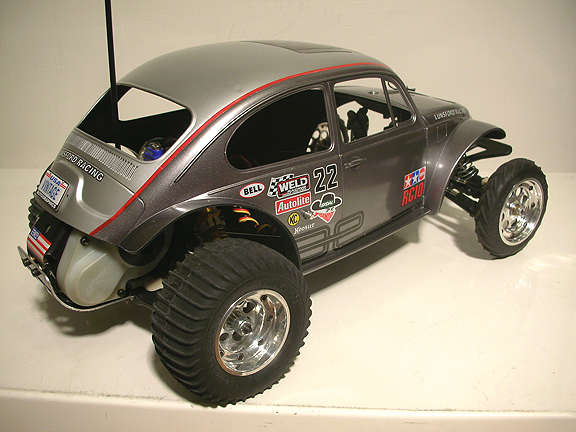

I think that's pretty much it. Oh, the body is from a Blitzer Beetle kit. I'm very happy with the car and plan to run it.
I think that's pretty much it. Oh, the body is from a Blitzer Beetle kit. I'm very happy with the car and plan to run it.
- Attachments
-
- RC10 Scorcher 5.jpg (263.22 KiB) Viewed 3104 times
- RC10 Scorcher 5.jpg (263.22 KiB) Viewed 3104 times
-
- RC10 Scorcher 4.jpg (188.39 KiB) Viewed 3105 times
- RC10 Scorcher 4.jpg (188.39 KiB) Viewed 3105 times
-
- RC10 Scorcher 3.jpg (208.51 KiB) Viewed 3104 times
- RC10 Scorcher 3.jpg (208.51 KiB) Viewed 3104 times
-
- RC10 Scorcher 2.jpg (165.13 KiB) Viewed 3104 times
- RC10 Scorcher 2.jpg (165.13 KiB) Viewed 3104 times
-
- RC10 Scorcher.jpg (154.21 KiB) Viewed 3107 times
- RC10 Scorcher.jpg (154.21 KiB) Viewed 3107 times
- Dr. Robotnik
- Approved Member
- Posts: 1442
- Joined: Wed Oct 11, 2006 11:05 am
- Location: Nutterham, United Kingdom
- Been thanked: 2 times
sweet work
NICE WORK!!!!!!!!!!!!!!!!!
Were you inspired by my Scorcher RC10???
scollins
Were you inspired by my Scorcher RC10???
scollins
When in doubt, throttle out ...... scollins
- templeofspeed
- Approved Member
- Posts: 2087
- Joined: Tue Aug 01, 2006 10:02 pm
- Location: Central Ohio
- Been thanked: 8 times
- MelvinsArmy
- Approved Member
- Posts: 3224
- Joined: Tue Feb 07, 2006 10:22 pm
- Location: Des Moines, IA
- Been thanked: 8 times
Re: sweet work
Thanks for the compliments guys.
Also, I know I fogot to credit someone for the silver edged aluminum. I can't remember who did that, but I had to copy it too.
Yes sir! Sorry, I totally forgot to credit you in the initial post. I had wanted to make a RC10 Baja Bug for a long time, your car was the first RC10 bug conversion I saw that made me realize it was possible to make a nice looking conversion without having a wheelbase that was too long.scollins wrote:NICE WORK!!!!!!!!!!!!!!!!!
Were you inspired by my Scorcher RC10???
scollins
Also, I know I fogot to credit someone for the silver edged aluminum. I can't remember who did that, but I had to copy it too.
- Asso_man!
- Approved Member
- Posts: 3959
- Joined: Thu Aug 03, 2006 7:49 am
- Location: EU
- Has thanked: 40 times
- Been thanked: 70 times
awesome build maybe my favorite conversion, the paint looks sweet, and I will not comment the wheels love it
_____________________________________________
_____________________________________________
Come and visit the stable
_____________________________________________
Come and visit the stable
-
- Approved Member
- Posts: 301
- Joined: Fri Jun 01, 2007 9:29 am
- Location: California
Now this is really COOL - got to love anything with a baja bug body on it!!!
But you know to be rear suspension correct it should have trailing arms.....say like that company ...HUM
...now what was their name
... you know they made those aluminum pieces
....let me remember now....D&C... no
... B&B....no
oh yah! L&A manufacturing
that's it Lane and Allec MFG.
But you know to be rear suspension correct it should have trailing arms.....say like that company ...HUM
...now what was their name
... you know they made those aluminum pieces
....let me remember now....D&C... no
... B&B....no
oh yah! L&A manufacturing
that's it Lane and Allec MFG.
Old is more FUN
Team A&L know it all - really
LINK TO TALK A&L Off topic/Chit Chat http://www.rc10talk.com/viewtopic.php?f=39&t=31149
Team A&L know it all - really
LINK TO TALK A&L Off topic/Chit Chat http://www.rc10talk.com/viewtopic.php?f=39&t=31149
- RichieRich
- Approved Member
- Posts: 2352
- Joined: Wed Jun 14, 2006 11:42 pm
- Location: Los Angeles, CA
- Has thanked: 34 times
- Been thanked: 19 times
LOL Hey, as luck would have it, there's one on ebay right now. Actually, two, but we're ignoring that one.Daryl Lane wrote:Now this is really COOL - got to love anything with a baja bug body on it!!!
But you know to be rear suspension correct it should have trailing arms.....say like that company ...HUM
...now what was their name
... you know they made those aluminum pieces
....let me remember now....D&C... no
... B&B....no
oh yah! L&A manufacturing
that's it Lane and Allec MFG.
-
- Approved Member
- Posts: 87
- Joined: Tue Feb 20, 2007 12:50 am
- Location: Ramat Gan, Israel
Re: RC10 Sand Scorcher
Came out really nice! I really love the body color and your choice for wheels & tires. I think that 1.5'' rears and 1.9'' fronts are the best for scale look. The only thing missing is a driver
The sharp steering is the result of the shorter wheelbase, I don't think the servo placement has anything to do with it.MelvinsArmy wrote: With an inch removed from the front of the chassis, I couldn't mount a servo up there. I ended up getting a micro servo, but even it would not fit in the smaller space. So, I mounted mid-way back on the wall of the chassis and took an old Tamiya link (I think from a Clodbuster) and bent it slightly to clear the battery cup. Believe it or not, this is a very effective steering set up, this car steers tighter than anything I've ever driven, including four wheel steering vehicles.
- MelvinsArmy
- Approved Member
- Posts: 3224
- Joined: Tue Feb 07, 2006 10:22 pm
- Location: Des Moines, IA
- Been thanked: 8 times
Thanks guys.
Daryl, I was seriously thinking about a trailing arm conversion. I had been working on this one on and off for about a year, and I finally just sat down one night and finished it. Do you sell the aluminum trailing arms without the full chassis kit?
MONSTER, yeah I was confused at first too. But, the steeper angle is actually facing forward, it's just that the side ridges point backwards and makes it look a little strange. They will get the best dig in this direction.
Snake, yeah I knew the shorter wheelbase would make it steer on a dime. But, I figured a steering rod that long and bent would create some noticable slop. But, it's tight as a drum. I actually have a driver that I'm planning to put in the car, I was just so excited to finally have it done that I posted it up before the driver was done. Once he's done, that will give me an excuse to take some outdoor shots. And of course action shots.
Daryl, I was seriously thinking about a trailing arm conversion. I had been working on this one on and off for about a year, and I finally just sat down one night and finished it. Do you sell the aluminum trailing arms without the full chassis kit?
MONSTER, yeah I was confused at first too. But, the steeper angle is actually facing forward, it's just that the side ridges point backwards and makes it look a little strange. They will get the best dig in this direction.
Snake, yeah I knew the shorter wheelbase would make it steer on a dime. But, I figured a steering rod that long and bent would create some noticable slop. But, it's tight as a drum. I actually have a driver that I'm planning to put in the car, I was just so excited to finally have it done that I posted it up before the driver was done. Once he's done, that will give me an excuse to take some outdoor shots. And of course action shots.
