Help with RC10T3 drive shaft
Help with RC10T3 drive shaft
So the pin which holds the rear drive shaft to the axle keeps popping out. I have tried to reinstall and it comes after a short drive.
I was thinking of replacing them with joint universal drive but want to keep the same axle size. Or, if there are newer parts that would directly replace/fix this issue I'd be happy with that.
I'll post a link to the image of the aforementioned pin below. Thank you for any help!
https://photos.app.goo.gl/6E6XTxcu9mjhopXe6
I was thinking of replacing them with joint universal drive but want to keep the same axle size. Or, if there are newer parts that would directly replace/fix this issue I'd be happy with that.
I'll post a link to the image of the aforementioned pin below. Thank you for any help!
https://photos.app.goo.gl/6E6XTxcu9mjhopXe6
- GoMachV
- Super Member
- Posts: 11330
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 822 times
- Been thanked: 2418 times
Re: Help with RC10T3 drive shaft
Back in the day we ran heat shrink around the joint to keep the pin in place.
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- ChisaiKuso
- Approved Member
- Posts: 526
- Joined: Sun Jun 17, 2012 7:50 pm
- Location: United States
- Has thanked: 4 times
- Been thanked: 27 times
Re: Help with RC10T3 drive shaft
I have never lost one of those pins. All you have to do is use a quality Allen wrench and a dab of blue thread lock when installing the set screw.
Something clever goes here...
- juicedcoupe
- Super Member
- Posts: 2989
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 231 times
- Been thanked: 1747 times
Re: Help with RC10T3 drive shaft
That looks like the newer style that will accept the retaining cup. The MIP type, not the AE metal band.
Always looking for new and interesting ways to waste money.
- TRX-1-3
- Super Member
- Posts: 1743
- Joined: Sat Mar 29, 2014 12:13 pm
- Location: USAG Humphreys, South Korea
- Has thanked: 1399 times
- Been thanked: 764 times
Re: Help with RC10T3 drive shaft
After ensuring the set screw and thread bore are clean, dry, and free of any oily residues. I have found CRC mass air flow sensor cleaner or CRC QD electronics cleaner to be an excellent oil/wax/grease remover for small parts especially where plastics are near or involved. That stuff evaporates immediately. But if you use alot of it like flooding an area or a prolonged streaming, the evaporative cooling makes the small parts cold and then you can experience atmospheric moisture condensing on the parts.ChisaiKuso wrote: ↑Tue May 25, 2021 6:42 pm I have never lost one of those pins. All you have to do is use a quality Allen wrench and a dab of blue thread lock when installing the set screw.
But the shrink tubing works also. You could double-whammy it with both treatments.
I remember an old RCCA pit tips that suggested nail polish as a field expedient thread locker alternative.
Hope you're doin' something fun.
Re: Help with RC10T3 drive shaft
Didn't realize there is a set screw in there, looks like I'll have to take it all apart and try to go there. New to actually wrenching on my own stuff, my dad built it for me when I was like 13.
- juicedcoupe
- Super Member
- Posts: 2989
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 231 times
- Been thanked: 1747 times
Re: Help with RC10T3 drive shaft

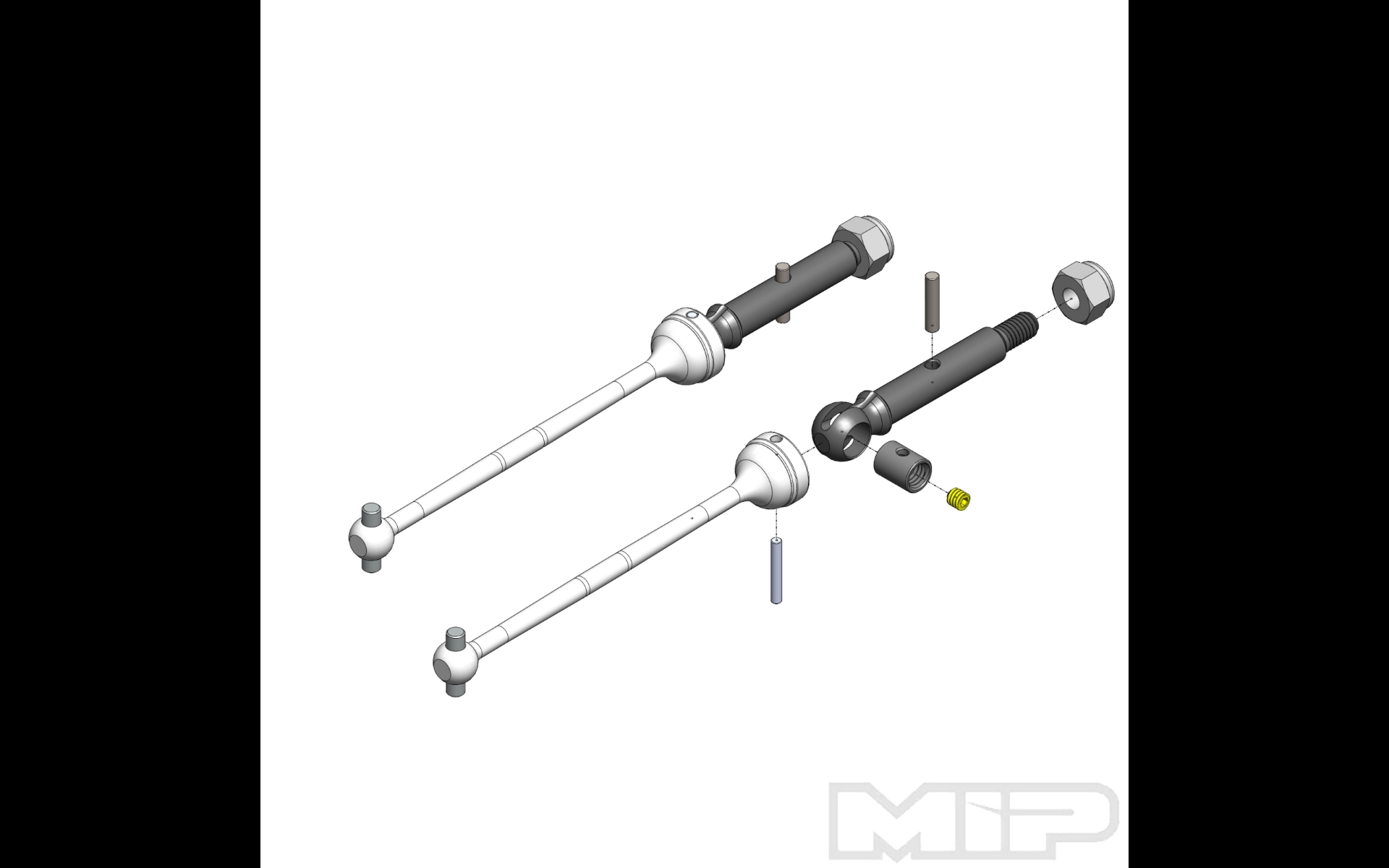

Here is the basic assembly.
Always looking for new and interesting ways to waste money.
