diff ring polish
- camlchris
- Approved Member
- Posts: 240
- Joined: Wed Sep 23, 2009 9:26 am
- Location: Hong Kong
- Been thanked: 4 times
diff ring polish
Here is showing you how to use Micro Finishing Film to Grind & Polish the 1/12 Diff. Ring.

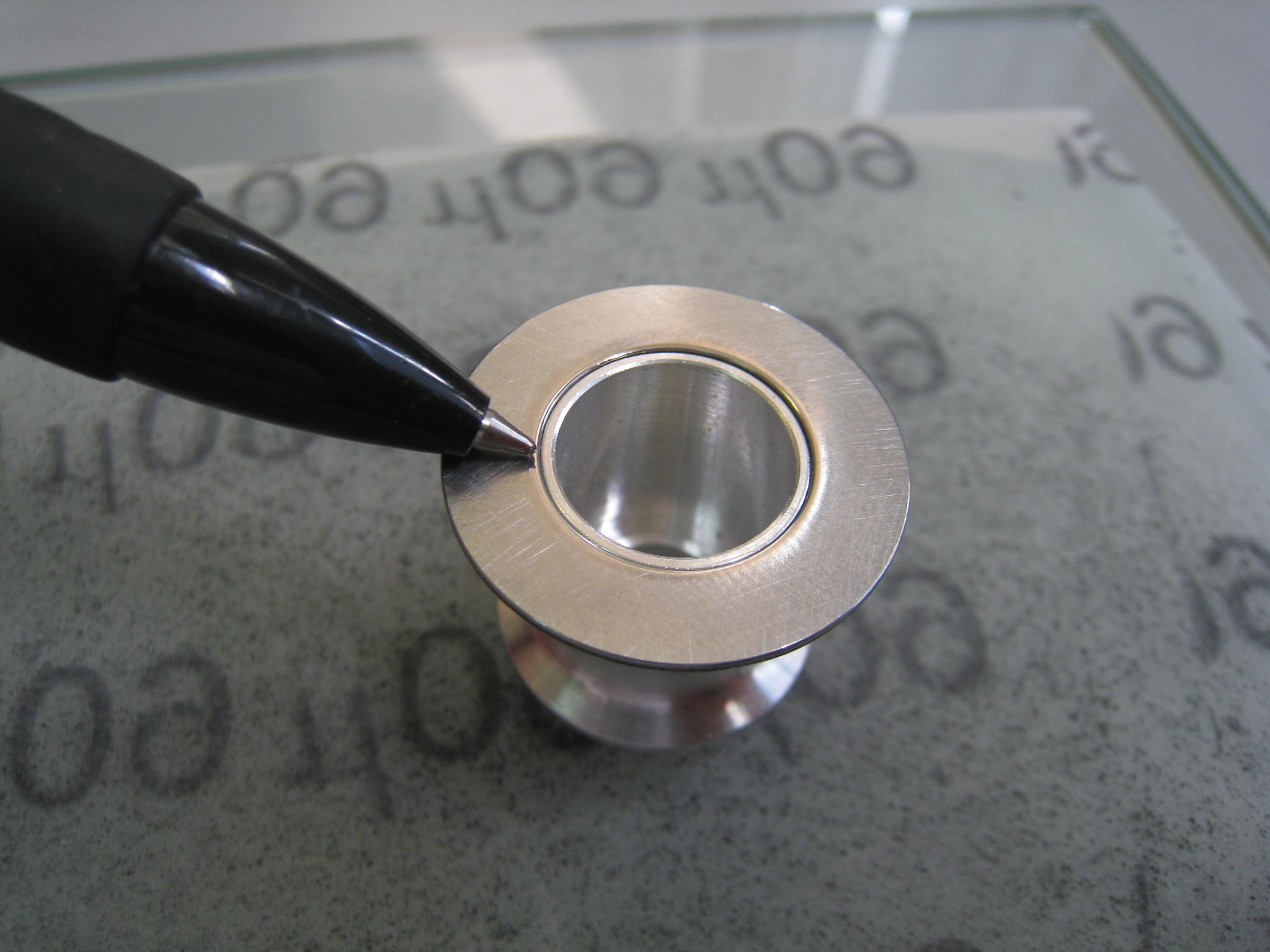

This is the Associated Diff Ring ( 12LW). The ring is “cone”when punched out during in the manufacturing process. So, we need to use the micro finishing film to “grind” it flat.
Besides, we need to gently "rough" the surface, so the steel / ceramic balls can grab on the rings instead of slipping.
We use Micro Finishing film because it provide a better Bearing Surface area on the diff rings than conventional abrasive sand paper. But, it is a bit costly.

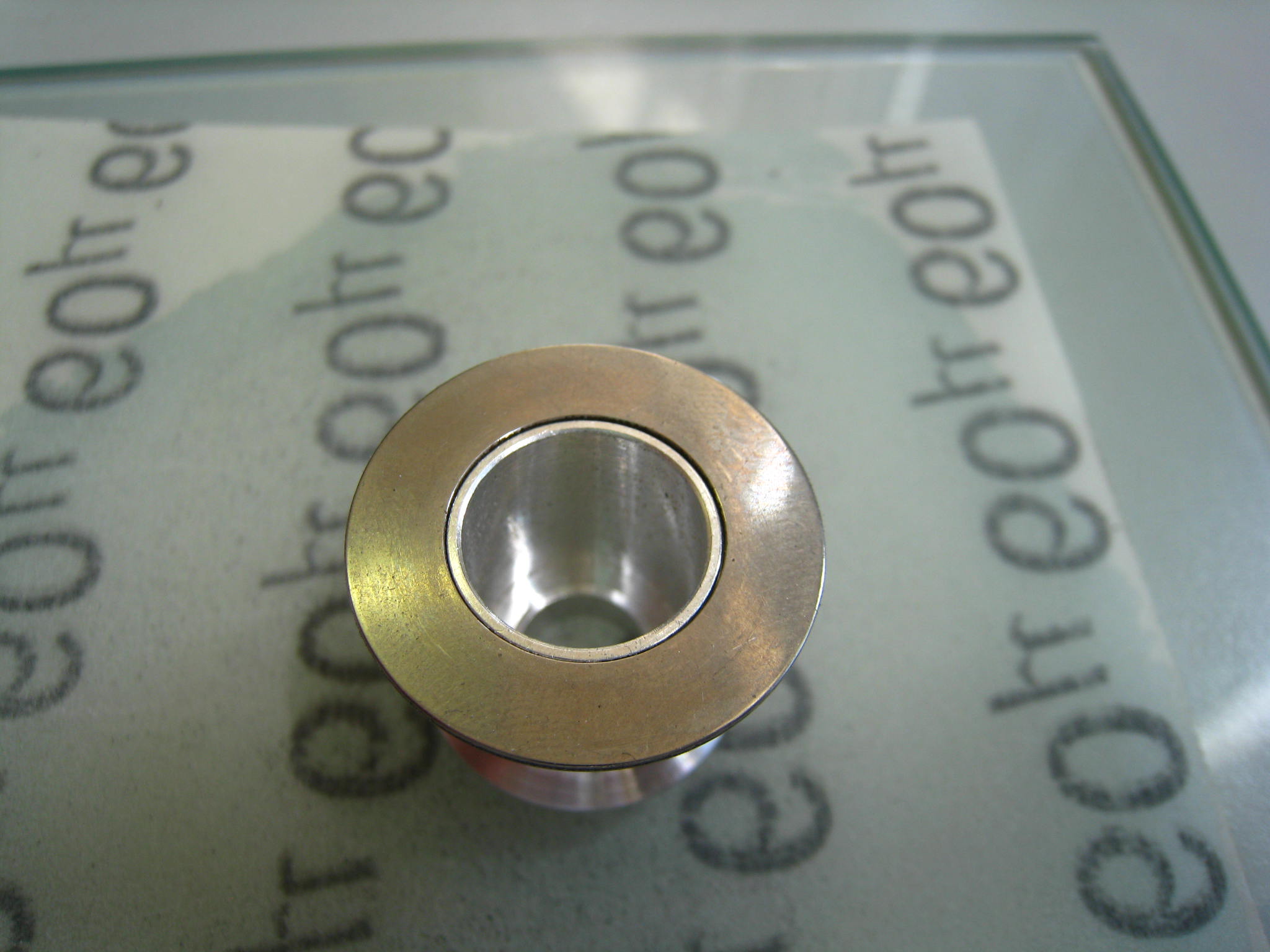

You diff now run super smooth, and you don't need to over-tighten your nut, the balls also last longer.
This is the Associated Diff Ring ( 12LW). The ring is “cone”when punched out during in the manufacturing process. So, we need to use the micro finishing film to “grind” it flat.
Besides, we need to gently "rough" the surface, so the steel / ceramic balls can grab on the rings instead of slipping.
We use Micro Finishing film because it provide a better Bearing Surface area on the diff rings than conventional abrasive sand paper. But, it is a bit costly.
You diff now run super smooth, and you don't need to over-tighten your nut, the balls also last longer.
- Attachments
-

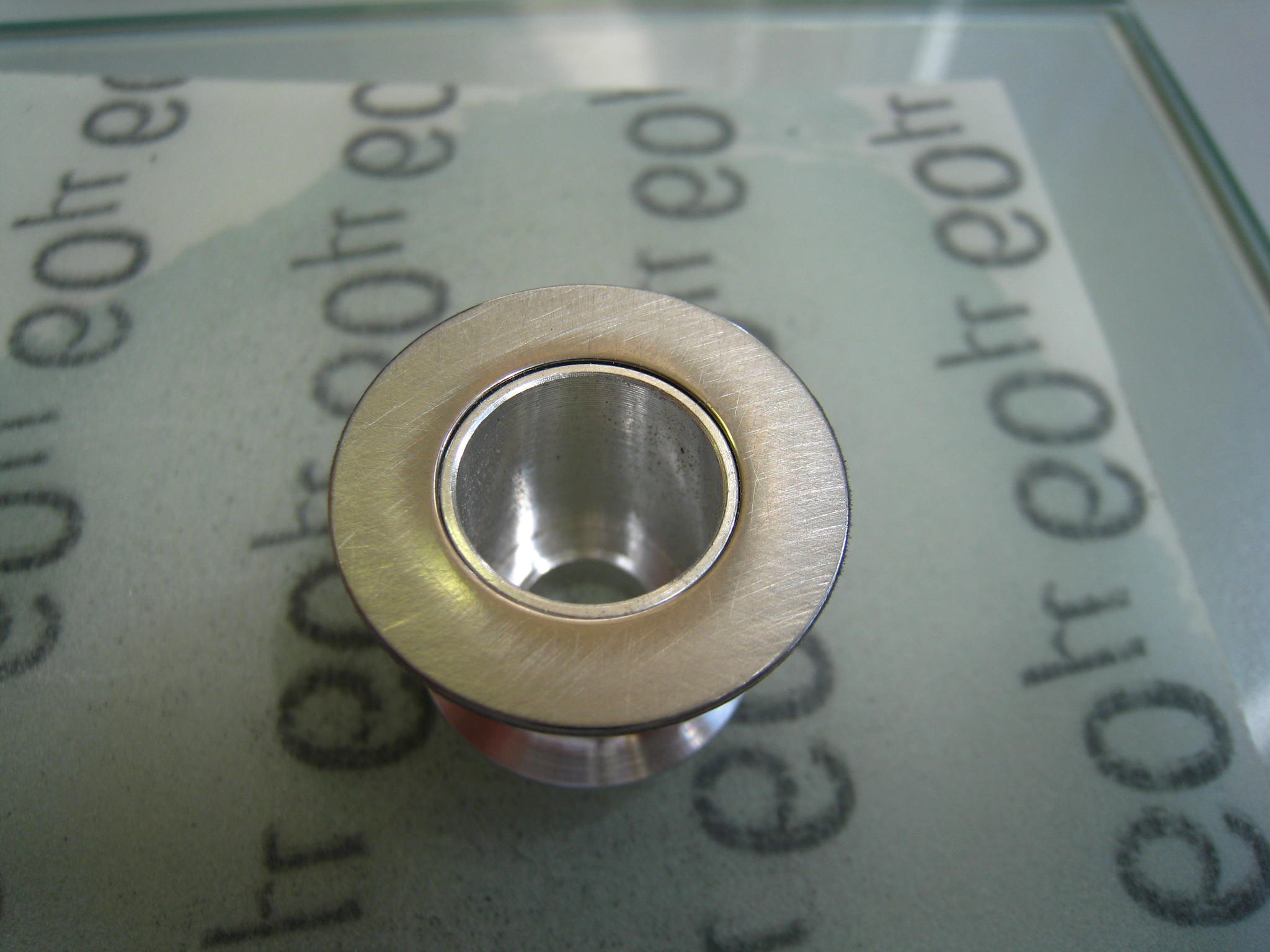

- Spray water mist on the glass surface, place the 60um grit micro fin. film on it. So the film is “sticked” on the glass.

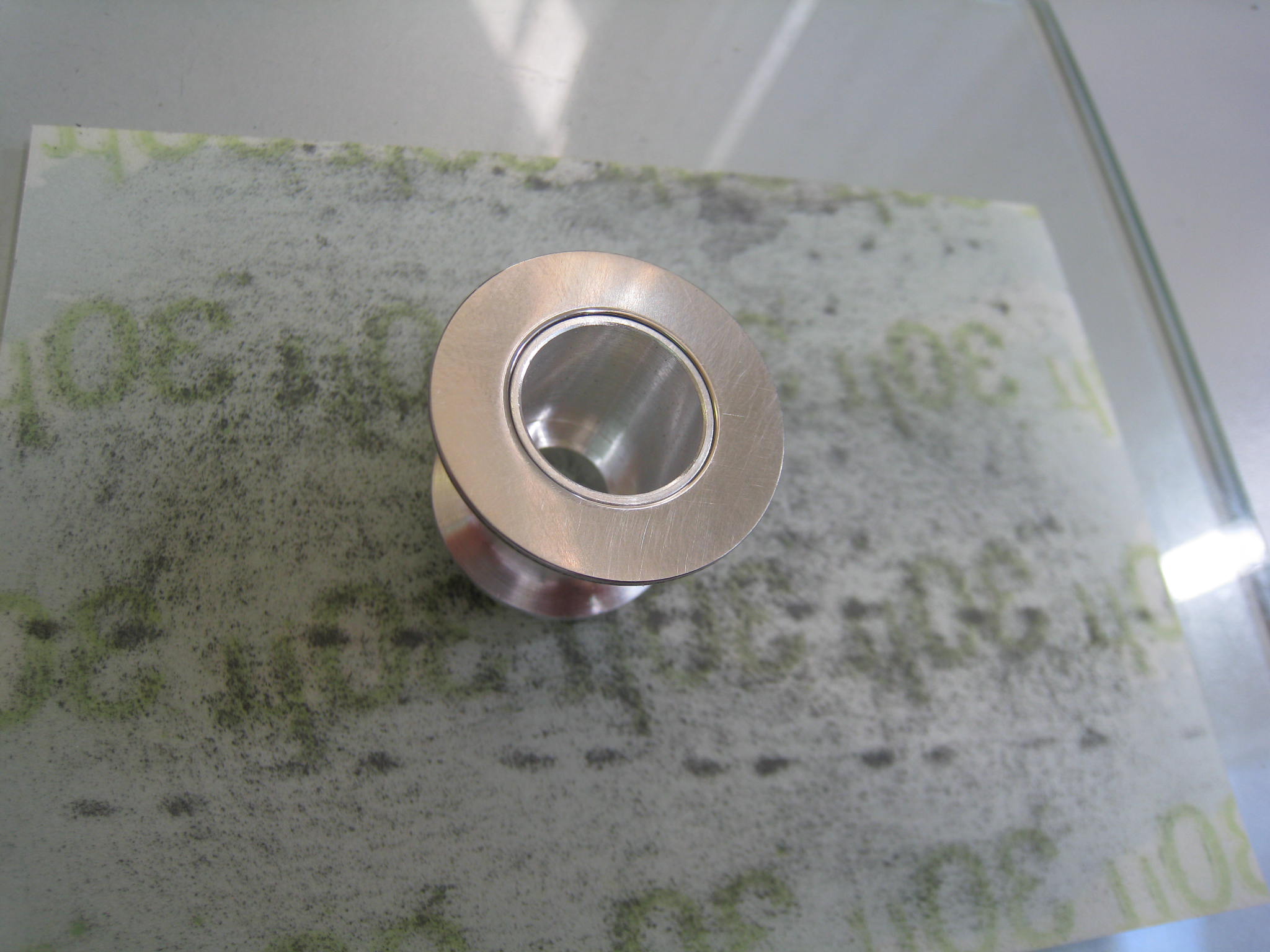

You can spray water mist on the micro fin. film, or just use it in dry grinding. You should use the “figure 8” motion to grind the ring, Do not use the ‘circular’ motion, because this will not “flat out” the ring surface.
- bscotti
- Approved Member
- Posts: 617
- Joined: Fri Jul 14, 2006 9:48 am
- Location: Freeville, NY
- Been thanked: 1 time
Re: diff ring polish
thanks for posting this. I knew that diff rings needed some work to make them flat, but I didn't realize just how bad the stock part is.
Classics rule, moderns drool
- Brandon G
- Approved Member
- Posts: 2106
- Joined: Mon Oct 01, 2007 4:23 pm
- Location: Nashville, TN
- Been thanked: 2 times
Re: diff ring polish
Nice write-up.
I do this to all of my diffs and they stay smooth for a very long time. I use 400 grit sand paper to get it flat, then go to 800 grit to finish it off. My Vonats RC10 was done like this, and afetr about 4 hours of runtime, it still feels like butta...
I do this to all of my diffs and they stay smooth for a very long time. I use 400 grit sand paper to get it flat, then go to 800 grit to finish it off. My Vonats RC10 was done like this, and afetr about 4 hours of runtime, it still feels like butta...
- Group B
- Approved Member
- Posts: 220
- Joined: Fri Dec 05, 2008 5:40 pm
- Location: S.F. East Bay/Tri-Valley
Re: diff ring polish
Simichrome metal polish works great for finer work, and Wenol works pretty well for more coarse of work.
Associated: RC10T - "Baller Truck" ~ Red Bull SC10 - "Sucker Free" ~ RC10T - "Teh Shelfer"
lowrydesign celebrates the entire Tecnacraft wheel collection
I celebrate Worlds Chassis and Steering Enhancement Kits
lowrydesign celebrates the entire Tecnacraft wheel collection
I celebrate Worlds Chassis and Steering Enhancement Kits
- notme
- Approved Member
- Posts: 120
- Joined: Thu Sep 10, 2009 12:56 pm
- Location: Kamloops BC Canada
- Has thanked: 9 times
- Been thanked: 8 times
Re: diff ring polish
Thanks for the tip. This should help salvage hard to hard to find dif rings for our antiques....including my mr4bc-s.
Bernie Casey
My vintage collection, rc10, rc10 ce, turbo optima ,xls, storm ,jrx2,jrx pro, xxt, inferno mp3
My vintage collection, rc10, rc10 ce, turbo optima ,xls, storm ,jrx2,jrx pro, xxt, inferno mp3
Re: diff ring polish
There is a guy in Ohio doing this for most of the late model cars b4,b44,rb5 etc www.bfastrc.com
- camlchris
- Approved Member
- Posts: 240
- Joined: Wed Sep 23, 2009 9:26 am
- Location: Hong Kong
- Been thanked: 4 times
Re: diff ring polish
Why spend extra bucks for something that can be done with your own hands ?covell2 wrote:There is a guy in Ohio doing this for most of the late model cars b4,b44,rb5 etc http://www.bfastrc.com
- LowClassCC
- Approved Member
- Posts: 888
- Joined: Wed Mar 25, 2009 12:08 am
- Location: Mauckport, Indiana
- Has thanked: 89 times
- Been thanked: 104 times
Re: diff ring polish
same reason so many people buy rtr's and not kits these days. i'm right there with ya chris i would much rather do as much as i can myself and have the extra money to spend on parts i need.camlchris wrote:Why spend extra bucks for something that can be done with your own hands ?covell2 wrote:There is a guy in Ohio doing this for most of the late model cars b4,b44,rb5 etc http://www.bfastrc.com
Re: diff ring polish
To each his own but for about 20 bucks you get carbide diff balls in the package, and if you think that the current associated and kyosho diff balls are of good quality your mistaken. I have run the bfast stuff in my b4 all last year and have not touched the diff not once.
- camlchris
- Approved Member
- Posts: 240
- Joined: Wed Sep 23, 2009 9:26 am
- Location: Hong Kong
- Been thanked: 4 times
Re: diff ring polish
US$20.00 for the ring + carbide balls ? I think, I can offer u the rings + ceramic balls at this price.covell2 wrote:To each his own but for about 20 bucks you get carbide diff balls in the package, and if you think that the current associated and kyosho diff balls are of good quality your mistaken. I have run the bfast stuff in my b4 all last year and have not touched the diff not once.
Re: diff ring polish
really I have never run ceramic diff balls are they good? I would like to try them.
- camlchris
- Approved Member
- Posts: 240
- Joined: Wed Sep 23, 2009 9:26 am
- Location: Hong Kong
- Been thanked: 4 times
Re: diff ring polish
I used the carbide balls before ( from AE) on my 1/12 CRC Gen.X , but they don't last long. ( I think, they last for appox. 20 to 30 times of 8 minutes run).covell2 wrote:really I have never run ceramic diff balls are they good? I would like to try them.
Then I switch to cermaic balls , now over 30 times of 8 min. run, still in perfect condition ! Super smooth ! More importanly, it cost less than the AE carbide balls. i got from the LHS the cermaic balls is just around US$ 8.00 for 8 or 10 balls ( i forget how many balls in the package. )
In the buggy application, I am not sure if this work out great like the 1/12 on road. As the buggy suffer a lot a force from jumps on the ramp.
Re: diff ring polish
They might not last as long who knows. When I used to run pan cars back in the late 80's they used to make ceramic diff rings and they where extremely expensive. Pretty sure the associated carbide diff balls are chinese in origin and are no where near the quality they used to be.
-
- Approved Member
- Posts: 1116
- Joined: Tue Feb 05, 2008 6:37 pm
- Location: Donkin, Nova Scotia, Canada
- Has thanked: 7 times
- Been thanked: 41 times
Re: diff ring polish
I've been running the same 12 ceramic diff balls in my B4 for 2 years now, they last a little while I haven't gotten around to doing the diff ring sanding, thrust ring sanding, ceramic everything yet but that was a good start and a noticeable difference.
Re: diff ring polish
Yup, brandon did my diff too, I freshened it up with new lube after I got home from the VONATS and it's back to buttery smooth goodness! I've never ran as many battery packs through a car at one race as I did at the VONATS, I wish I would have brought more tires!! (Thanks Hoopty for helping me out with some!!!)Brandon G wrote:Nice write-up.
I do this to all of my diffs and they stay smooth for a very long time. I use 400 grit sand paper to get it flat, then go to 800 grit to finish it off. My Vonats RC10 was done like this, and afetr about 4 hours of runtime, it still feels like butta...
Mark
Aaaaahhhh crap! I'm about to get passed by that orange truck!
Aaaaahhhh crap! I'm about to get passed by that orange truck!
