Alluminum & Carbon fiber Build Update

[myfordcnc]

Super pised I missed the auction with those ds aluminum arms. I was half thinking of making this into n alloy ds. Price was not the problem, just missed the date. Hopefully when and if I make the bst I'll have an opportunity to get them or the like.
Speaking of which did any from this board get that mip? You know what I'm talking about. I want to see pics from the internals

[jwscab]

looks like it's gonna be an awesome build!

yes, there is some difference between early and late bulkheads, in the area where the trans brace bolts up. with an aluminum chassis, you end up flexing the chassis and the brace roughly the same without a spacer. With a graphite chassis, all the flex is going to be in that trans brace. I would guess the spacer thickness at roughly 1/16"-3/32"


here is a pic of my car with a shim under the brace.

[lexus-5]

Just thinking these would look much cooler than those CF shock towers...just say'en

http://www.ebay.com/itm/140930634986?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649

[myfordcnc]

already got a set from you Lexus. I'm thinking about it.

[GoMachV]

Here is the andys vs stock.

[aeiou]

Here's a comparison using a couple of older AE bulkheads (Early/long wing tube version on far right):

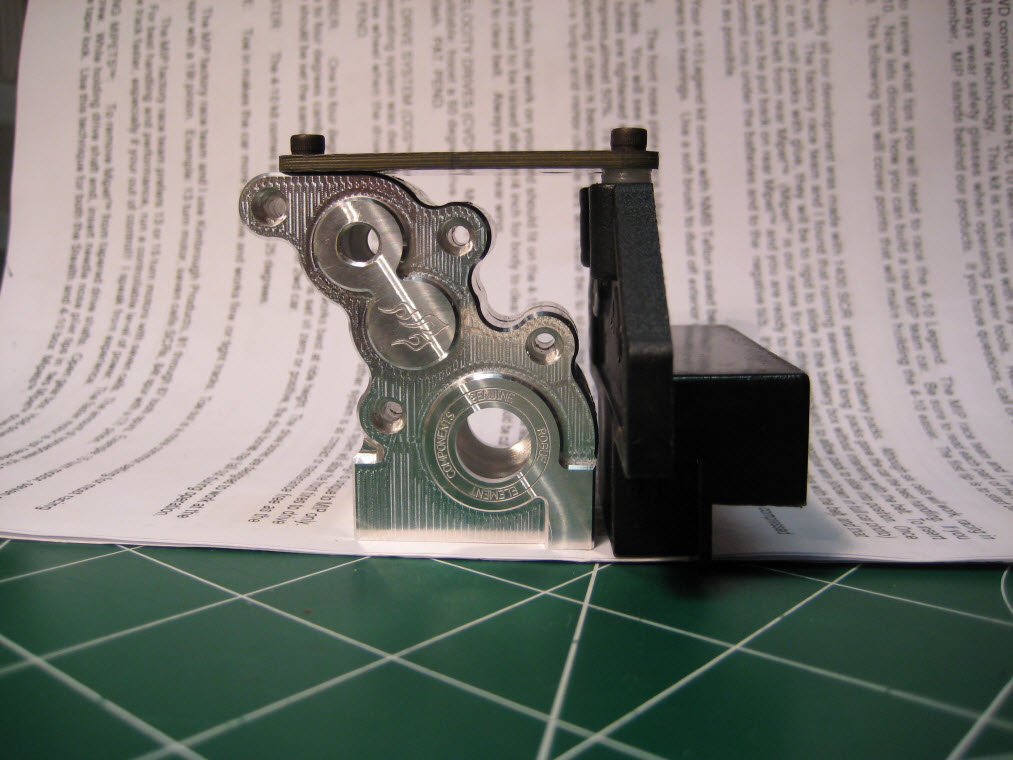

Here's the Andy's bulkhead connected to an REC gearbox with AE graphite brace and included spacers:

I'm not sure what's up with your situation gomachv, but I know you purchased that bulkhead from me on eBay, so I'll take care of you. Let's take it to PM and give this man back his build thread.

[myfordcnc]

some progress. Parts made are the rear wing mounts, battery posts, shock bases, transmission risers, Washers for shock off sets and an idea for body mounts (ribbed for some one's pleasure) trying to give a theme using the spacers used on the rogue transmission spacers. Just a mock up at this point.

[kink]

Beautiful

[THEYTOOKMYTHUMB]

Beautiful

Indubitably!

[DMAT]

those look like rpm arms on the car, what carriers fit that?

[myfordcnc]

Yes they are RPM arms. Got the c-hubs on ebay sold as "ALUMINUM FRONT C-HUB HUBS CHUB B TEAM ASSOCIATED RC10GT RC10 GT RC 10GT ALLOY" by rcdamper. I don't know if they really will work yet as they are blocked up when in full upright position. Might have to remove a small amount of material on the front arms to make room for toe in.

[chophead69]

Seeing your rc10 made me blow the dust off mine and join this forum so i could get help with my build.i have the same rc10 graphite with the stealth tranny.my car has a story but that a long one lol.anyway your car is awsome if only they had parts like this when i first got mine.can you tell me what servo mounts did you use? Thanks

[DMAT]

Im willing to bet its mostly rc10 gt parts.

[myfordcnc]

Yep most of the blue stuff is gt stuff including the servo mounts. I'm going to make a different set that is going to match the battery posts and wing mounts I made. Glad to here that chophead.

[chophead69]

I am a machinist by trade but now thNks to no work where i live i have no access to a lathe or mill but i am buying parts as i find them.as soon as i can i am going to start my build thread and post pics.i cant wait to see how your fornt and rear works out.
