Parma Reverse Kit.

[PTModIT]

Hi, I found my Parma reverse kit. Does anyone have a picture to see what it should look like installed on a RC10. Thanks.

[templeofspeed]

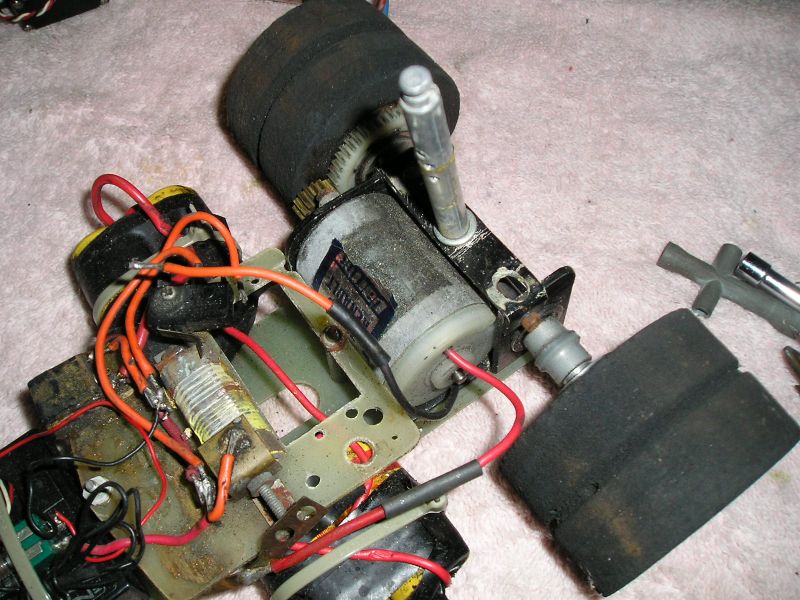

No pics on an RC10 but here's one "installed" on a 1/12th car:

The ones I've usually seen and removed were an ugly mess of poor soldering and a rat's nest of wiring...

Of course ymmv...

[PTModIT]

Thanks for the pic. That one has a micro switch ,which I original had way back when .This Parma setup doesn't have that. I 'd rather have the microswitch setup ,but I forgot how I put it in. Thanks.

[rctenracer]

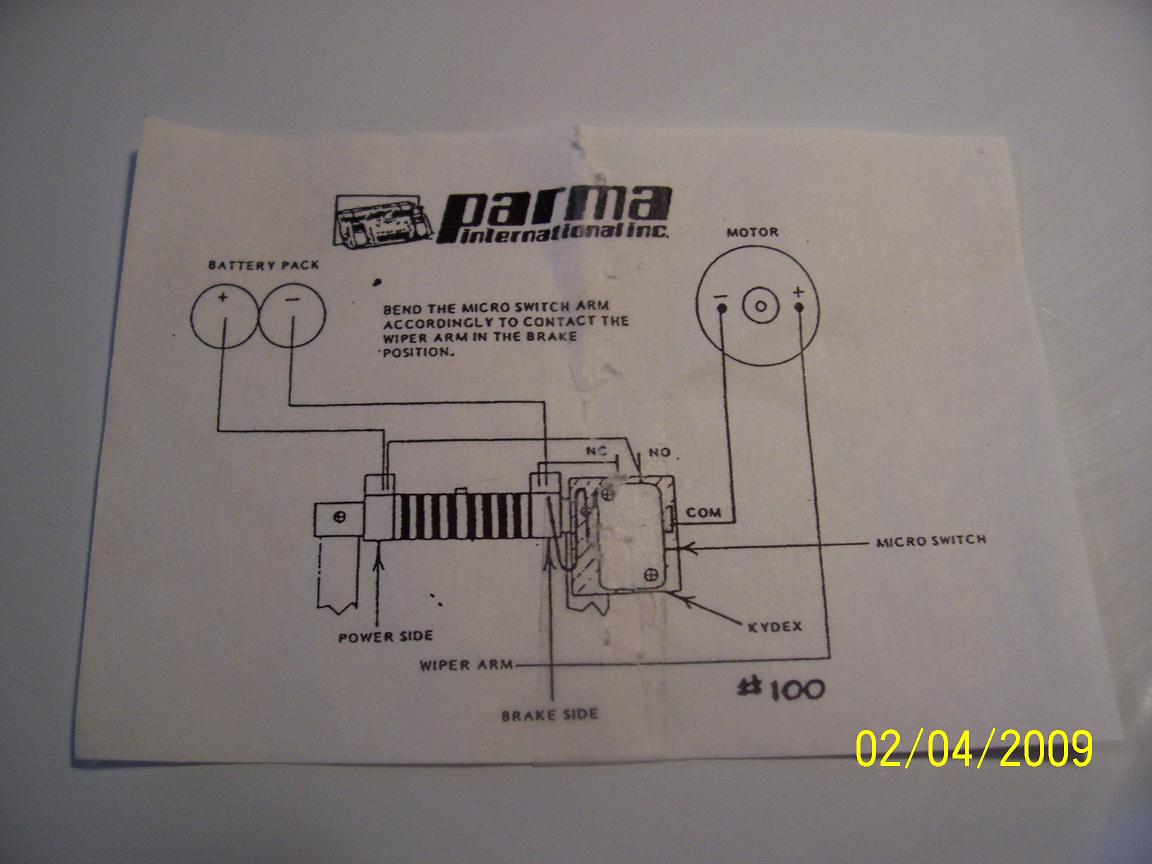

I have new parma reverse switch that I have had for years just never mounted it . Hope this pic will help. Just mount the kydex to the speed control them mount the switch bend the arm as shown i pics to contact the wiper arm. Wire up as the pics say good luck I hope this helps you out.

[PTModIT]

Now thats bring back memories of how I did it. Thanks.
