1993 WCS ‘Faux-komo’ Repo 3d printed & Non-OEM Parts

[Toaster]

So it was quite literally ‘just’ high enough to accommodate the diff cover etc. I still might use some washers but we shall see closer to final assembly.

[Toaster]

Throwing a couple more pieces together just to see what it looks like, love how it is coming together.

[Toaster]

The battery post holes were too shallow so I marked off the depth of the existing hole from an original with masking tape and proceeded to drill out the holes (high speed, low pressure)…like butter lol

[Toaster]

I believe the original WCS had black battery posts but this is more of a proof of concept car at this point. Just be careful when screwing in the posts, they are VERY easy to strip, slow and steady.

[Toaster]

A couple more minor bits came in the mail today, waiting on a couple before I post a full update picture but the arms I have to say came out amazing!!!

[Toaster]

Another quick update after getting the motor mount all the way from Thailand. Quality and fit are perfect, I would say the only downside was the cost at around $80USD before shipping.

I will also update this soon with the eBay user I’d in case someone else stumbles across this post one day HOWEVER I believe the same entity is on Facebook and might be less expensive through that.

[Toaster]

Some more mock up with Pavidis style rear 3d printed arms with rear diff and rear belt in to get a sense of fitment.

[Toaster]

Might help if I put the arms on the right way lol, digging through boxes to see if I have any hinge pins that will work, expect another update soon

[cas22]

What an awesome looking build, looks fantastic, Stephen from fibrelyte is seriously helpful, Deal with him occasionally.
Will keep watching with interest.

[RyanTQ10]

So far it is looking awesome. It is very similar to what I did with my yz10.

[Toaster]

Thanks so much for the kind words, learning a lot trying to find non-oem pieces which has been challenging and rewarding all at the same time.

Came to realize that I completely screwed up the arms, if you look at my previous pictures they are actually 2 sets of front arms…ugggg
Thankfully I had an older set of correct rear arms to use as semi-placeholders until I can locate the rears via a 3d print option.

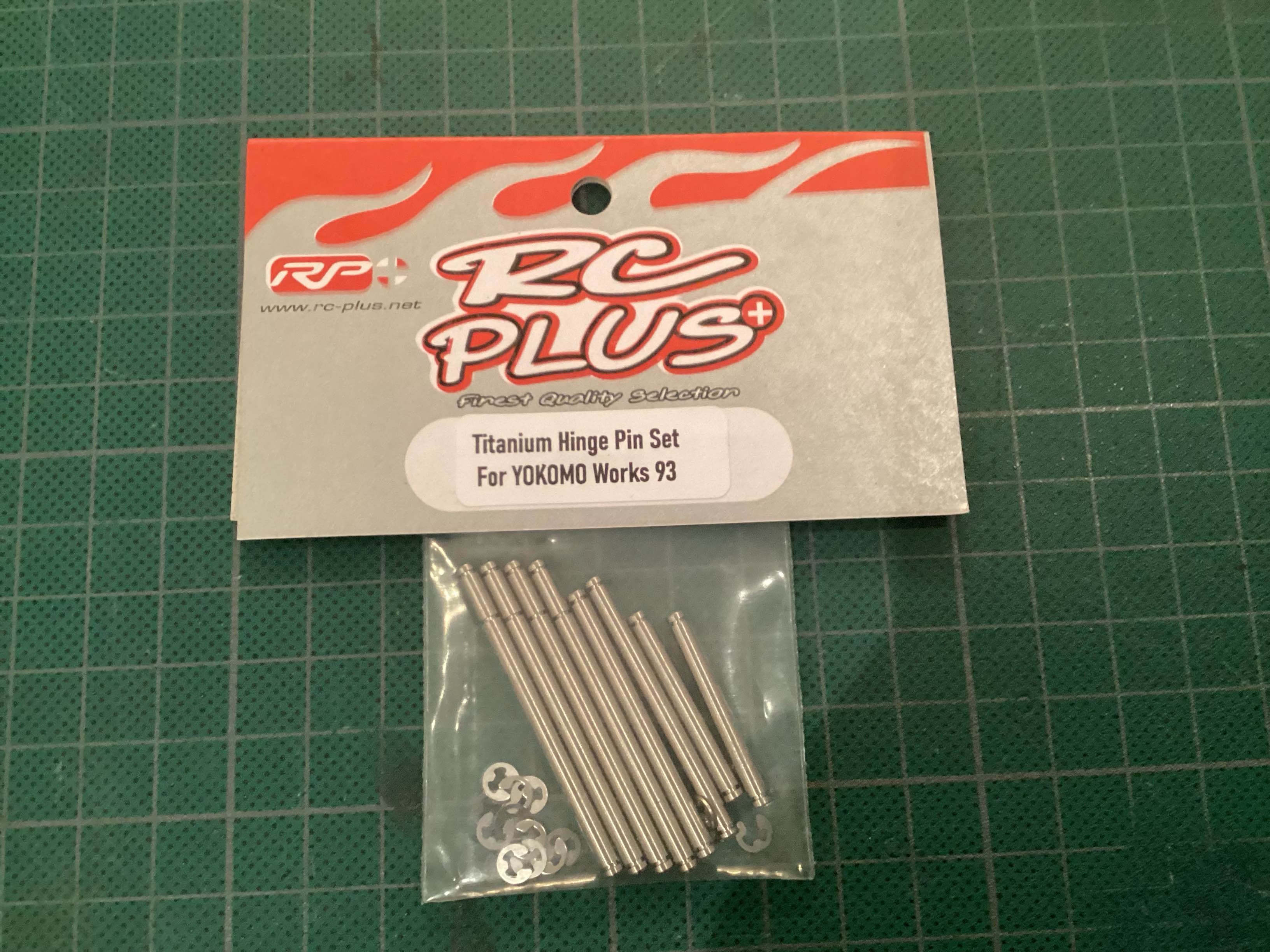

Friends in Thailand again came through, hinge pins seem pretty hard to find, these 93’s are the closest I could find BUT once fitted they are actually about 1mm to short…not sure if its the arms or the incorrect pins but either way good enough for now but I will likely shave down the arms just slightly to get the remaining eclips on.

[Toaster]

Coming together! I am starting to run out of non-oem parts but I’ll see how much farther I can get, stay tuned!!!

[mikea96]

Looks awesome

[Toaster]

Found some non-OEM team Suzuki bits….they are still more placeholders than anything else while I continue to look for 3d printed versions in the future.

[Toaster]

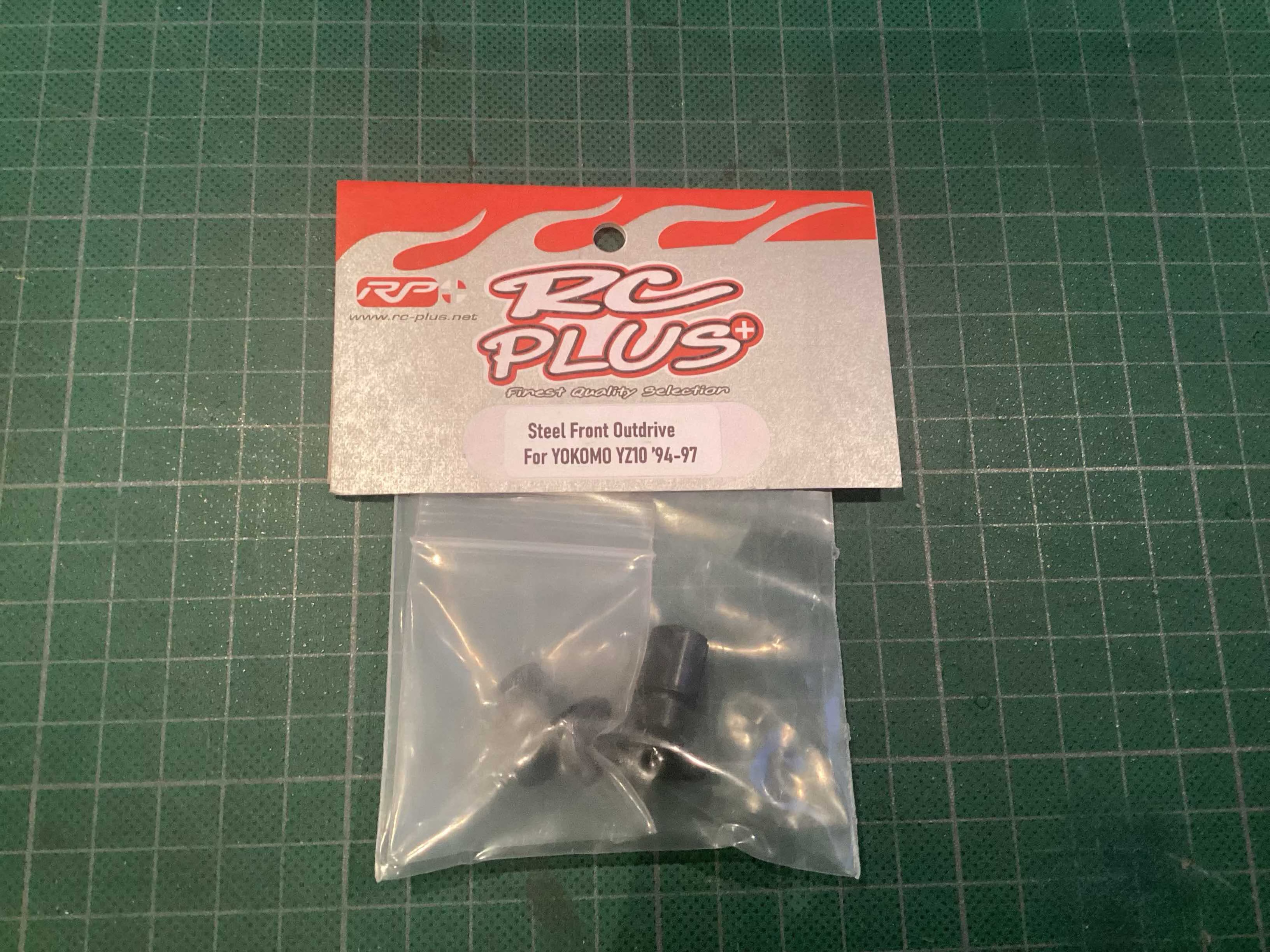

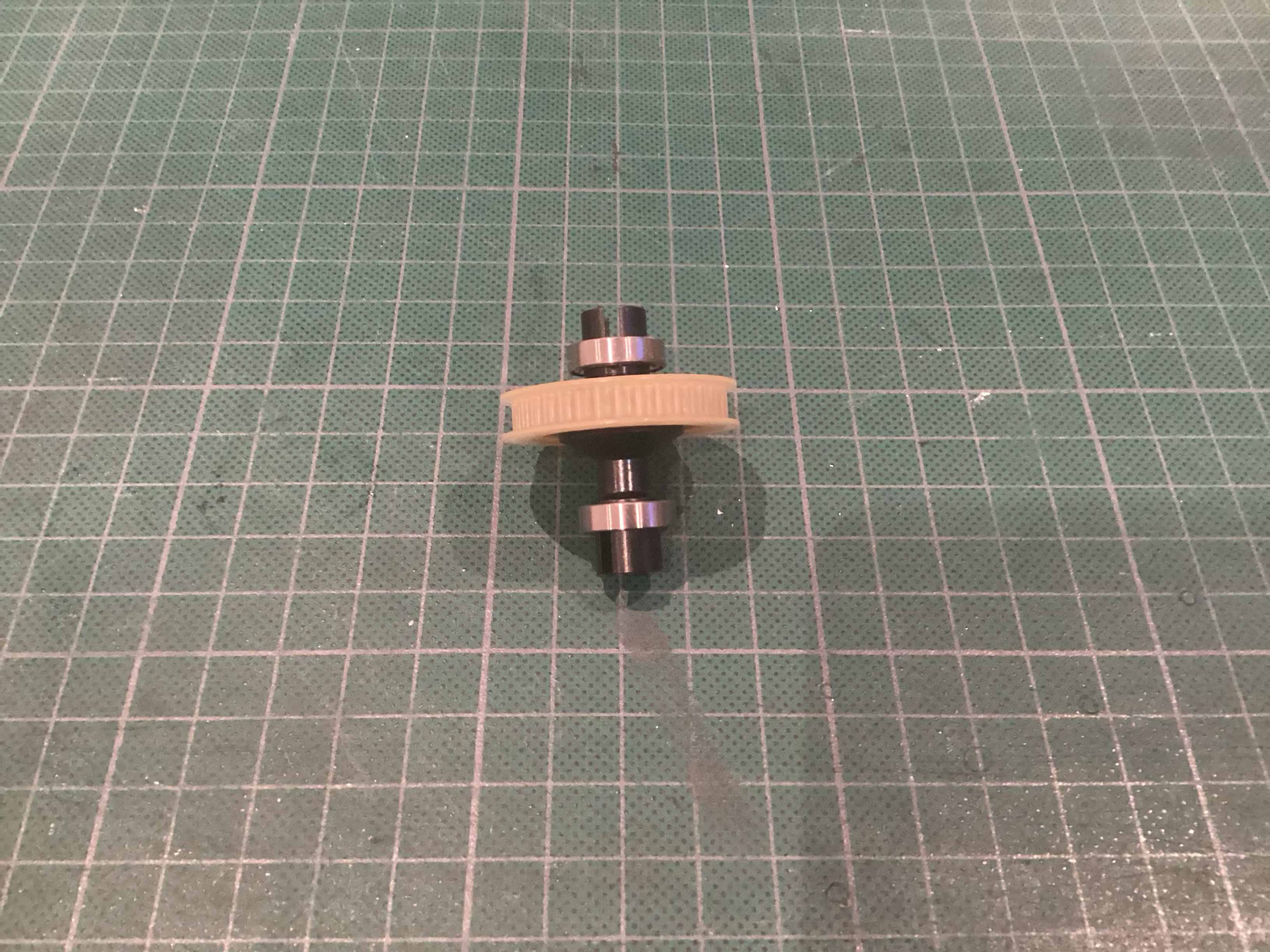

The friends from Thailand came through again with the hard to find front diff bits. Honestly I think at this point almost all the hard to find parts have been built by them. If they are reading this, I cannot thank them enough for producing all these parts!

In full transparency the diff rings are not the same fitment on the new outdrives and I’ll replace them if I can find the correct ones.

Once completed and mounted it was a tight squeeze to get it in, had to loosen some screws but jamming it in and realized the belts I have are definitely not correct…another thing to look into. The 3d printed bits as you can see in one of the pics with the gap aren’t quite as forgiving but I am hoping once I mount the top plate and screw it all in, everything will fall into place.
