Unknown chassis / trailing arm

[lmw94002]

I'm guessing it's an MIP trailing arm, but the tower looks different and the aluminum crossing piece looked different. And the chassis is along, just about constant width chassis for a 6gear AE tranny. Plus I don't think I've seen the MIP trailing arm kit in graphite?

[Phin]

The graphite arms are original MIP parts but the aluminum plate they're mounted on is custom. The shock tower is MIP too but those cut-outs are custom. The narrow chassis is from Composite Craft or Trinity (both resold the same chassis).

[Jerzi]

I also have those carbon arms and some body told me that a&l didnt make out of carbon those arms.
So whats the truth??
Jerzi

[GoMachV]

A&L never made carbon arms. Always pressure cast aluminum

[Phin]

Just to be clear, those arms are MIP not A&L. MIP made the arms in fiberglass and graphite.

If you need proof here's the the instruction sheet....check out the box under the part's list.

http://www.rc10talk.com/viewtopic.php?f=82&t=28429&p=292195&hilit=MIP#p292195

[aip47-2008]

Just to be clear, those arms are MIP not A&L. MIP made the arms in fiberglass and graphite.

If you need proof here's the the instruction sheet....check out the box under the part's list.

http://www.rc10talk.com/viewtopic.php?f=82&t=28429&p=292195&hilit=MIP#p292195

I have had them in Graphite. Assoman bought them from me years ago

[Lonestar]

whatever it is, it's awesome

Can someone please explain how the rotation axle of the arms can be perpendicular to the chassis, with this alloy block not being "in-line"? Where is the bend?

Thanks!
Paul

[Phin]

I have had them in Graphite. Assoman bought them from me years ago

I actually have a set in graphite too.



The rotation of the arms happens inside the aluminum blocks. While they look like straight trailing arms they're actually semi-trailing arms because the blocks are not at a 90 degree angle to the arm. As the arm travels up the camber and toe of the wheel changes.

[Lonestar]

I have had them in Graphite. Assoman bought them from me years ago

I actually have a set in graphite too.



The rotation of the arms happens inside the aluminum blocks. While they look like straight trailing arms they're actually semi-trailing arms because the blocks are not at a 90 degree angle to the arm. As the arm travels up the camber and toe of the wheel changes.

WOA

Some crazy suspension cinematics right here!!!

If someone has a set for sale, I'd happily buy it and build it to learn how this works! These are some insane angle changes on compression

[lmw94002]

I'd be willing to part with the arms/bracket/tower (not the chassis right now) pictured... I'll send you a PM

[lmw94002]

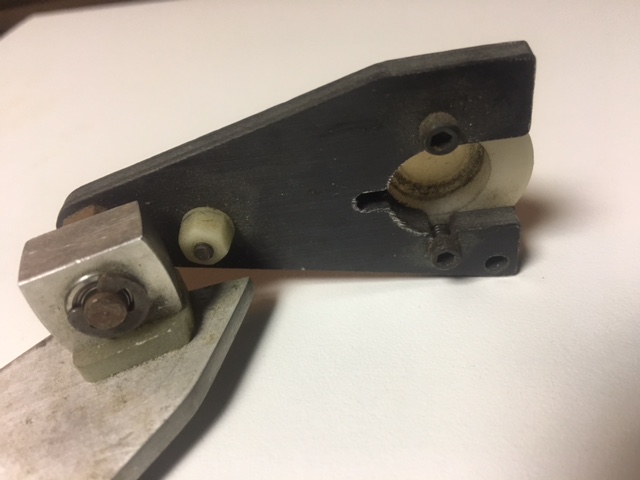

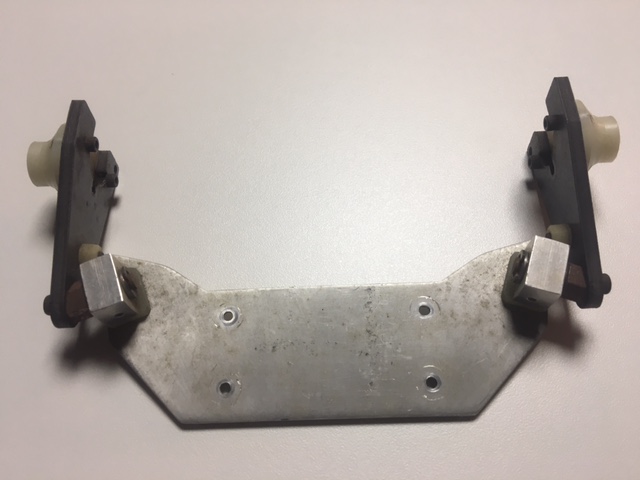

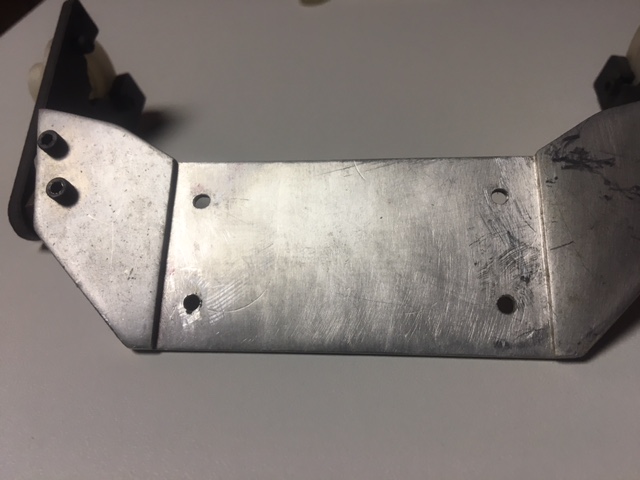

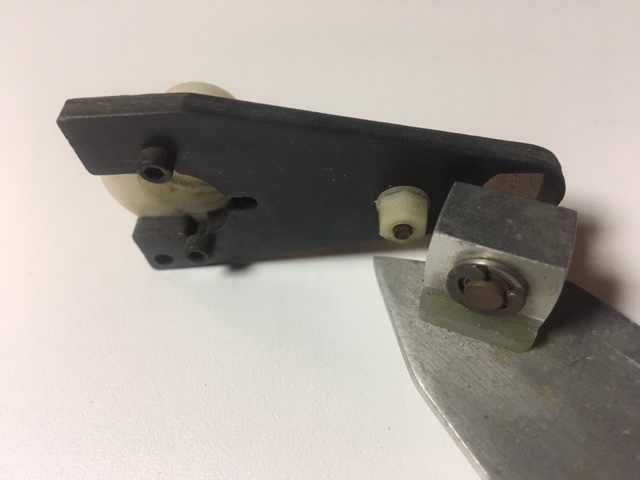

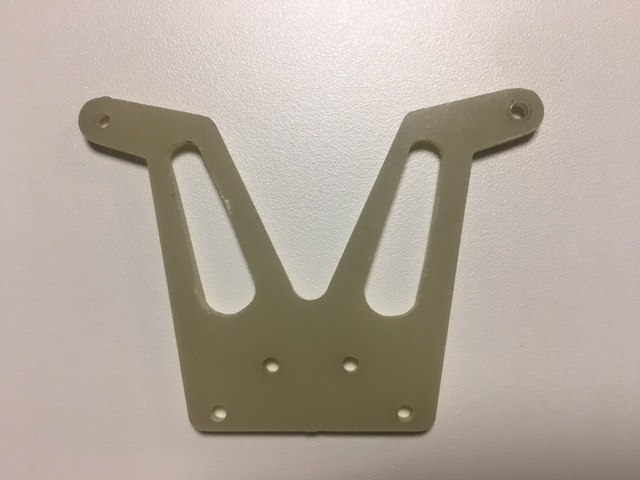

More detailed pics of what I got with this...
