Receiver wiring help

Post by HairTrigger »

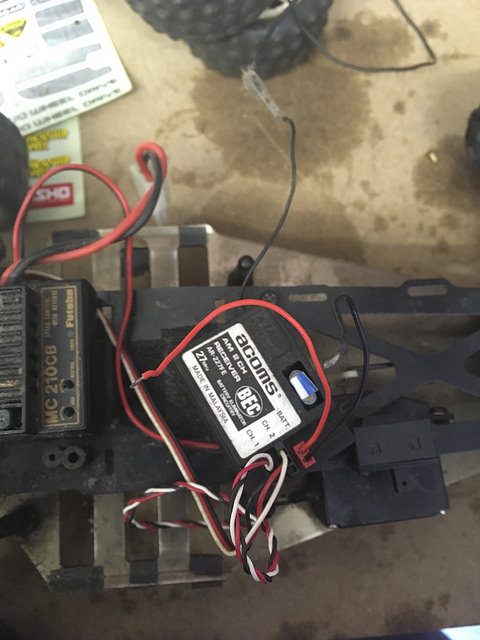

Newbie question: what are these two black and red wires supposed to be connected to?
They come out of the receiver with the slot marked "batt."
I presume that is short for battery so do I need to run another small battery
just to these two wires? Or do they somehow connect to the main battery?

I've tried looking at pictures but can't find another setup that looks the same.
(Pics to follow)
Attachments
Ongoing Project: Ultima Pro

clm
Approved Member
Posts: 942
Joined: Wed Aug 07, 2013 5:25 am
Location: Oregon Coast
Has thanked: 100 times
Been thanked: 205 times

Re: Receiver wiring help

Post by clm »

That looks to be a simple 2 pin plug that goes to a receiver pack. I would assume someone plugged it in then cut off the wires, you should be able to unplug the lighter colored connector?

As that is a BEC receiver you should not need it if your esc provides adequate power
Losi - Jrx2, Pro, Jr2, Pro SE, JrxT, JrT, LXT, NXT, XXKE, XXTG+
Mini - T, LST, LST2, Crawler
Micro - Trekker, SCT, T
Crawlers - Trx4 Defender, Bootleg Bruiser Shelf Queen
-Bashers under contruction- Jrx2

User avatar
jwscab
Approved Member
Posts: 6570
Joined: Wed Jan 28, 2009 9:42 am
Location: Chalfont, PA
Has thanked: 16 times
Been thanked: 498 times

Re: Receiver wiring help

Post by jwscab »

Yes, with the ESC providing power to the recievers, you can unplug that pigtail. It was cut or ripped off.

User avatar
HairTrigger
Regular Member
Posts: 5
Joined: Wed Jun 08, 2016 2:22 pm
Location: Cleveland UK

Re: Receiver wiring help

Post by HairTrigger »

Right! Thanks for clearing that up. Trying to trouble shoot why the
car wasn't running, but ended up being mismatched crystals running
on different bands! :roll:
Ongoing Project: Ultima Pro

SiRacer420
Approved Member
Posts: 121
Joined: Fri May 06, 2016 10:01 pm
Location: New Orleans
Been thanked: 3 times

Re: Receiver wiring help

Post by SiRacer420 »

Ahhh crystals. Nope don't miss em lol
