Aluminum NIX91 Kits - Orders Now Accepted!!!

[Seabass]

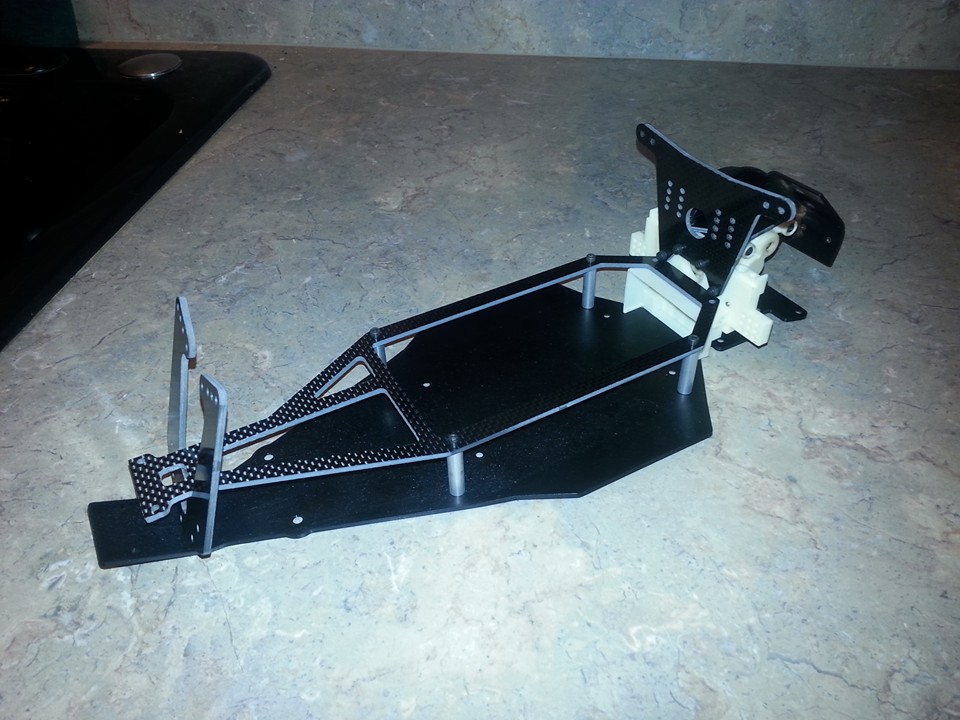

Orders are now accepted for the Aluminum NIX91 kit. The kits features many of the same parts found on the Carbon Fiber version but we added an aluminum lower chassis machined from 7075T-6 aircraft aluminum which is hard anodized black. The kit contents include the following parts.

NIX91-034 - 25 Degree Chassis (Aluminum)
NIX91-017 - Upper Deck (Carbon Fiber)
NIX91-015 - Front Shock Tower (Carbon Fiber)
NIX91-038 - Rear Shock Tower (Carbon Fiber)
CNCRC-006 - Tranny Brace (Carbon Fiber)
CNCRC-004 - Aluminum Chassis Stand Off (4pcs) (Non-tapered)
CNCRC-001 - Front Bumper
8-32 Small pattern Nuts (2 pcs) - Used to secure steering bell crank hardware to the chassis

The rear shock tower on this car has been designed to use existing B5M wing mounts instead of the aluminum bullet wing mounts found on the Carbon Fiber version.

CURRENTLY ACCEPTING ORDERS.

The cost per chassis kit will be:

$135 shipped in the US.

$145 shipped Overseas.

Orders can be processed through private message here or if you are not a member of the forum, my email address.

[email protected]

[Seabass]

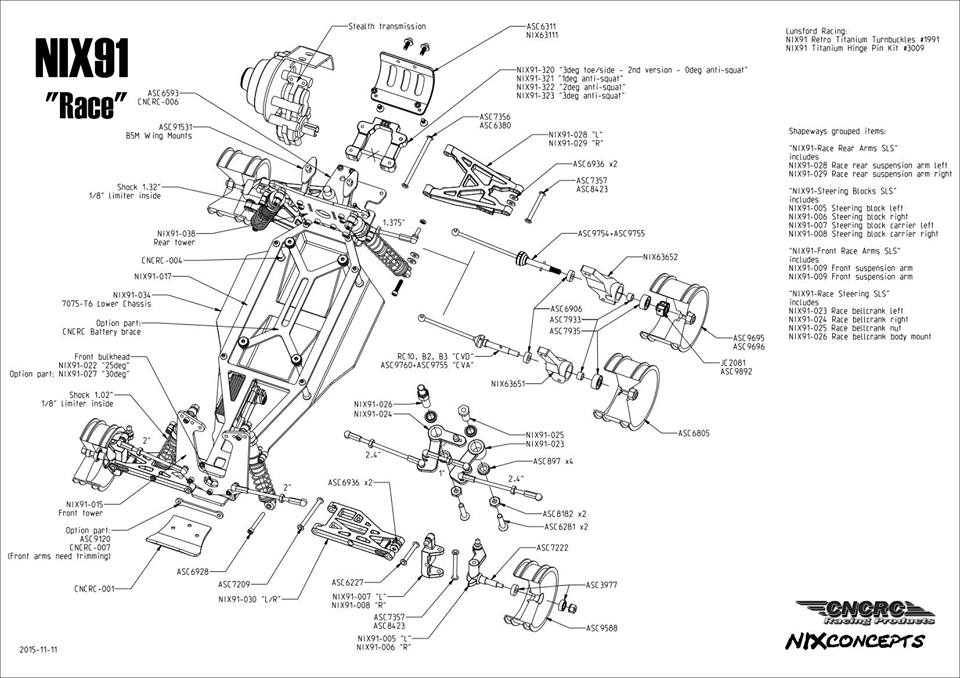

You will need an RC10 roller to be used as a donor. Additionally, you will need the following Nix91 specific parts to complete your buggy. Pay very close attention to part numbers as there are a couple different versions out there. These are the part number you will need for the aluminum buggy.

NIX91-022 Front Bulkhead
NIX91-023 Race steering bell crank left
NIX91-024 Race steering bell crank right
NIX91-025 Race steering bell crank nut
NIX91-026 Race steering bell crank body mount
NIX91-005 Steering block left
NIX91-006 Steering block right
NIX91-007 Steering block carrier left
NIX91-008 Steering block carrier right
NIX91-030 Race front suspension arm
NIX91-028 Race rear suspension arm left
NIX91-029 Race rear suspension arm right

There are several variations to the rear arms mounts, I recommend getting all versions which will aid in tuning your car.

NIX91-320 Race rear arm mount (3deg toe-in/side & 0deg anti-squat)
NIX91-321 Race rear arm mount (3deg toe-in/side & 1deg anti-squat)
NIX91-322 Race rear arm mount (3deg toe-in/side & 2deg anti-squat)
NIX91-323 Race rear arm mount (3deg toe-in/side & 3deg anti-squat)

These parts can be sourced through Shapeways or IMaterialise.

https://i.materialise.com/shop/designer/nixconcepts

http://www.shapeways.com/shops/nixconcepts

[Seabass]

If you are looking for turnbuckles and hinge pins, Kelley Lundsford from Lundsford Racing makes titanium hinge pins and turnbuckles specific to this buggy.

http://www.lunsfordracing.com/mm5/merchant.mvc?Session_ID=0a8d0f7a7c2b6de2f88af78c5f63a766&Screen=CTGY&Store_Code=LUNS&Category_Code=CARS-NIX91RC10
