B3 help, or maybe it's a B2, but guy in store said B3 lol
B3 help, or maybe it's a B2, but guy in store said B3 lol
Well, I'm kinda bummed out, I took out my RC10, bought some new NiMH hump packs, a new charger and off I went.
Now, I was told by the local hobby guy that my car will be incredibly difficult to get parts for and I believe him.
It's a B3 (maybe B2) i don't know the difference really, how can I tell?
Anyways, the other day I was taking it for a light spin across the parking lot and front left wheel collapsed.
Now I'm assuming the part is called a "knuckle", I'll post a picture, since I need help finding the right piece.
If it is the knuckle, I found this place and hope this is the right part for it.
Also, I need a new front shock tower as mine cracked on the left side.
Any suggestions?
Last and most importantly, is it worth buying these parts and replacing them?
I mean if other things start to go, it's like in real life (reality), cars are the worst investment and I don't want to keep pumping money into it if I can avoid it.
I simply want a car I can boot around with, not competitively (yet, maybe one day, dunno), but for know, something to kick around and have fun with.
However, what vehicle from associated would take a hump pack? I was looking at the B4.2 but it looks like a flat pack, saddle type set up.
Help and/or suggestions would be really appreciated.
Thanks guys.
http://oi58.tinypic.com/2ia661t.jpg
http://oi58.tinypic.com/2cwvtcz.jpg
http://oi58.tinypic.com/34xgf1s.jpg
http://oi58.tinypic.com/1267921.jpg (pic is tilted to the left for whatever reason, but there's a crack where the pencil is pointing to)
Would this be the right thing to order for the knuckle?
http://www.ebay.com/itm/RPM-Associated-RC-10-B3-Buggy-Spindle-Blocks-B3-T3-2-RPM81182-/151328530880?pt=Radio_Control_Parts_Accessories&hash=item233be221c0
And this for the front shock tower?
http://www.ebay.com/itm/Associated-Front-Shock-Tower-RC10-6232-/400708823938?pt=Radio_Control_Parts_Accessories&hash=item5d4c1b6b82
Now, I was told by the local hobby guy that my car will be incredibly difficult to get parts for and I believe him.
It's a B3 (maybe B2) i don't know the difference really, how can I tell?
Anyways, the other day I was taking it for a light spin across the parking lot and front left wheel collapsed.
Now I'm assuming the part is called a "knuckle", I'll post a picture, since I need help finding the right piece.
If it is the knuckle, I found this place and hope this is the right part for it.
Also, I need a new front shock tower as mine cracked on the left side.
Any suggestions?
Last and most importantly, is it worth buying these parts and replacing them?
I mean if other things start to go, it's like in real life (reality), cars are the worst investment and I don't want to keep pumping money into it if I can avoid it.
I simply want a car I can boot around with, not competitively (yet, maybe one day, dunno), but for know, something to kick around and have fun with.
However, what vehicle from associated would take a hump pack? I was looking at the B4.2 but it looks like a flat pack, saddle type set up.
Help and/or suggestions would be really appreciated.
Thanks guys.
http://oi58.tinypic.com/2ia661t.jpg
http://oi58.tinypic.com/2cwvtcz.jpg
http://oi58.tinypic.com/34xgf1s.jpg
http://oi58.tinypic.com/1267921.jpg (pic is tilted to the left for whatever reason, but there's a crack where the pencil is pointing to)
Would this be the right thing to order for the knuckle?
http://www.ebay.com/itm/RPM-Associated-RC-10-B3-Buggy-Spindle-Blocks-B3-T3-2-RPM81182-/151328530880?pt=Radio_Control_Parts_Accessories&hash=item233be221c0
And this for the front shock tower?
http://www.ebay.com/itm/Associated-Front-Shock-Tower-RC10-6232-/400708823938?pt=Radio_Control_Parts_Accessories&hash=item5d4c1b6b82
- GoMachV
- Approved Member
- Posts: 12185
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 1080 times
- Been thanked: 3730 times
Re: B3 help, or maybe it's a B2, but guy in store said B3 lo

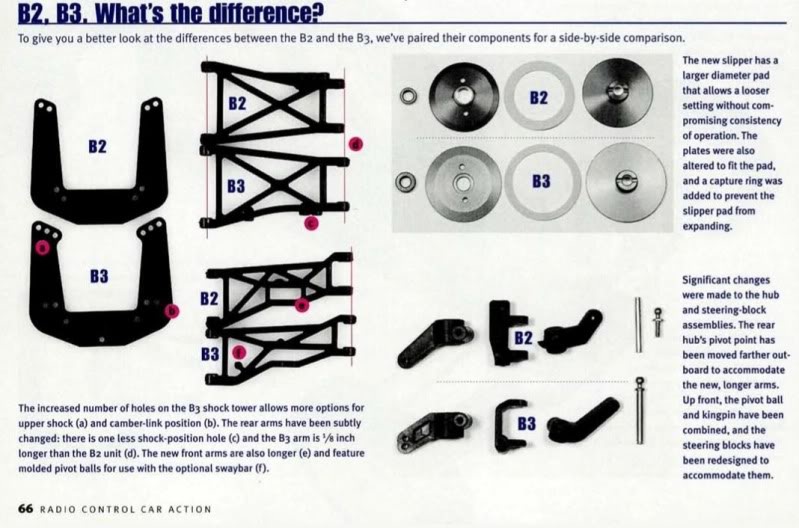

Based on info in other threads, the tower is a B3 tower (B2 has only two shock and one camber
hole) and B3 spindles (B2 used older style blocks and arms). For the parts you need, B3
The rpm steering arms should be great. For a Tower, you want this one (or an equivalent)
Fiberlyte will make them for you, otherwise you will need to locate one. They are out of production and I don't see any on eBay
http://www.fibre-lyte.co.uk/fl/cars/associated/b3.html
hole) and B3 spindles (B2 used older style blocks and arms). For the parts you need, B3
The rpm steering arms should be great. For a Tower, you want this one (or an equivalent)
Fiberlyte will make them for you, otherwise you will need to locate one. They are out of production and I don't see any on eBay
http://www.fibre-lyte.co.uk/fl/cars/associated/b3.html
- RC10Eh
- Approved Member
- Posts: 507
- Joined: Fri Feb 13, 2009 9:19 am
- Location: Ontario Canada
- Been thanked: 1 time
Re: B3 help, or maybe it's a B2, but guy in store said B3 lo
Go up and see Tim at Hobby Hobby , he can help you out . Welcome by the way

Re: B3 help, or maybe it's a B2, but guy in store said B3 lo
I went to Hobby Hobby, was told by someone other than Tim, he was very knowledgeable for sure.
Maybe I'll go back and talk to Tim, love that guy, total energy burst, hope he doesn't drink coffee, he certainly doesn't need it. lol
Gomachv, thanks for the post, saved the file to my phone.
Maybe I'll go back and talk to Tim, love that guy, total energy burst, hope he doesn't drink coffee, he certainly doesn't need it. lol
Gomachv, thanks for the post, saved the file to my phone.
-
- Approved Member
- Posts: 101
- Joined: Wed Mar 09, 2011 3:42 pm
- Location: Springfield, MA
Re: B3 help, or maybe it's a B2, but guy in store said B3 lo
There's plenty of replacement parts. They're just under a different name. Thunder tiger bought out Team Associated and they still sell a buggy based almost 100 percent on the B3.
http://www3.towerhobbies.com/cgi-bin/wti0005p?&I=TTRD8761&P=Z
there's a few a differences but all the things that commonly brake seem to be a direct fit. I've replaced suspension arms, hub carriers, castor blocks, steering blocks, shock towers, wheels, battery hold down straps, and suspension arm mounts. All direct fits. The shock tower, though, isn't nearly as stiff as the stock B3 tower. That should make it less prone to breaking though. If you're able to find actual B3 parts, stick to those as they seem to be slightly more durable.
http://www3.towerhobbies.com/cgi-bin/wti0005p?&I=TTRD8761&P=Z
there's a few a differences but all the things that commonly brake seem to be a direct fit. I've replaced suspension arms, hub carriers, castor blocks, steering blocks, shock towers, wheels, battery hold down straps, and suspension arm mounts. All direct fits. The shock tower, though, isn't nearly as stiff as the stock B3 tower. That should make it less prone to breaking though. If you're able to find actual B3 parts, stick to those as they seem to be slightly more durable.
Re: B3 help, or maybe it's a B2, but guy in store said B3 lo
Rootdown, thanks for the link and info, much appreciated and good to know.
I may also consider getting a B4.2 down the line, I just have an affinity towards the buggy.
For now I managed to order parts from the local shop (Hobby Hobby), the only thing they couldn't get was the shock tower, but someone (teman, thanks
) kindly PM'd me a link to an eBay retailer.
I may also consider getting a B4.2 down the line, I just have an affinity towards the buggy.
For now I managed to order parts from the local shop (Hobby Hobby), the only thing they couldn't get was the shock tower, but someone (teman, thanks

Re: B3 help, or maybe it's a B2, but guy in store said B3 lo
There are a lot of B2/3 parts on heavy discount on RC10.com.
RC10 Short Arm | Novak Tempest ESC | Tamiya Torque Tuned 25T | Savox 1258 | Stealth Trans w/ Exotek Slipper Eliminator (geared 24/81)
RC10B3 | HW Just Stock Club Spec | Reedy 13.5 | Savox 1258
RC10B3 | HW Just Stock Club Spec | Reedy 13.5 | Savox 1258
- slotcarrod
- Approved Member
- Posts: 4415
- Joined: Tue Nov 25, 2008 10:57 pm
- Location: Calgary Alberta Canada
- Has thanked: 1 time
- Been thanked: 45 times
Re: B3 help, or maybe it's a B2, but guy in store said B3 lo
For the record, you have a RC10B3 Team Kit. The manual for part numbers: http://www.teamassociated.com/pdf/cars_and_trucks/RC10B3/Team/b3_manual.pdf
Rod Littau
Slotcarrod's Rumpus Room: http://www.rc10talk.com/viewtopic.php?f=77&t=16113
25 Years of the RC10: http://www.rc10talk.com/viewtopic.php?f=35&t=13059
Slotcarrod's Rumpus Room: http://www.rc10talk.com/viewtopic.php?f=77&t=16113
25 Years of the RC10: http://www.rc10talk.com/viewtopic.php?f=35&t=13059
