I guess this works...

Post by Typicray@rainmans »

I was looking through some old school electronics to use in my frog and found a rather strange way of protecting an esc. Look at the red battery wire.
Almost all my posts will be edited because I know what I want to write, but my fingers always hit the wrong keys.
Top
User avatar
GoMachV
Approved Member
Posts: 12172
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 1079 times
Been thanked: 3719 times

Re: I guess this works...

Post by GoMachV »

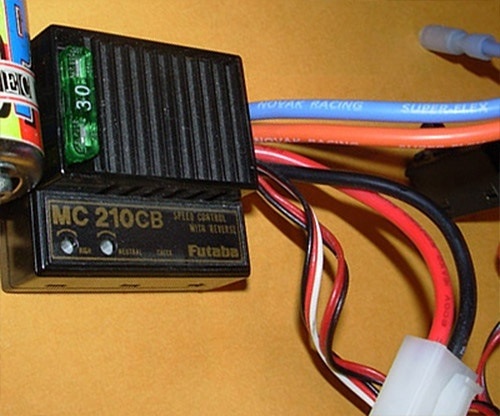

That was very common bitd. The mc210cb (one gen newer) had the fuse holder built into the case. The early novaks and tekins also used an inline fuse
Attachments
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Top
Typicray@rainmans
Approved Member
Posts: 133
Joined: Wed Oct 09, 2013 3:46 am
Location: United States
Been thanked: 1 time

Re: I guess this works...

Post by Typicray@rainmans »

Okay, that is very cool! I am a seven year racer, but have never really known anything about vintage cars. Guess you learn something new every day.
Almost all my posts will be edited because I know what I want to write, but my fingers always hit the wrong keys.
Top
slow_jun
Approved Member
Posts: 958
Joined: Mon Oct 05, 2009 10:59 am
Location: Manila/Singapore
Been thanked: 3 times

Re: I guess this works...

Post by slow_jun »

a common mod BITD, it was good one,. saved me a couple of esc's.. hahah... that one will work great, just don't reverse the polarity (we were using deans , old style)...
“It is more shameful to distrust our friends than to be deceived by them.”
― Confucius
Top
User avatar
Coelacanth
Approved Member
Posts: 7421
Joined: Thu Jul 29, 2010 6:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 325 times

Re: I guess this works...

Post by Coelacanth »

I don't even think it was a mod, those old Novak ESCs came with the fuse included and instructions how to solder it in.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Top
User avatar
GoMachV
Approved Member
Posts: 12172
Joined: Sun Apr 29, 2012 10:31 pm
Location: Twin Falls, ID
Has thanked: 1079 times
Been thanked: 3719 times

Re: I guess this works...

Post by GoMachV »

It was a mod for THAT speed control. It was normal for others
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Top
User avatar
Bottom Feeder
Approved Member
Posts: 323
Joined: Wed Nov 06, 2013 11:30 am
Location: Virginia
Has thanked: 13 times
Been thanked: 24 times

Re: I guess this works...

Post by Bottom Feeder »

Not as elegant as an in-line fuse holder, but it worked well and the flats made them dead-simple to solder.
