Masami WCS 93 replica (43 month update) 11/2013 NIP chassis

[59burst]

you are going to repeat this project from the beginning

[Charlie don't surf]

Couple of diff halves, new top deck and upper arm set and front gearbox and I can build a NIP 94 YZ10

[Charlie don't surf]

Derby Dan is killing me on the progress of his car So I spent some time today making it a truer
replica than it was- a few guys might notice the differences, most wont Look hard!

I will say that I have decided ( with the huge help of Aaron ) to make this car a fine pitch car as he ran at Basildon, and I will have all the correct parts for that soon-

000-0015 056.jpg

000-0015 055.jpg

000-0015 058.jpg

Thanks for getting me off my butt Dan!!

[DerbyDan]

Ha ha - thats looking great Reg!!

Is that now built up around the Fibrelyte Chassis? Also I assume the top-deck is still the 94' YZ-10 part? I see that you have trimmed down your wing too.... I think they look much better like this than with the huge side dams!

Its funny as I have also fitted a 'Mr' series motor - complete with white label with Masami written on it, into my car. I also thought that I had the correct Novak 410 speedo - but alas, when I dug it out it turned out to be the older 'MC' rather than the correct HPC version

Reggie - your car is a far more accurate 'replica' of Masami's own car.... mines more of a 'tribute' as opposed to a replica.... & its a real credit to you


Edited to add;

What are the rear springs from - I assume they are AE greens - but I tried on the springs off my Worlds RC10 but they were too small (diameter-wise) to sit over the Yokomo spring cups?? Are later springs a slightly larger dia?

[Charlie don't surf]

Brand new top deck (hand made) the springs are AE greens, just need to turn them counter clockwise on the lower cups for them to seat in the yokomo cups. It is the chassis you made me, hence the no front belt!! I need to get my act together on the rest of the 2mm parts, the front belt and the 22t center (non hardened) center pulley. The wing was hard to trim for what it cost me, but it looks better!!

I still need to machine the front arms, but I need a better image of the fronts- the rears are easy, bug I only have a feeling what the front is like. I got excited this week when I thought I found some of the correct KO decals, but the ones I got are wrong-


Oh, I might just have another HPC to trade you for the MC-

[DerbyDan]

Thanks for the tip on the shock springs... thought there might have been a more technical solution!

Max kudos for making that top-deck by hand... that must have taken some cutting/fileing!? P.S did you manage to use my drawing... I ask, as it looks slightly different around the rear above the bulkhead?

Yes, it was a tense time cutting my wing too... I used my trusty scalpal & finished off the edges with a sand-paper block so looks pretty neat I think.

Shame about the KO decals - i'm looking for those aswell (amongst many others) I might try & contact a guy who my friend works for - he was the sales rep for KO UK back in the 90s, so he might be able help?

P.S; That HPC speedo sounds good - i'll send you a PM

[Charlie don't surf]

Another update! I managed to scratch, claw, beg borrow and almost steal some more parts from Aaron and Al

000-0015 107.jpg

I can't even tell you how rare 2 of these are and only because Al and Aaron are so gracious that I have them

Fine pitch TCS-

000-0015 108.jpg

WCS specific fine pitch pulley-( left )

000-0015 110.jpg

WCS specific diff halves ( left )

000-0015 111.jpg

000-0015 112.jpg

000-0015 113.jpg

[Charlie don't surf]

More-

000-0015 114.jpg

The only tough thing I have going on is the WCS setup uses a 7mm?? internal bearing- and all the others are 8mm-

000-0015 116.jpg

000-0015 117.jpg

000-0015 118.jpg

More to come in the near future!

[mamadoesntletme]

hehe, no need to beg or steal to anyone. Just ask in the wanted since someone may have some of those `rare` parts

[DerbyDan]

NICE! Top work on finding those parts/RC10talk members willing to give generously to the WCS cause ...... I must admit that its re-assuring to see that I have the correct out-drives inside my car

P.S; I spy some blue ESC heat sinks

[GJW]

NICE! Top work on finding those parts/RC10talk members willing to give generously to the WCS cause ...... I must admit that its re-assuring to see that I have the correct out-drives inside my car

P.S; I spy some blue ESC heat sinks

very lucky to find the part's alright and they are where they should be in this wicked build. my own hunt still continue's

looking unreal reg

[Charlie don't surf]

One more small part done to make it more accurate- machining of the rear arms ( I have been dreading this in case of incorrect placement ) I have no clear shots of the front underside of the car so I only have a good guess on those arms- so I will keep in a holding pattern for now-

000-0015 123.jpg

000-0015 124.jpg

More to come

[crusaderlyf]

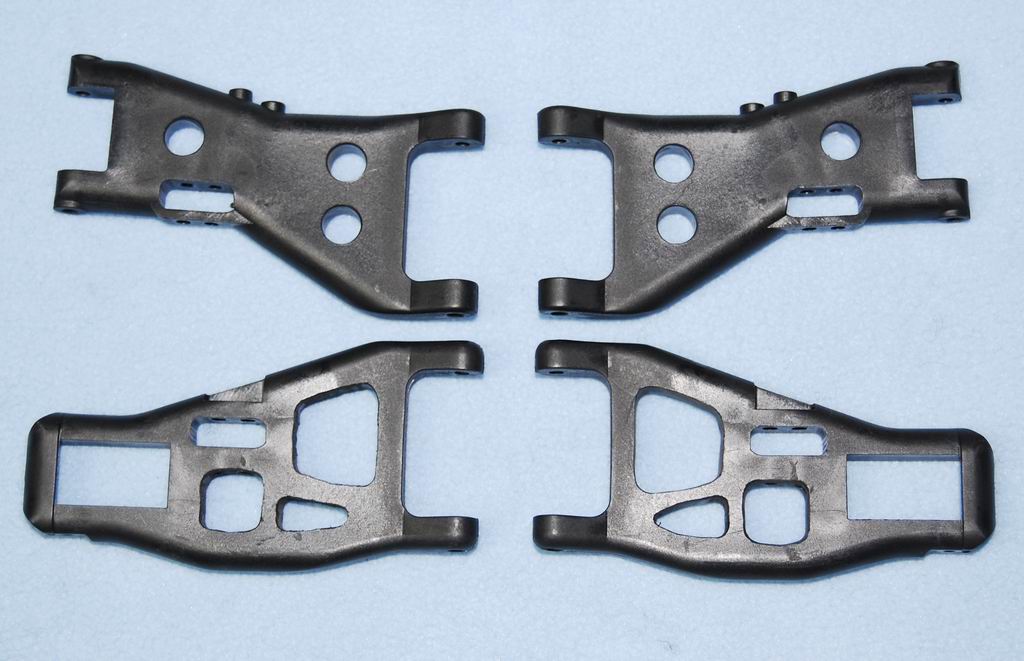

I have the arms someone has made the change

[Charlie don't surf]

Those look the part- what's the history on them? And thanks for the pic!!!!!
