Vintage AE's RC10 graphite runner

[slotcarrod]

Looking very sweet Anthony! The servo arms are in the servo box under the card insert! You will find some sweet Savox stickers under there as well!

Mailing out the AE plugs today!

[vintage AE]

Come on Rod, I cant just put on a cut up plastic servo arm on there. I need a shiny gold one

[aeiou]

http://www3.towerhobbies.com/cgi-bin/wti0001p?&I=LXHWR4&P=0

[vintage AE]

now, that's doable

[slotcarrod]

It can work for now!

BTW, I don't have gold servo arms! Get it on line!

[Mr. ED]

I know whan turns and winds mean, but is a 11t double the same as a 22 single? I want something equivalent to a brushless 10.5t.

Any suggestions on a motor for this build?

Ouch, luckily you went another way with the moter 'cause 11 to 14turns brushed is way different from 10.5t. brushless. And no, an 11t double is not the same as a 22 single by far.

A Lemans Gold would have ook very well at home, and I think is rather close to a 10.5t brushless too. A magnum AYK would have looked fine aswell

[vintage AE]

I didn't think it was the same

Rod has a Trinity D3 for me, which will look great as well. I don't remember what he said what turn it was though. I will see how it performs, maybe I will change it out later. Thanks for the info Mr.Ed

[Mr. ED]

If worse comes to worse, you just take whatever moterhouse you like best for looks, and put in the roter that suits your needs

[vintage AE]

it's begging for John players special paint job!

It's been growing on me

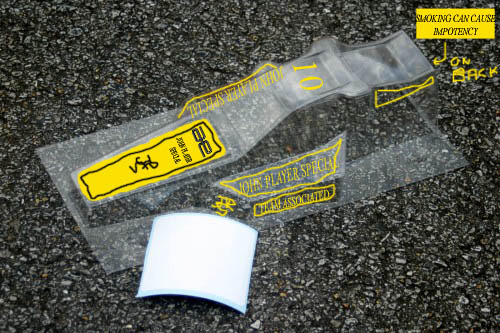

here is what I came up with so far

mrl-rcps copy.jpg (75.66 KiB) Viewed 1619 times

mrl-rcps copy.jpg (75.66 KiB) Viewed 1619 times

I think Eau Rouge can paint that to a tee

And you are absolutely right about the motor situation

[Mr. ED]

LOL I've become your 'muse'

[oldskoolracer]

that build looks sick - I love the gold on black. regarding the 11T double - it's more like a 11T single than anything else. It depends on the wire gauge but doubles tend to have smoother power transmission than singles but might be a bit less hot. either way, that 11T double will be WAAAAAY hotter than anything from back in the day.

[vintage AE]

just wanted to say thanks for the positive comments so far!

This project seems pretty straight forward, but I will work on a parts list and post it if anyone wants to see.

[vintage AE]

Here is a parts list...I will edit it as I get more part numbers, prices, etc.

Discontinued Parts

ASC6306 Graphite chassis
ASC6607 Gold motor plate
ASC6226 Associated front inner hinge pin
ASC6227 Associated front outer hinge pin
ASC6380 Associated rear inner hinge pin
ASC6381 Associated rear outer hinge pin
RC10 Stealth transmission
RC10 Team Car front shocks
RC10 Team car rear shocks
RPM (not sure of part number) rear RC10 bulkhead
RPM (not sure of part number) Gold rear motor guard

Common Parts

ASC3342 Associated Aluminum Flat Head Screws 8-32x1/2"....$2.89
ASC3858 Associated Long and short ball studs.....$12.99
ASC4185 Associated 8-32 Nylon Locknut.....$1.99
ASC6222 Associated 4-40/5-40 Nylon Self-threading Locknut, black....$2.00
ASC6274 Associated B4 ball ends.....$4.79
ASC6416 Associated FT Gold Shock Shaft, 1.32" stroke.....$6
ASC6418 Associated FT Gold Shock Shaft, 0.71" stroke.....$6
ASC9580 Associated B4 25° caster blocks ....... $2.89
ASC9581 Associated B4 steering knuckles ....... $2.89
ASC9585 Associated B4 front axles ....... $13.95
ASC9608 Associated B4 wheel spacer ....... $3.89
ASC9622 Associated B4 hinge pin set (front steering block pin).....$3.75
ASC9730 Associated Rear hub carrier B4/B44 ....... $3.79
ASC9756 Associated B44 rear CVDs ....... $26.99
ASC???? Associate 4-40 Gold Mini nuts.....$??few bucks
Atlas body mounts.....$10
Atlas front suspension mounts.....$30
Atlas bell cranks.....$30
Atlas antenna mount.....$10
Atlas rear arm mounts.....$30
Atlas carbon fibre trans brace.....$8.50
Atlas stealth gasket.....$3.50
Fibre Lyte Worlds carbon fibre front shock tower with brace....$13.75euro
Fibre Lyte Worlds carbon fibre rear shock tower.....$12.25euro
Fibre Lyte carbon fibre battery strap....$8.25euro
Lunsford Punisher titanium turnbuckles.....$4.50 ea
JConcepts 3002-02 Double Dee's Rear Buggy Tire Green 2.2.....$11.25
JConcepts 3004-02 Groovy 2WD Front Buggy Tire Green.....$10.13
Jconcepts 3305 Rulux B4 front wheels..... $9.35
JConcepts 3306 Rulux B4 rear wheels.....$11.05
Races Edge gold anodized spacers.....$?? few bucks
RPM 70222 Quick Adjust Spring Clips.....$5.95
RPM 70252 Spring Cups RC10.....$2.95
RPM 70411 RC10 shorty front bumper ....... $3.95 (RPM does not ship to Canada )
RPM 70442 RC10 Team Car front A-arms.....$9.95
RPM 70542 RC10 Team Car rear A-arms.....$9.95

Electronics

Savox SC1251MG....$65
TrakPower 3200 lipo 2 cell.....$35
Reedy#654 Gold Plugs 2M, 2F.....$4.35
Tekin FXR.....$95
Epic 14x2 turn

[realoldschooldude]

Beautiful project ..





I am curious where you scored/sourced the "Atlas" alloy bits and pieces ?

[vintage AE]

Atlas is a member here. It's as easy as looking him up and PM him.

he might just want to be in the Business Section on here
