Kyosho Pro-XRT manual

Moderators: scr8p, klavy69

4 posts • Page 1 of 1

Brandon G: Approved Member; Posts: 2106; Joined: Mon Oct 01, 2007 4:23 pm; Location: Nashville, TN; Been thanked: 2 times

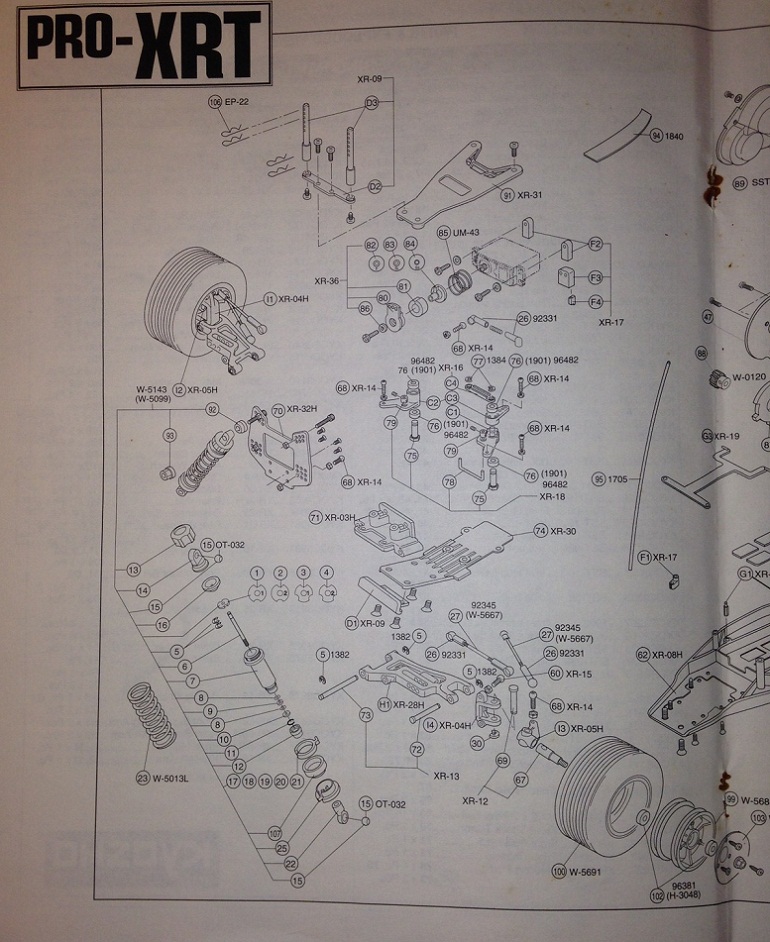

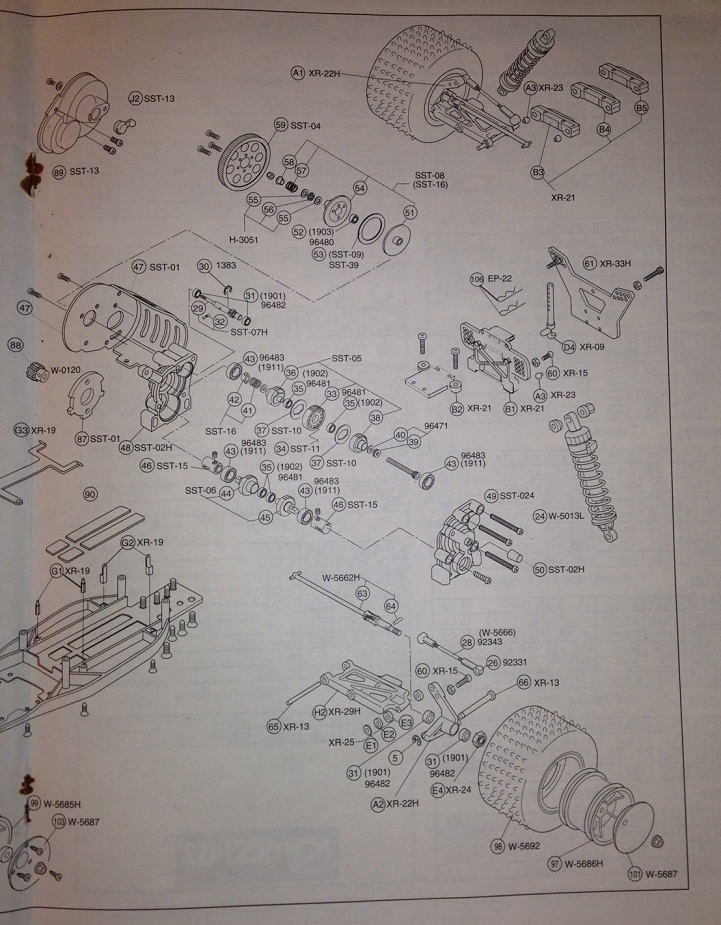

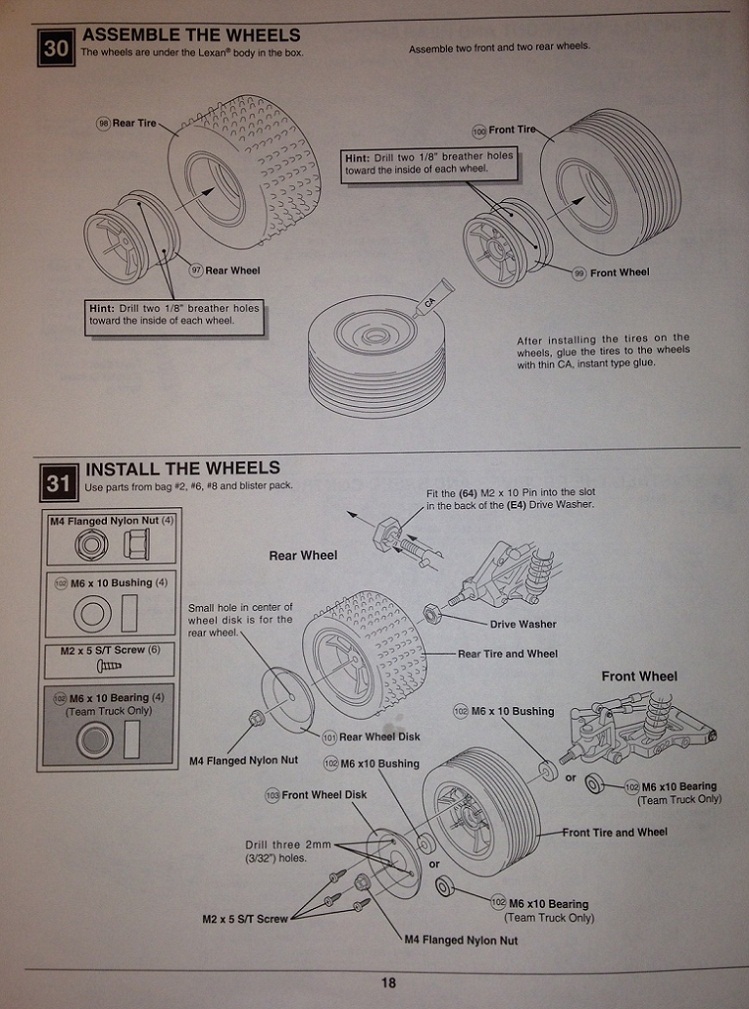

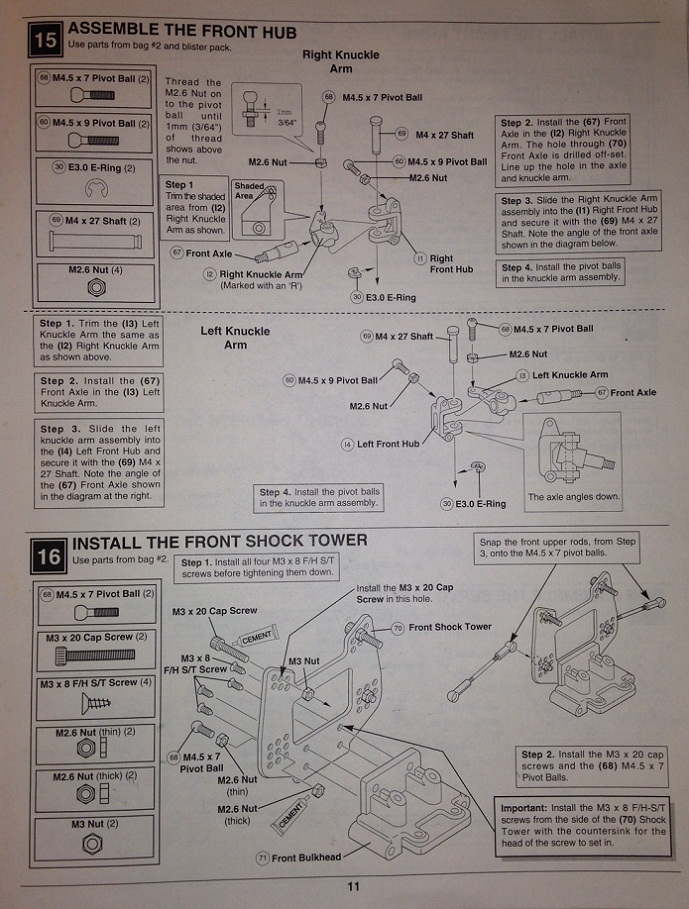

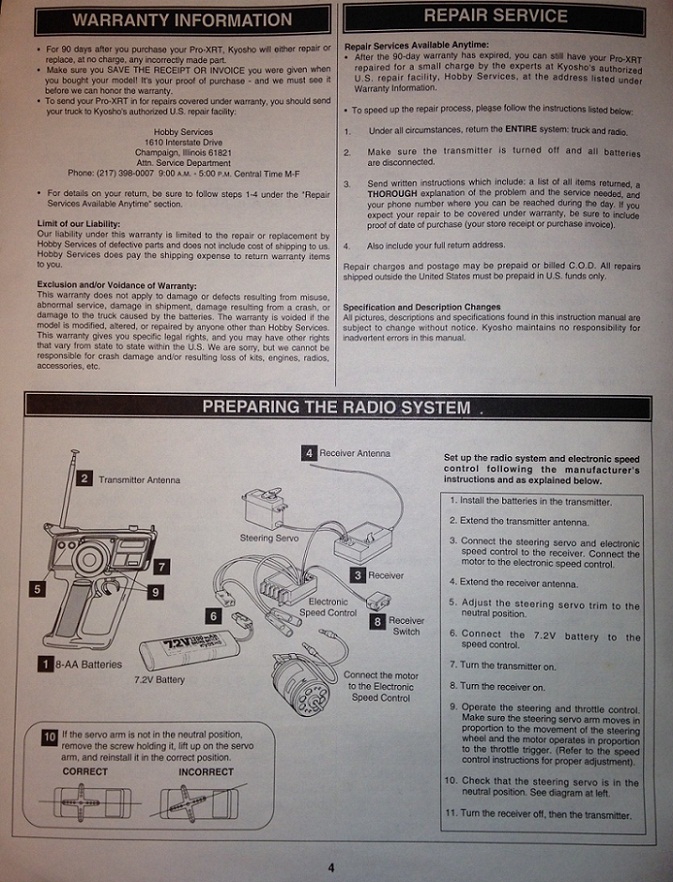

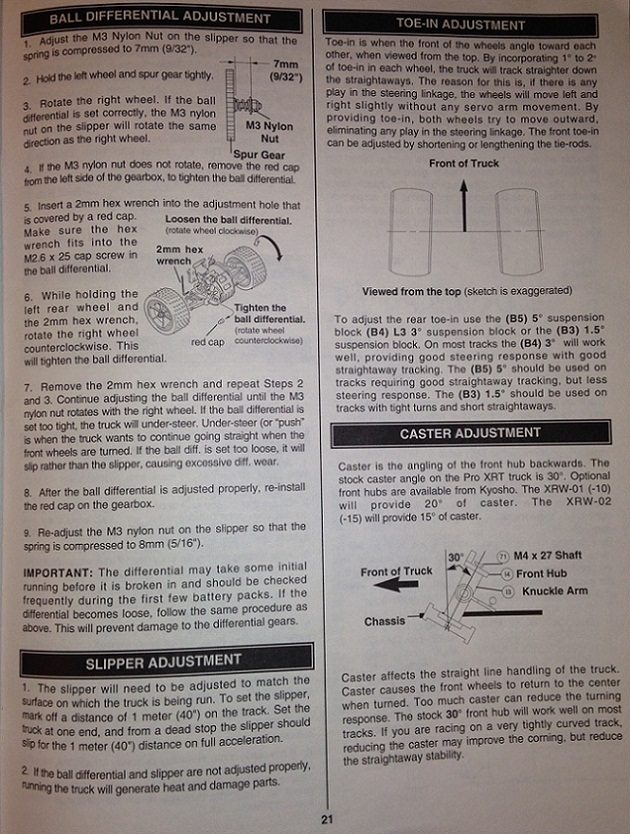

Kyosho Pro-XRT manual

Quote

Post by Brandon G » Wed Dec 04, 2013 11:36 am

It seems these are very hard to find digitally.

Attachments

Brandon G: Approved Member; Posts: 2106; Joined: Mon Oct 01, 2007 4:23 pm; Location: Nashville, TN; Been thanked: 2 times

Re: Kyosho Pro-XRT manual

Quote

Post by Brandon G » Wed Dec 04, 2013 2:22 pm

Contd..

Attachments

Brandon G: Approved Member; Posts: 2106; Joined: Mon Oct 01, 2007 4:23 pm; Location: Nashville, TN; Been thanked: 2 times

Re: Kyosho Pro-XRT manual

Quote

Post by Brandon G » Wed Dec 04, 2013 2:26 pm

Contd..

Attachments

Brandon G: Approved Member; Posts: 2106; Joined: Mon Oct 01, 2007 4:23 pm; Location: Nashville, TN; Been thanked: 2 times

Re: Kyosho Pro-XRT manual

Quote

Post by Brandon G » Wed Dec 04, 2013 2:28 pm

Contd..

Attachments
