Team Pit Stop Slipper
Posted: Thu Jan 01, 2009 8:22 pm
I came across a few parts in my TPS stash that I haven't seen before. It's an interesting slipper concept from days gone by. I am going to guess that it was optional as it is not included in the nip trans I have ...

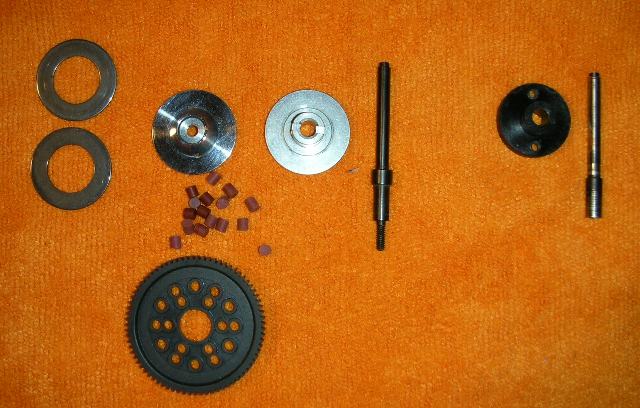

Slipper parts on the left, standard non-slipper shaft and gear adapter on the right. The red parts are Rulon, the same material as the early Associated slipper pads.
Here are the Rulon nubs installed in the spur gear. Yes, assembly is as tedious as it seems!
Fully assembled. The Rulon nubs sit proud of the gear and slip on the 2 steel rings.
Slipper parts on the left, standard non-slipper shaft and gear adapter on the right. The red parts are Rulon, the same material as the early Associated slipper pads.
Here are the Rulon nubs installed in the spur gear. Yes, assembly is as tedious as it seems!
Fully assembled. The Rulon nubs sit proud of the gear and slip on the 2 steel rings.
