Introduced on the RC10 Team Car in 1991, the seals of the aptly named Team Shocks were loaded from inside the shock body instead of the previous RC10 Gold Shocks bottom loaded seals. The thread pitch on the Team Shocks was also finer than the original Rc10 Gold Shocks, a feature that would extend to later kits in which the Sport versions would receive gold anodized Team Shocks.
Interesting factoid... early Team Cars and the '91 Winter Championship RC10ST's had plastic shock caps, not aluminum like later production versions.
https://img2.associatedelectrics.com/pdf/cars_and_trucks/RC10T/shock_assy.pdf

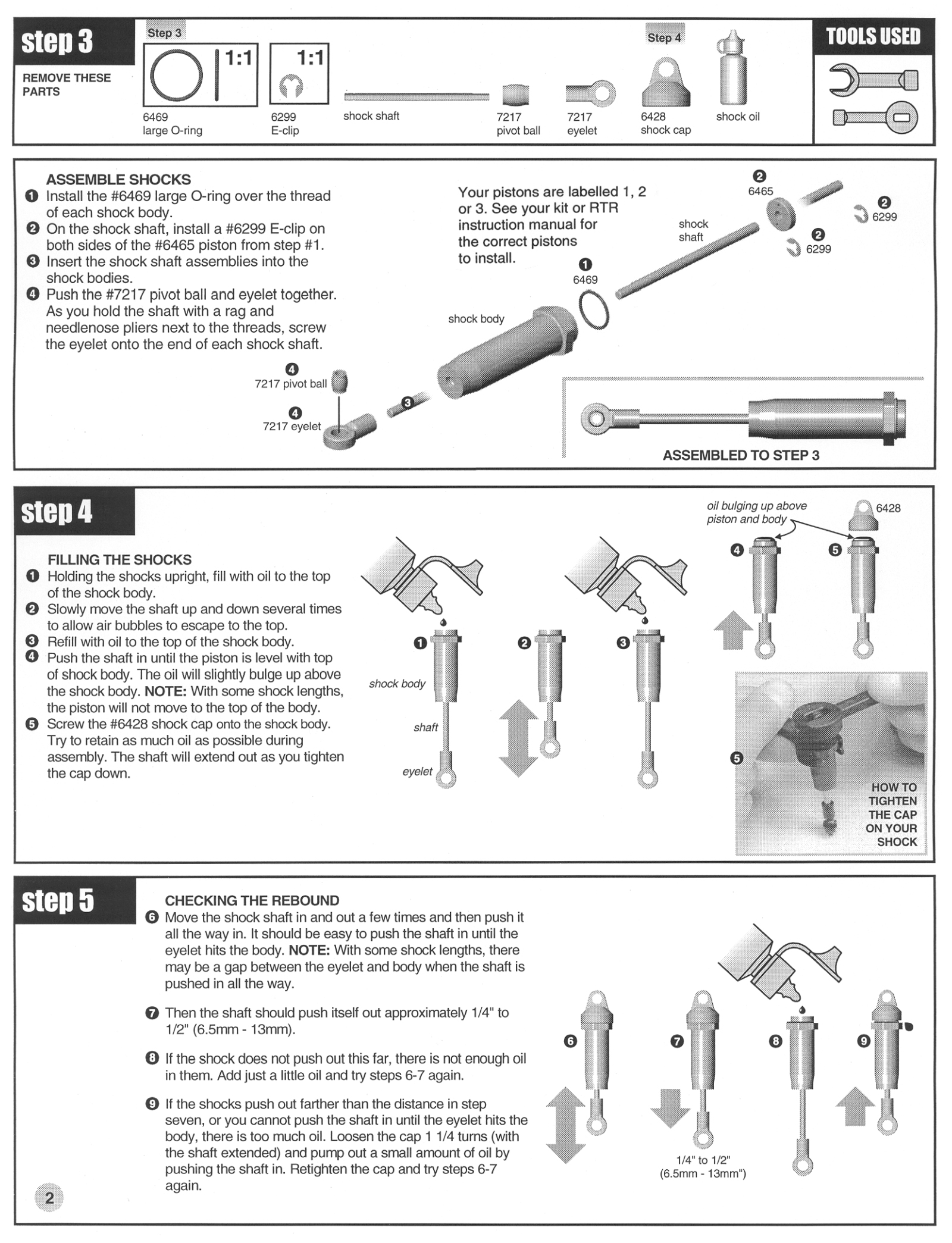

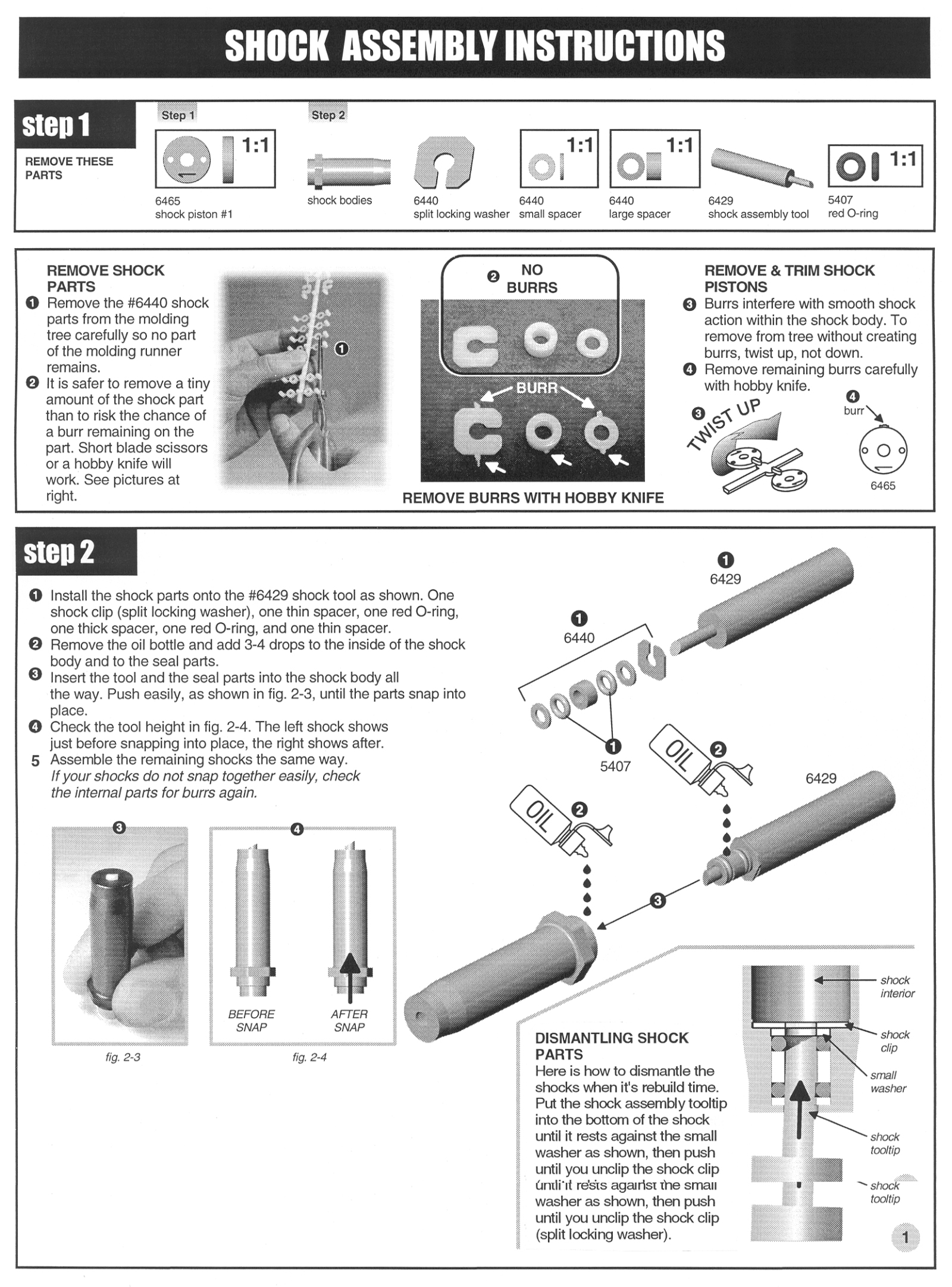

Team Associated Team Shock Assembly Manual
- jcwrks
- Approved Member
- Posts: 554
- Joined: Wed Jun 21, 2017 3:40 pm
- Location: San Angelo, TX
- Has thanked: 129 times
- Been thanked: 268 times
Re: Team Associated Team Shock Assembly Manual

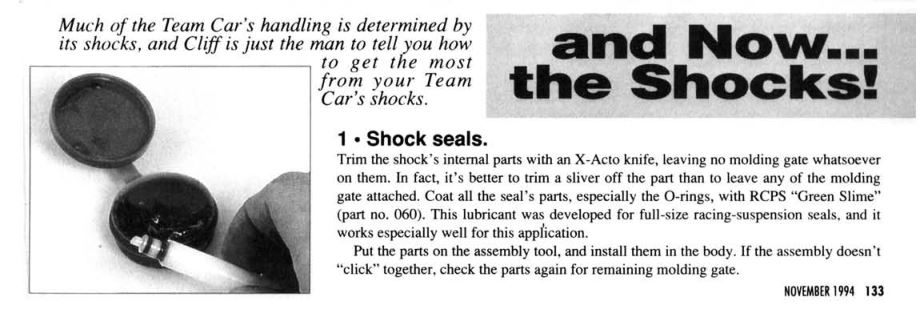

The use of green slime is highly recommended. While the RCPS variety is rare, AE still offers it as p/n 1105

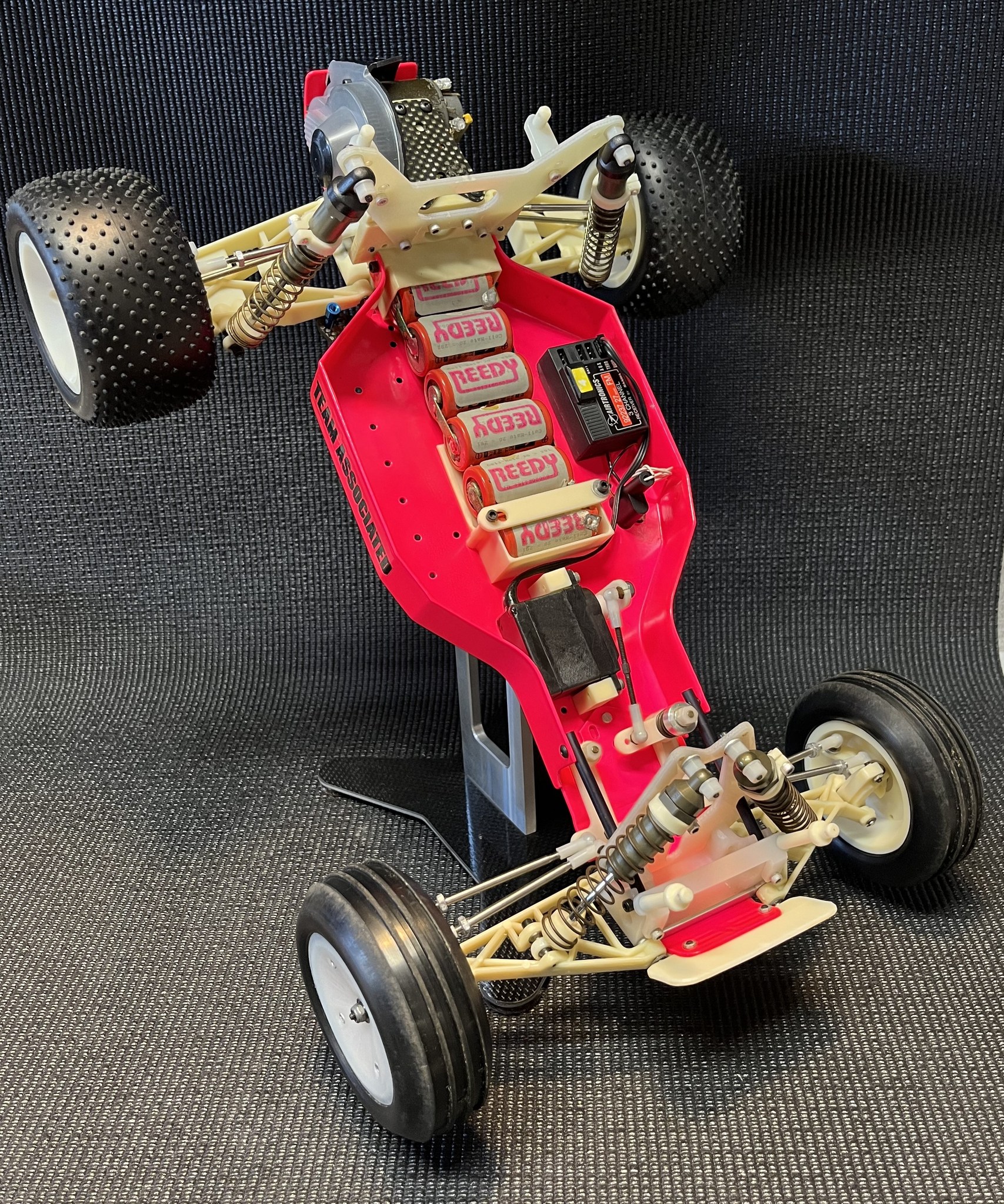

In regards to the plastic caps, Kloeber's RC10T Prototype ’91 Florida Winterchamps truck had both plastic and hard ano aluminum caps. All early 10T kits used Aluminum. Plastic caps started with the 10T sport, but some still had aluminum since I am sure AE was just using up what was in stock at the time. I have never seen a Team Car kit with plastic caps. Not saying they don't exist, but I have yet to see one with the main kit parts bag sealed.
In regards to the plastic caps, Kloeber's RC10T Prototype ’91 Florida Winterchamps truck had both plastic and hard ano aluminum caps. All early 10T kits used Aluminum. Plastic caps started with the 10T sport, but some still had aluminum since I am sure AE was just using up what was in stock at the time. I have never seen a Team Car kit with plastic caps. Not saying they don't exist, but I have yet to see one with the main kit parts bag sealed.
The TX SKUNK
- juicedcoupe
- Approved Member
- Posts: 3018
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 235 times
- Been thanked: 1765 times
Re: Team Associated Team Shock Assembly Manual
I use the Protek and Rudog o ring grease from Amain.
Always looking for new and interesting ways to waste money.
- Dangeruss
- Approved Member
- Posts: 656
- Joined: Wed Jul 12, 2023 12:47 pm
- Location: L.A.--->me<---N.Y.C.
- Has thanked: 175 times
- Been thanked: 629 times
Re: Team Associated Team Shock Assembly Manual
Yeah, Kloeber's truck has plastic rear, hard anno front... while Lett's truck had plastic on all four corners. Far as the Team Cars with plastic caps, blurb in RCCA mentioned it and Team Car instructions actually have a step for kits with plastic caps. But wide release of the plastic caps started with the sport kits and the 10T was the first model to have a Sport version so, yep, it got 'em first.jcwrks wrote: ↑Thu Jun 27, 2024 8:38 am In regards to the plastic caps, Kloeber's RC10T Prototype ’91 Florida Winterchamps truck had both plastic and hard ano aluminum caps. All early 10T kits used Aluminum. Plastic caps started with the 10T sport, but some still had aluminum since I am sure AE was just using up what was in stock at the time. I have never seen a Team Car kit with plastic caps. Not saying they don't exist, but I have yet to see one with the main kit parts bag sealed.
