RC10 GTM 2.0 Buggy (GT flat chassis+trans)

[factory team gair]

RC10 GTM 2.0 Buggy (GT flat chassis+trans)

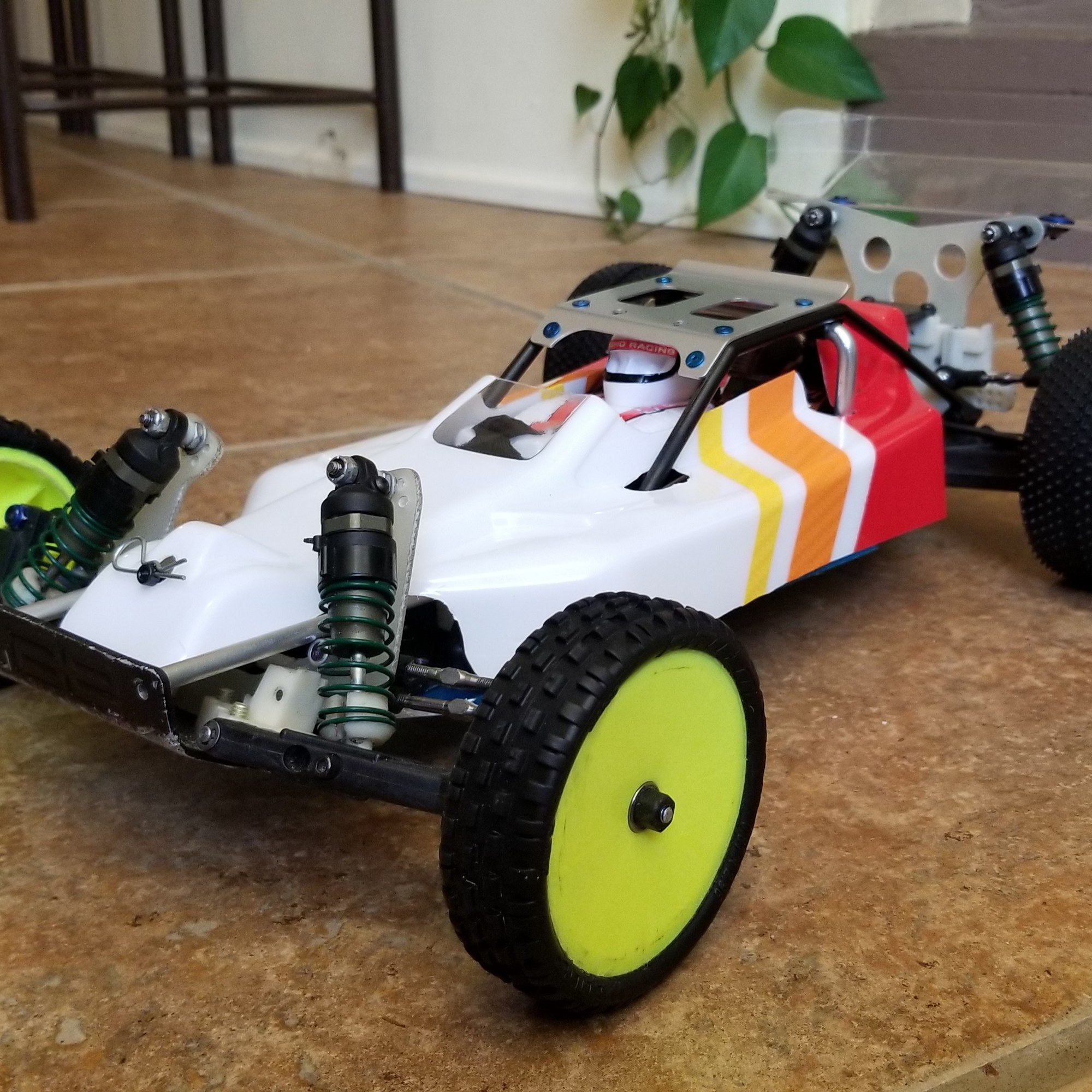

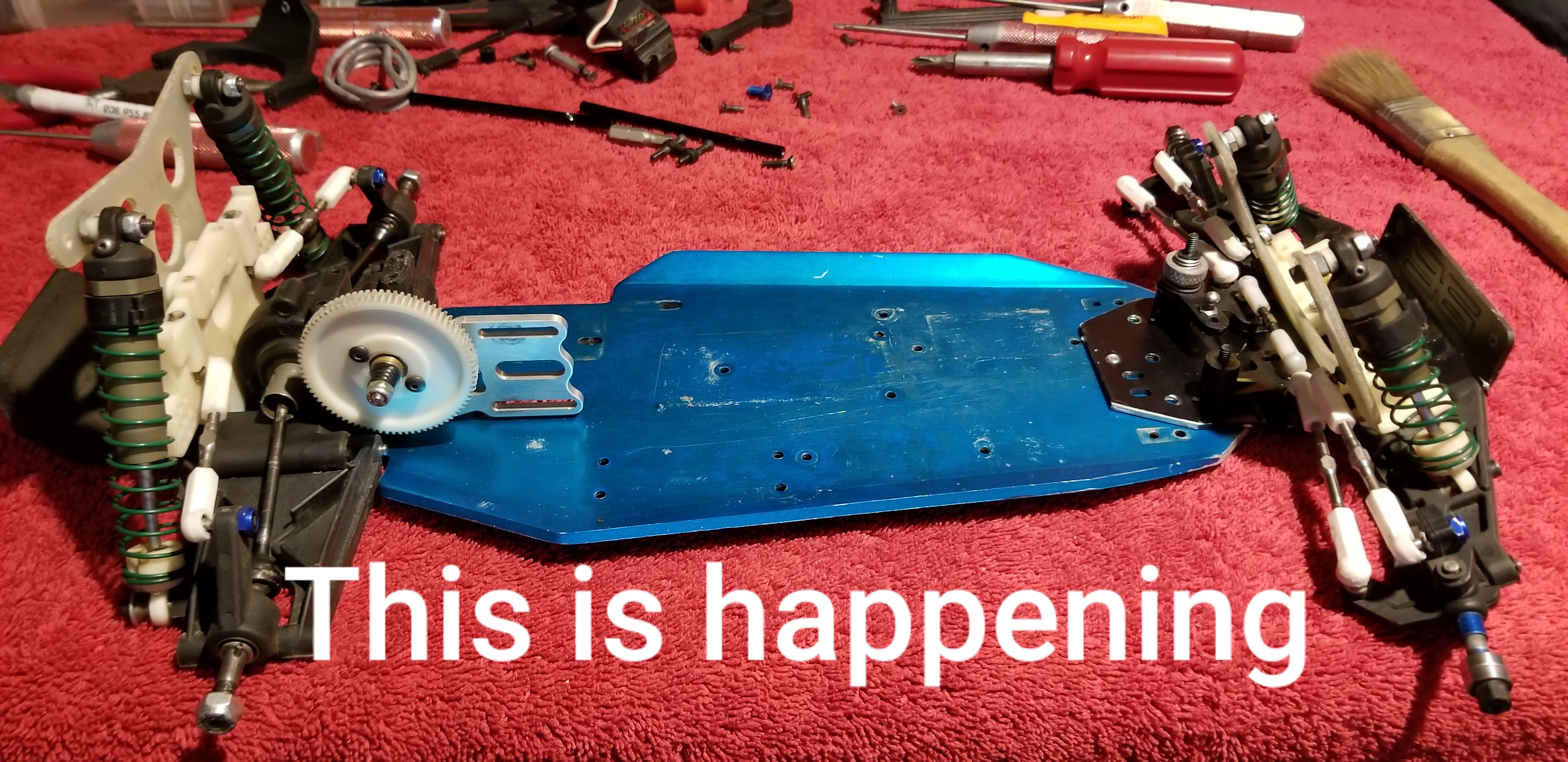

Finally got around to the RC10 Mid 2.0 with blue chassis instead of tub! Still waiting on the Kyosho Ultima rere.

Associated GT RTR chassis/trans
Associated RC10 Team Car suspension
Associated RC10 B6.1 battery holder

Kyosho ZX-5 lexan
Kyosho Turbo Scorpion roll cage
Kyosho Optima driver figure

Going to add B4 top shaft and fancy slipper, and diff rebuild.

Ironman Ivan Stewart paint

#weareae
#teamassociated
#rc10
#jconcepts
#proline
#aka
#hobbywing

[factory team gair]

The close up of the rear tower is to show the way I mounted a section of the Kyosho roll cage so the the cage could clip on.
The RPM ball cup have been replaced with Dubro. I like how they mount with screws instead of ball cups.
The roll bar is stock Kyosho Turbo Scorpion.

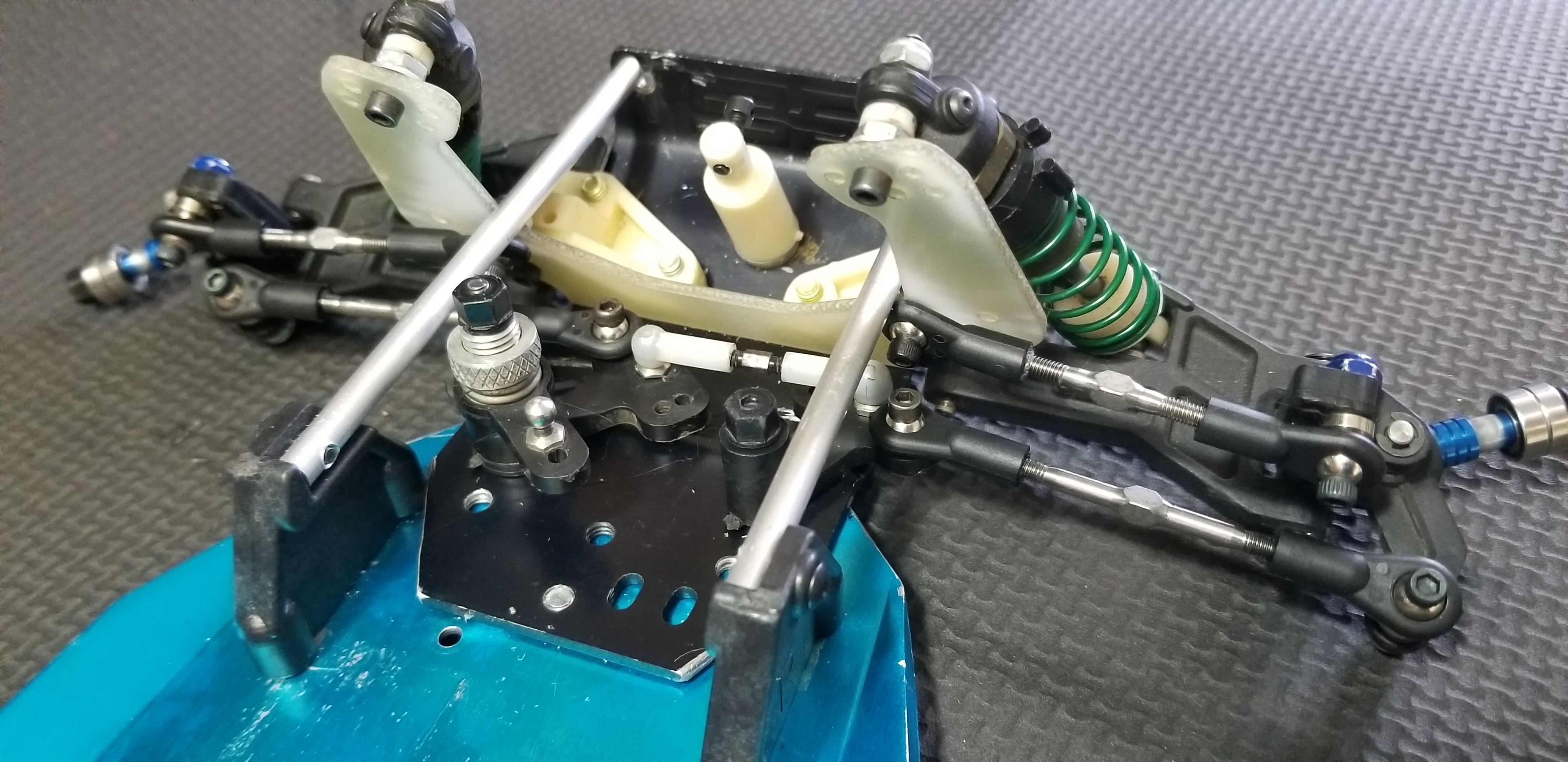

It is easy to make nose tubes with aluminum stock.
I want to put a B4/5/6 fancy slipper on as well as a maintenance session on the diff before going out racing with it.
I might play around with the rear shock mounting to get a good lean back on the shock.
Paint needs to happen.

[joelwhite]

Very nice, something different. I think it will have a cool look to it when its done.

Good beverage choice as well. Kanpai!

[factory team gair]

update:

[Chewbacca]

Cool Build.

If you rotate the steering servo by 90 degrees, and Tuesday a shorter tie rod you can move the servo further forward to generate some space. I assume that is a low profile servo

[factory team gair]

Thanks,
I haven't decided how to mount the servo and the steering rack too.
It is low profile so I have more flexibility.

[factory team gair]

More progress.

[factory team gair]

245mm wide at front
249mm wide at rear
270mm wheelbase
3lb 7.4oz
1570g

[factory team gair]

[factory team gair]

RC10 GT MidMotor Buggy grabs 3rd out of 10 mod buggies, on carpet.

[jwscab]

Nice!! Looks good out there! Driver is always the key of course. Nice work.

[KidAgain]

I’d call that a successful build and run congrats bud.

[josh]

this is soo cool. Thanks for sharing your invention
