JRX2 build help

[Dax]

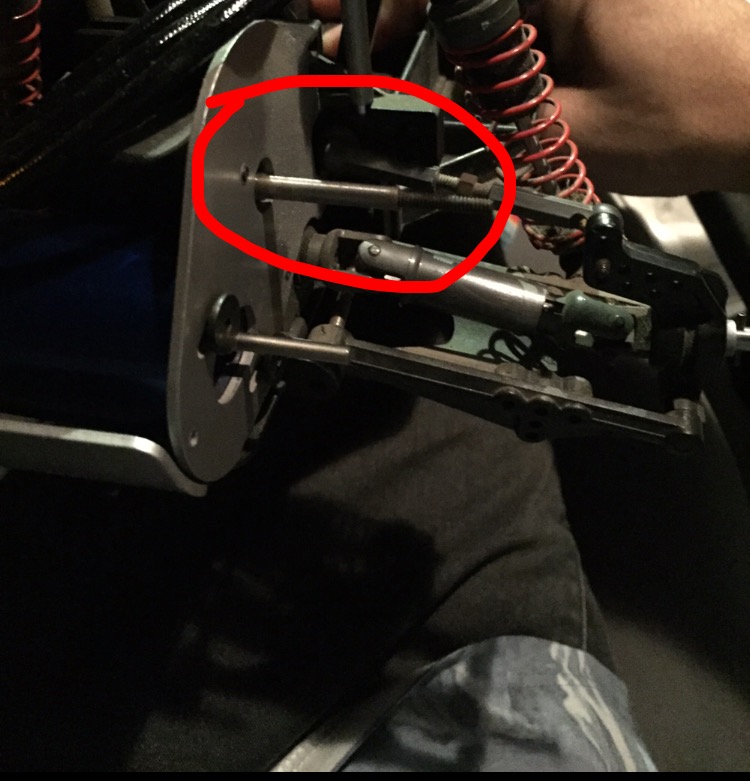

Hey guys so the other day i found my dads old jrx2 he built when he was a kid but never got it running, so i thought id try and buy the parts for it to get it running. I'm sorta new to this so any help would be appreciated! I ran into a problem with the spur gear(i believe is what its called). the guy at the hobby shop said i am missing an extension to it. Not sure what to look up online to find it so anyone know what it is?

[R Cane]

Don't know what extension he's talking about...

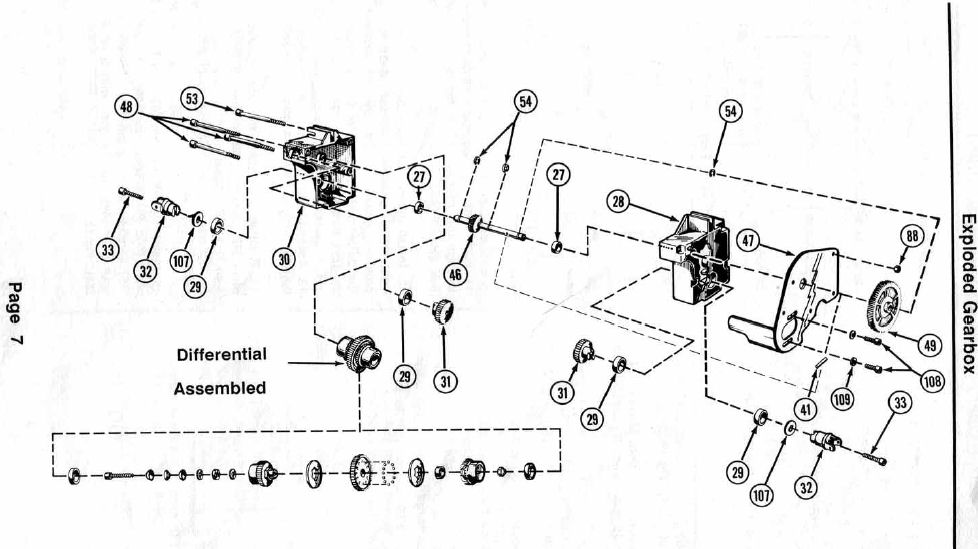

In this diagram from the manual, the area you are talking about is on the far right - but that's for the stock setup. That pinion shaft looks longer than stock though...maybe for a hydra drive? Do you have any other parts to go with this?

[Dax]

Don't know what extension he's talking about...
In this diagram from the manual, the area you are talking about is on the far right - but that's for the stock setup. That pinion shaft looks longer than stock though...maybe for a hydra drive? Do you have any other parts to go with this?


i dont have any other parts unfortunately. but i did some research and it looks like all im missing is the clutch, spring, and hex nut, am i right?

[scr8p]

http://vintagelosi.com/Manuals_files/jrxprose.pdf

[R Cane]

Well, there ya go.

[aconsola]

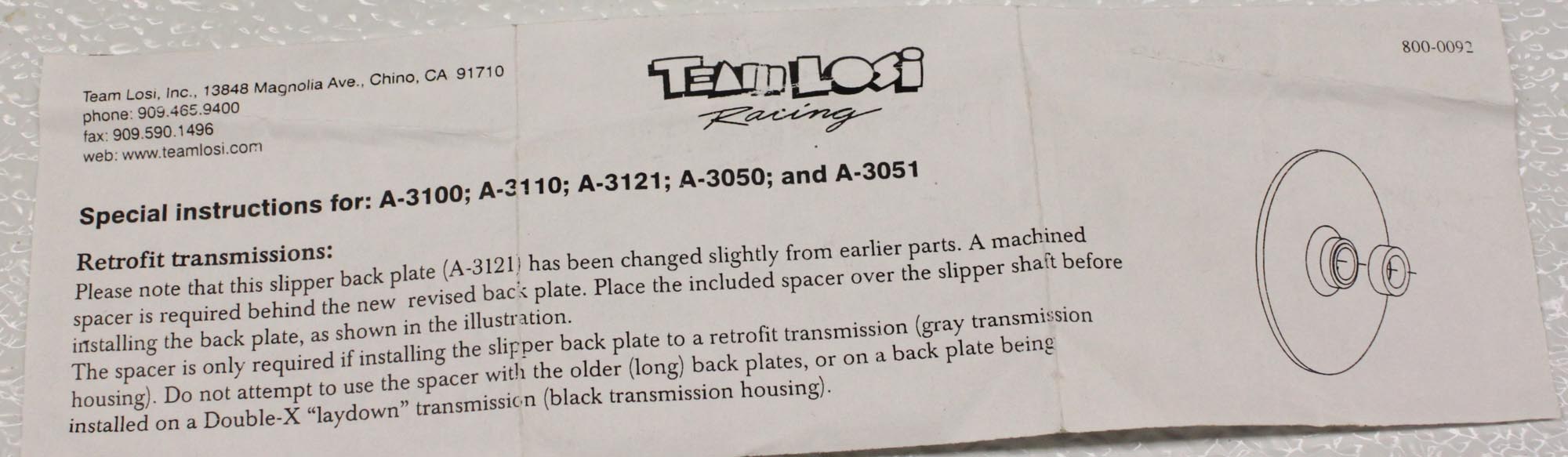

as you are starting with a bare shaft and need to buy a bunch of parts to get a slipper set up you may be better off converting to the modern double disc setup.

Ebay xxx-sct slipper for a couple sellers who split up new kits selling the entire slipper setup in one lot.

you will likely only need to add or make a small 3/16" spacer to fit over the shaft to keep the inner slipper plate from hitting the motor plate.

[Dax]

as you are starting with a bare shaft and need to buy a bunch of parts to get a slipper set up you may be better off converting to the modern double disc setup.

Ebay xxx-sct slipper for a couple sellers who split up new kits selling the entire slipper setup in one lot.

you will likely only need to add or make a small 3/16" spacer to fit over the shaft to keep the inner slipper plate from hitting the motor plate.

So something like this http://www.ebay.com/itm/Losi-1-10-XXX-SCT-Brushless-2WD-SPUR-PINION-GEARS-SLIPPER-CLUTCH-PAD-COVER-/400765412288?hash=item5d4f7ae3c0:g:GloAAOSwEgVWRGM1 would fit on the slipper shaft i have if i add a spacer? that simple? or is there anything else i would have to buy to convert to a modern setup?

[terry.sc]

Another option is an A&L Powerclutch, which is still available http://vintageteamaandl.com/powerclutch.htm
This is designed to drop in and allows use of modern standard spur gears.

[Dax]

Thanks everyone for the help! Just ordered the part i need
