advanced racing motor kit on custom 8-cell chassis
-
- Approved Member
- Posts: 384
- Joined: Wed Mar 07, 2012 12:55 am
- Location: Moravia NY 13118 USA
- Been thanked: 5 times
advanced racing motor kit on custom 8-cell chassis

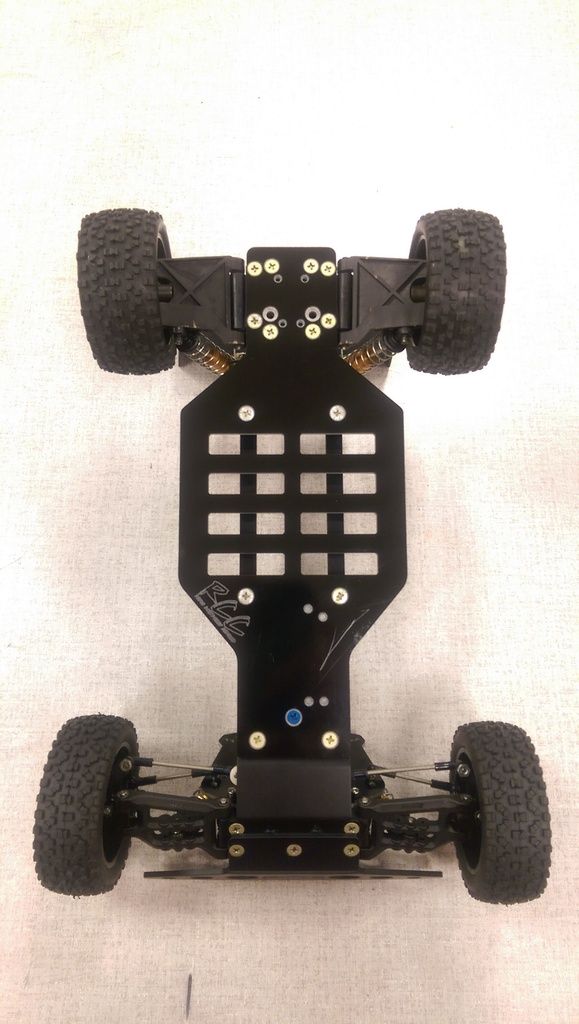

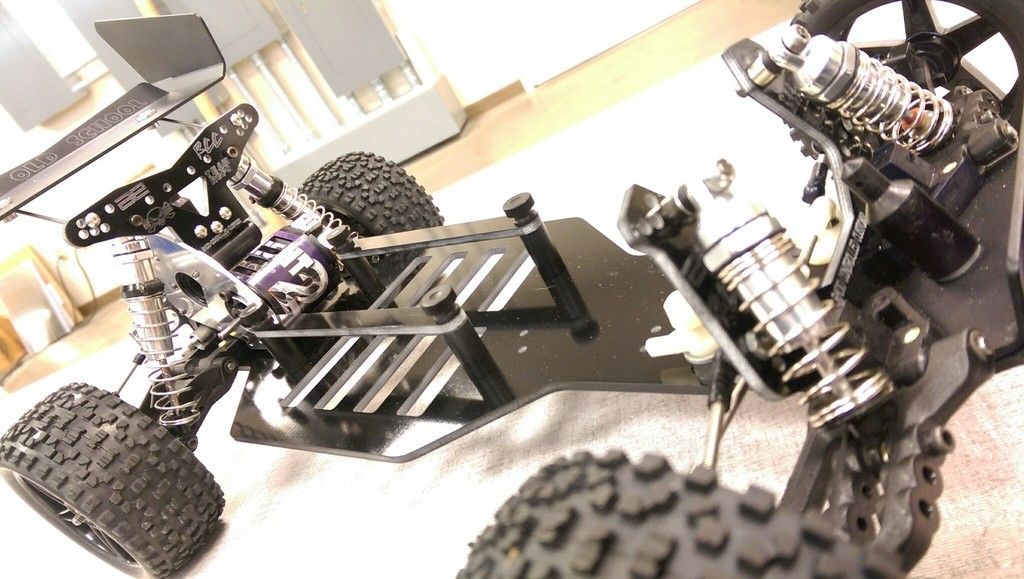

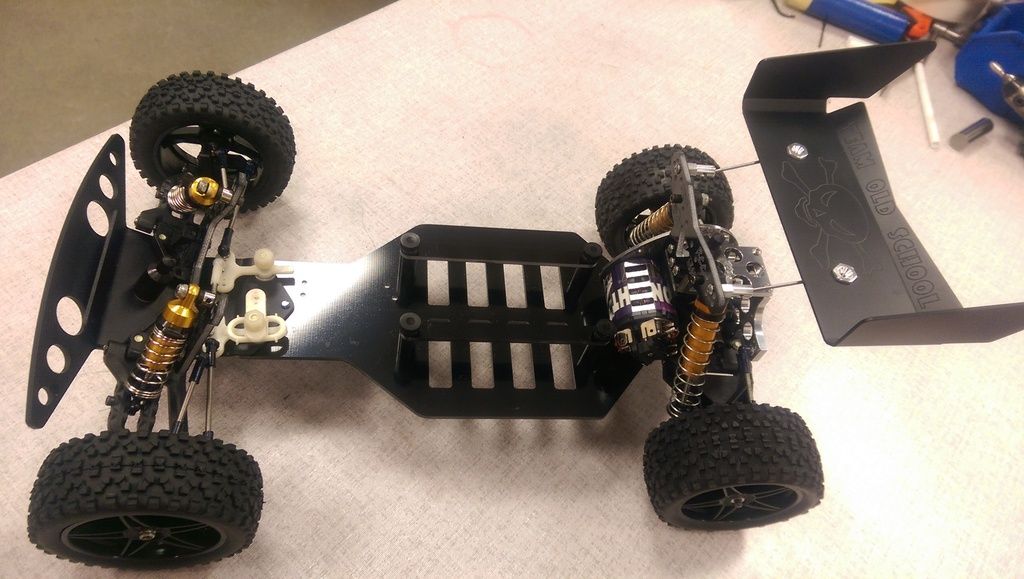

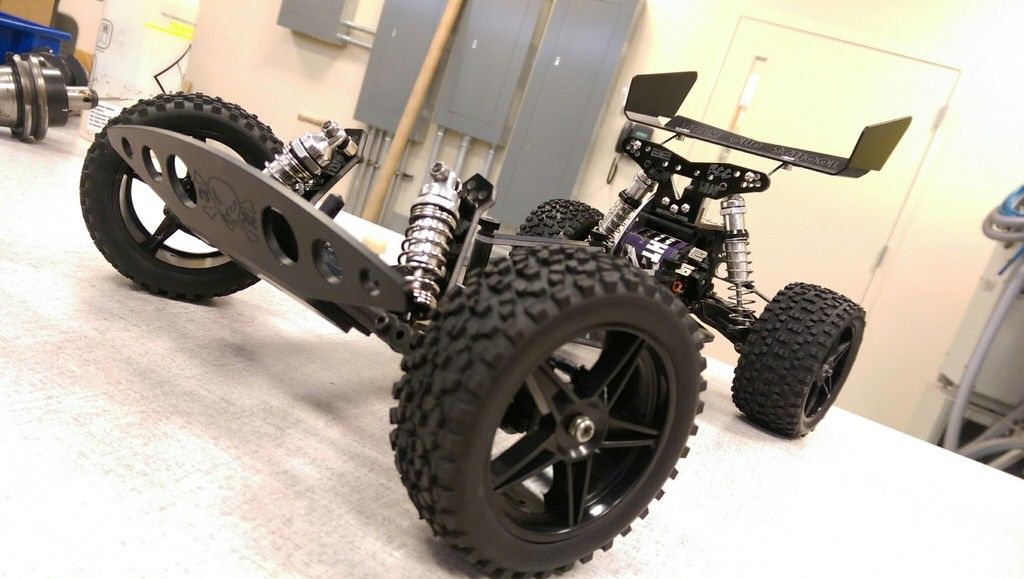

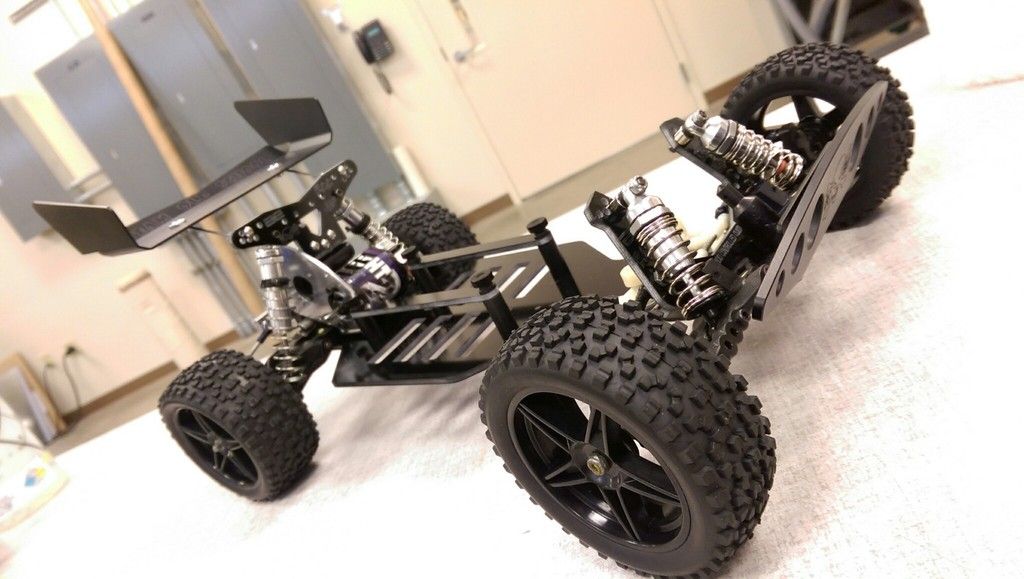

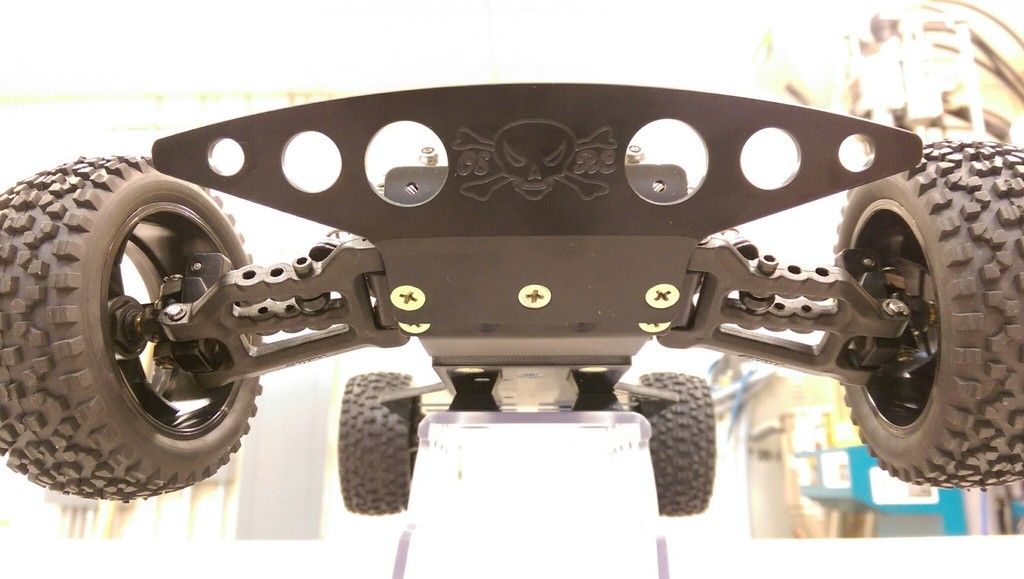

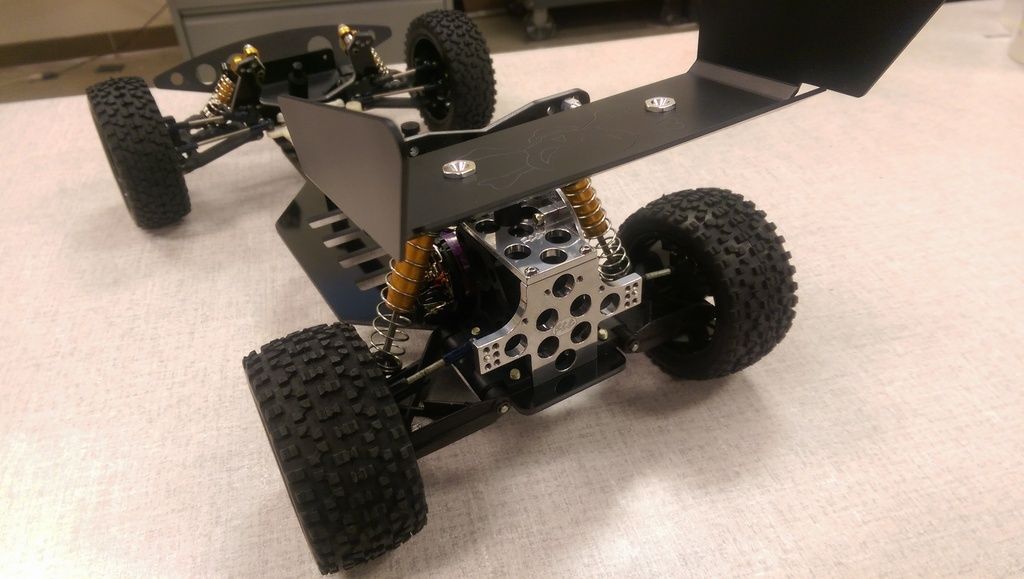

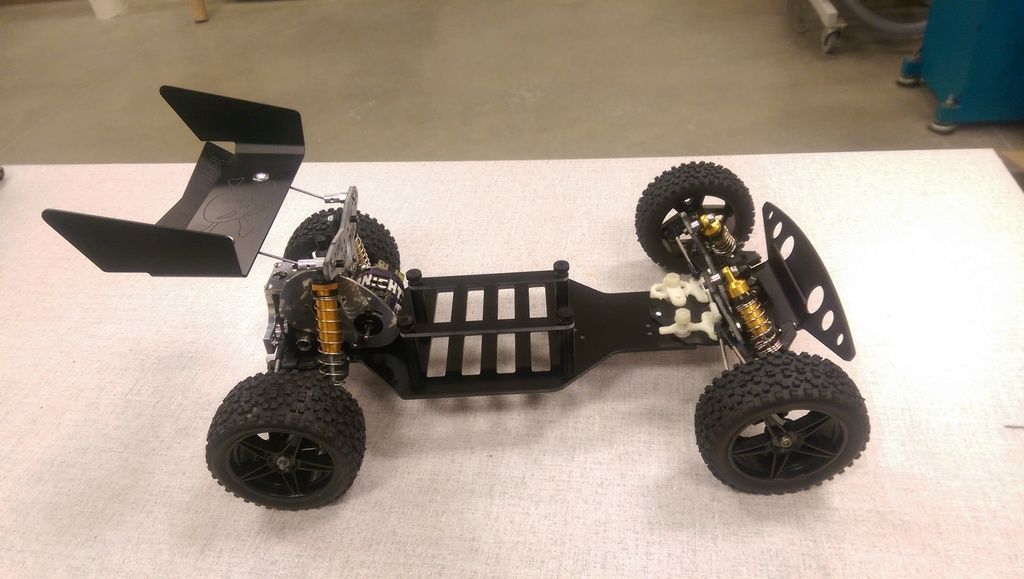

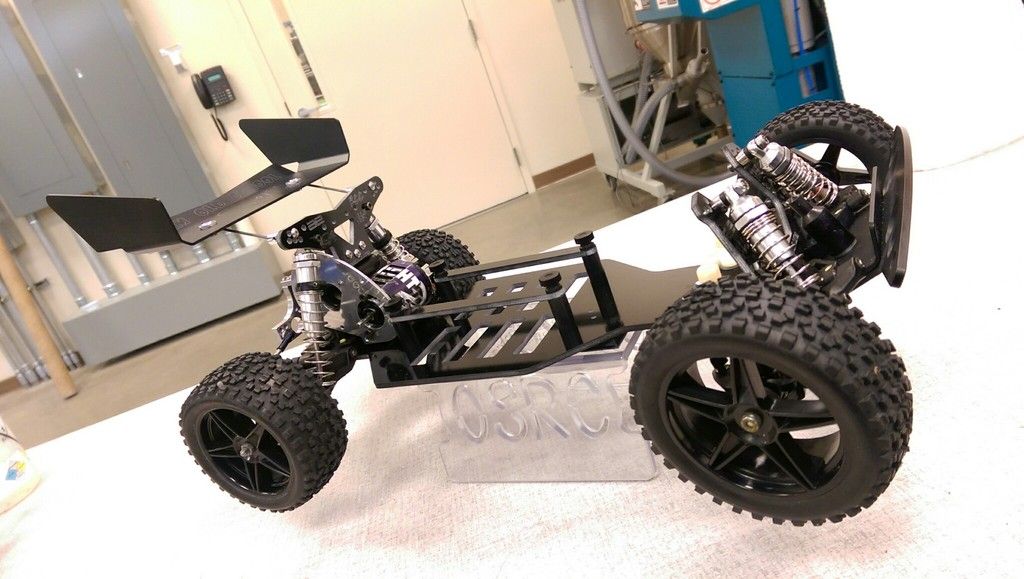

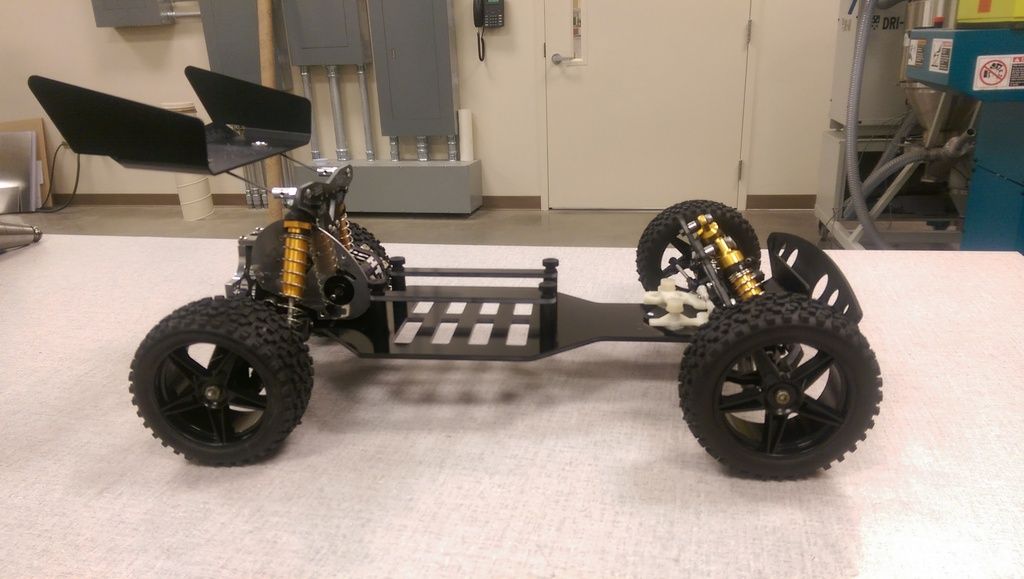

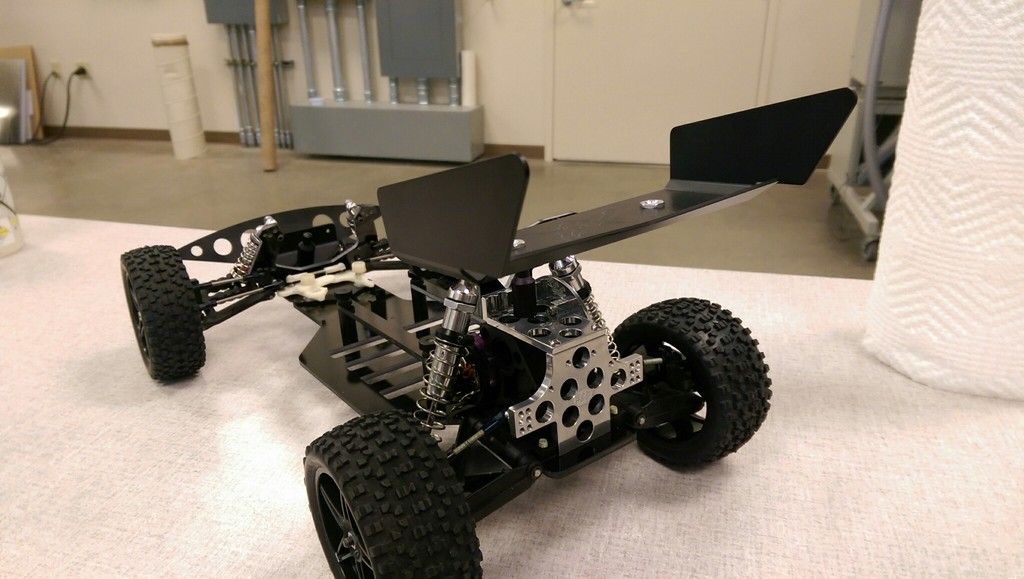

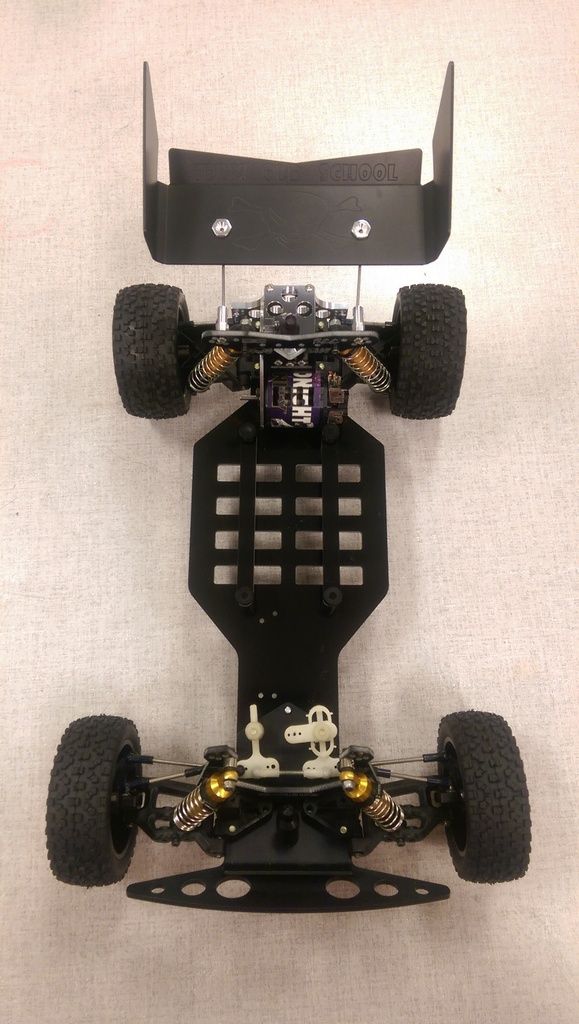

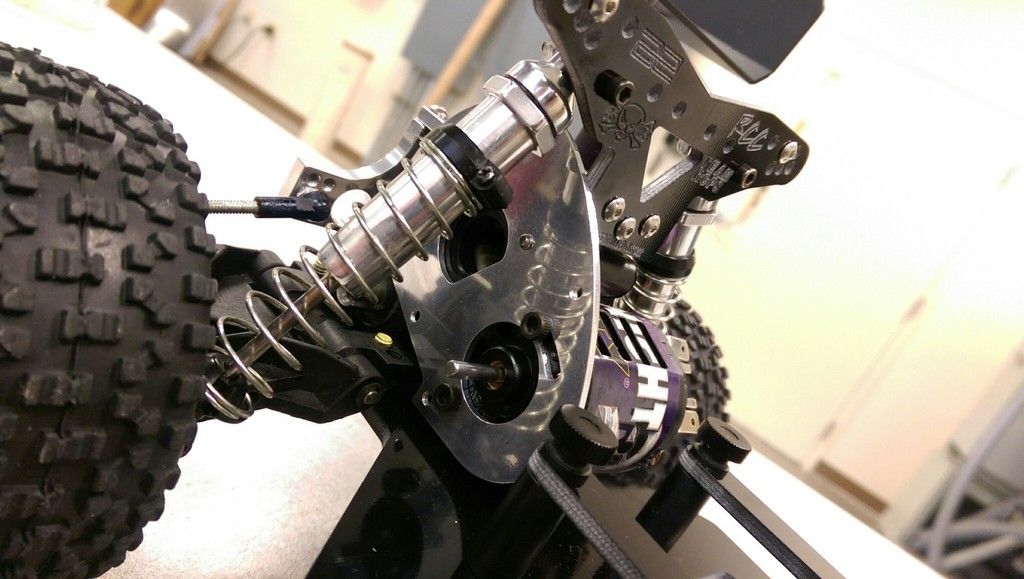

Hello, Some of you have probably seen the ARP mid motor kit that I reproduced. This kit has inspired me to make my own chassis design. This one is an 8 cell design with custom parts. I designed the wing mounts, wing, bumper, and chassis with battery hold downs. The whole thing was cnc machined by myself. I added these modern tires by machining custom hub adapters. Hope you enjoy this build.
-
- Approved Member
- Posts: 384
- Joined: Wed Mar 07, 2012 12:55 am
- Location: Moravia NY 13118 USA
- Been thanked: 5 times
Re: A custom MID motor 8 cell chassis I designed.
Thank you! I am polishing some shocks for this build as well. They will look like chrome when im done
-
- Approved Member
- Posts: 384
- Joined: Wed Mar 07, 2012 12:55 am
- Location: Moravia NY 13118 USA
- Been thanked: 5 times
Re: A custom MID motor 8 cell chassis I designed.
the wheels are 12mm hex yes. here is a link to them on ebay http://www.ebay.com/itm/RC-1-10-Off-Road-Vehicle-Buggy-66005-Front-66026-Rear-Wheel-Rim-Rubber-Tyre-Tire-/121347145106?hash=item1c40da7d92%3Ag%3AdL4AAOSw9N1V1xNQ
- THEYTOOKMYTHUMB
- Super Member
- Posts: 6814
- Joined: Wed Oct 22, 2008 5:15 pm
- Location: Evansville, IN
- Has thanked: 2122 times
- Been thanked: 1346 times
Re: A custom MID motor 8 cell chassis I designed.
Awesome looking buggy!
"The world looks so much better through beer goggles: Enjoy today, you never know what tomorrow may bring."
Ken
Ken
-
- Approved Member
- Posts: 384
- Joined: Wed Mar 07, 2012 12:55 am
- Location: Moravia NY 13118 USA
- Been thanked: 5 times
Re: A custom MID motor 8 cell chassis I designed.
No, but I would like to know more about them? These are something I made from an HPI nitro wheel adaptor and a brass sleeve I machined the two so they press fit together. I would love to find something better though.
- jwscab
- Super Member
- Posts: 6495
- Joined: Wed Jan 28, 2009 9:42 am
- Location: Chalfont, PA
- Has thanked: 10 times
- Been thanked: 447 times
Re: A custom MID motor 8 cell chassis I designed.
need all these parts (or equivalent) from this web link:
https://www.teamassociated.com/news/latest_products/616-B4.1_12mm_Hex_Drive
obviously use your wheels, but you need the 9880, 7496, 7919(or 7922) drill out the hinge pin to 1/8". actually, there are a few caster blocks. the b4 parts are for a 25 degree kickup, and rc10 is 30 degrees, so whatever they say on the degrees, add 5 degrees and that's what it will be on your car.
https://www.teamassociated.com/news/latest_products/616-B4.1_12mm_Hex_Drive
obviously use your wheels, but you need the 9880, 7496, 7919(or 7922) drill out the hinge pin to 1/8". actually, there are a few caster blocks. the b4 parts are for a 25 degree kickup, and rc10 is 30 degrees, so whatever they say on the degrees, add 5 degrees and that's what it will be on your car.
-
- Approved Member
- Posts: 384
- Joined: Wed Mar 07, 2012 12:55 am
- Location: Moravia NY 13118 USA
- Been thanked: 5 times
Re: A custom MID motor 8 cell chassis I designed.
Thank you for the information! I'll look into this!
- Phin
- Approved Member
- Posts: 2727
- Joined: Tue Feb 21, 2012 5:17 pm
- Location: NY²
- Has thanked: 61 times
- Been thanked: 182 times
Re: A custom MID motor 8 cell chassis I designed.

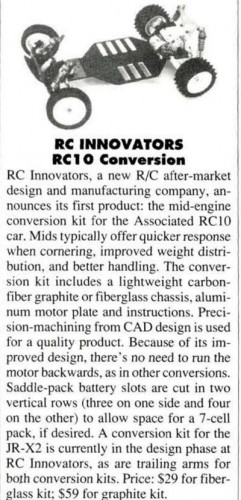

Finally came across the ad your design reminded me of. It's similar to another early mid conversion from RC Innovators back in 1989-90.
I think there was one more conversion I remember seeing in the RCCA scans too. Same design...with the kick-up attached to a flat plate....but it also had two thin strips of carbon fiber that connected at the back of the nose tubes and went around the outside edges of the chassis. Top deck looked totally ineffective though.
I think there was one more conversion I remember seeing in the RCCA scans too. Same design...with the kick-up attached to a flat plate....but it also had two thin strips of carbon fiber that connected at the back of the nose tubes and went around the outside edges of the chassis. Top deck looked totally ineffective though.
-
- Approved Member
- Posts: 384
- Joined: Wed Mar 07, 2012 12:55 am
- Location: Moravia NY 13118 USA
- Been thanked: 5 times
Re: advanced racing motor kit on custom 8-cell chassis
Some how I never saw this post Phin. Wow that car in the add is shockingly similar. The future versions of this chassis will be for Lipo cells and will have braces from the front of the nose that connect to the chassis for added front end stability.
