Merged Optima
- EvolutionRevolution
- Approved Member
- Posts: 1495
- Joined: Tue Feb 01, 2011 3:24 pm
- Location: Netherlands
- Has thanked: 20 times
- Been thanked: 36 times
- Coelacanth
- Approved Member
- Posts: 7370
- Joined: Thu Jul 29, 2010 6:20 pm
- Location: Alberta, Canada
- Has thanked: 16 times
- Been thanked: 289 times
Re: Merged Optima
Why not? Looks good! I've seen other Optimas modded similarly, to alter the wheelbase primarily. The issue for me is the problem with dirt contaminating the gearboxes; unless you want the belt/chain to hang loose, it'd take quite a bit of careful fabrication to seal out the dirt. I've seen one mod where the guy used plastic tubes to fabricate chain-guides.
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3
-
- Approved Member
- Posts: 1001
- Joined: Thu Aug 22, 2013 1:05 pm
- Location: USA
- Been thanked: 1 time
Re: Merged Optima
Perhaps buy up a couple sets of repro mid belt covers, and overlap them to make long enough?
- Hcp22
- Approved Member
- Posts: 1858
- Joined: Sat Jun 19, 2010 6:31 am
- Location: Gothenburg Sweden
- Has thanked: 33 times
- Been thanked: 16 times
Re: Merged Optima
I like your innovative way of thinking DennisDennisM wrote:Thanks Lars, that´s a mild way of putting it
Re: Merged Optima
you could also use light gauge aluminum and bend up some c-channel using a small metal brake. harbor freight sells a 18" bench top brake that works quite well and you can get a sheet of aluminum from home depot or hobby shop for cheap. I also use the aluminum and brake to fab alloy wings.
-
- Approved Member
- Posts: 74
- Joined: Wed Dec 02, 2009 10:03 pm
- Location: Denver, CO, USA
Re: Merged Optima
I've seen one optima somewhere where they handled the dirt problem by spltting open the diff cases and basically having nothing sealed. Not sure about that though.
- DennisM
- Approved Member
- Posts: 2403
- Joined: Sun Feb 26, 2012 7:07 am
- Location: Denmark
- Has thanked: 30 times
- Been thanked: 64 times
Re: Merged Optima
Thanks for the kind words.

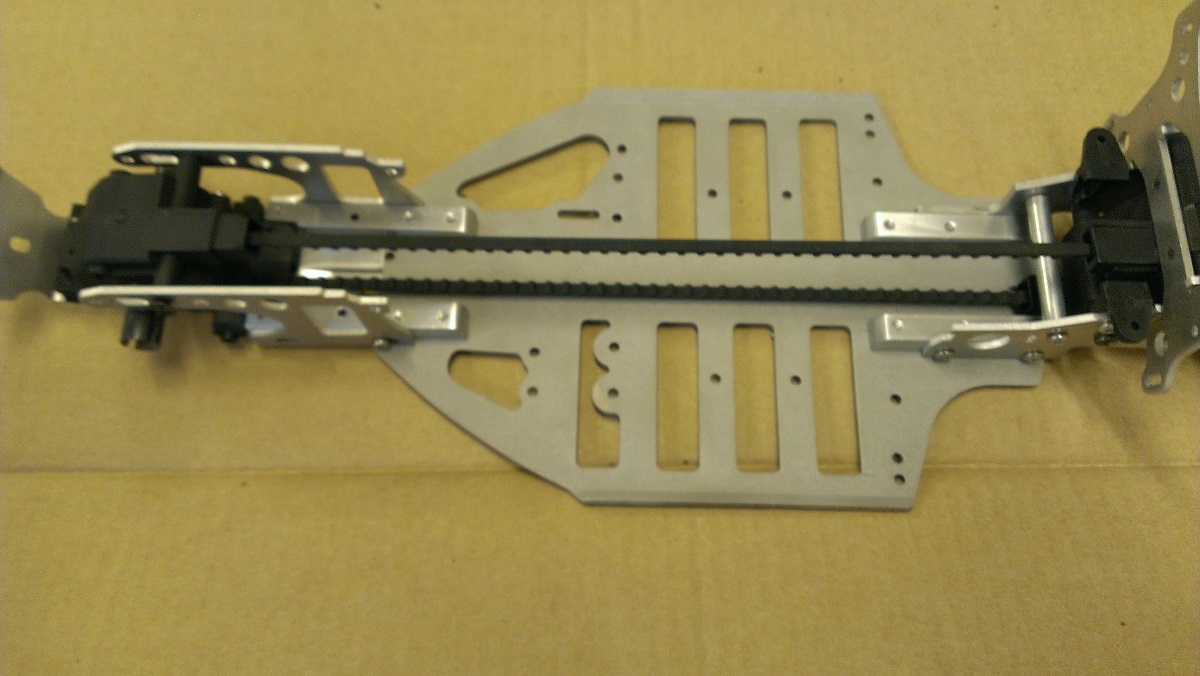

As for the belt protection, the lower one for the LWB mid fits fine - I tested it when I did the mockup.

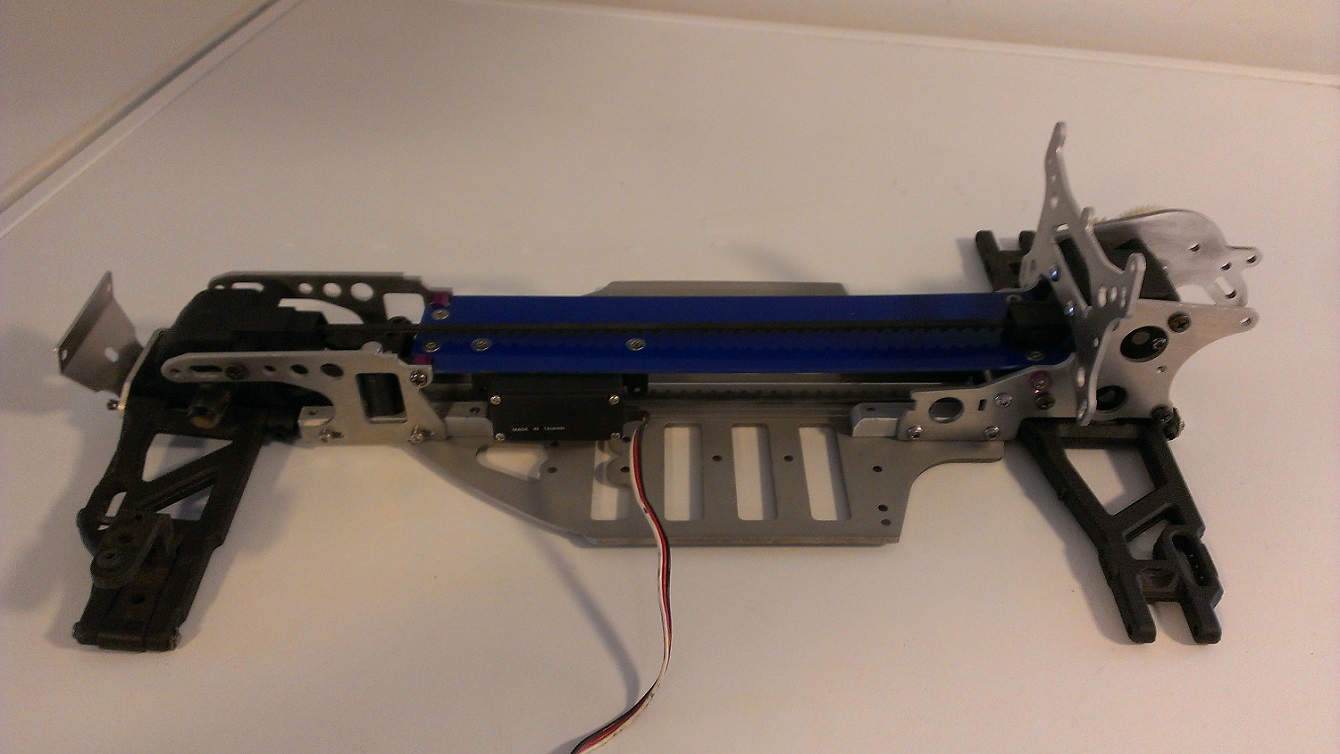

I´ve lowered the top deck so the upper belt runs over it in its entire length.

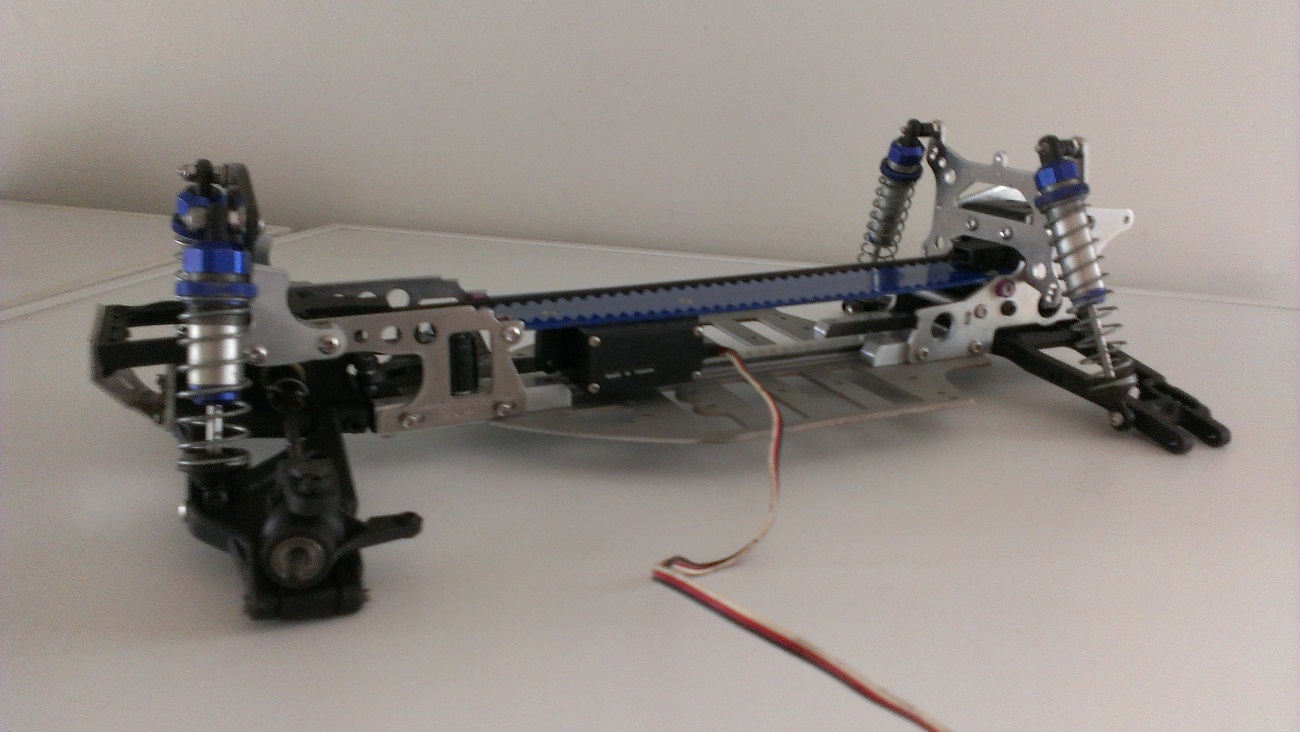

Right now I´ve got lazer arms fitted and the WB is ca. 281mm.
I´m not sure if I´m going with std. saddle pack or the LiPo ones. The topdeck will need a cutout if I go modern.
As for the belt protection, the lower one for the LWB mid fits fine - I tested it when I did the mockup.
I´ve lowered the top deck so the upper belt runs over it in its entire length.
Right now I´ve got lazer arms fitted and the WB is ca. 281mm.
I´m not sure if I´m going with std. saddle pack or the LiPo ones. The topdeck will need a cutout if I go modern.
Gone fishing
- GoMachV
- Super Member
- Posts: 11330
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 822 times
- Been thanked: 2418 times
Re: Merged Optima

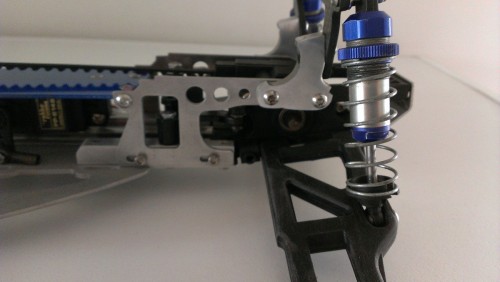

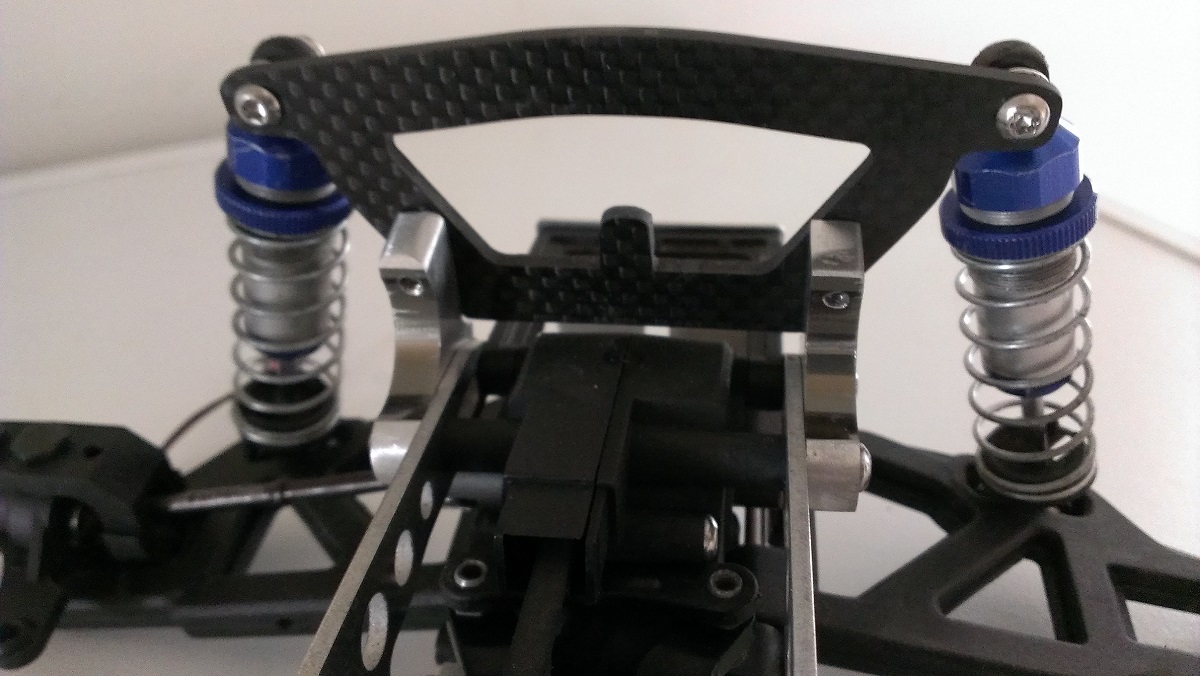

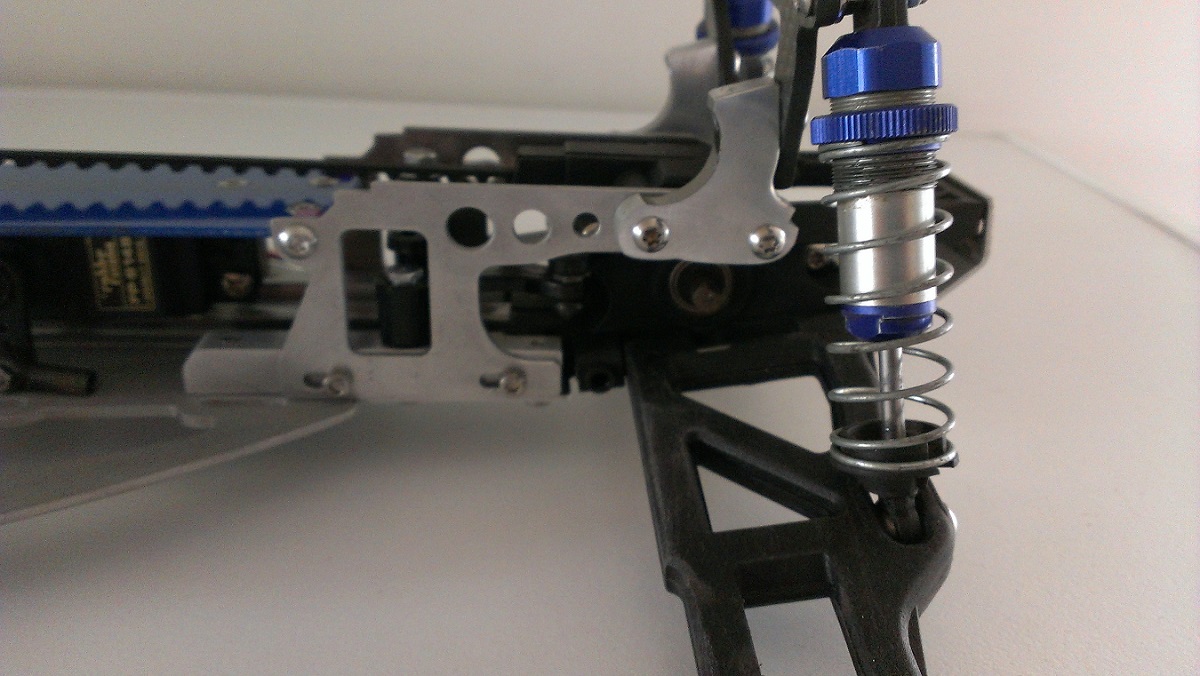

Lookin good! What did you craft the tower mounts from? Looks like a front bulkhead of some make?
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
- GoMachV
- Super Member
- Posts: 11330
- Joined: Sun Apr 29, 2012 10:31 pm
- Location: Twin Falls, ID
- Has thanked: 822 times
- Been thanked: 2418 times
Re: Merged Optima
I was pretty sure you hadn't bought a mill yet nice repackaging of those. Is there enough meat for the camber rod screw/ball?
No, i didn't just call you a screwball
No, i didn't just call you a screwball
It's time to stand up to the bully. Support the companies that support the industry, not the ones that tear it down. Say no to Traxxas
Factory Works website
Factory Works website
