22.4 build thread

[zuki250]

So in another thread i was asked to do a build thread of my new 22.4....so here we gooooo

I race a Losi SCTE 2.0 short course, so i was very excited to get this

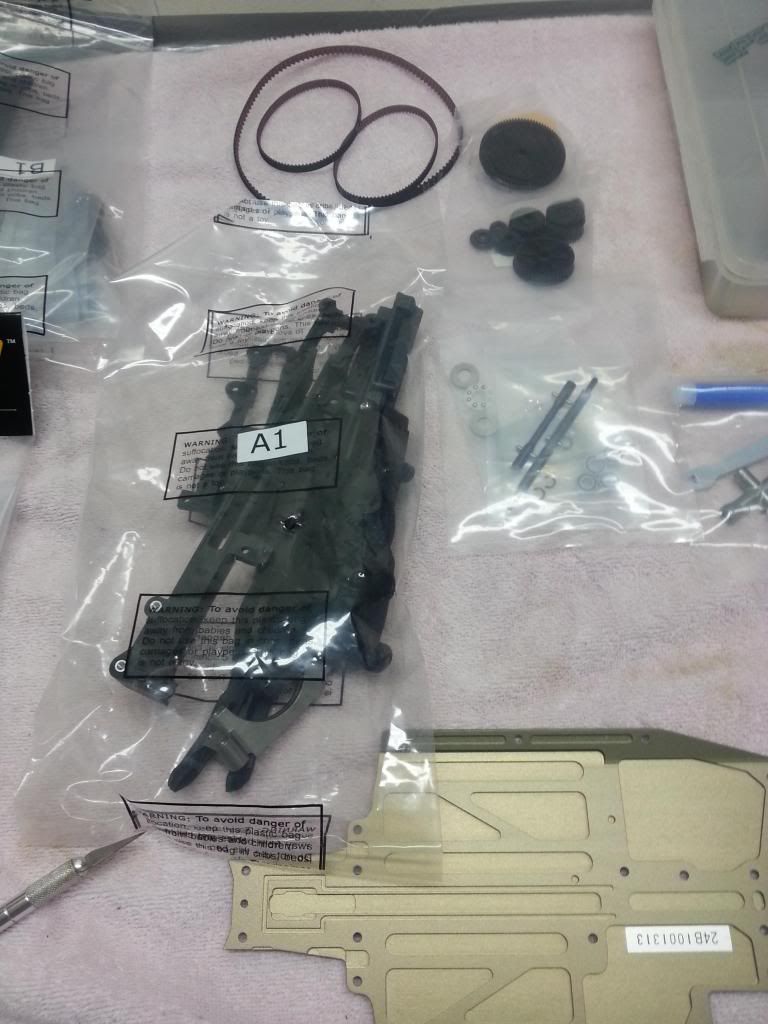

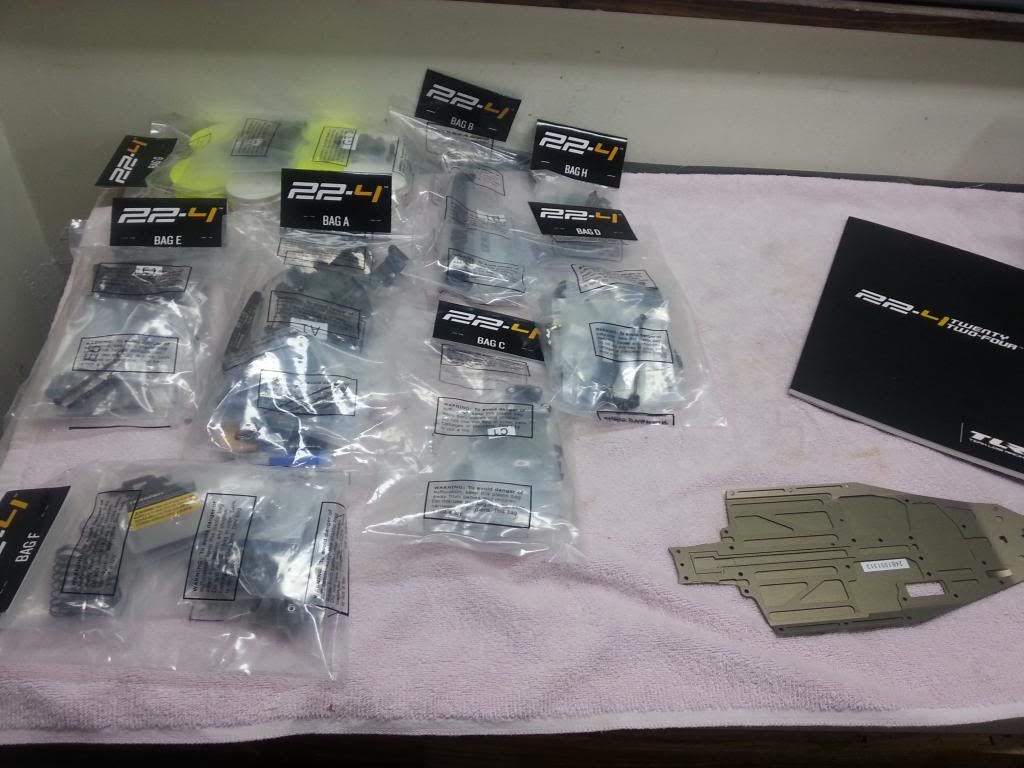

Everything but the body laid out

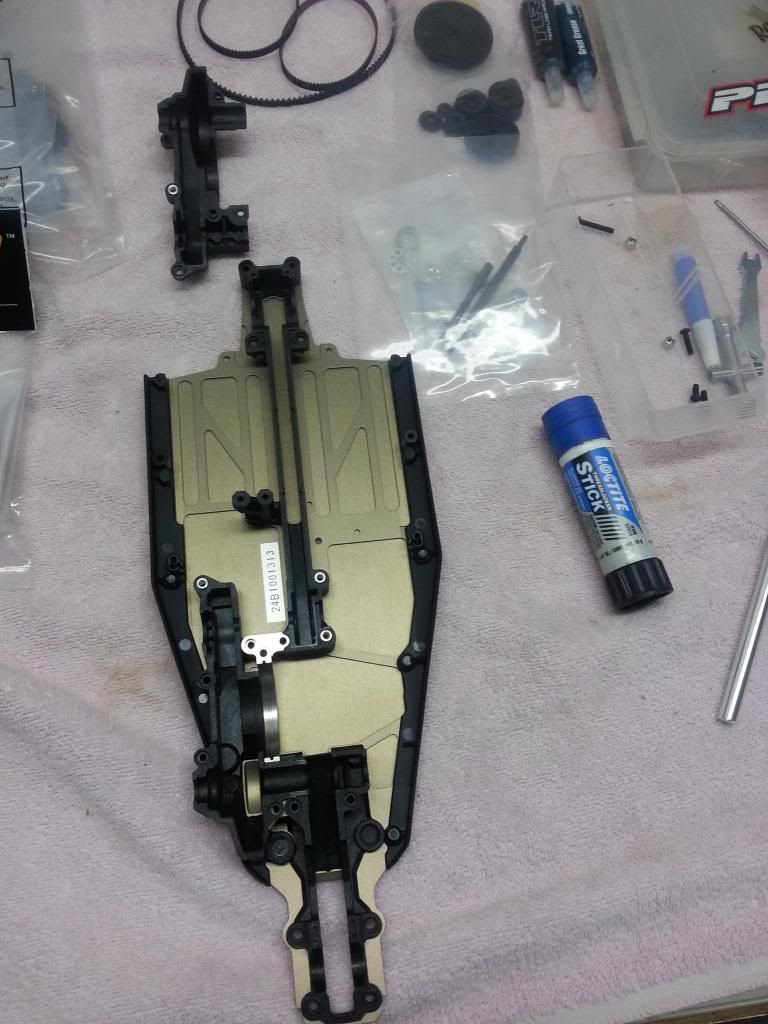

Time to start the chassis



And i know it's not much, but it's late and I am no mood to build ball diffs tonight....I will tackle those tomorrow

[knixdad]

Much appreciated!

[slow_jun]

Nice, been checking this out on rctech, need to resist.

[jamin]

This is cool! I nearly got one myself to sit along side my XX4 I am building, but I've bought too many kits lately.

Looking forward to some progress.

[zuki250]

Ok here are more pics...forgot to post....I only have to build the shocks and install the electronics and i am pretty much done

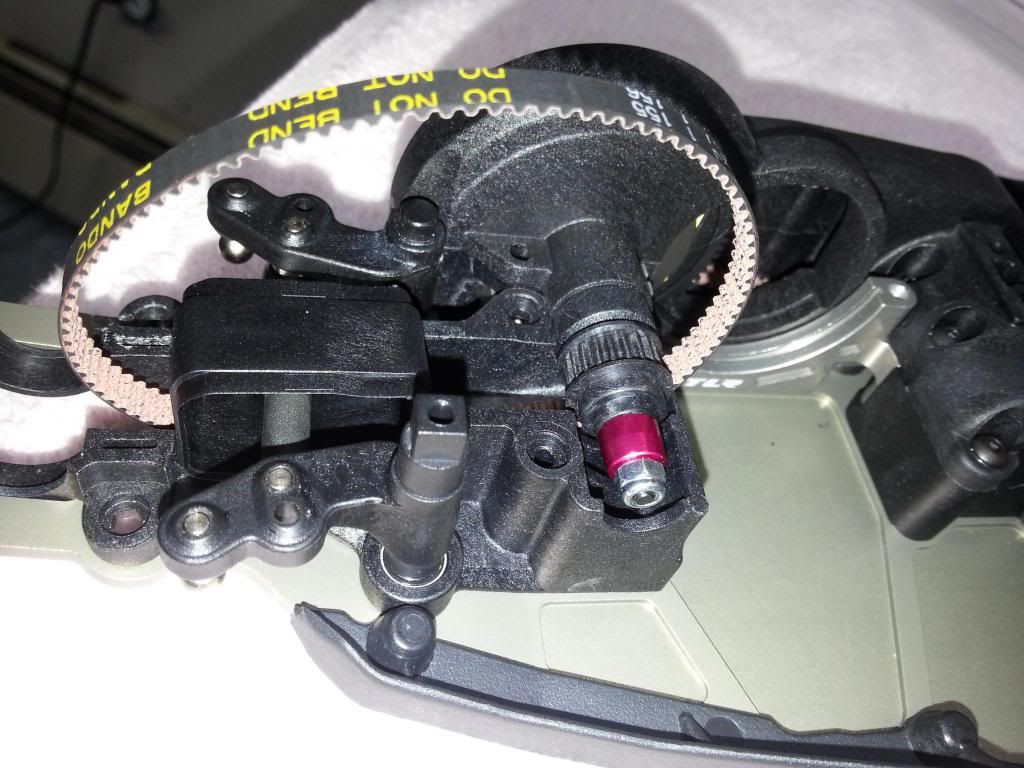

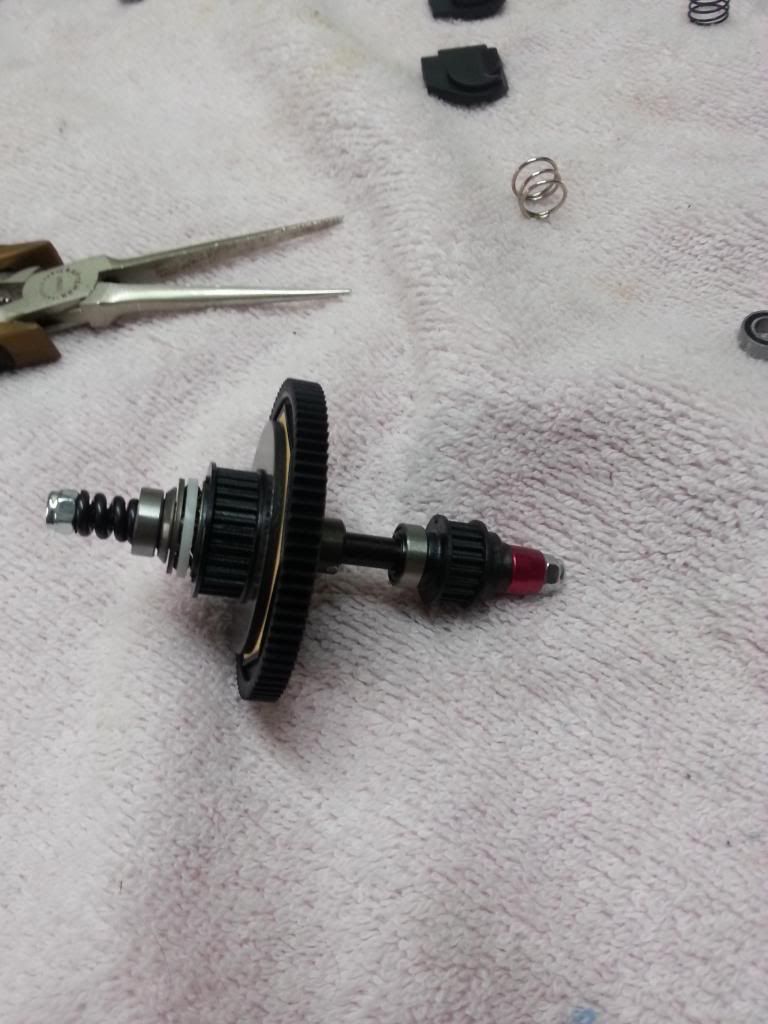

Starting the slipper

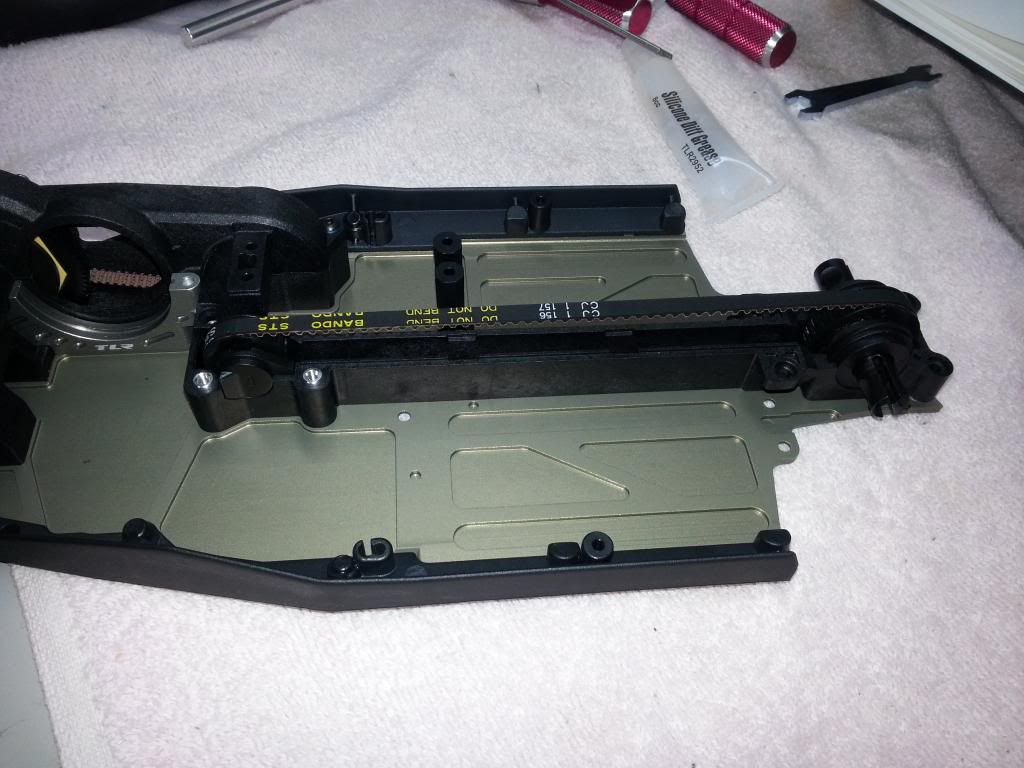

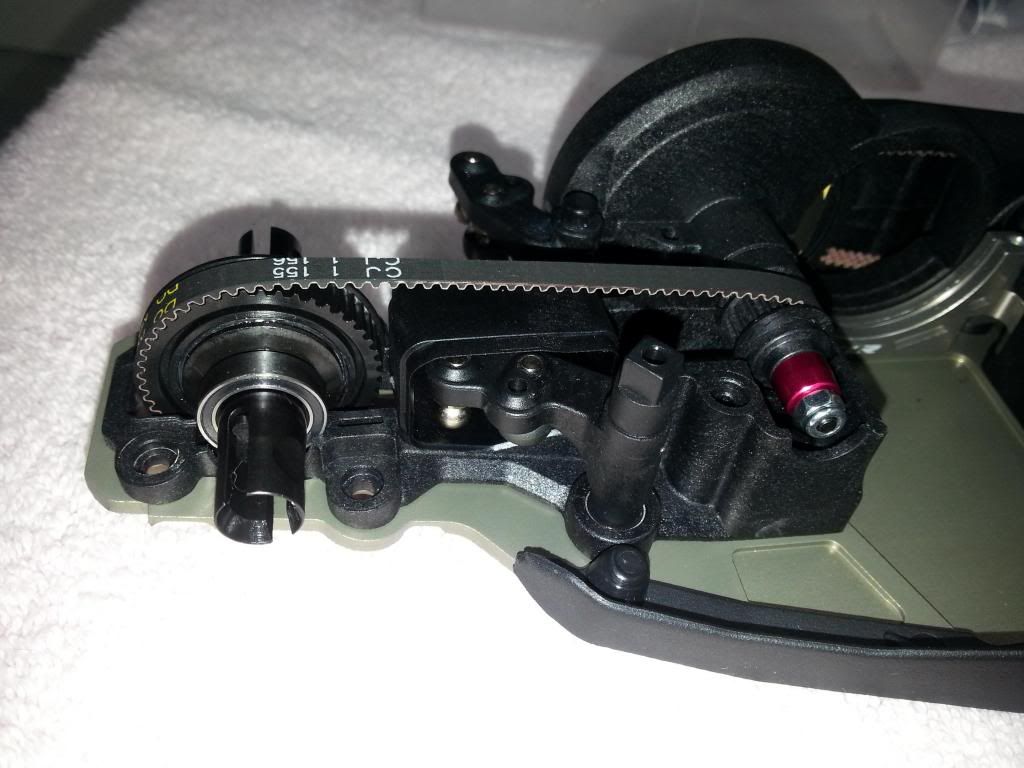

Belts and Layshafts installed

[zuki250]

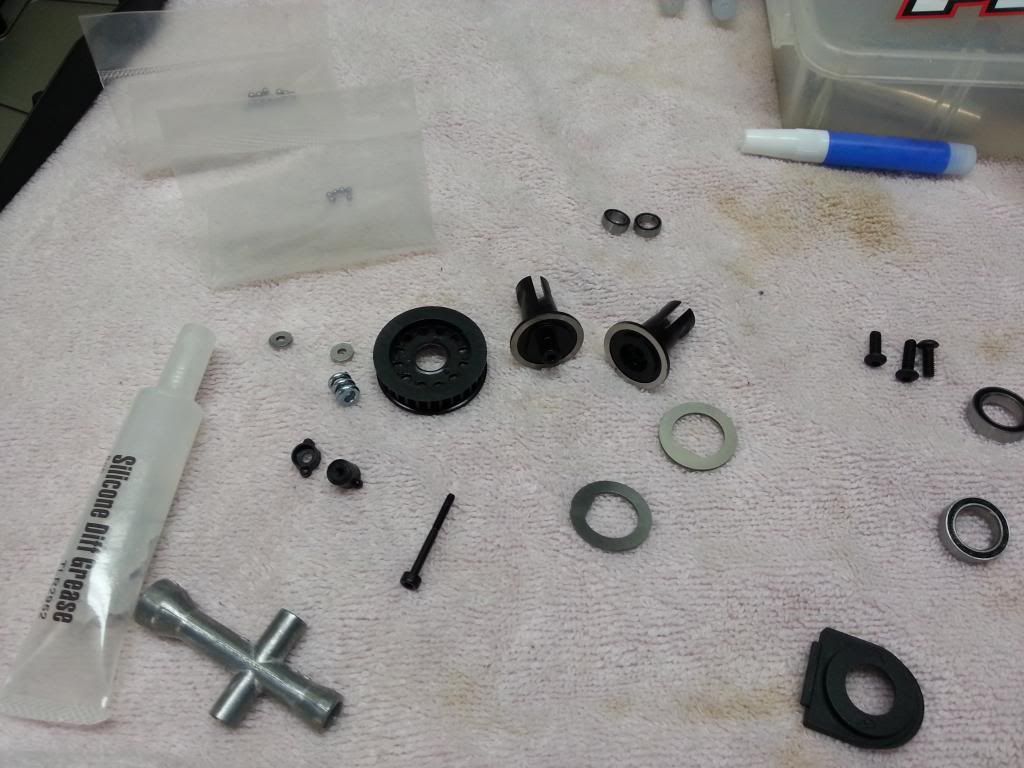

Now to start the ball diffs

Rear






And with the rear cover installed

[zuki250]

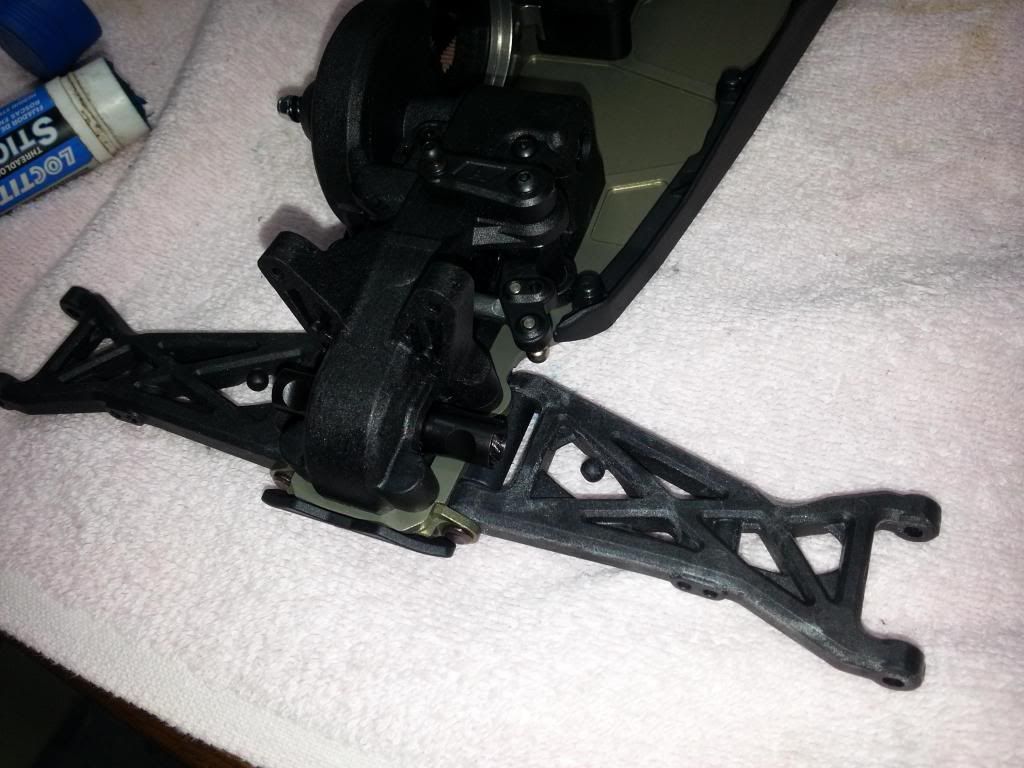

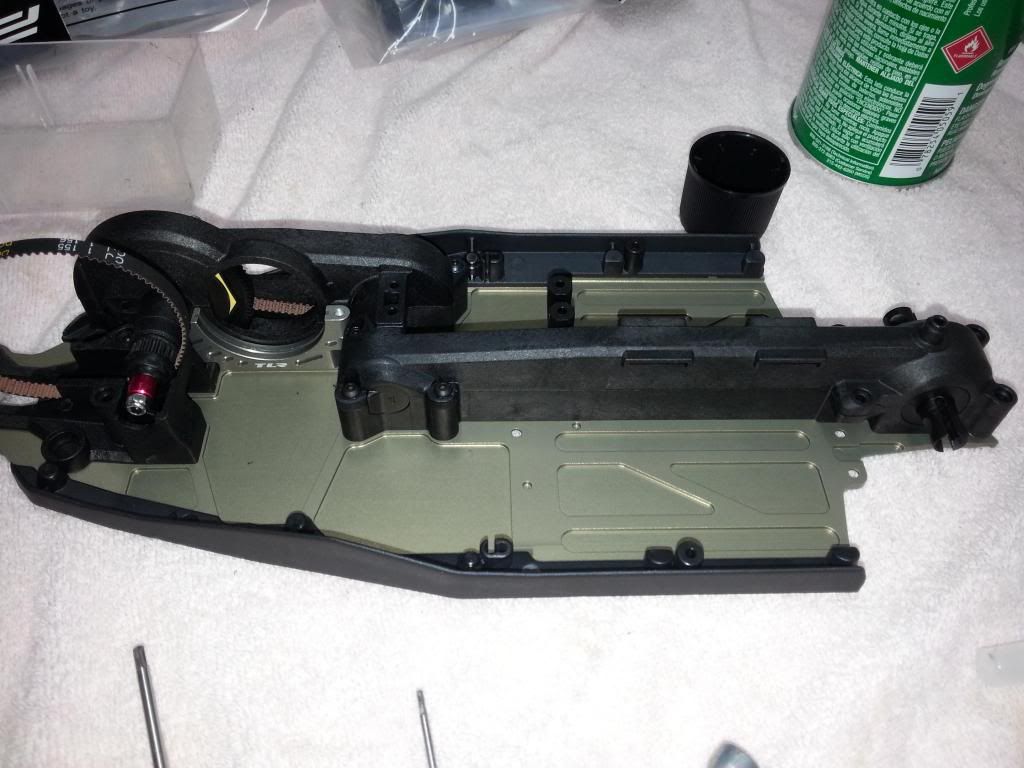

And the steering installed


With the Ball Diff

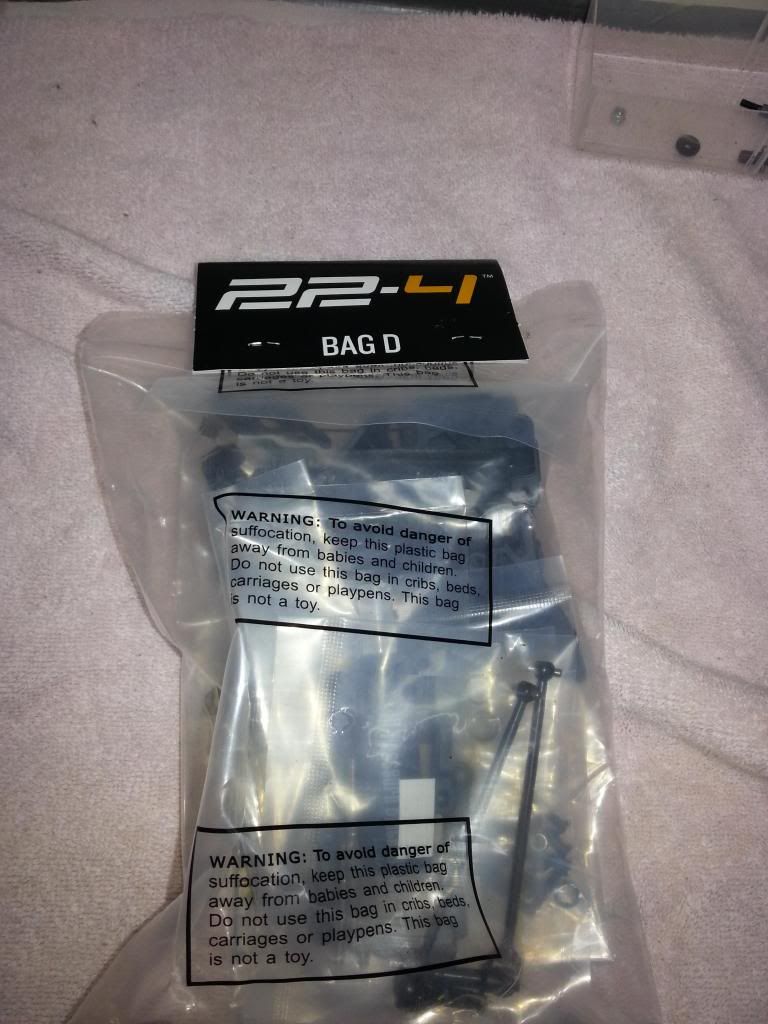

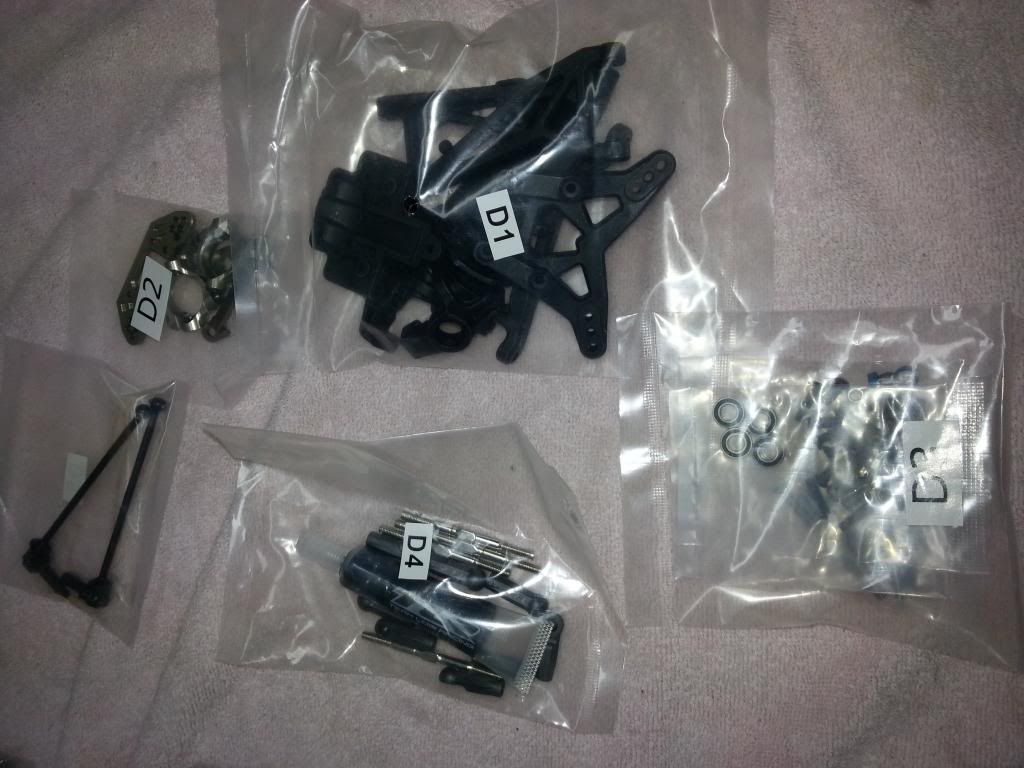

and on to bag D!!!

[zuki250]

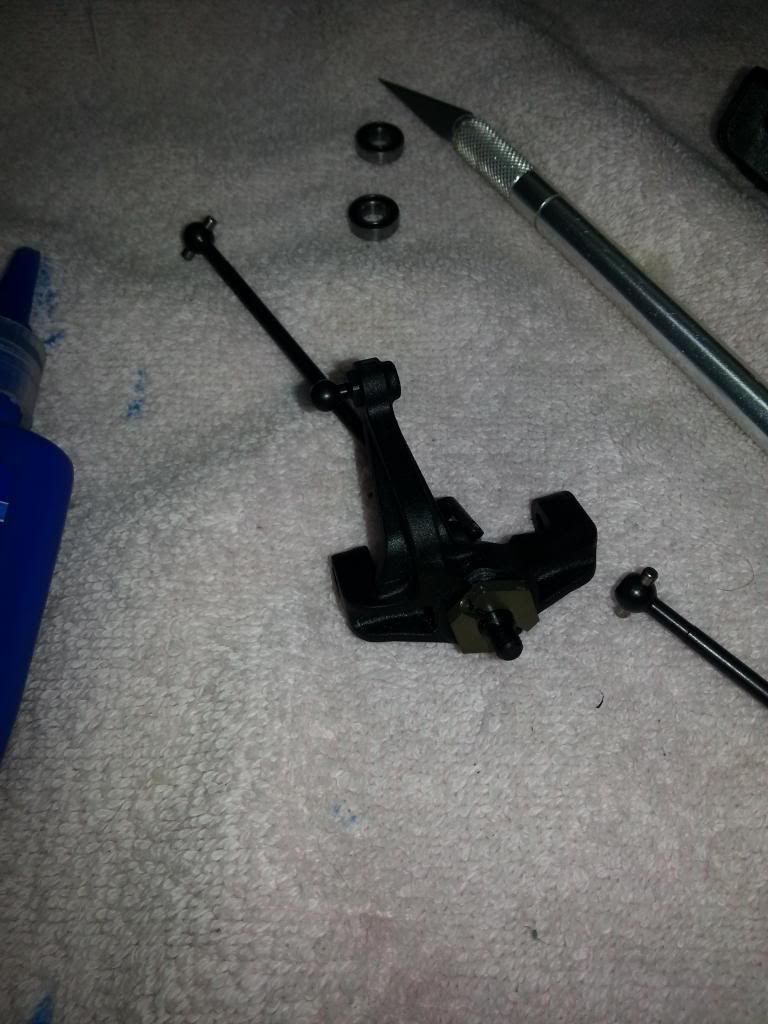

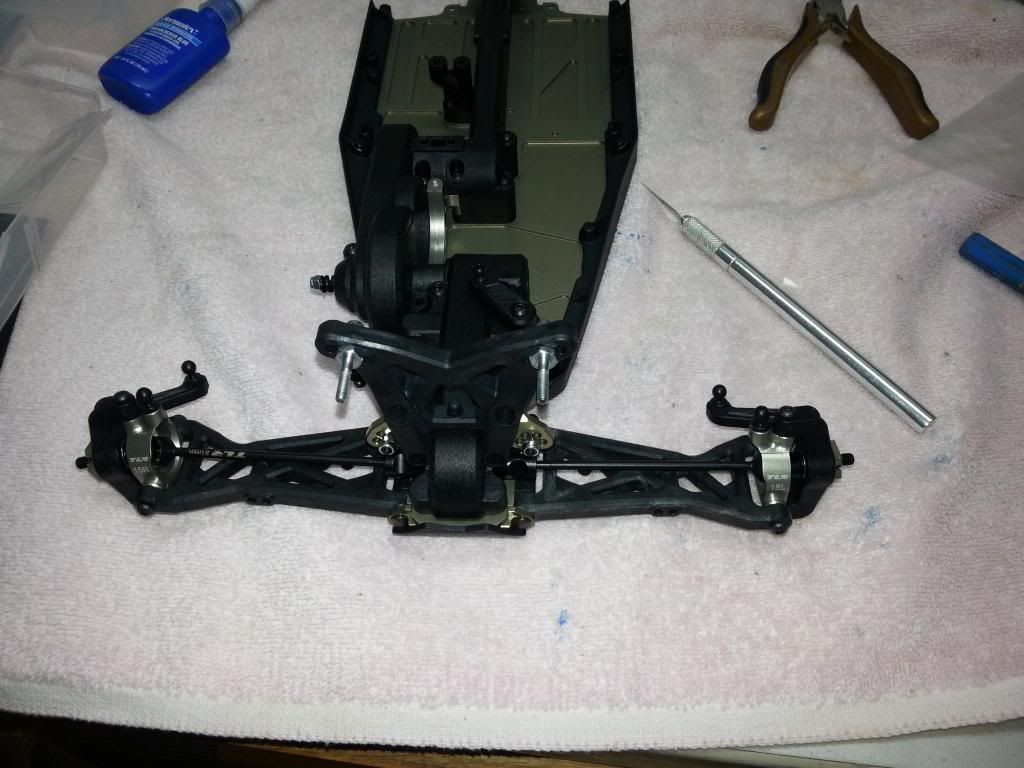

Front end coming together

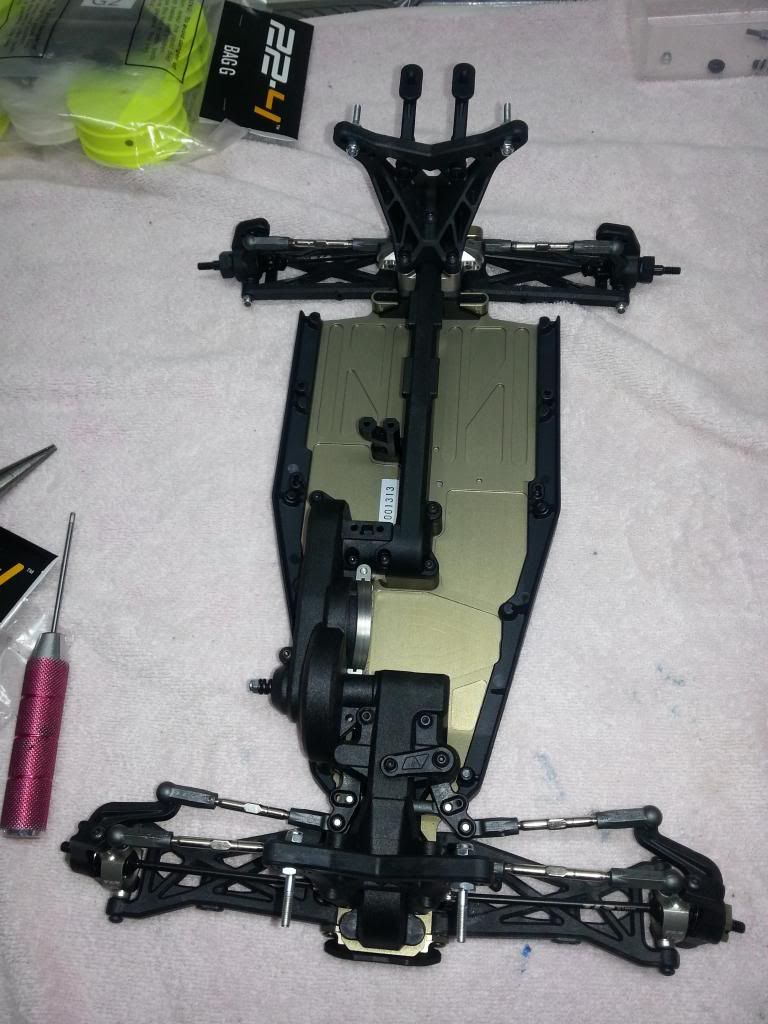

And the final chassis completed....didn't get pics of the rear going together..but same as the front...haha

[hondaman]

Such a good looking car.. nice build..

Shawn

[jamin]

Great build - those are chunky old belts, a lot wider than the XX4 for sure!

[JK Racing]

Ok here are more pics...forgot to post....I only have to build the shocks and install the electronics and i am pretty much done

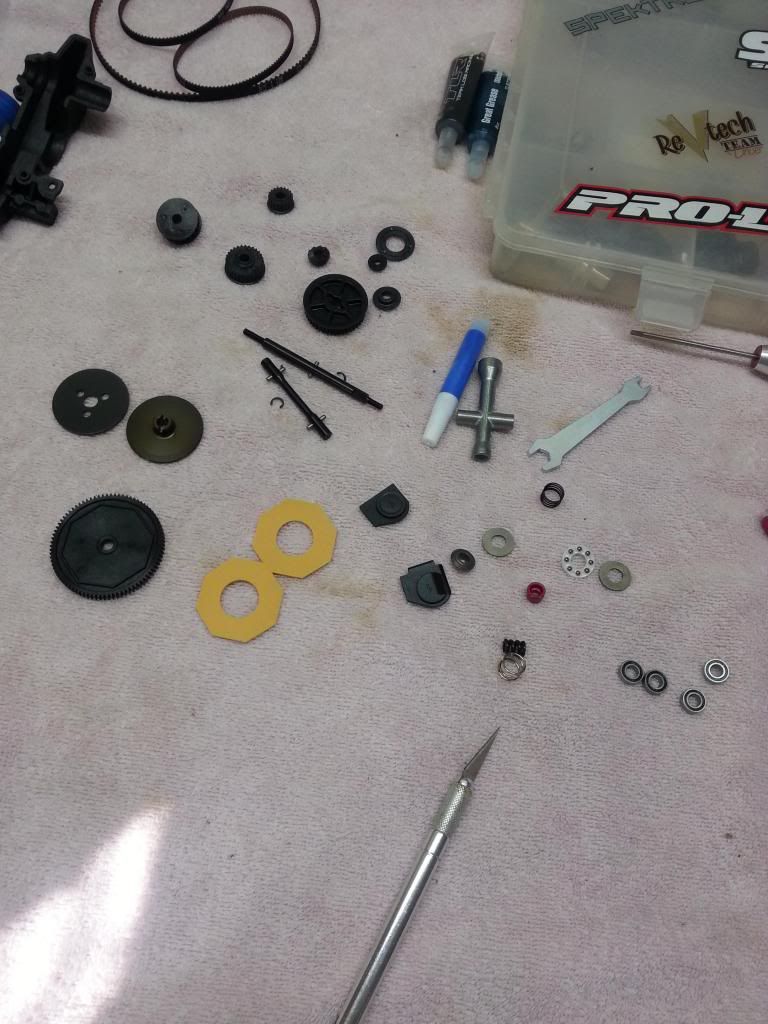

Starting the slipper

Is that the stock spur/slipper pads, or did you drop AE parts on there?

[zuki250]

stock

[knixdad]

The 1 Way Clicker lockout is much fancier now!

[LosiXXkid]

I have to say that the quality of modern TLR parts looks to be exceptional. Wish I could justify buying the 22 or, in this case, the 22-4 but I really can't......as much as I'd like to! On the up side, at least I am able to enjoy build threads like this.

[jamin]

Funny that the belts have 'do not bend' written on them!!?!?!?

Surely they mean 'do not crimp'
