mip tranny
Posted: Wed Apr 07, 2010 3:00 pm
by corkyjohnson75
hi guys
does any one no much about these mip trannys ive rebuilt this one and the diff has no thrust plates is this the way they are and also what slipper do i use.
Re: mip tranny
Posted: Wed Apr 07, 2010 3:04 pm
by scr8p
thrust plates? do you mean outdrives?
they don't have slippers. well....... some of them had a torque control topshaft. but not yours.
Re: mip tranny
Posted: Wed Apr 07, 2010 3:32 pm
by shodog
They don't have separate thrust plates like the stealth does.
Re: mip tranny
Posted: Wed Apr 07, 2010 5:42 pm
by Soncho Ponza
I have one with a ball diff, and there was an a&l slipper clutch available for them. I don't think mips came with a slipper
Re: mip tranny
Posted: Wed Apr 07, 2010 11:04 pm
by shodog
MIP made a slipper topshaft. In addition to ball diffs they also made gear diffs for this gearbox
Re: mip tranny
Posted: Thu Apr 08, 2010 8:15 am
by a01butal
shodog wrote:MIP made a slipper topshaft. In addition to ball diffs they also made gear diffs for this gearbox

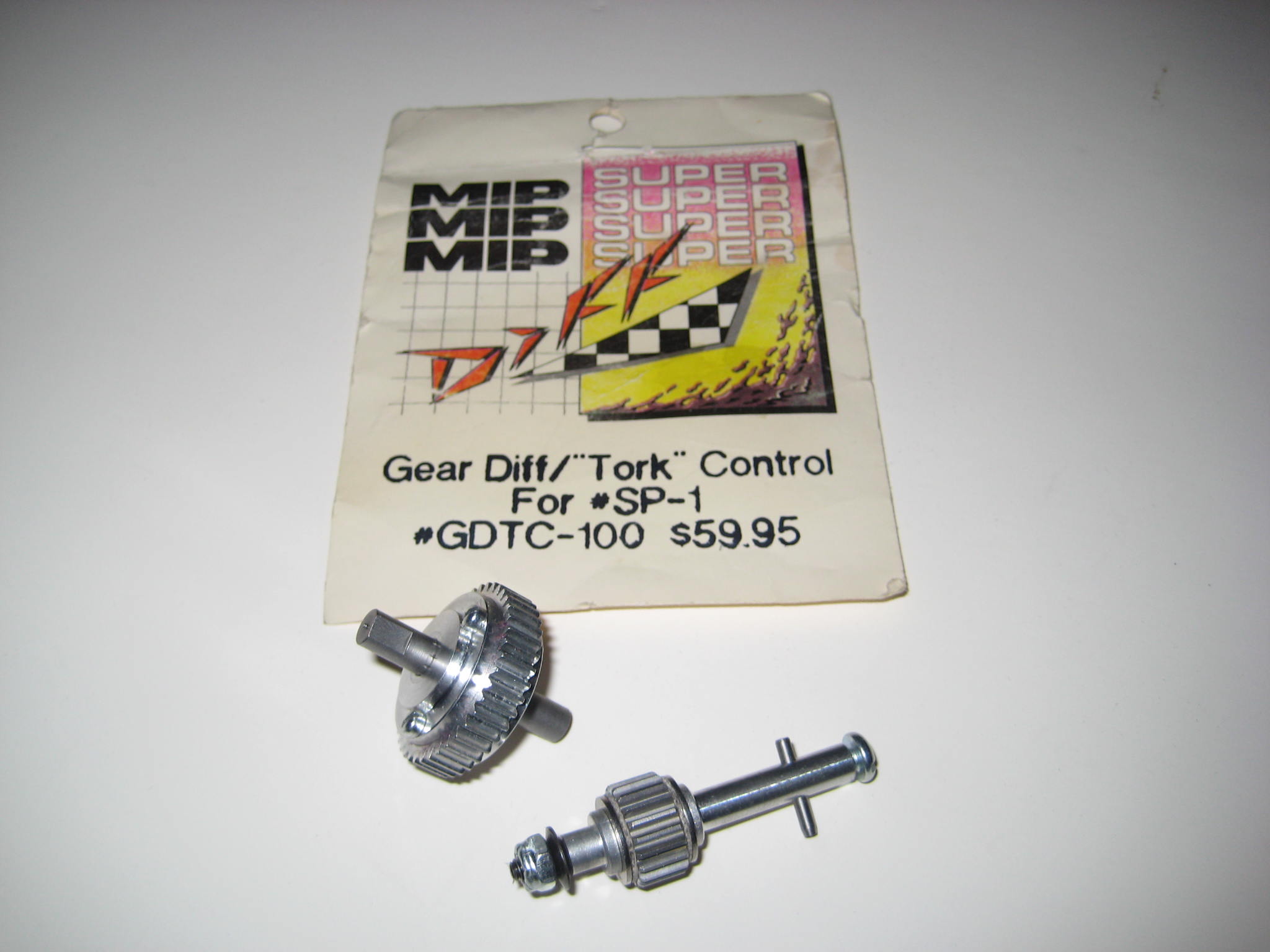

Just assembled this pair yesterday, just love MIP stuff, great craftsmanship and quality.
Re: mip tranny
Posted: Thu Apr 08, 2010 9:01 am
by shodog
a01butal wrote:
Just assembled this pair yesterday, just love MIP stuff, great craftsmanship and quality.
Those are exactly the parts I was speaking of.
Re: mip tranny
Posted: Thu Apr 08, 2010 12:52 pm
by corkyjohnson75
why as your layshaft got a nut on the other end.
Re: mip tranny
Posted: Thu Apr 08, 2010 1:01 pm
by jwscab
that is the slipper top shaft. you adjust it with the nut on the side, the gear itself slips on the 2 side plates and the nut and spring provide tension.
You could probably retrofit an associated or losi slipper to the top shaft of an MIP trans, just need to bore out the slipper plate to 5mm, then use a stud and nut arrangement with the appropriate thrust bearing/washer/spring, etc. I don't know where the gear would end up, it might end up too far out on the shaft.
Re: mip tranny
Posted: Thu Apr 08, 2010 1:32 pm
by shodog
a little known fact, these gears can also be used in the Sand Scorcher transmission
Re: mip tranny
Posted: Thu Apr 08, 2010 6:53 pm
by metallicats33
shodog wrote:a little known fact, these gears can also be used in the Sand Scorcher transmission
I've never seen the inside of a sand scorcher trans but if it has an Idler gear will it work in the
SP-1?
Re: mip tranny
Posted: Fri Apr 09, 2010 10:15 am
by shodog
metallicats33 wrote:shodog wrote:a little known fact, these gears can also be used in the Sand Scorcher transmission
I've never seen the inside of a sand scorcher trans but if it has an Idler gear will it work in the
SP-1?
Yes it shoudl work but keep in mind CRP made a brass ideler, the stock Sand scorcher is made of Nylon that easily shreds under power
