Vintage AE & I Got 870c Runners!

[vintage AE]

ZC-651 front, ZC-656 rear. I have spare rears that are new but no fronts, you guys are welcome to the rears after the strike is over-

Dude, what are you waiting for already, the strike is over. Put those belts in a padded envelop, doesn't matter if your wife flattened it either, send then in a normal one

We need at least 2 rears ones and one front one.

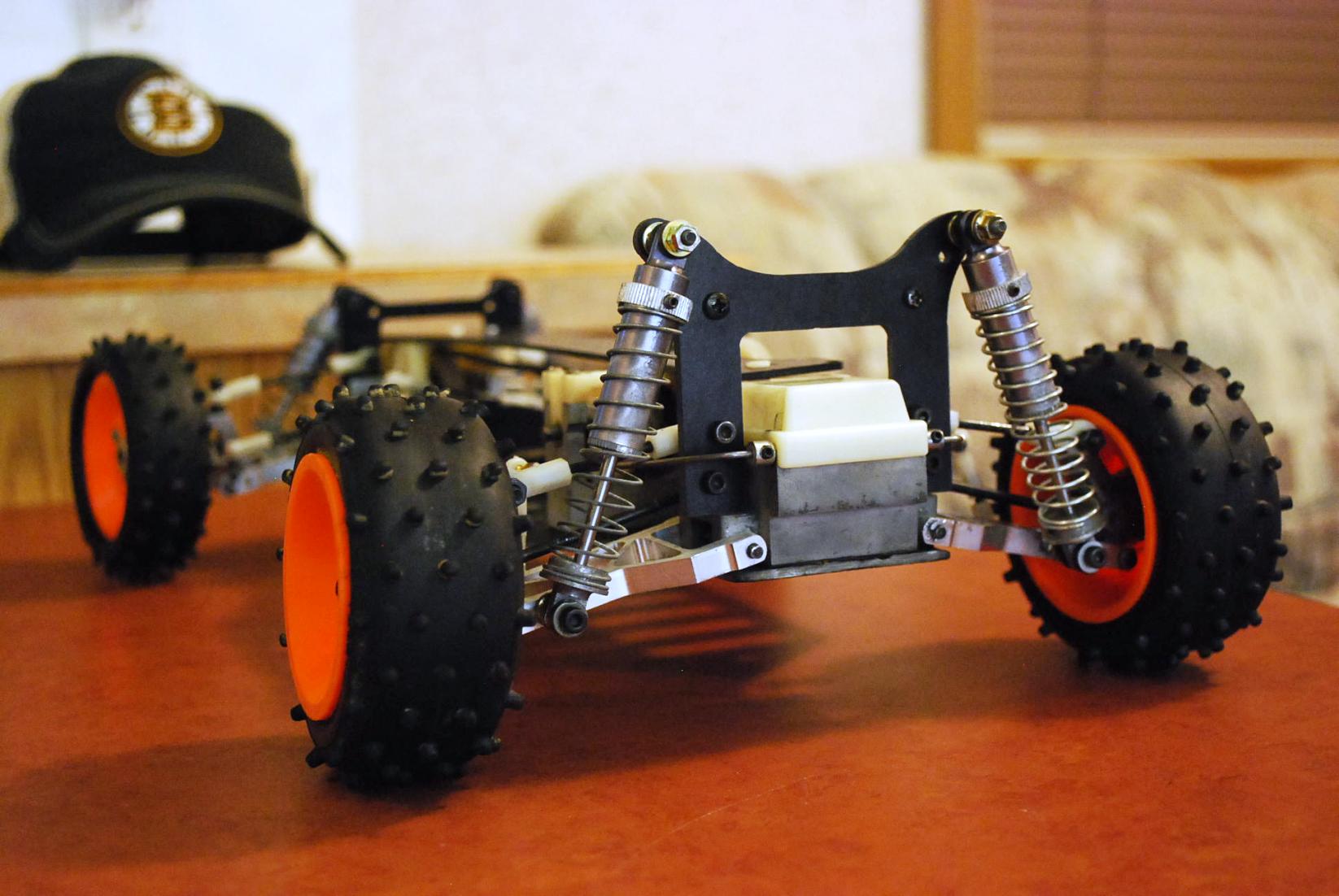

BTW the one with the orange wheels has Composite Craft towers

[Charlie don't surf]

Ok, if you think it's safe then I will include the (3) rear spares for you guys-

[vintage AE]

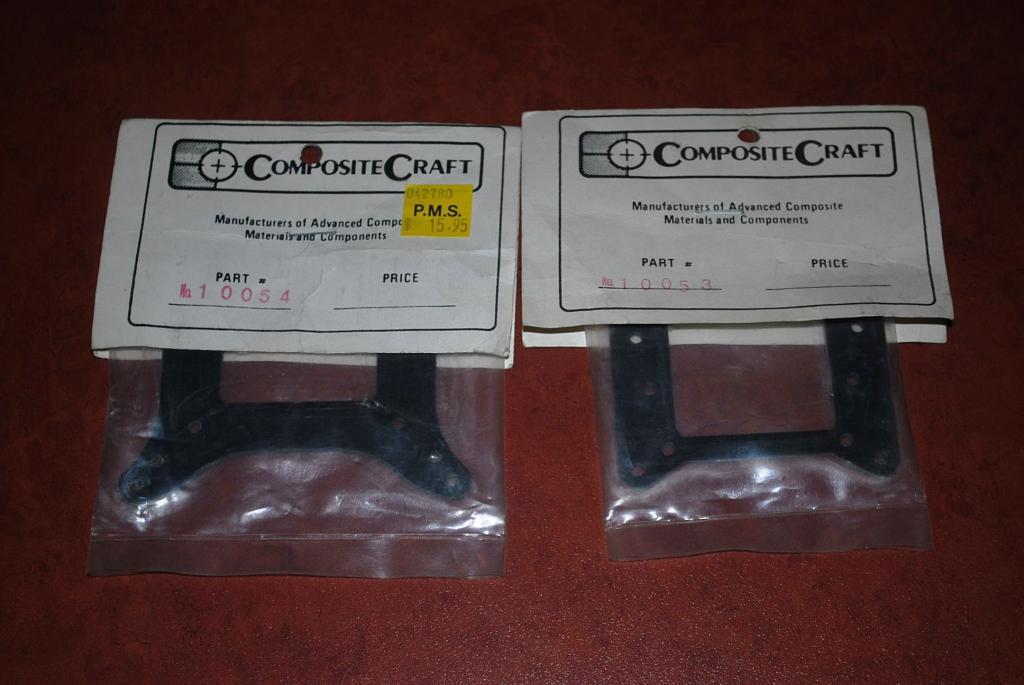

thanks Reg, it should be good now. I just noticed that it only cost $15.95 for P.M.S. on the CC label, always cost me a lot more

[vintage AE]

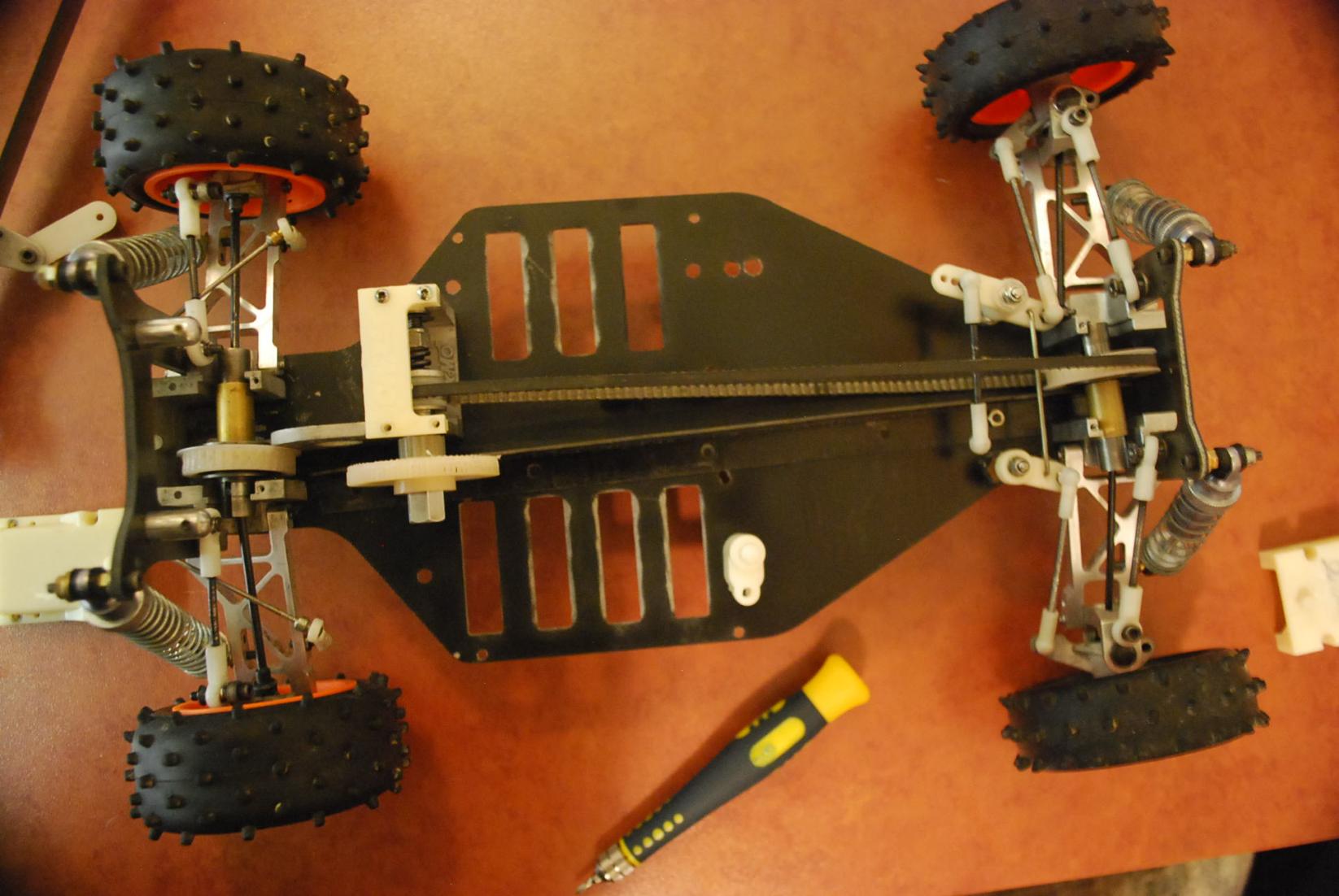

here's a shot of the ass end of the 3rd one showing it's different sway bar

Go Bruins!

[Charlie don't surf]

Looks like the normal sway bar to me, other than the set screw clevis instead of those "pinch" retainers-

[vintage AE]

yup, everything else is the same on the sway bar. Must have been a personal preference the previous own had.

[vintage AE]

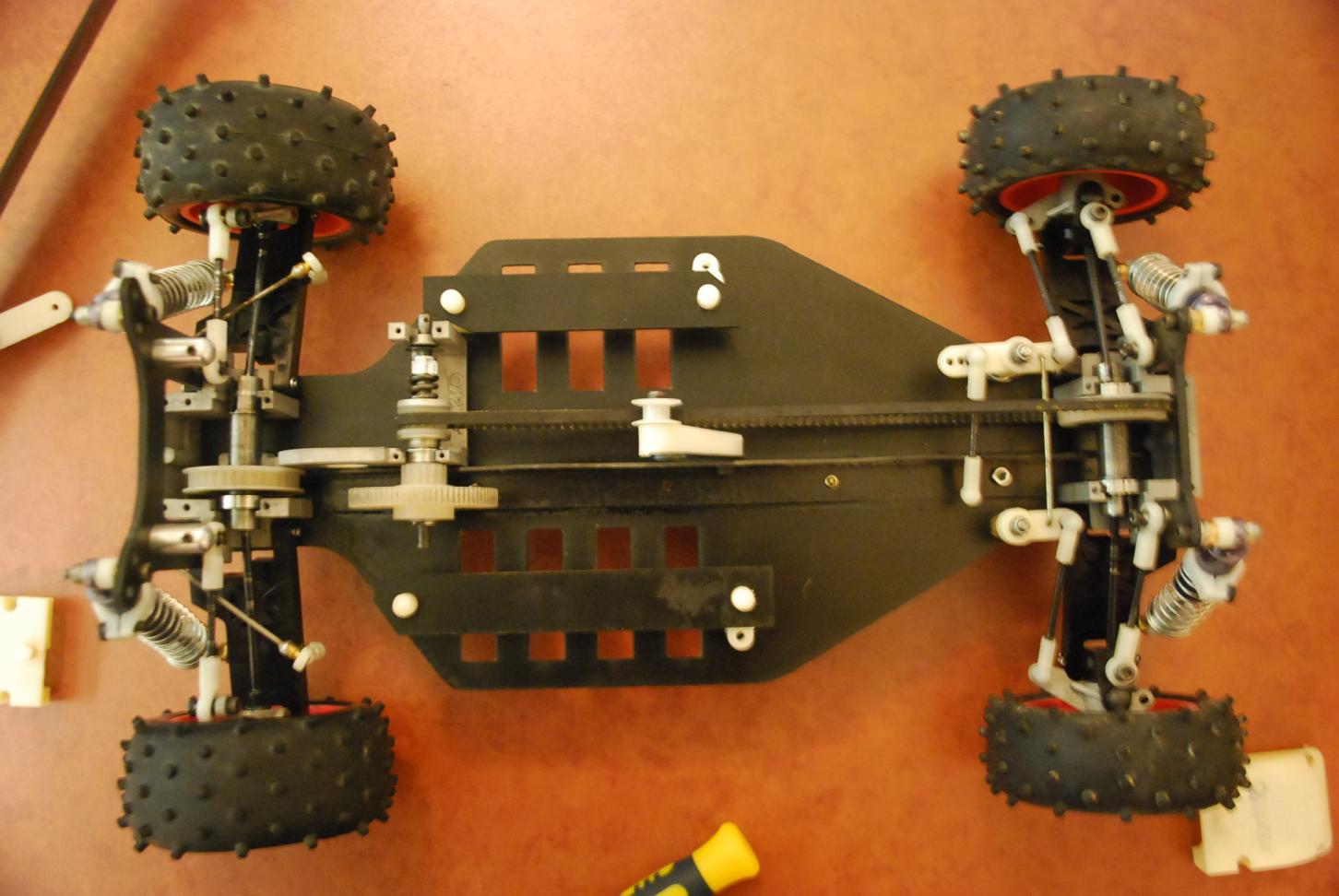

here are a couple shots of the diffs. The first two have the ridged type outdrives and the third has the brass spacers to place the bearings.

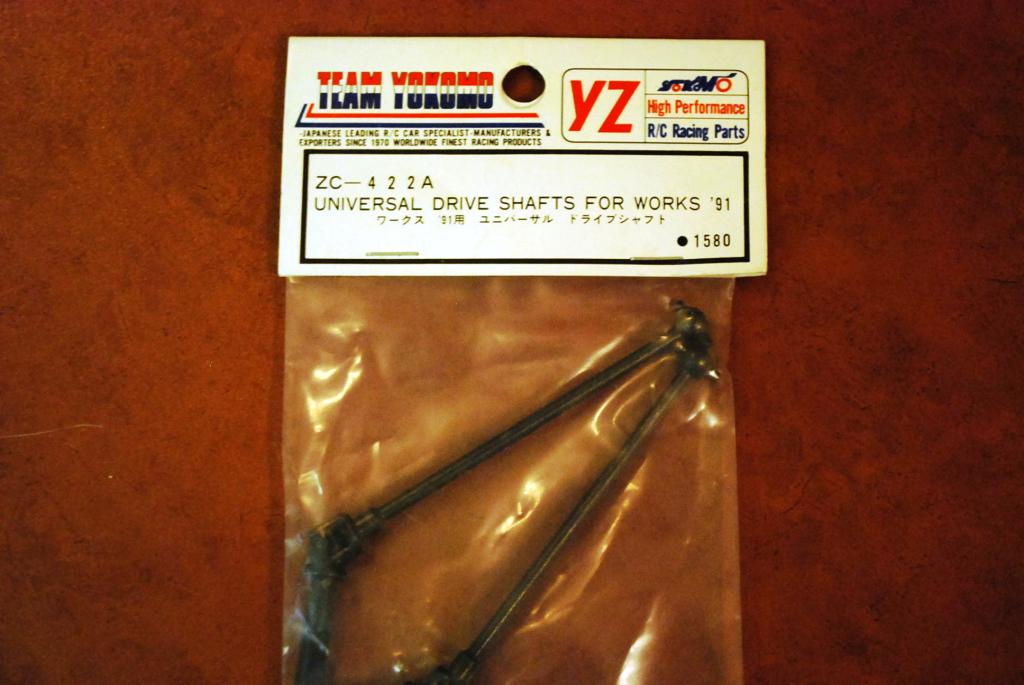

Those front aluminum arms appear to be the long ones, good thing I just remembered we have a NIP front long shaft universals

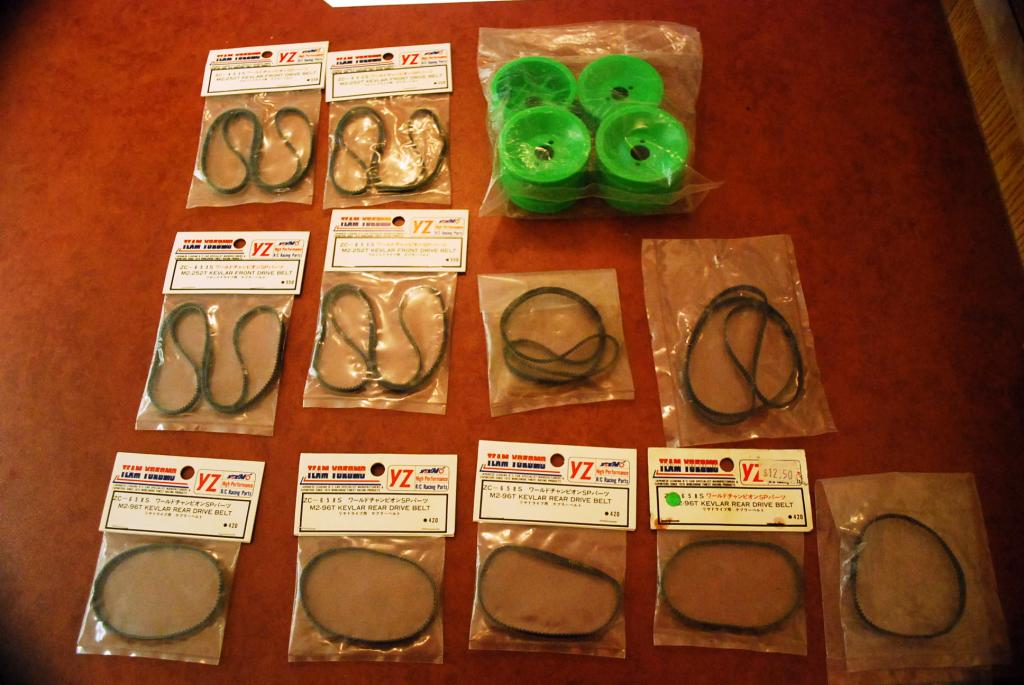

Here are the abundance of fine pitched belts we will not use. We also have 2 sets of NIP flourescent green wheels that we probably wont touch too. If anyone has any of the parts on the parts list on page 6 they would like to trade, I'm sure we can make a deal.

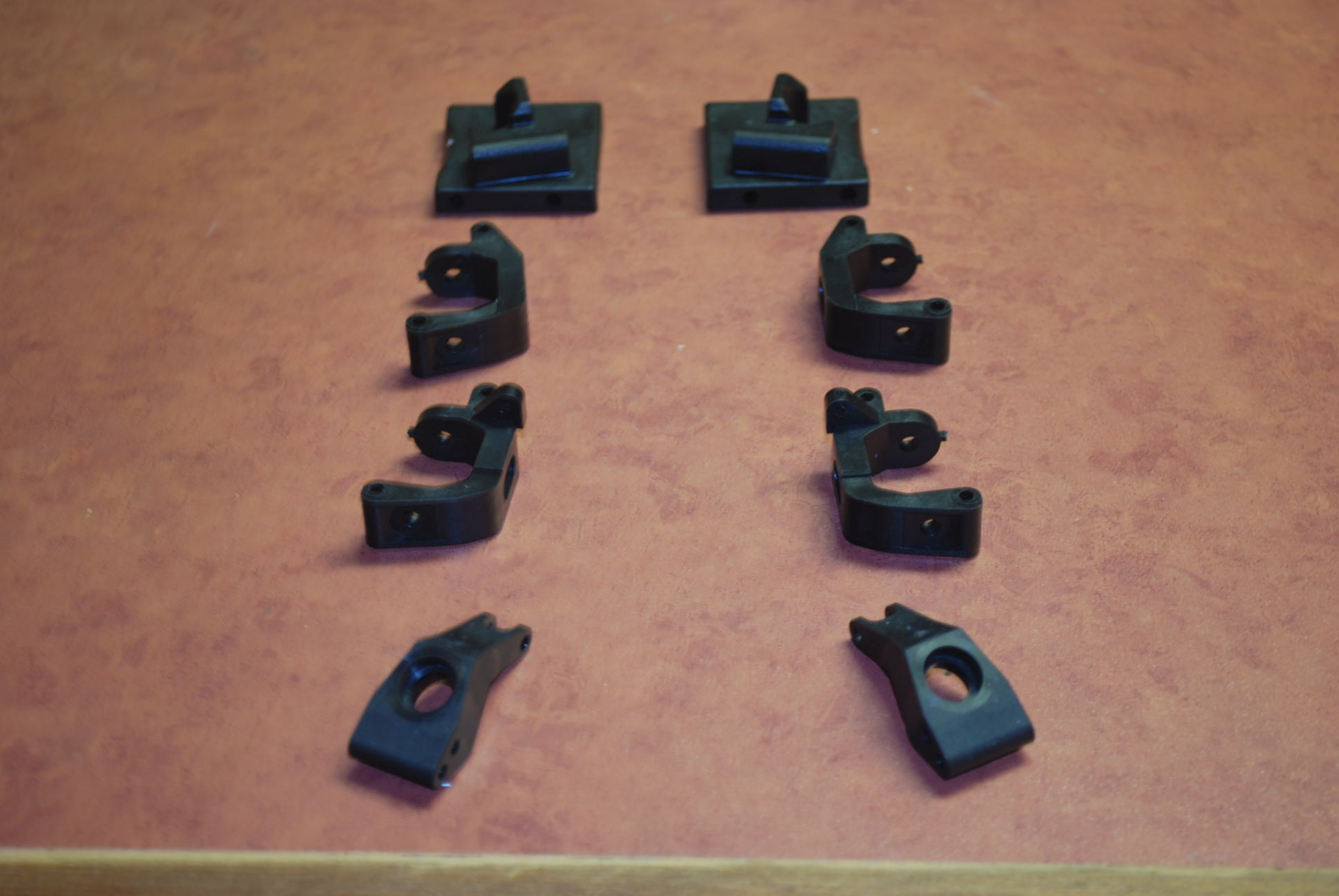

Also here are some parts from the Yokomo Super Dog Fighter YZ10 that I found in this manual http://s195302033.onlinehome.us/CX/vehicle-manuals/yokomo-yz-10-manual.pdf. Looks like the front bulkhead, front steering hubs and rear hubs. I actually haven't found what the middle hubs are from, but I'm sure we will trade them for anything we need.

[slotcarrod]

WOW Anthony! I don't log in for 2 days and you get all that done? Holy.......! You work hard in that sweat shop for your bowl of rice!

Very nice work! Look forward to running! I'm so excited! I'm kinda horny over that modded one! What all does it need to run?

[vintage AE]

Rod, I documented everything needed for all three cars. It's all on the parts needed list on page 6

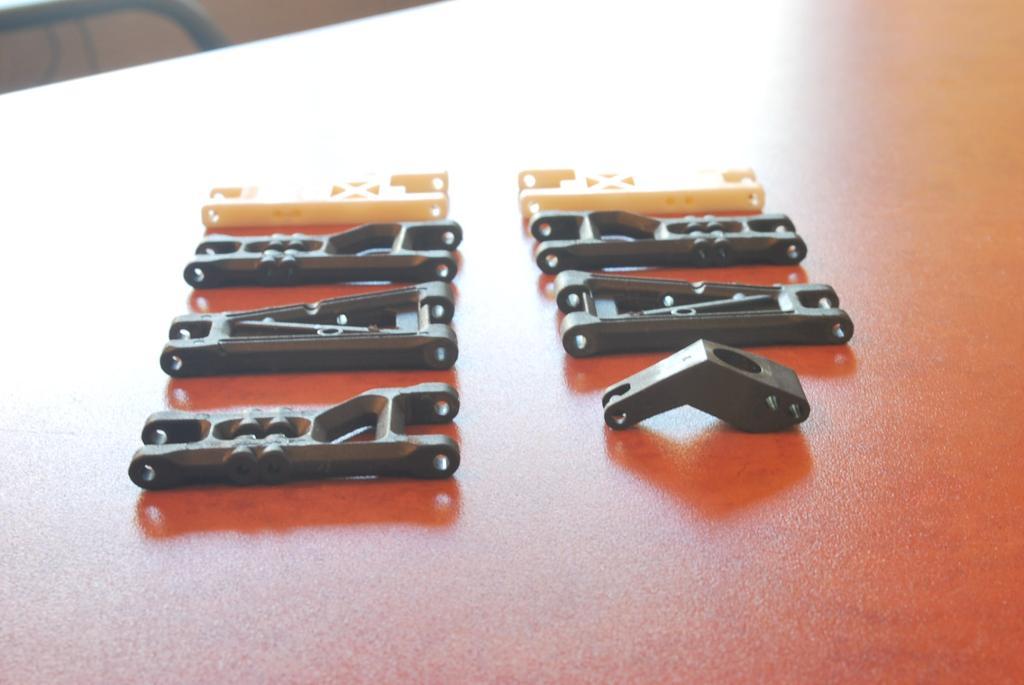

Here are more parts we probably wont use. 2 long white arms, 2 long RPM arms, 1 short RPM arm, an extra YZ10 super dog fighter rear hub, and not sure about what the third set of arms are.

[vintage AE]

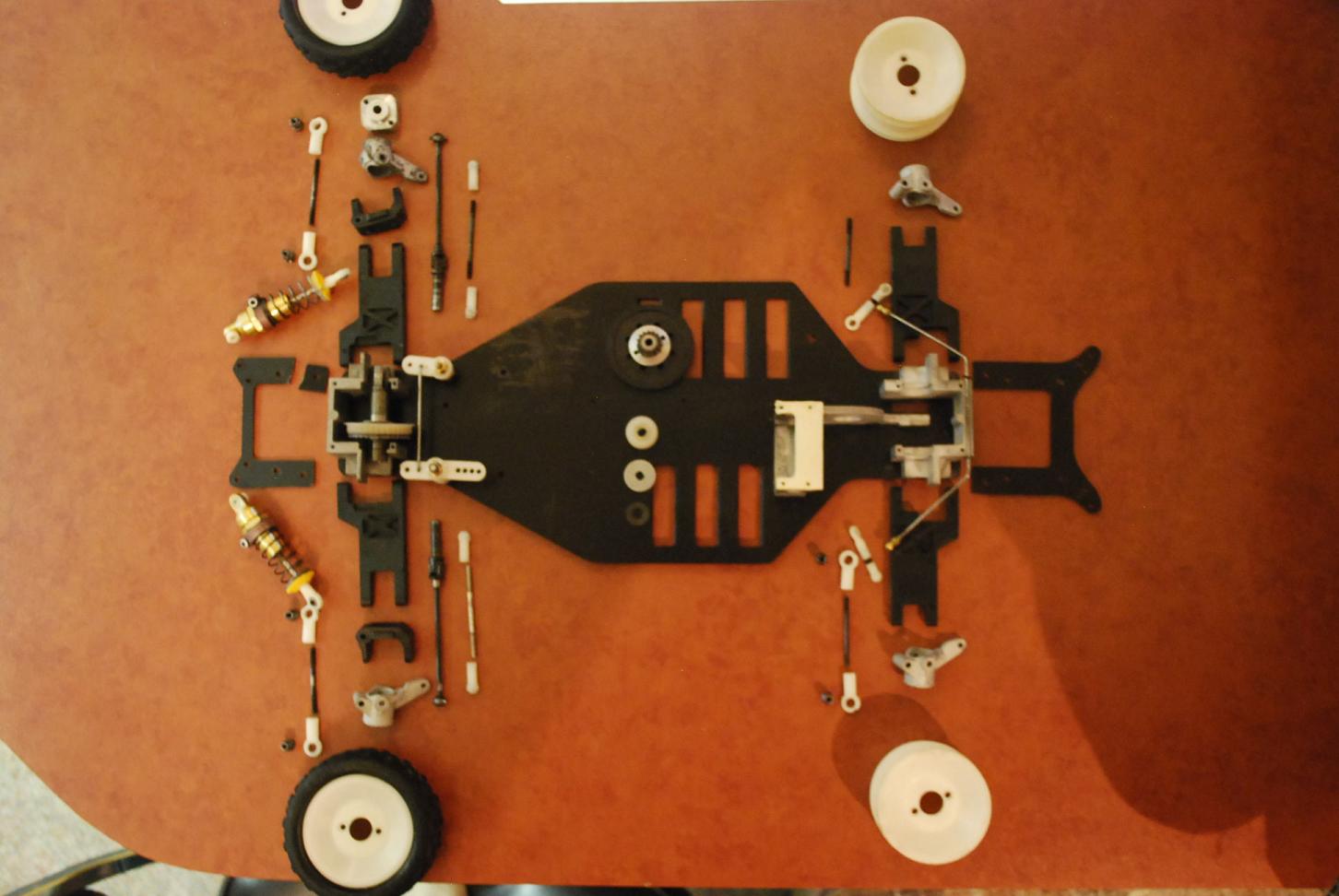

not sure of how many parts it would take to get the forth one up and going, but here is an exploded view of it.

[Asso_man!]

Also here are some parts from the Yokomo Super Dog Fighter YZ10 that I found in this manual http://s195302033.onlinehome.us/CX/vehicle-manuals/yokomo-yz-10-manual.pdf. Looks like the front bulkhead, front steering hubs and rear hubs. I actually haven't found what the middle hubs are from, but I'm sure we will trade them for anything we need.


Middle ones are for the '93 Works and the top parts are from the RPM plastic bulkhead

[losiXXXman]

Third set down look to be Turbo Optima/Optima mid front arms... FWIW.

[vintage AE]

Thanks for the info guys

Does anyone have a better photo of this box or a box art replica? The is the largest photo I can find

[Asso_man!]

Is that enough?

Edit: just realised you were after the other version.

Maybe this? http://www.apexspeed.com/doug/rc/vintage/yz10/

[GJW]

here is my box art, does that help
