Started to paint the body!

Read a few articles on how to paint hard body shell which some I did not follow :lol:

1. wash with soap and warm water (done)
NOTE: "warm the cans of spray up so that they spray better. Use mug filled
with hot water and I soak the can until it’s warm to the touch. It goes with out saying;
make sure you shake the can up so that the contents will be thoroughly mixed before
spraying (writter Shodog)".
2. apply primer (done)
3. lightly sand the body and apply primer again (2 to 3 times) :roll: (i applied 3 times without sanding, too lazy and no time to do that :lol: )
4. apply masking tape, then paint with dark color first (or the other way around, I forgot, painting is not my cup of tea :) ), sand and wash the body shell then apply paint again (sigh! thats too much time and I do not have that, I stop reading and paint the body the fastest way I can :twisted: )

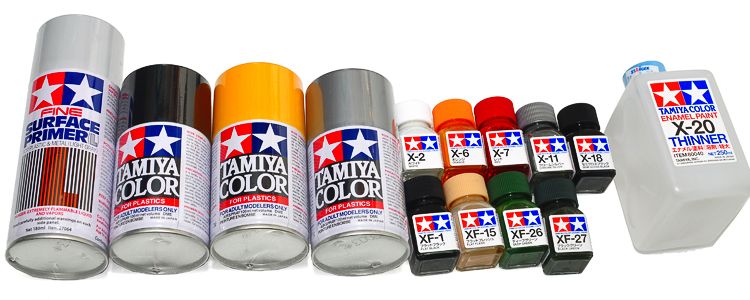

The paint Im intended to use.

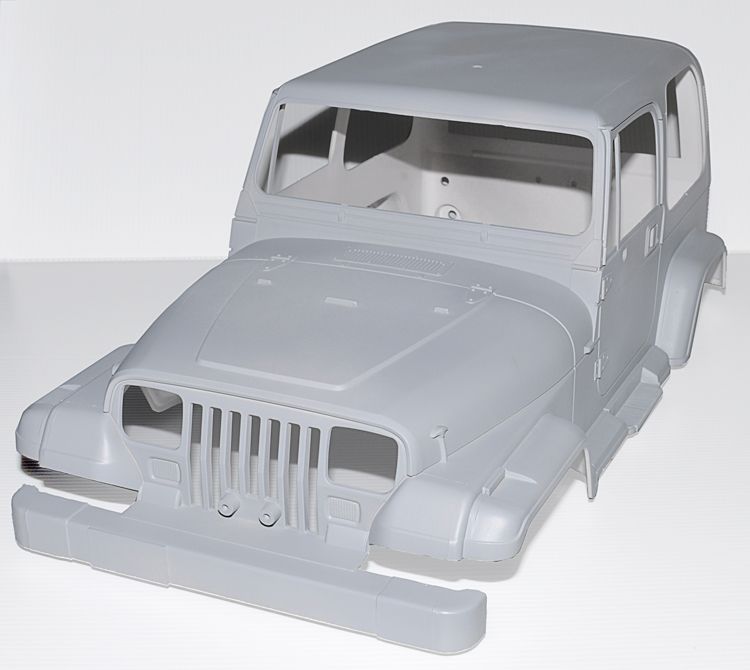

Primer paint applied 3x

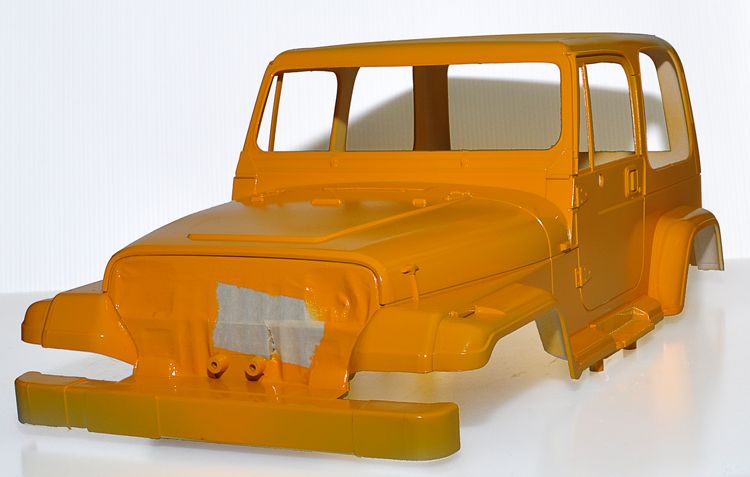

Camel Yellow applied

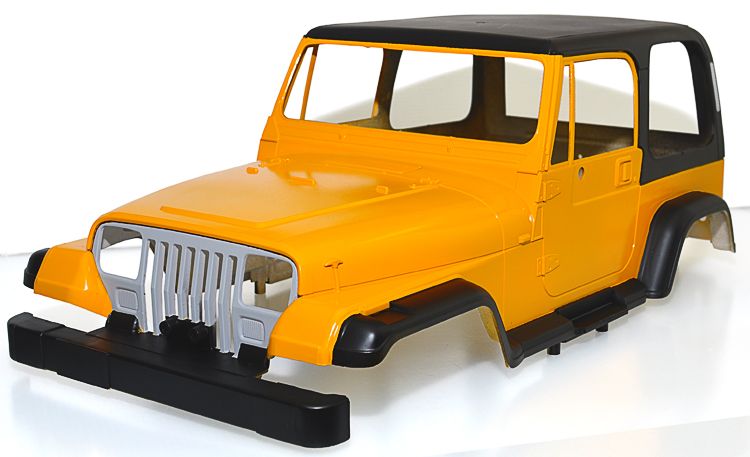

Matt Black applied

Done without sanding the body (hope I will not regret it =)
Next silver color for the grill (next week)

User avatar
Bo Wallen
Approved Member
Posts: 170
Joined: Wed Feb 29, 2012 11:54 am
Location: New York City

Re: CC-01 Jeep Wrangler - Build

Post by Bo Wallen »

ireg wrote:Started to paint the body!

Read a few articles on how to paint hard body shell which some I did not follow :lol:

1. wash with soap and warm water (done)
NOTE: "warm the cans of spray up so that they spray better. Use mug filled
with hot water and I soak the can until it’s warm to the touch. It goes with out saying;
make sure you shake the can up so that the contents will be thoroughly mixed before
spraying (writter Shodog)".
2. apply primer (done)
3. lightly sand the body and apply primer again (2 to 3 times) :roll: (i applied 3 times without sanding, too lazy and no time to do that :lol: )
4. apply masking tape, then paint with dark color first (or the other way around, I forgot, painting is not my cup of tea :) ), sand and wash the body shell then apply paint again (sigh! thats too much time and I do not have that, I stop reading and paint the body the fastest way I can :twisted: )

The paint Im intended to use.

Primer paint applied 3x

Camel Yellow applied

Matt Black applied

Done without sanding the body (hope I will not regret it =)
Next silver color for the grill (next week)
I will give the next paint job to You Sir...............You got skills very good skills...........Thinking you like to do paint job :D
RedBoxRacer™

User avatar
SFC K
Approved Member
Posts: 1336
Joined: Tue Nov 30, 2010 9:24 pm
Location: Oakdale, MN
Has thanked: 47 times
Been thanked: 9 times

Re: CC-01 Jeep Wrangler - Build

Post by SFC K »

Very nice build and the step by step is top notch! I just went through each page to see what you did different. I also went with the GPM and Junfac doodad's for mine as well.

I should mention another way to lock the front diff with out all the sticky goo is too move one of the spider gears in the front diff Y piece that the spider gears slip onto. All you do is take one of the gears off the shaft and line it up between the other 2 spiders and carefully seat it back into the diff housing. Screw it together and you have a completely locked diff that is easily reversable if you ever want to run an open diff again. This will lock it up tight.


Looking forward to seeing this finished with the Jeep body installed. :wink:
Jeff

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

Thanks, the car is finally finished I will upload the remaining photos sooner or later :D

User avatar
abailey21
Approved Member
Posts: 273
Joined: Sun Feb 13, 2011 8:28 am
Location: Leander TX
Been thanked: 2 times

Re: CC-01 Jeep Wrangler - Build

Post by abailey21 »

You don't by chance have a cheat sheet from the screws you used do you? Sizes, quantities etc?

User avatar
SFC K
Approved Member
Posts: 1336
Joined: Tue Nov 30, 2010 9:24 pm
Location: Oakdale, MN
Has thanked: 47 times
Been thanked: 9 times

Re: CC-01 Jeep Wrangler - Build

Post by SFC K »

abailey21 wrote:You don't by chance have a cheat sheet from the screws you used do you? Sizes, quantities etc?
For the CC-01 build or the body? Need a bit more info...
Jeff

User avatar
abailey21
Approved Member
Posts: 273
Joined: Sun Feb 13, 2011 8:28 am
Location: Leander TX
Been thanked: 2 times

Re: CC-01 Jeep Wrangler - Build

Post by abailey21 »

The build, I'm sorry

User avatar
SFC K
Approved Member
Posts: 1336
Joined: Tue Nov 30, 2010 9:24 pm
Location: Oakdale, MN
Has thanked: 47 times
Been thanked: 9 times

Re: CC-01 Jeep Wrangler - Build

Post by SFC K »

You can look here at the parts manual and count them up. To many to list really...


I hope this helps...


http://www.tamiyausa.com/pdf/manuals/58445ml.pdf
Jeff

User avatar
dldiaz
Super Member
Posts: 795
Joined: Thu Apr 01, 2010 11:21 am
Location: San Antonio, TX
Has thanked: 14 times
Been thanked: 34 times

Re: CC-01 Jeep Wrangler - Build

Post by dldiaz »

ireg wrote: I drop the idea of waterproofing the ESC using the plasti dip or silicon.
If someone is going to this route do not use Tamiya's esc for some reason.
Aside for waterproofing issue this ESc do not have a lipo cut off which is not good for the safety of the lipo.
This appears to be a Tamiya TEU-104BK ESC - which Tamiya advertises as:
"equipped with a battery cut-off function to prevent over-discharging of the battery" https://www.tamiyausa.com/product/item.php?product-id=45041
I use both the TEU-104BK and the older TEU-101BK, I find them to work great in all applications.
The older TEU-101BK did not have any voltage cut-off function...
-dldiaz

User avatar
dldiaz
Super Member
Posts: 795
Joined: Thu Apr 01, 2010 11:21 am
Location: San Antonio, TX
Has thanked: 14 times
Been thanked: 34 times

Re: CC-01 Build

Post by dldiaz »

ireg wrote:
I can't remember which forum I read that when you locked the front diff, it will dramatically increase your turning radius.


I experienced this with my Tamiya M1025 Hummer - after locking the front diff., it required half the yard to turn around.
Kinda like when you light-up the front tires in an import car (rice burner?) and it just keeps going straight even with the steering wheel cocked all the way to one side. You can only do proper donuts in Reverse gear...

Anyhow, with an open front diff in the Hummer, it will turn around in a relatively small circle.
-dldiaz

User avatar
Coelacanth
Approved Member
Posts: 7370
Joined: Thu Jul 29, 2010 6:20 pm
Location: Alberta, Canada
Has thanked: 16 times
Been thanked: 288 times

Re: CC-01 Jeep Wrangler - Build

Post by Coelacanth »

Wow, nice job with the painting. Painting those hard-shell bodies on the exterior is not for the faint-of-heart. Looks great!
Completed projects: CYANide Onroad Optima | Zebra Gold Optima | Barney Optima | OptiMutt RWD Mid
Gallery - Coel's Stalls: Marui Galaxy & Shogun Resto-Mods | FrankenBuff AYK Buffalo | 1987 Buick GNX RC12L3

User avatar
abailey21
Approved Member
Posts: 273
Joined: Sun Feb 13, 2011 8:28 am
Location: Leander TX
Been thanked: 2 times

Re: CC-01 Jeep Wrangler - Build

Post by abailey21 »

SFC K wrote:You can look here at the parts manual and count them up. To many to list really...


I hope this helps...


http://www.tamiyausa.com/pdf/manuals/58445ml.pdf
I was hoping someone already did the leg work for me, I was feeling lazy lol

Off to counting!

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

@ dldiaz : thanks for the info :D

Some photos update of the CC01 build.

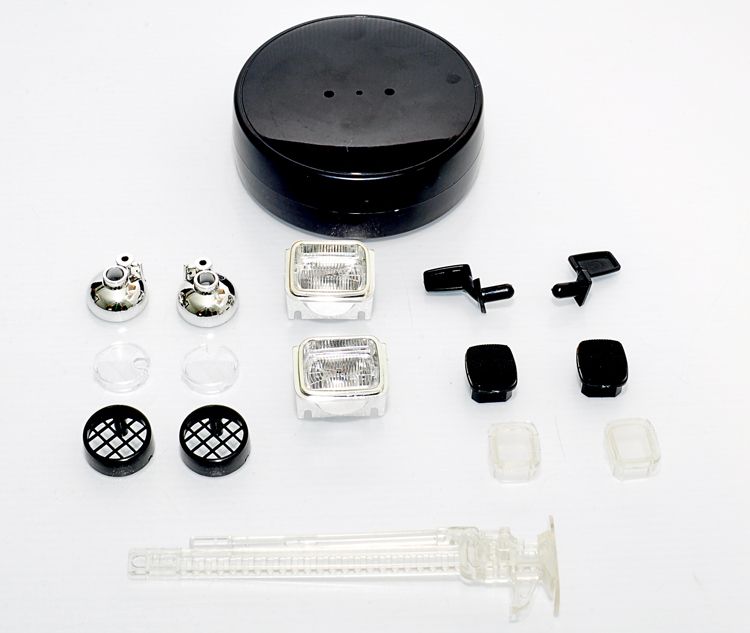

Head/back light, jack , side mirror, spare tire case and etc.

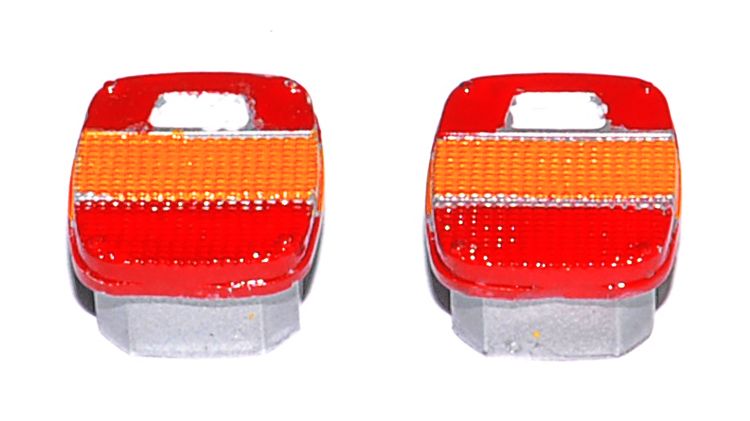

I've painted silver for the side mirror, red in jack, while back light in silver, white, red and orange.

User avatar
ireg
Approved Member
Posts: 510
Joined: Fri Dec 24, 2010 10:59 pm
Location: Singapore/Philippines/LV Nevada

Re: CC-01 Jeep Wrangler - Build

Post by ireg »

The font side view showing the head lights installed.

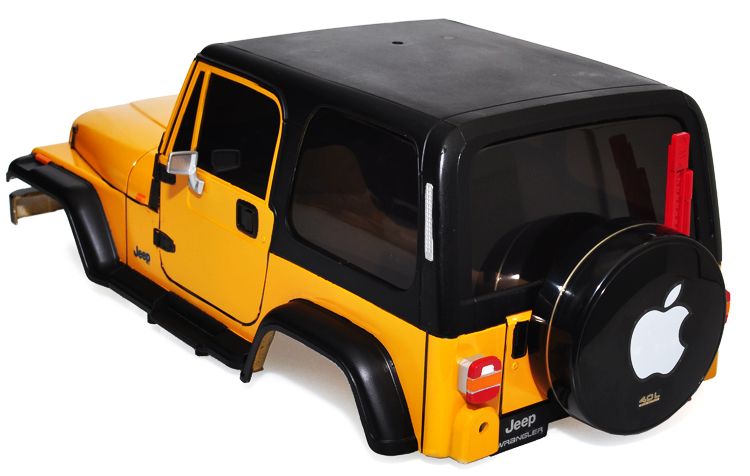

The back side view showing the back light, spare tire case and jack

I've placed the Iphone sticker on the tire case (sticker from the Nano Watch) :D
