RC Top Faux Buff CAT 10

[Frankentruck]

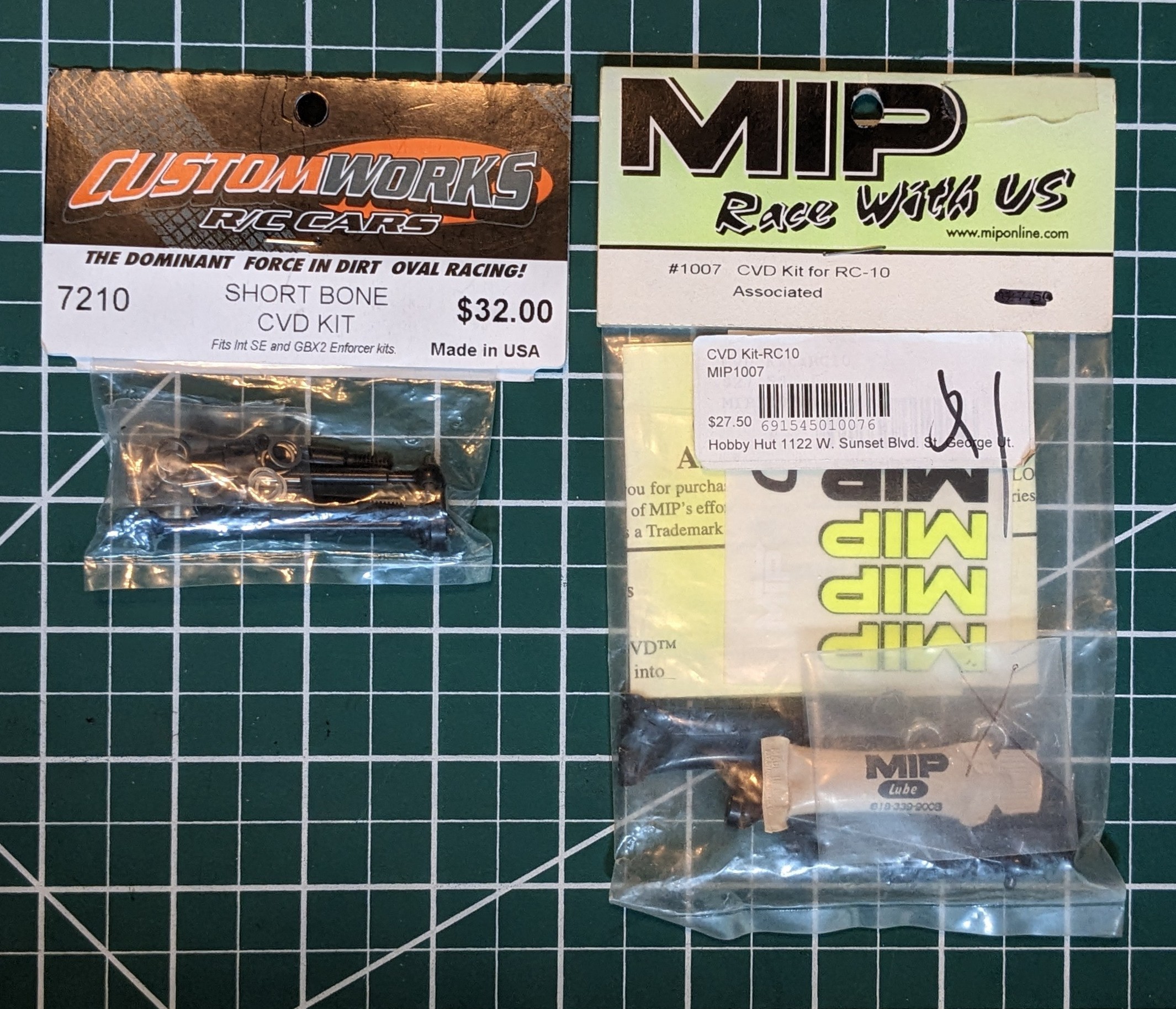

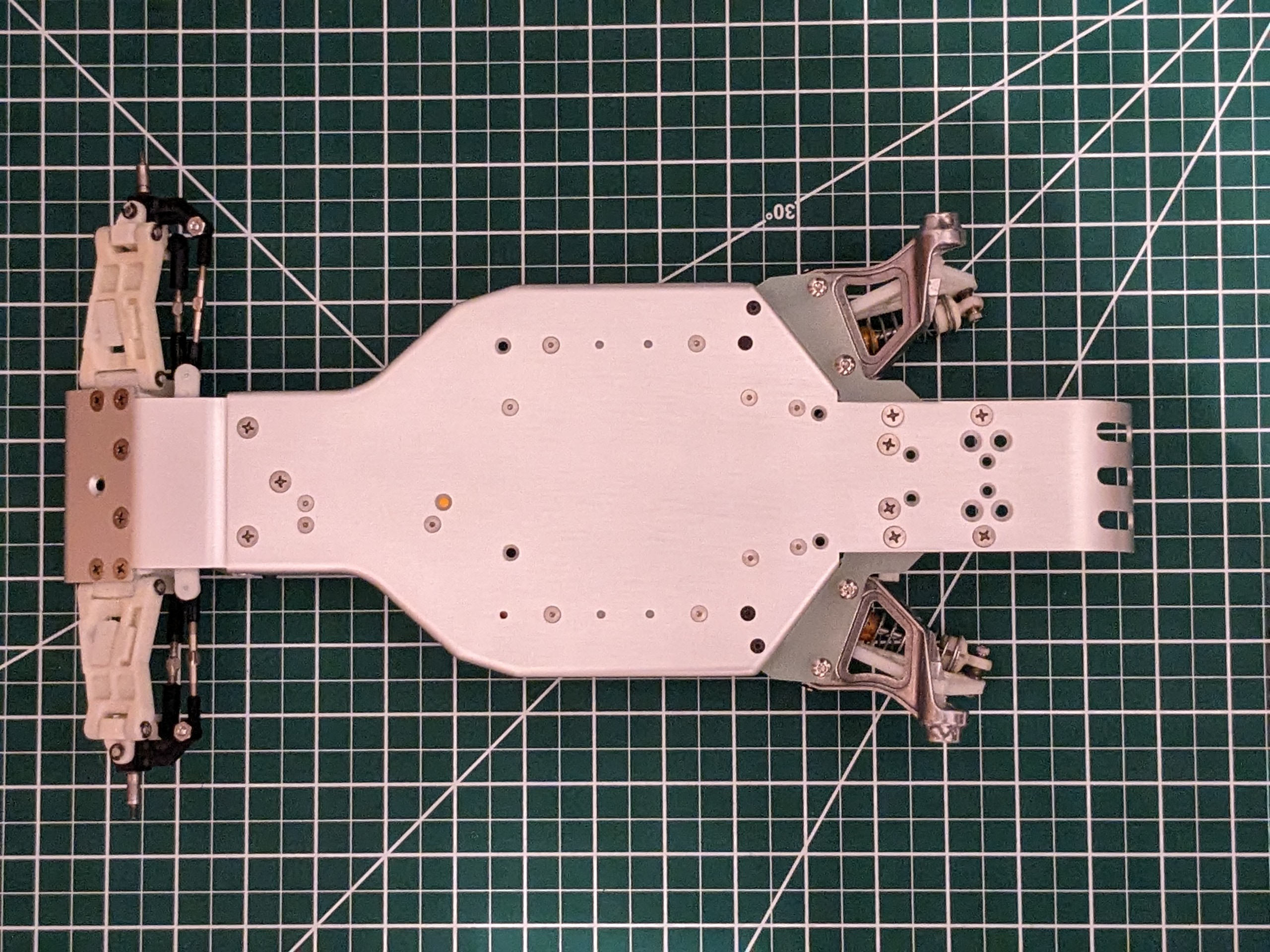

Next decision is 1/4" CVD or 3/16" CVD. For this build I'm leaning toward 1/4".
.

[Frankentruck]

I also need to decide which gearbox is going in. I kind of think the new Factory Works / JC Racing hybrid gearbox would be the right setup, but have to think about it a little more. For now it's at a stopping point.
.

.

.

.

.

[Frankentruck]

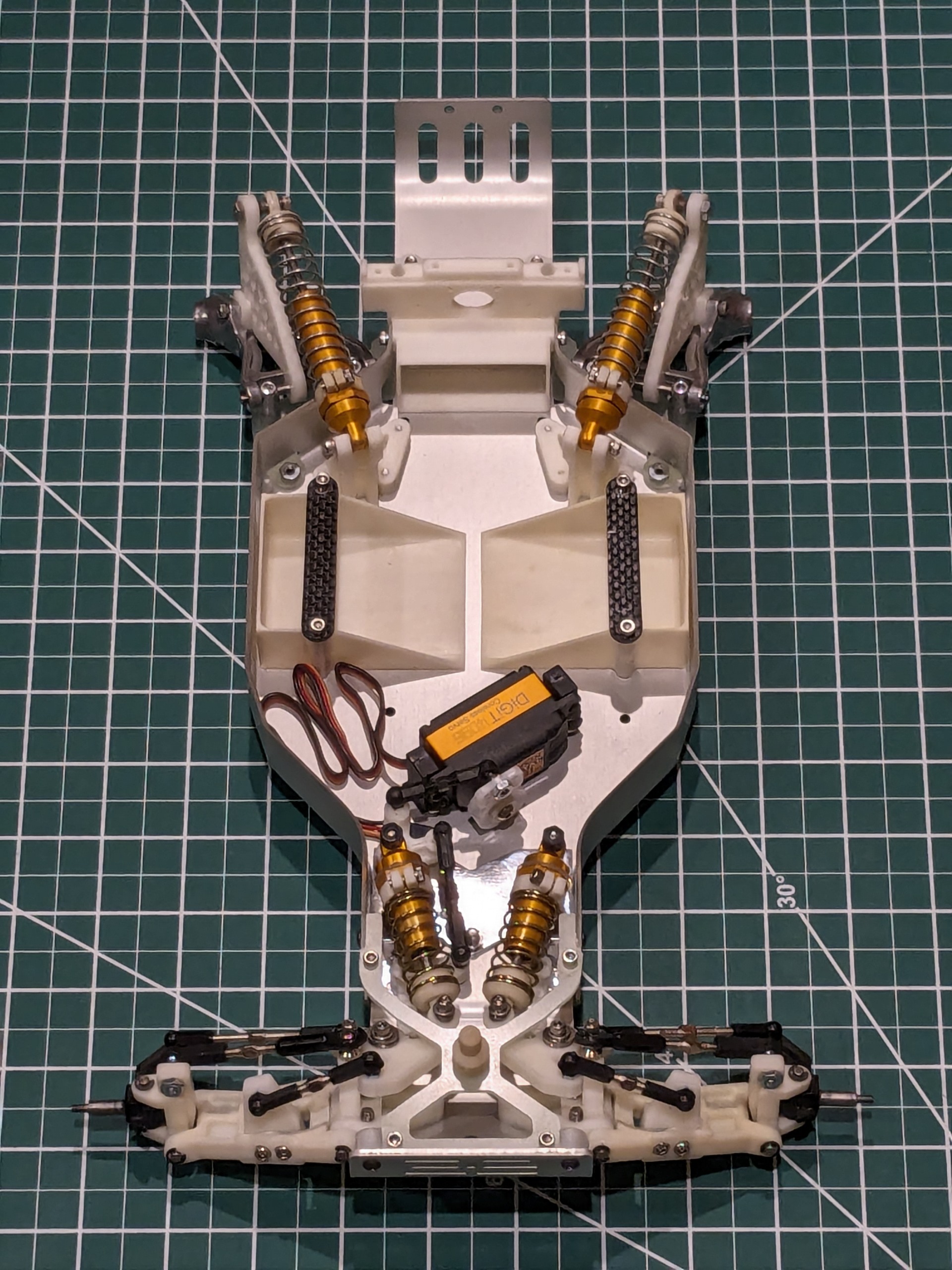

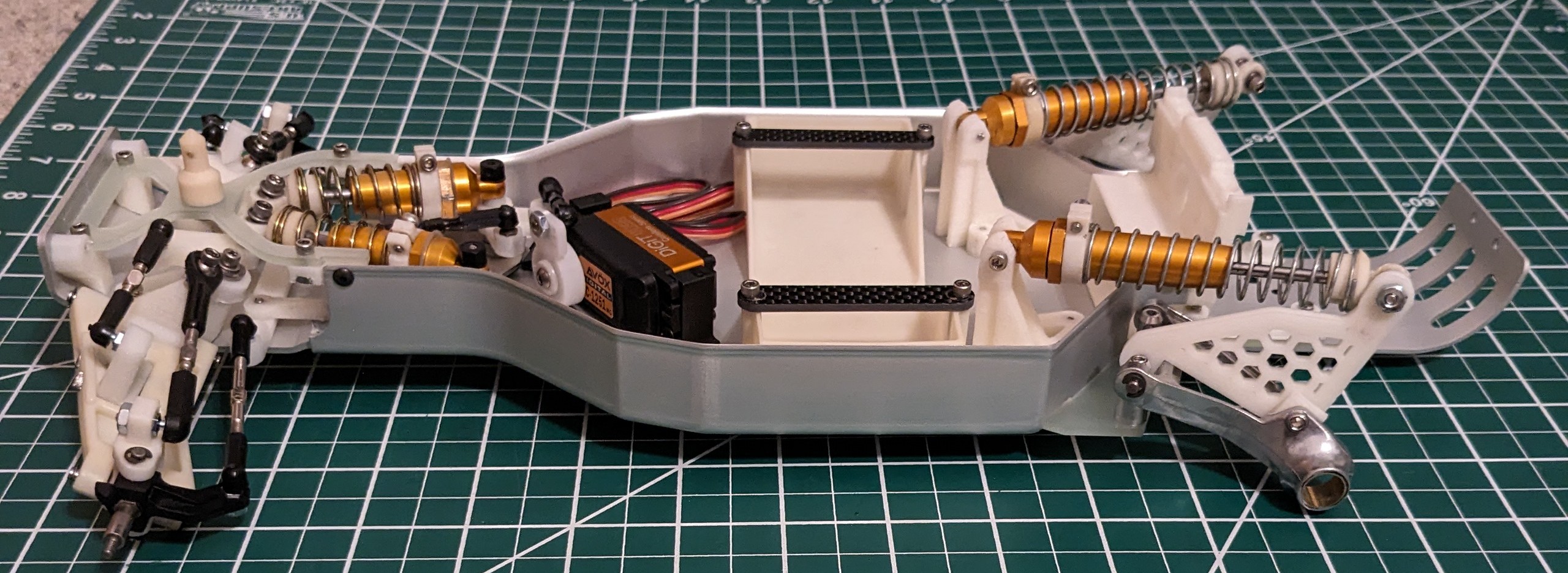

I have a nice 6 gear that has needed a home for a while. This chassis feels like the right one for it.

I didn't realize the AYK Buffalo had laydown rear shocks like this. I think I need to update the name to the Buff CAT
.

.

.

[Frankentruck]

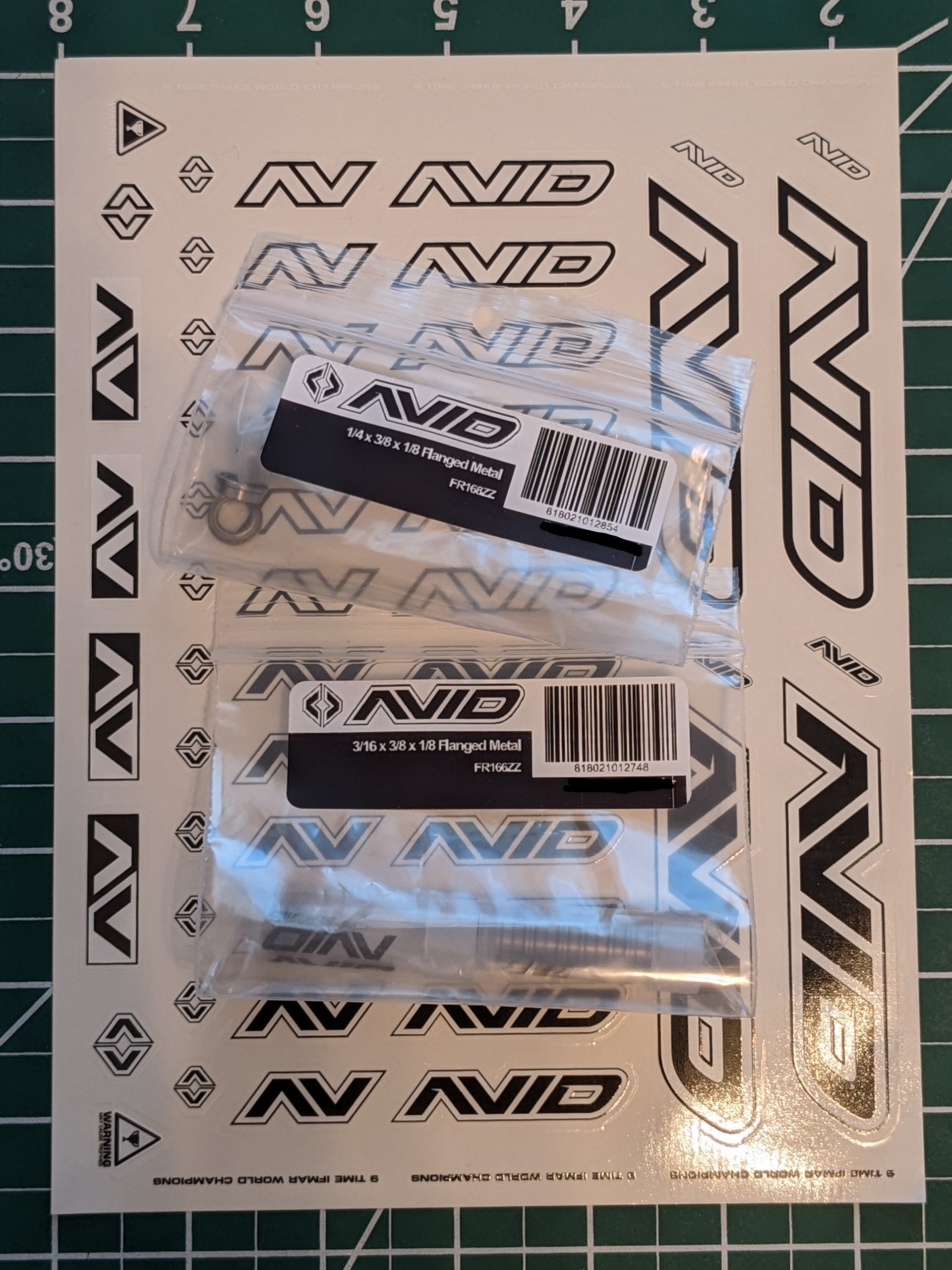

Got my bearings, in both axle sizes.
.

.

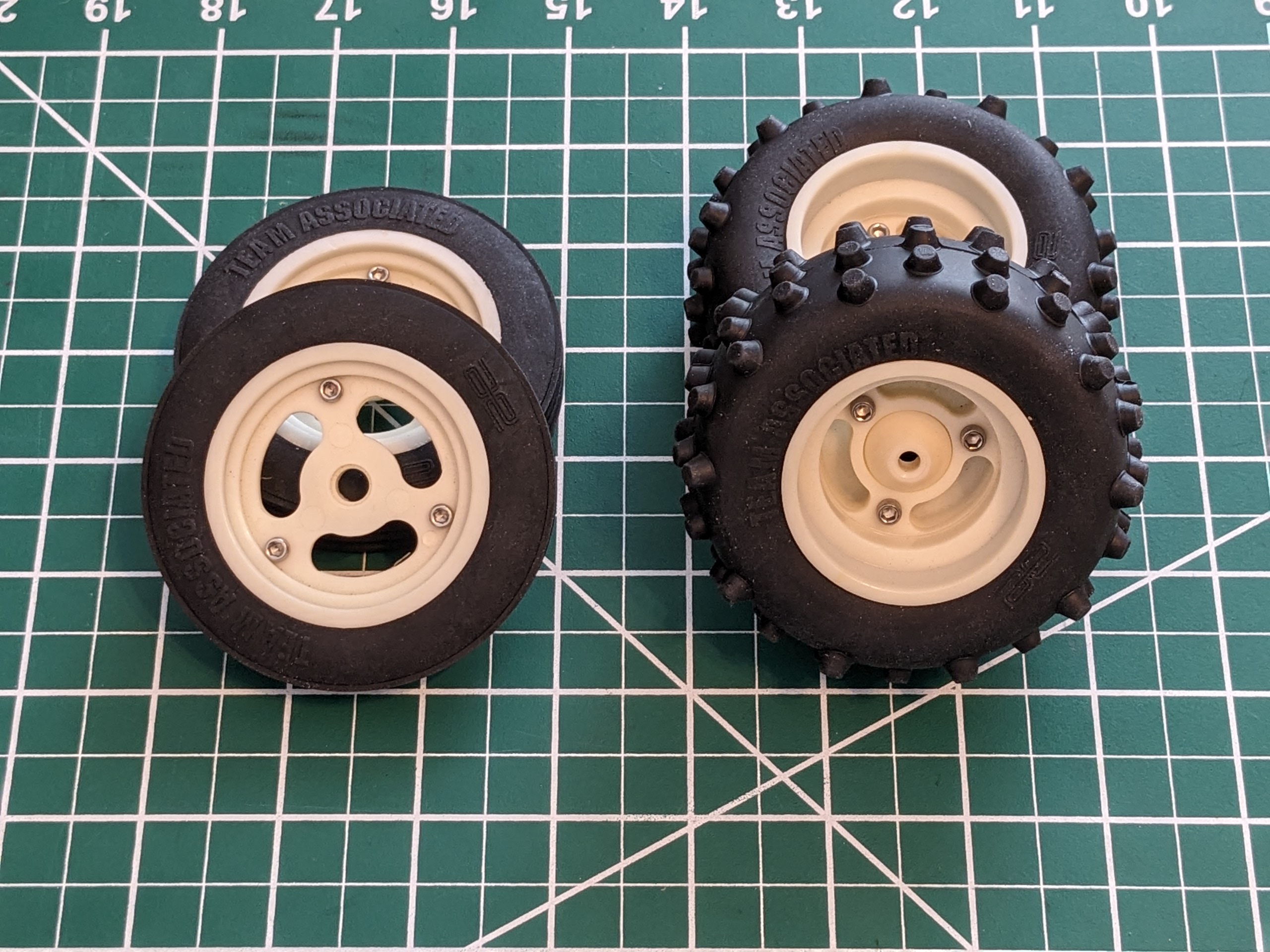

I don't use the jelly bean wheels very often, but since I have a nice set and the tires from my CC kit the 1/4 axles will get used in this build.
.

.

[Frankentruck]

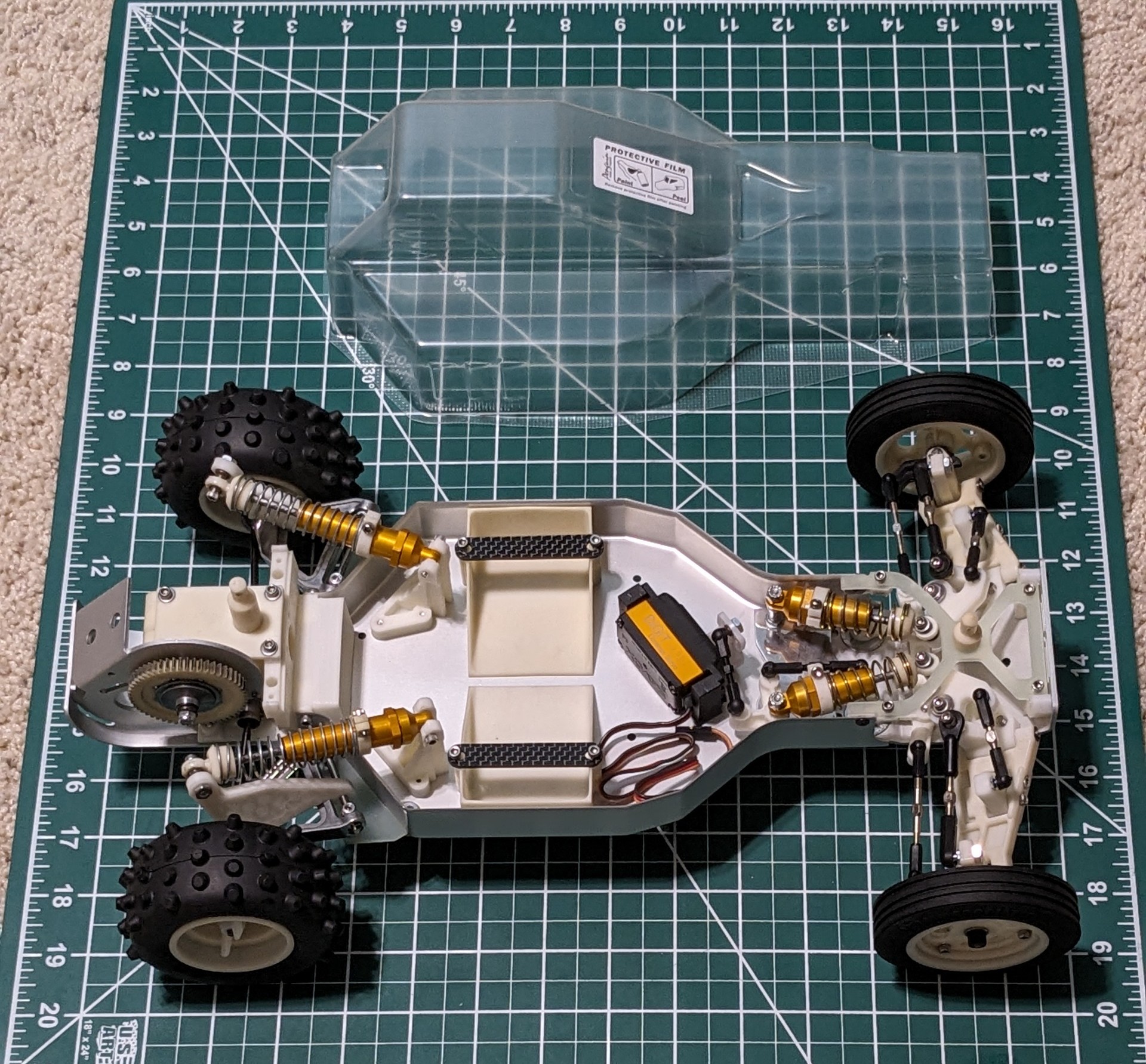

Now just the need to decide on a body.
.

.

.

.
https://youtu.be/7QIo3qcXDbQ?feature=shared
.

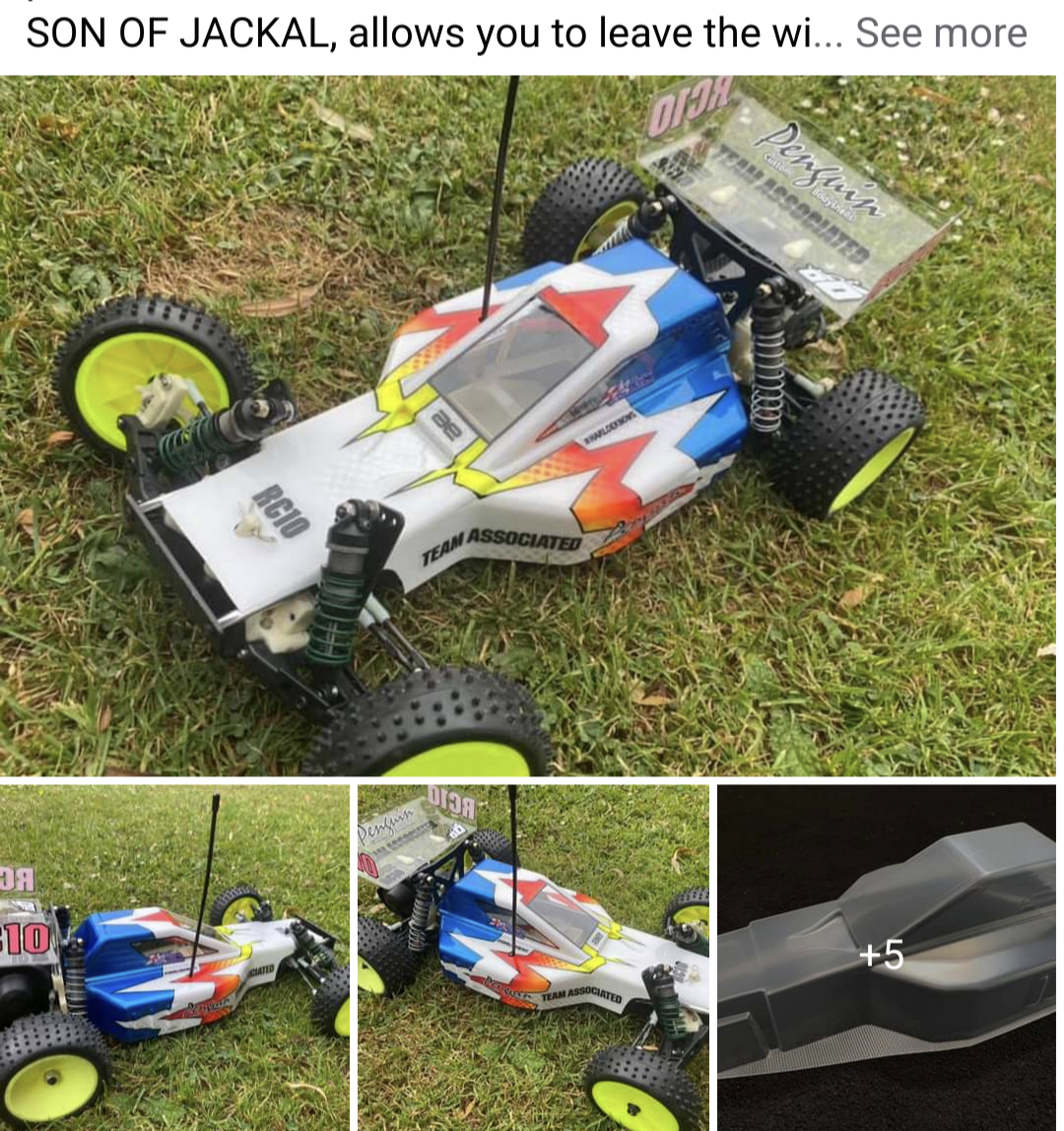

I think this Penguin body is going to be the right choice since it's meant to end in front of the rear shock tower.
.

.

[MarkyDents]

I like the low slung sawed off look of that body, great candidate for this build……
I’d say to figure out a paint scheme that shows off the lay down front shocks maybe either clear or trans candy. It would be a shame to cover them up.

[Frankentruck]

I like the low slung sawed off look of that body, great candidate for this build……
I’d say to figure out a paint scheme that shows off the lay down front shocks maybe either clear or trans candy. It would be a shame to cover them up.

We are thinking similarly on the paint scheme.

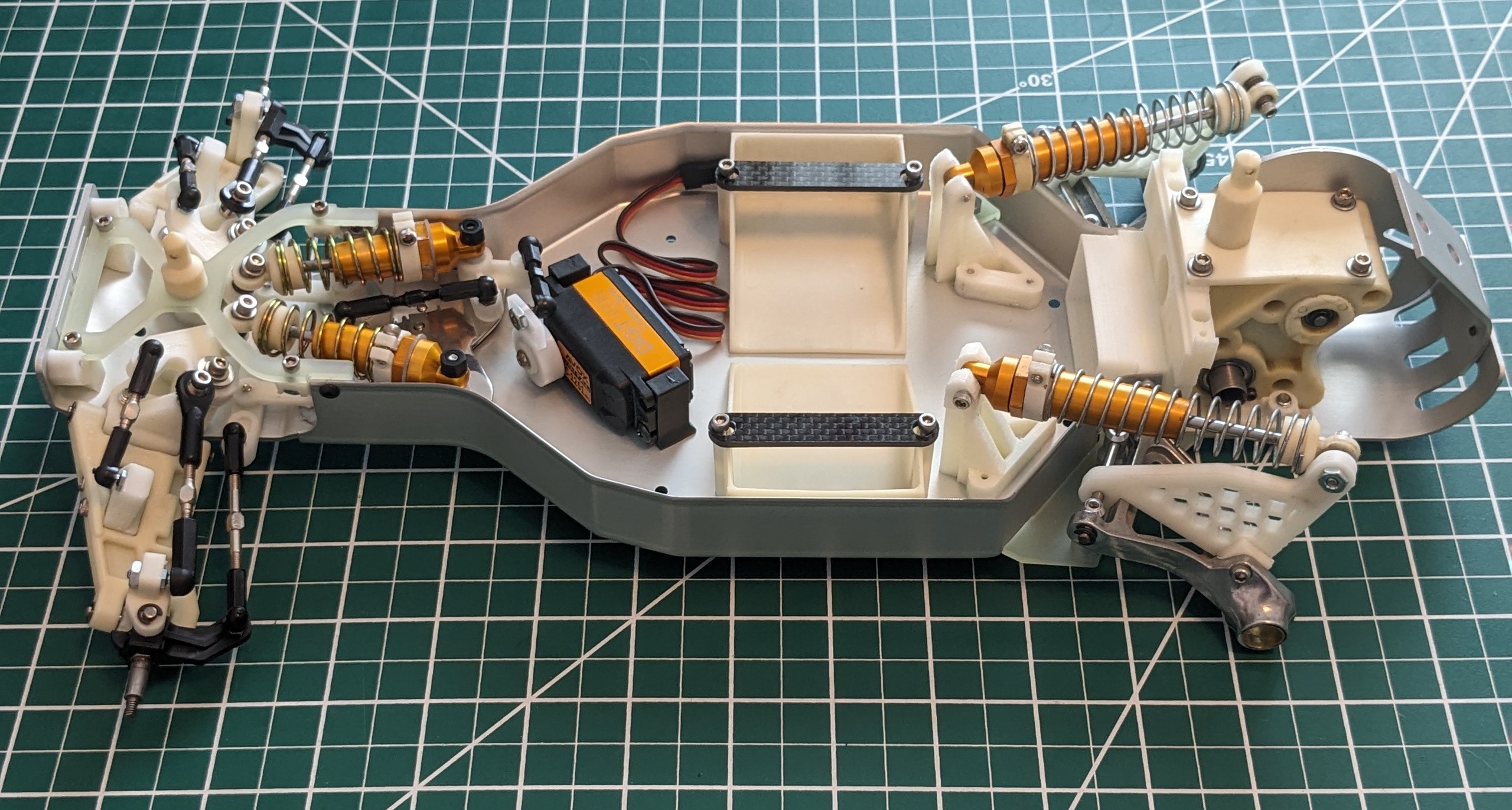

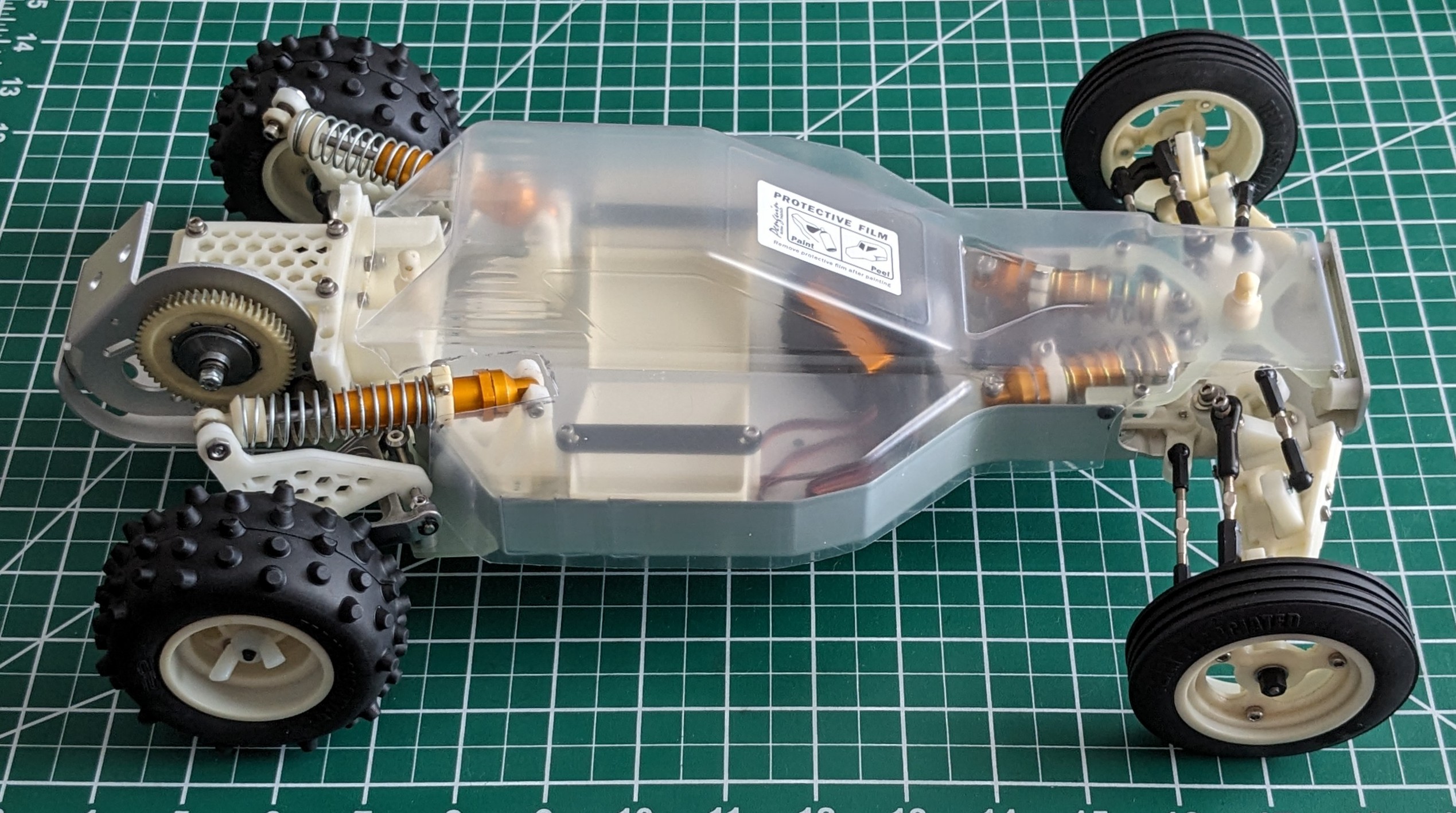

Body is trimmed and fitted. Rear body mount was moved forward a little over an inch and a new gearbox brace was added.
.

[Frankentruck]

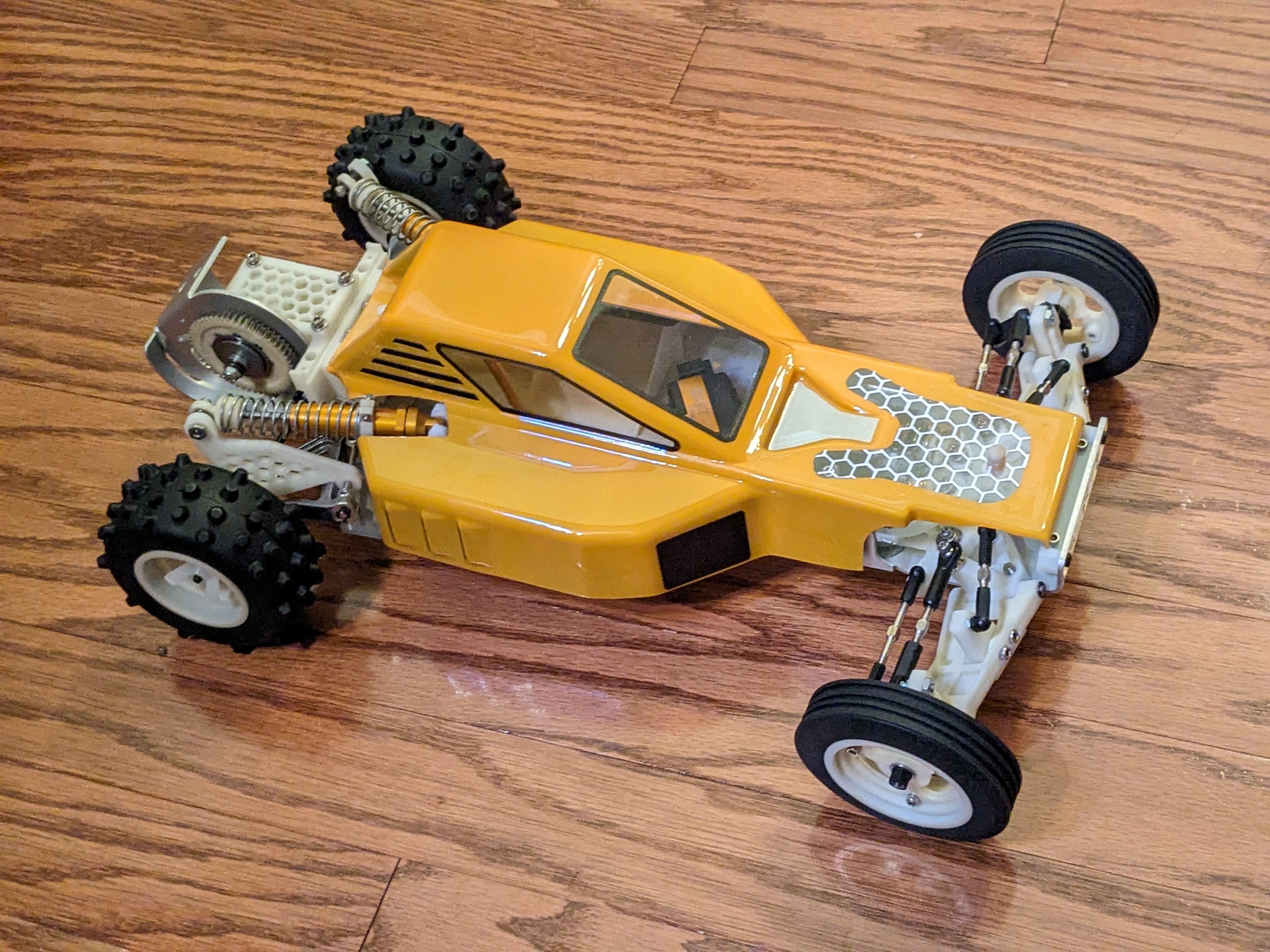

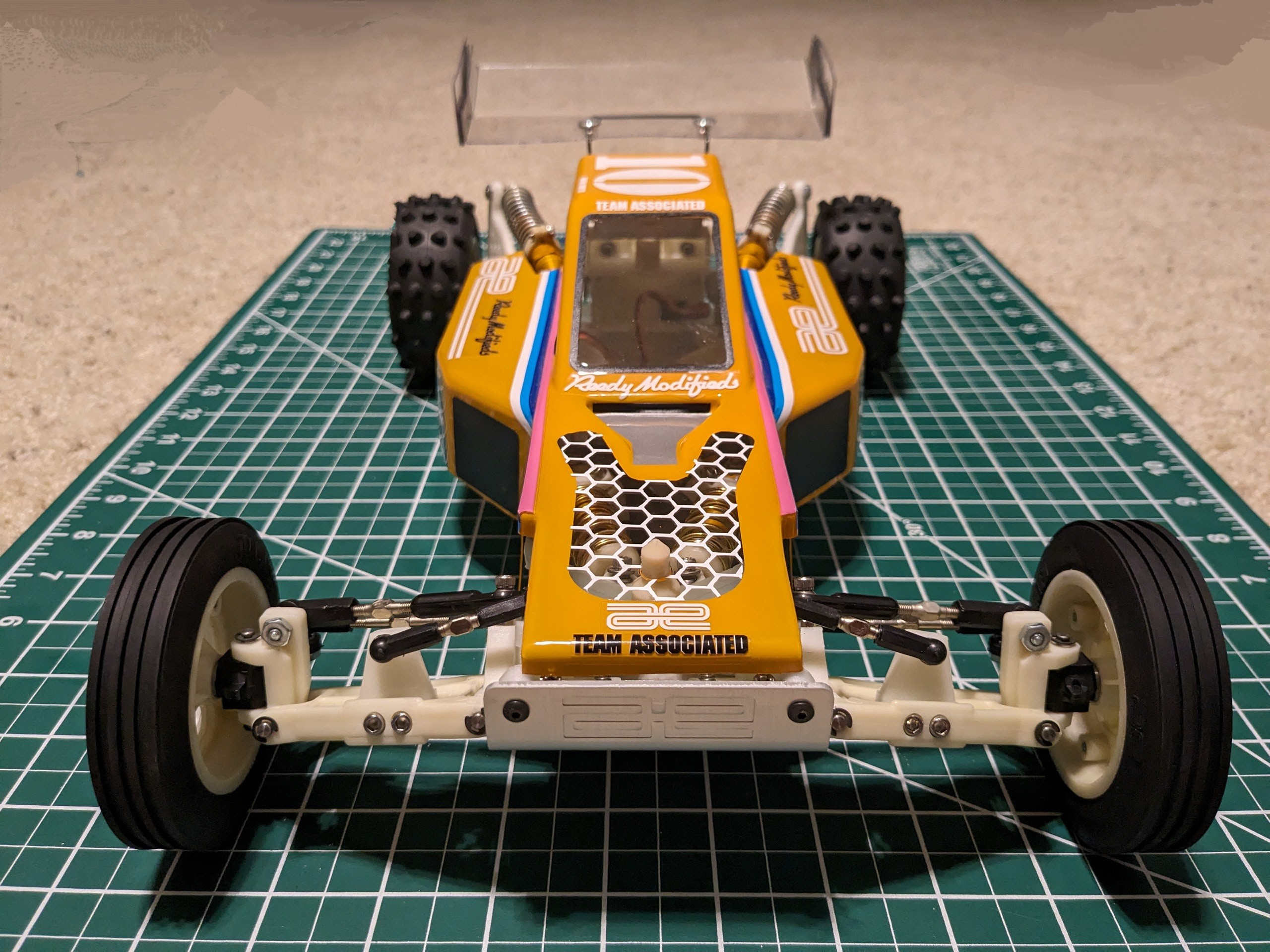

Started making some progress on finishing the bodywork. The painting went ok. Now more sticker work to do, and then picking out or making a rear wing.
.

.

.

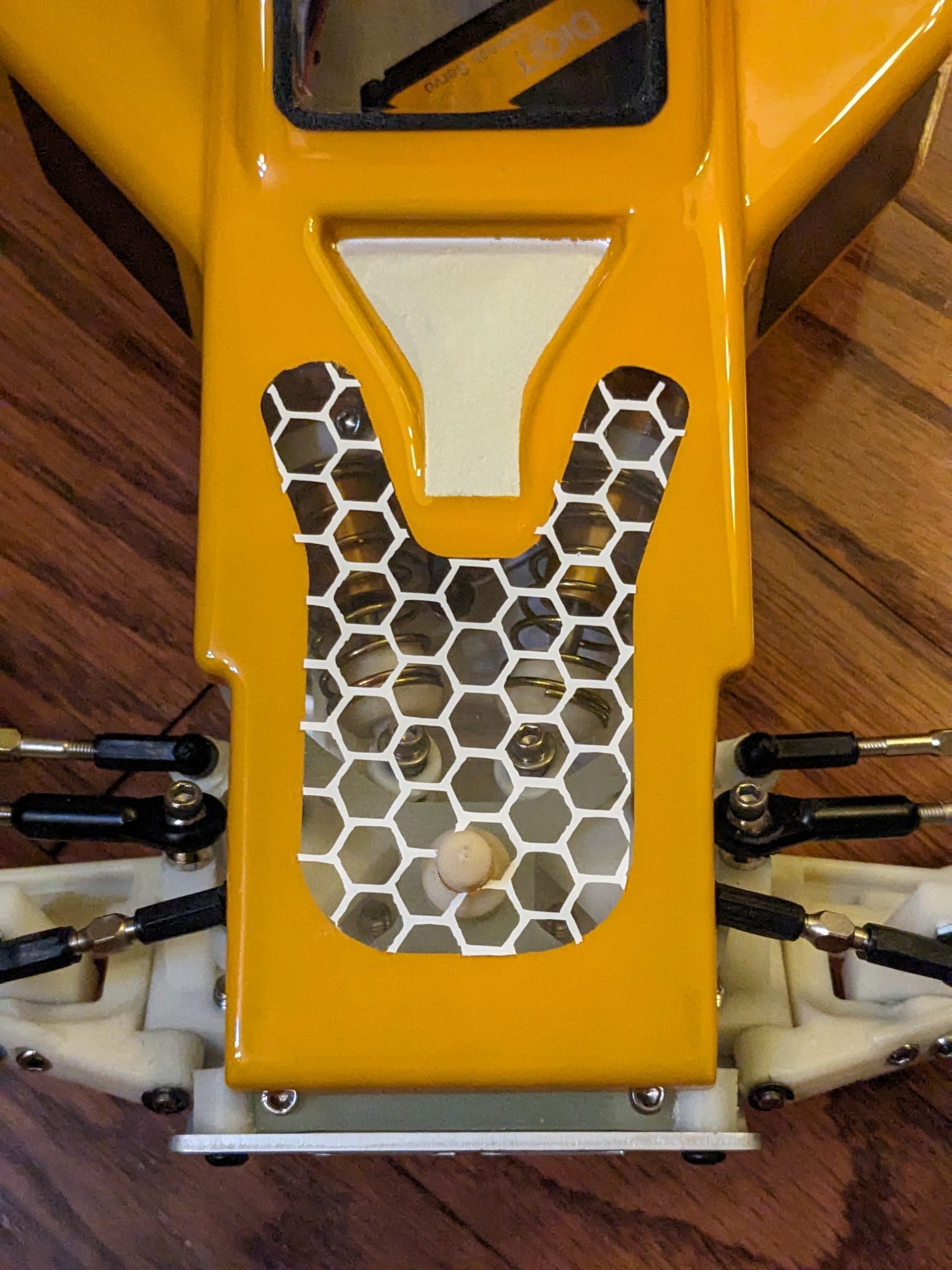

A little peek through the suspension window...
.
https://youtube.com/shorts/ekFTM7OtfDs?feature=shared

[Frankentruck]

Now I just need to work out the wing and electronics.
.

.

.

.

[RogueIV]

Lookin' good.

You could probably make a wing mount that integrates into the Transmission brace.

[Frankentruck]

I hadn't considered using the brace. I was going to do the standard wing tube setup, I just hadn't put tubes in yet.

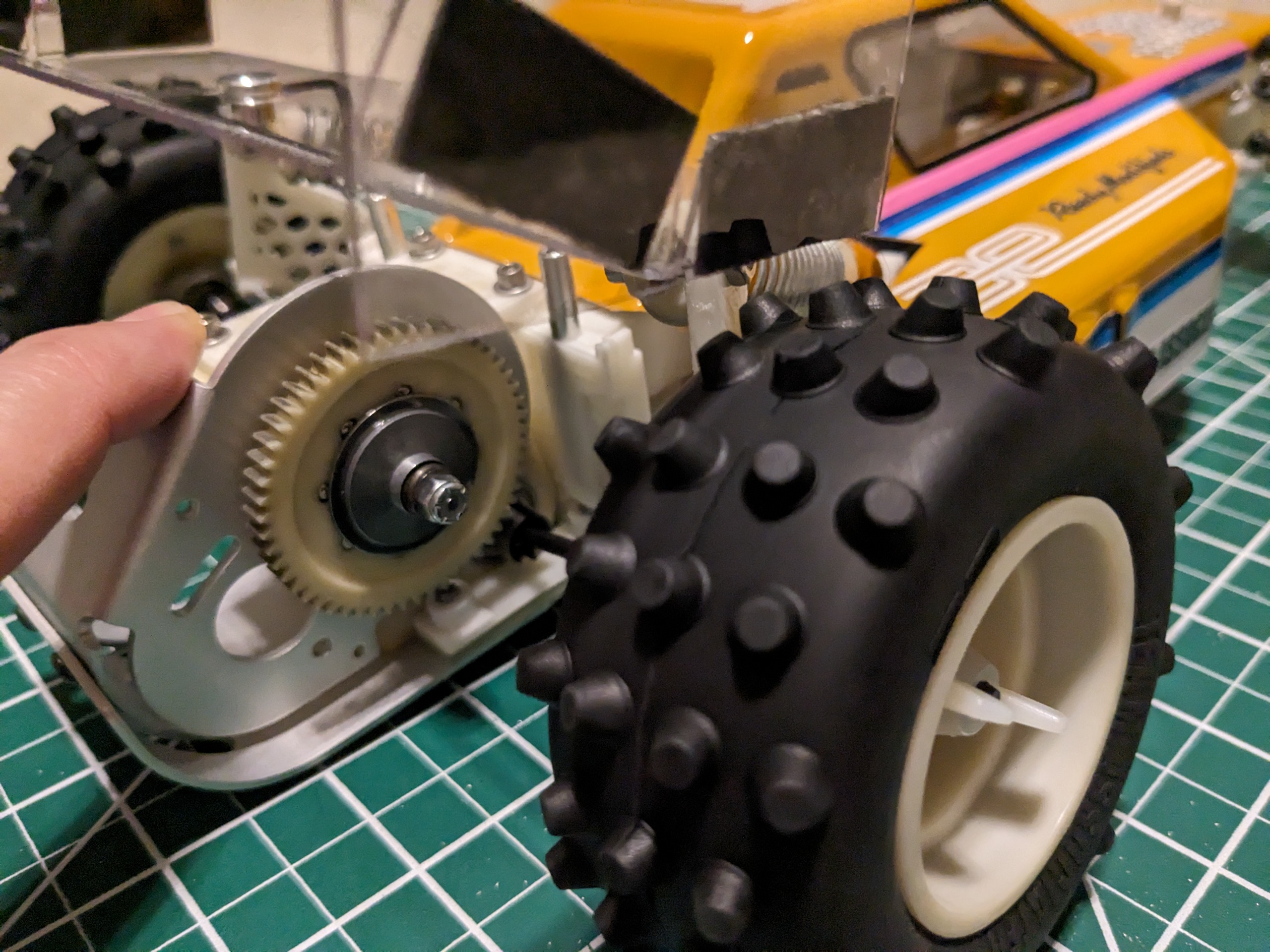

It looks like a wing will need to use standard length wire to maintain a little clearance to the rear wheels. This loaner wing has the RC10CC wire.
.

.

.

[Frankentruck]

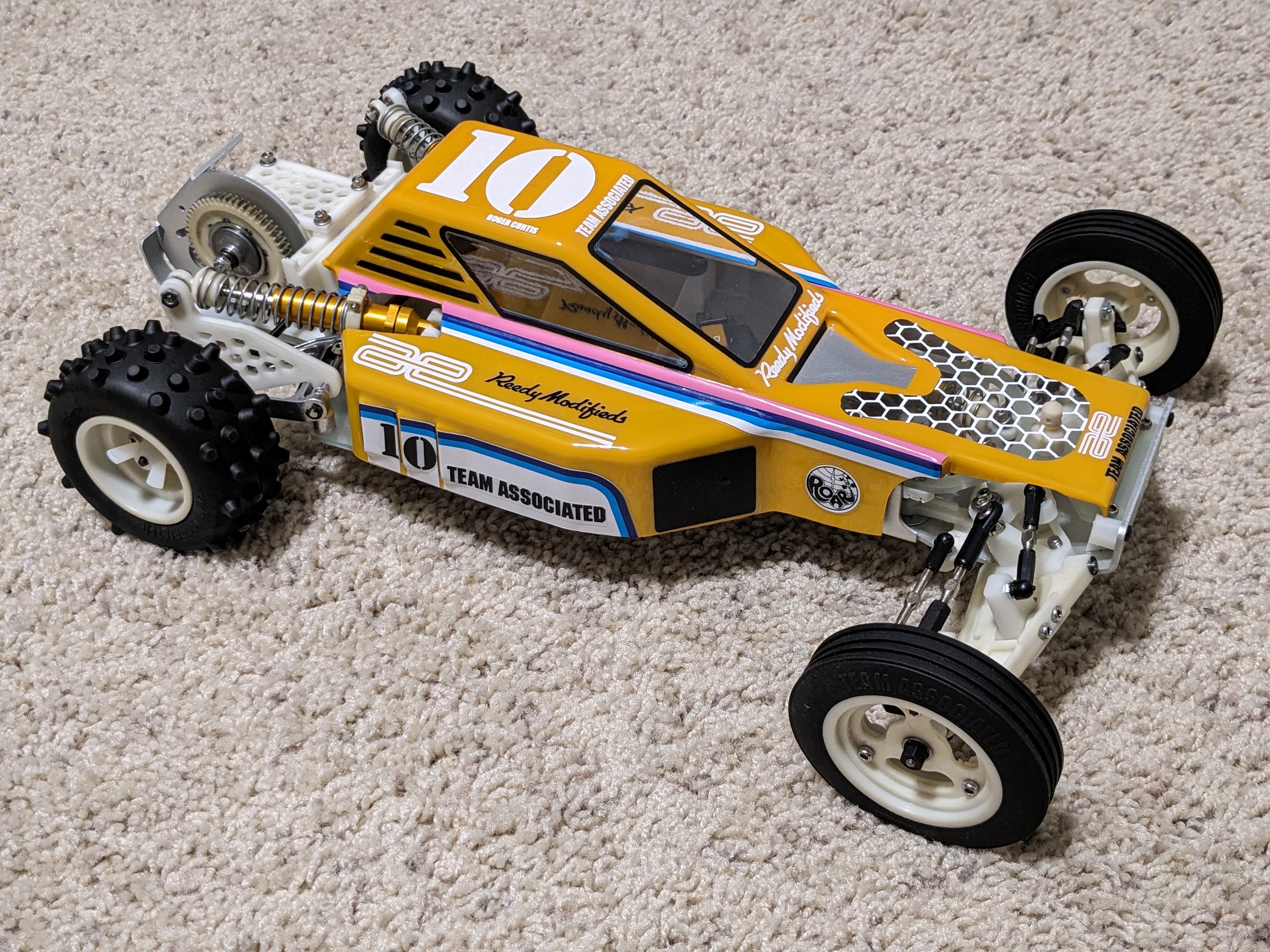

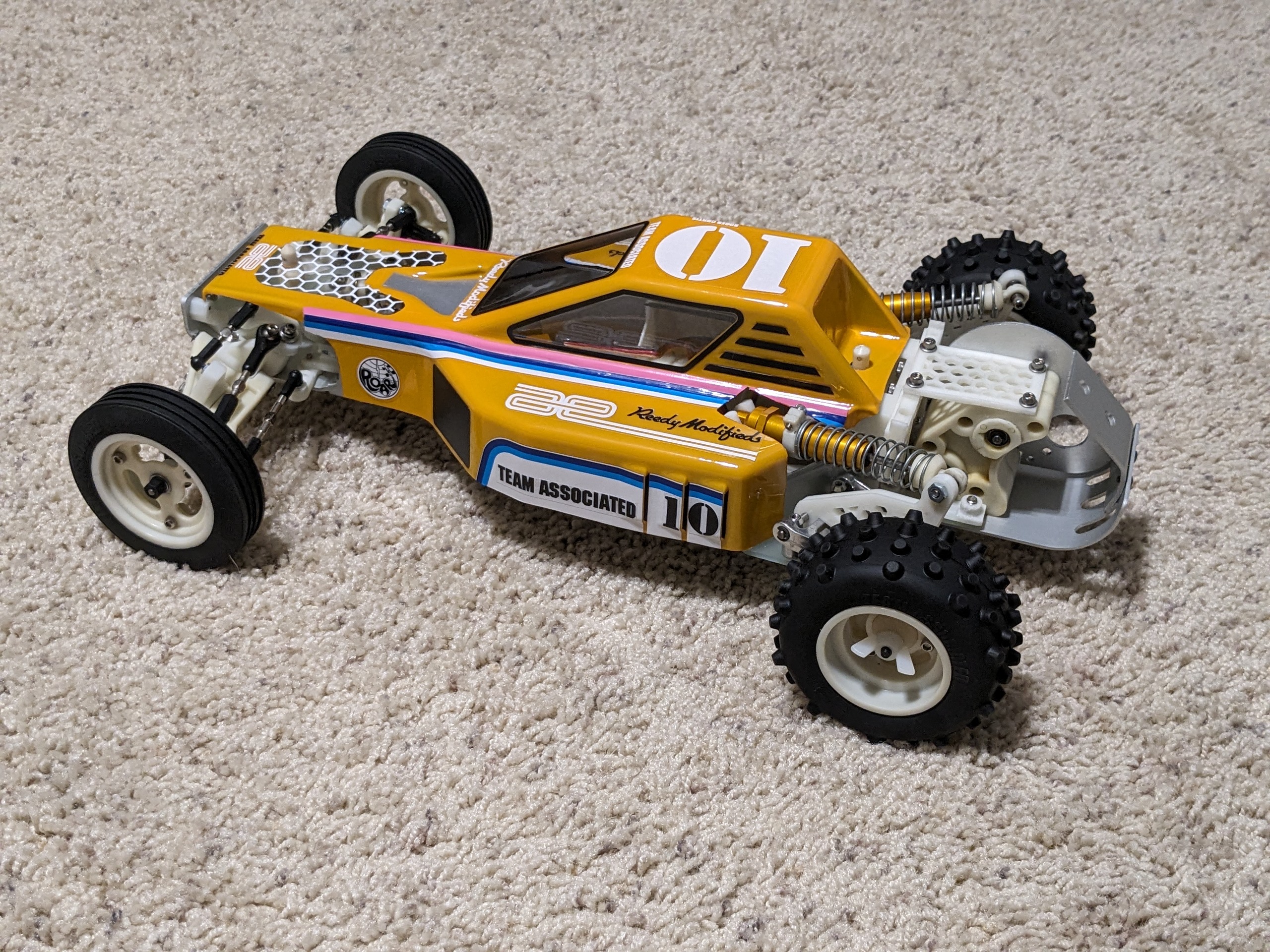

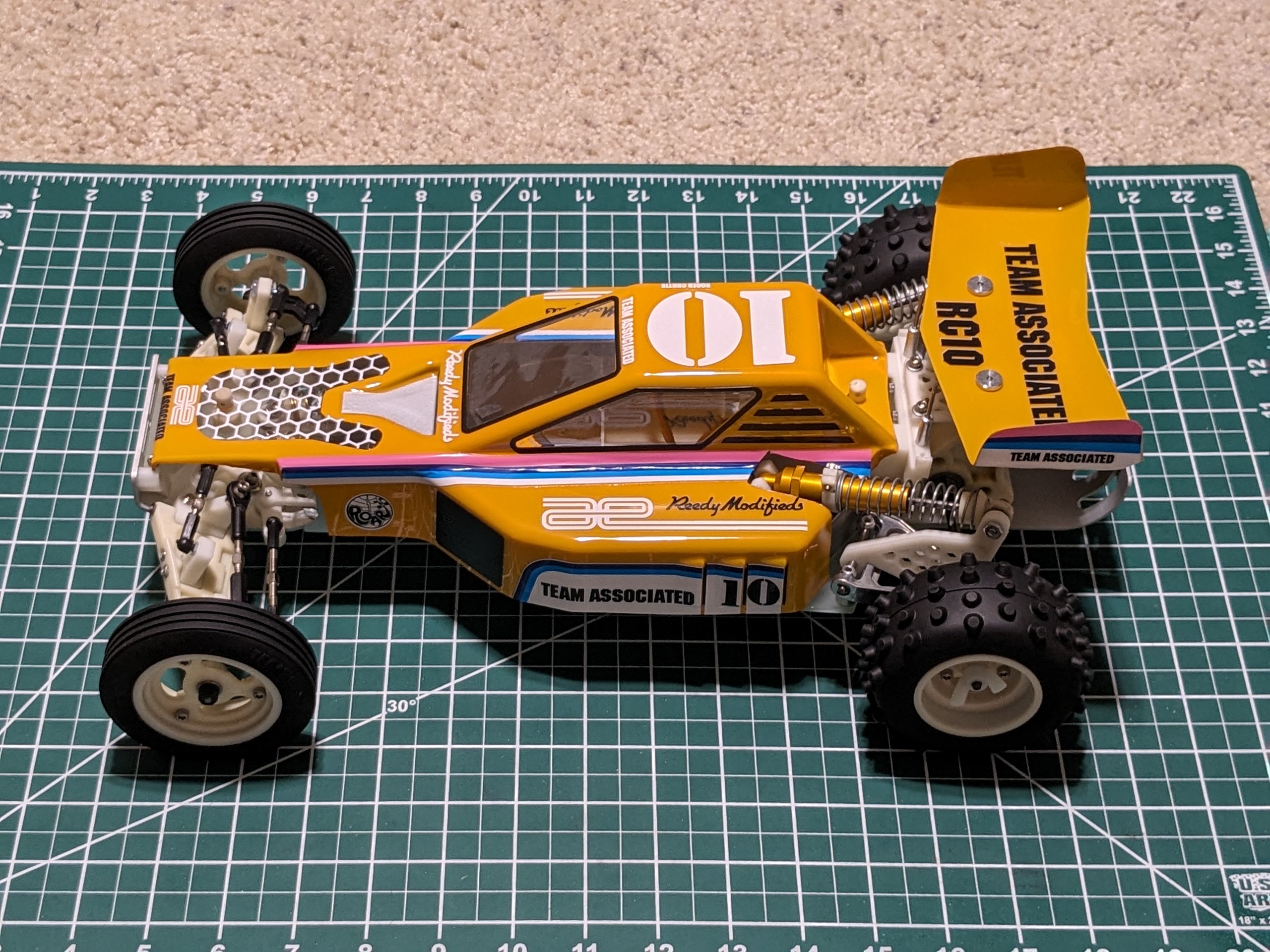

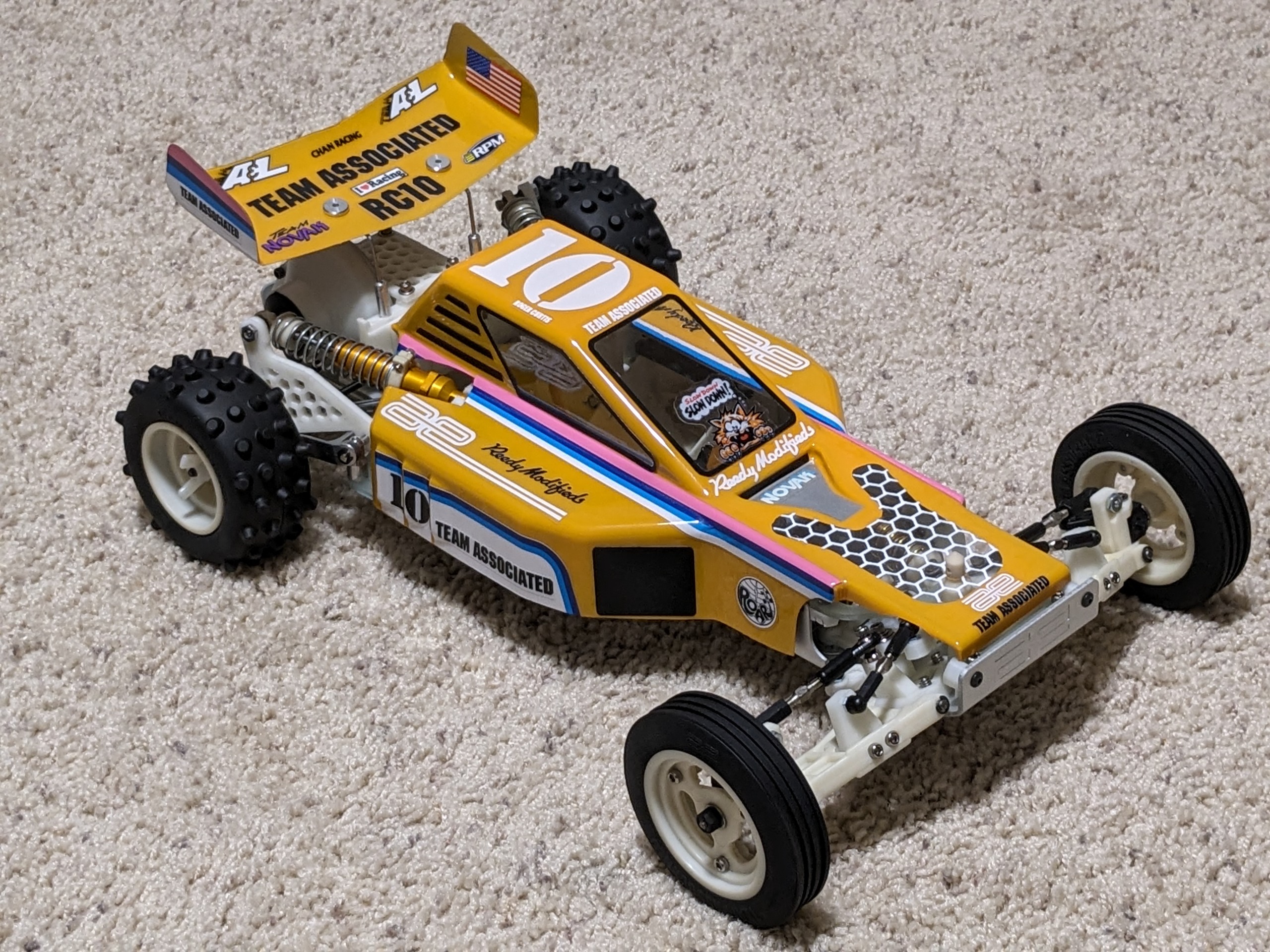

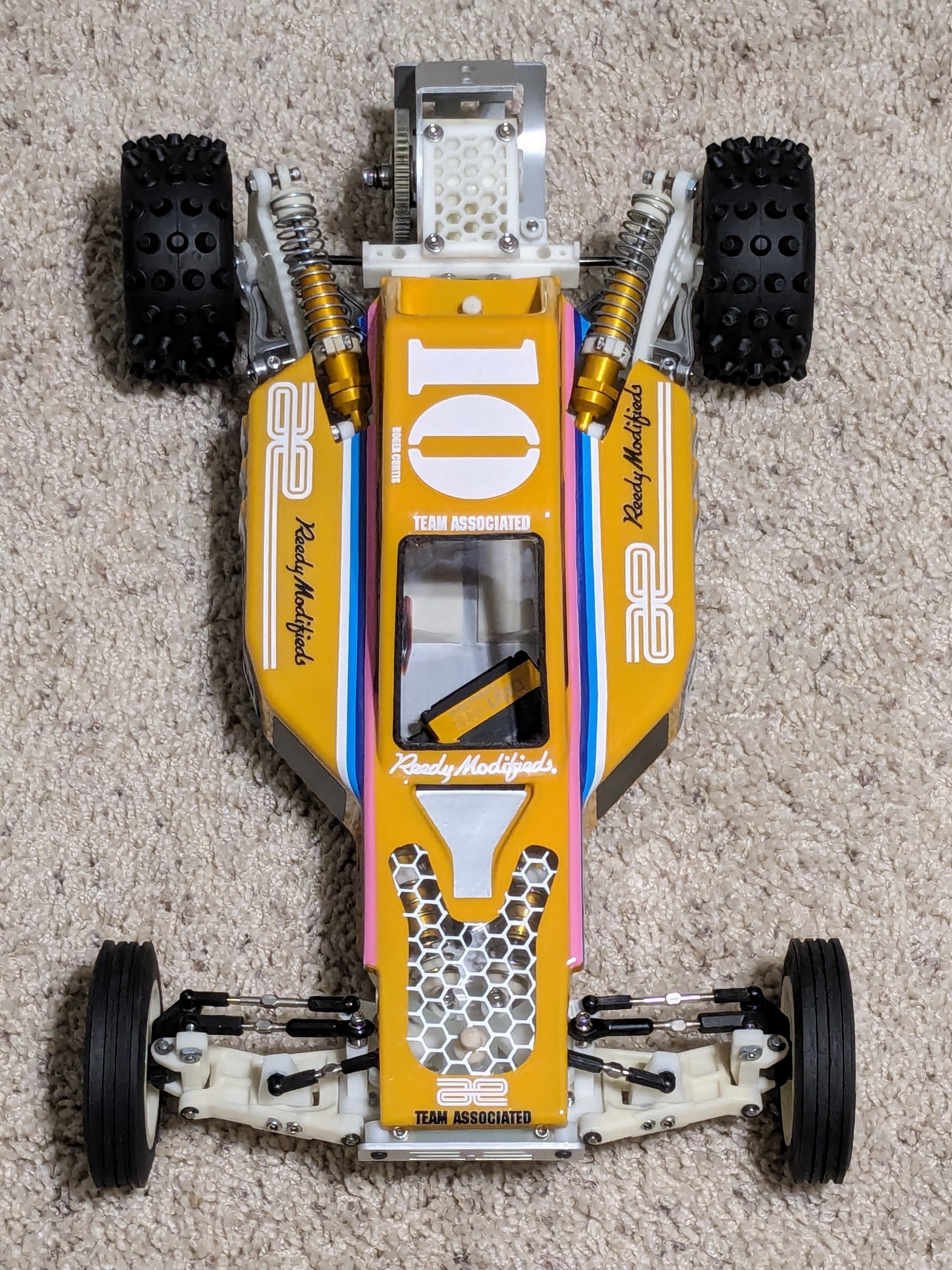

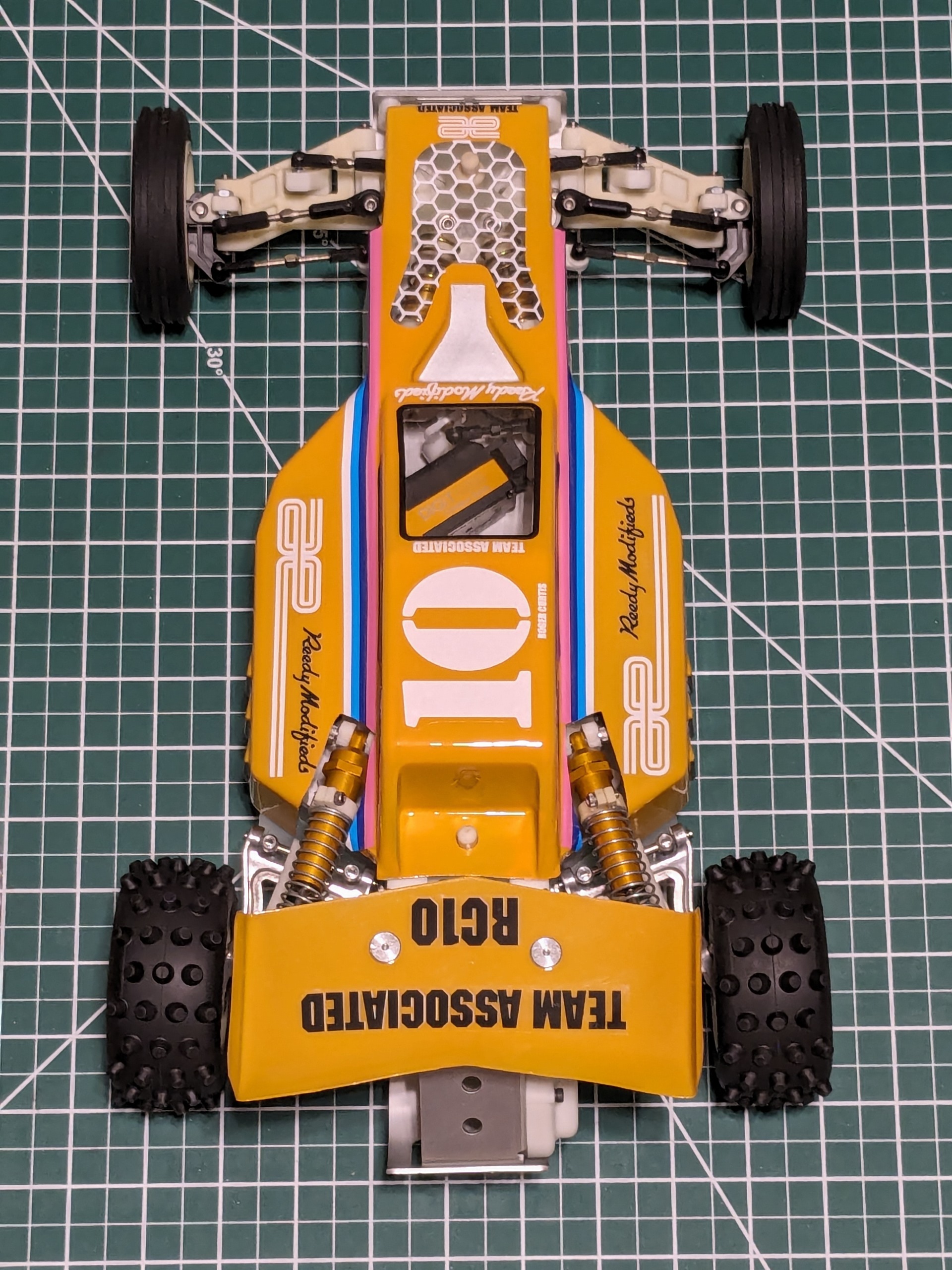

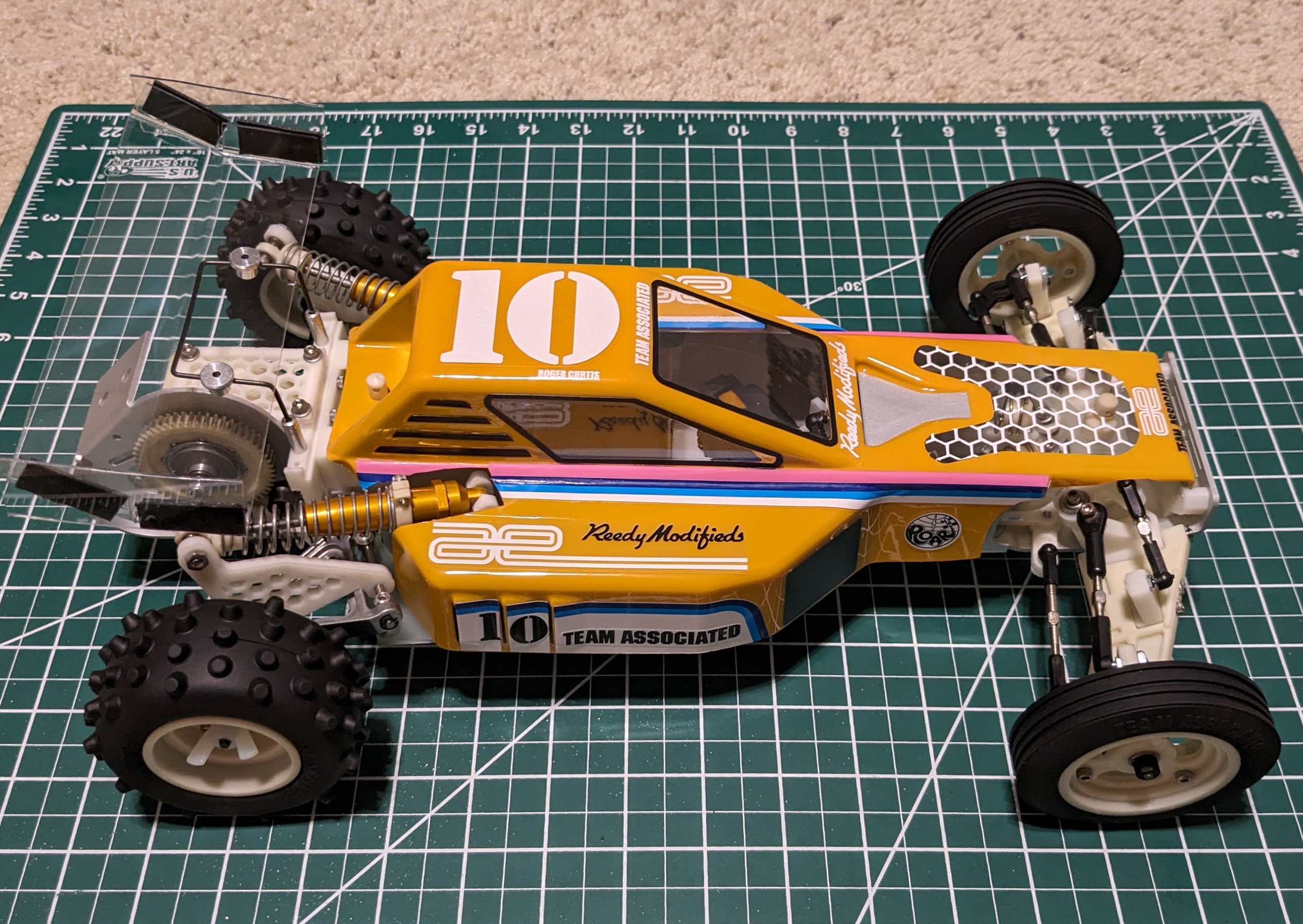

Wing is done. It needed a painted wing. Clear was just too invisible.
.

.

.

.

.

.
A little more sticker-a-facation. It needed tuning for a few more mph top end speed.
.

[Dangeruss]

Very cool build. The front shock window and the billboards cut to fit the side vents are neat touches.

...then of course there's the awesome suspension.

[Frankentruck]

Never done.

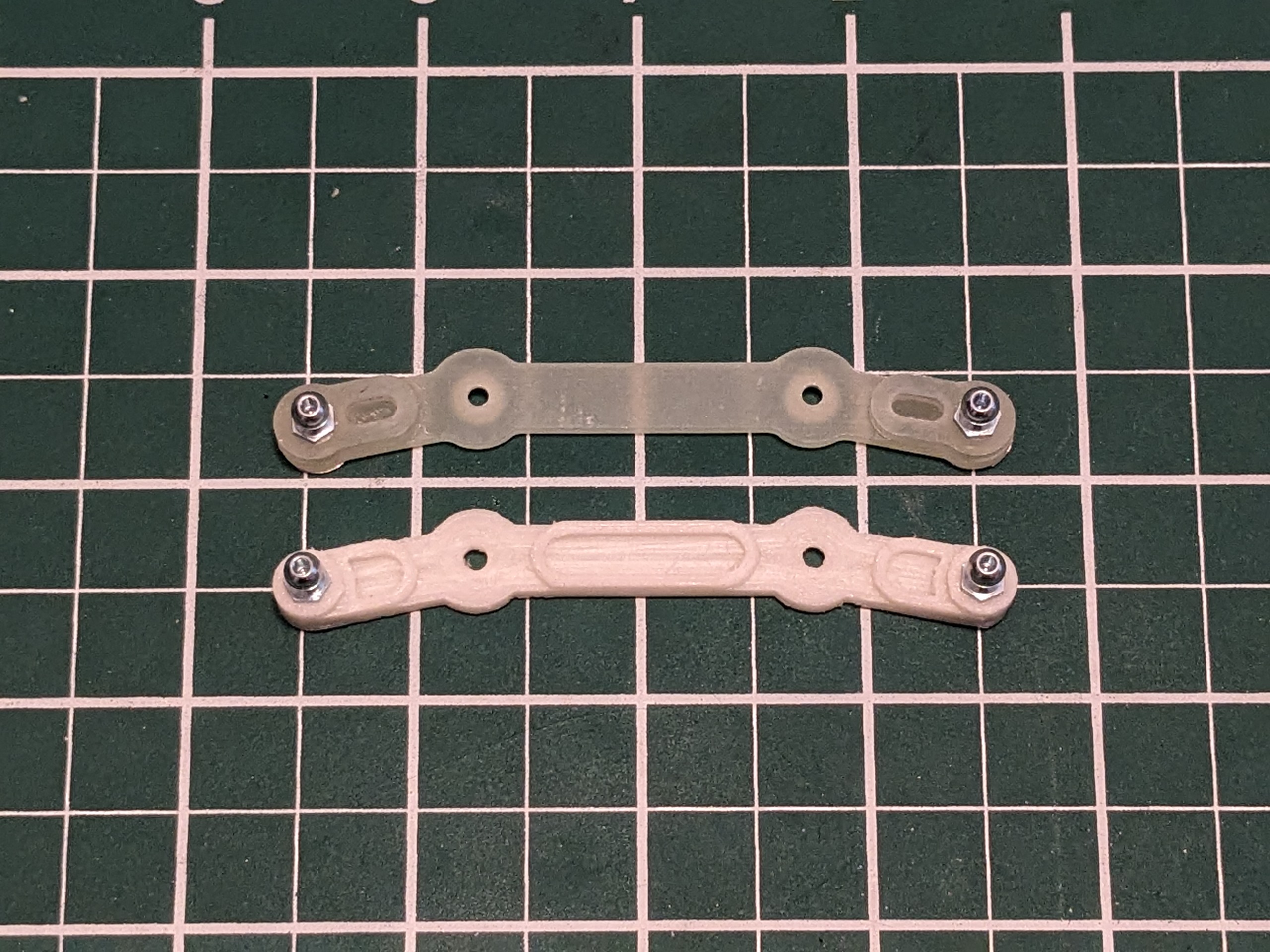

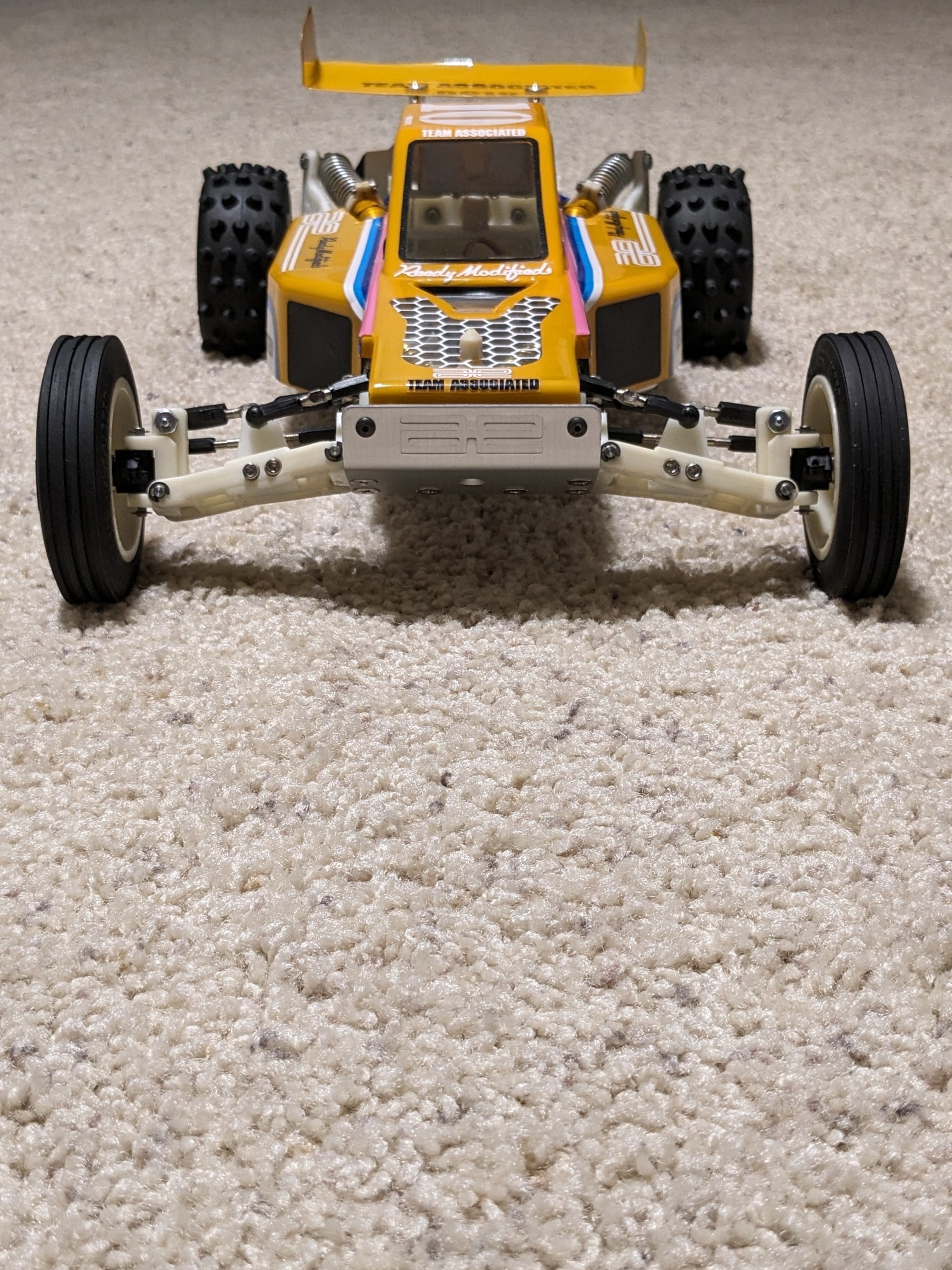

The nylon front rack is super durable, but too flexible. A new fiberglass rack from Factory Works fixed that problem.
.

.

.

.

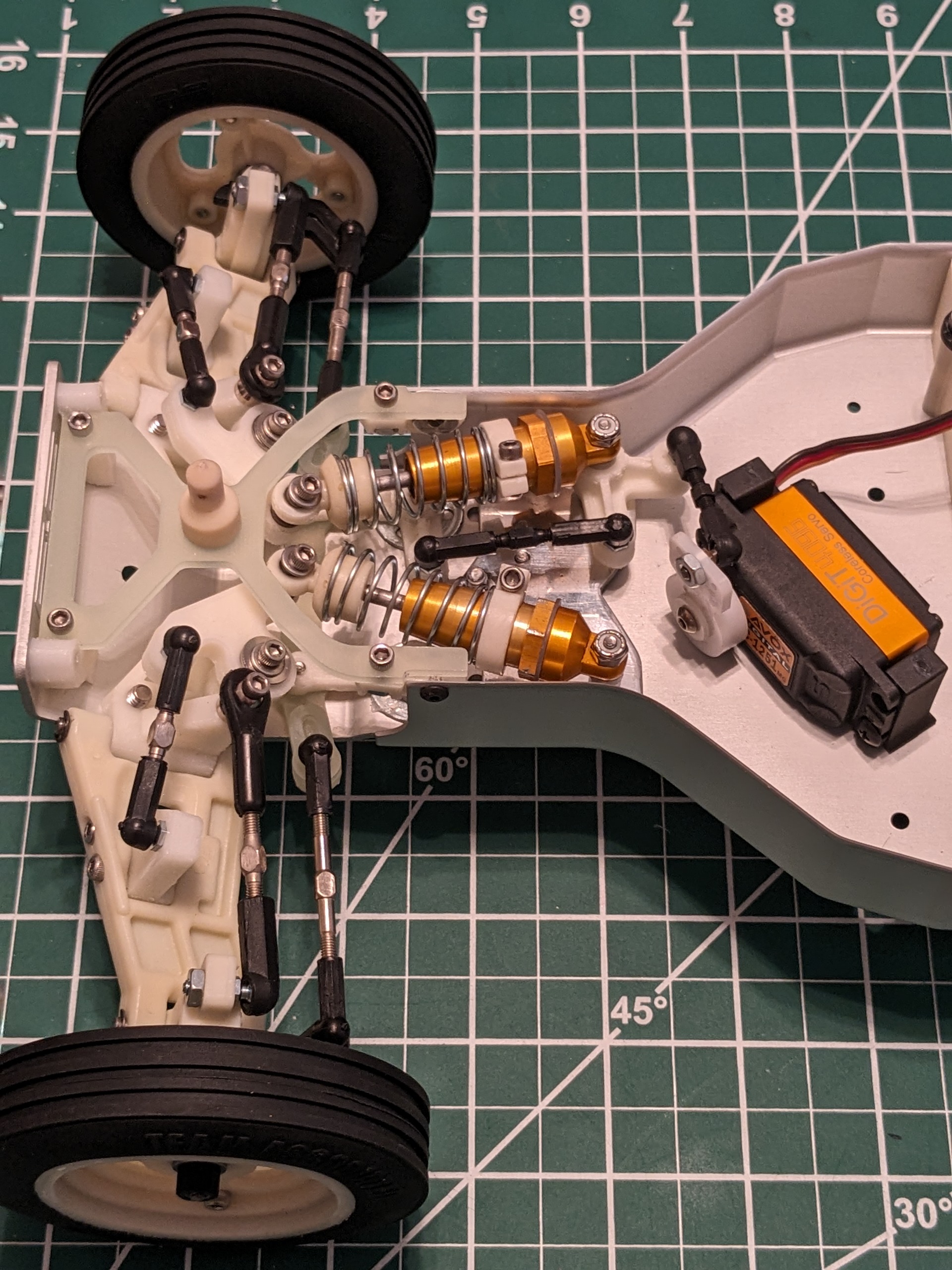

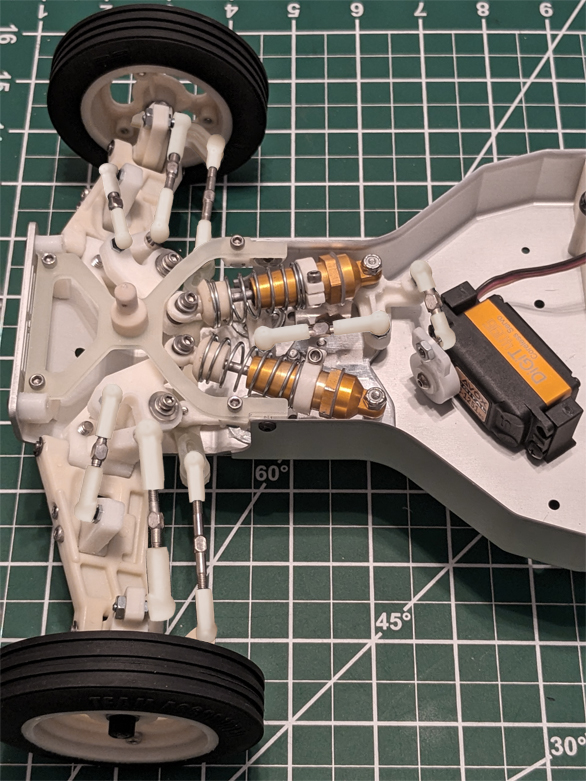

While I had the front shocks out, they got changed from gold to silver springs. The front suspension is now much more reactive.
.

[Dangeruss]

Am I the only one thinking how cool it'd look with white ball cups and steering blocks?
