** What's Old is New Tech Thread **

[Mikeyboy]

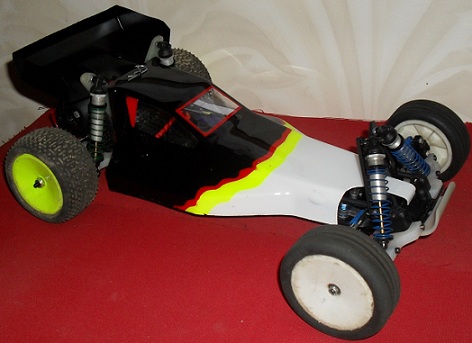

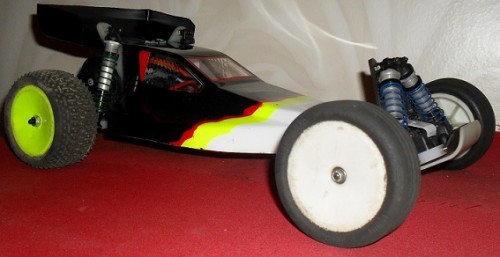

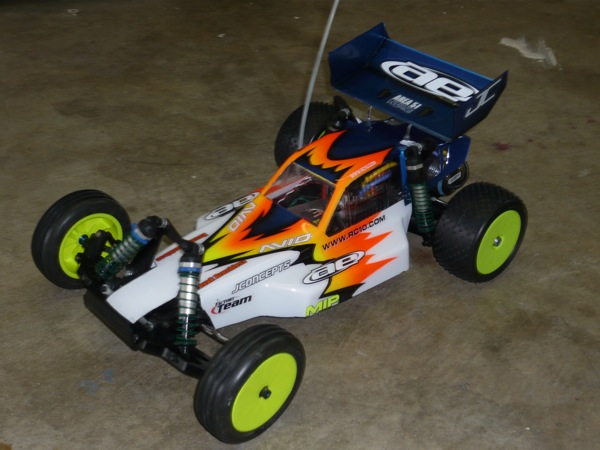

After several months of scrounging parts, my car is done.

Chassis

Truck nose plate
Nose brace tubes
Team car chassis
Associated bearing steering bellcranks
Novak Havoc 10.5 turn brushless motor
Aluminum battery hold down/esc mount

Front

Dynotech front suspension arms
Proline B4 front wheel
RPM "Worlds" front shock tower
RC10T front bulkhead
Associated GT front bumper
RC10 caster block 30 degree
RC10GT extended inline axles
Lunsford Ti turnbuckles
RC10 1.02" shocks, 30wt, green springs

Rear

Dynotech rear suspension arms
Proline B4 rear wheel
Rear B44 CVAs
RC10 0 degree arm mounts
RPM RC10GT rear hubs
RC10T rear shock tower. Modified shock mount location inboard
RC10 1.32" shocks, 30wt, green springs
Modified RC10 Bulkhead
B4 wheel spacers
Custom works .125 wheel spacers
B4 Slipper Clutch


Siebenelch inspired Protech Body

[flipwils11]

Please keep them coming! For guys like me on here still trying to process all the updates since the gold pans of the 80's, this is a great insight into what is possible for upgrades.

[cyclepsych0]

Where did you get the black worlds front tower? Fiber-lyte? Is it graphite?

[cyclepsych0]

Siebenelch inspired Protech Body

What ever happend to that dude anyway?

[markt311]

Siebenelch inspired Protech Body

What ever happend to that dude anyway?

He's busy with Team Durango

[Mikeyboy]

My cousin had this on his 10T from back in the day. I told him that I needed it and we swapped. Its just a white piece that was scuffed and painted black.

[olderacer]

how wide are these cars front & rear with the dynotech/klien arms & truck front bulkhead/nose plate?
i am building some cars and i'm wondering about the widths depending on what rear hubs/spacers & what front castor/knuckle/axle & what wheels are used.

what i have so far on mine is:

FRONT
klein arms/truck bulkhead/truck nose plate
customworks castor blocks
rc10 inline knuckle/aluminum axle/b4 wheels
9 1/2" wide (might be 9 9/16")

REAR
klein arms/rc10t arm mounts/rc10t hubs
b4 cvd bone/ b3 cvd axle/ no spacers/b4 wheels
9 1/2" wide (might be 9 7/16")

i am considering b4 rear hubs to get the b4 bones out of the deep end of the diff halves and more towards the outside of them, and GT wide front axles/b4 castor blocks to even up the front with the rears added width. i am just not happy with how deep the b4 bones are sitting in the diff halves and need some pointers.

[olderacer]

i almost forgot to mention how beautiful these cars are!
very nice work!

[Mikeyboy]

Sitting level, mine is 9 3/4" in the rear(outside edge of tire).
Its measures 9 5/8" in the front(outside edge of tire). My car does have the extra custom works spacers in the rear.

[olderacer]

thank you.
rc10 website has the rc10b4 at 10" wide.
the track i'm gonna be taking this car to is pretty rough and only has 4wd & 2wd truck classes so i'm gonna try to widen my car out some more.
maybe the gt wide front axles & b4 rear hubs will do it?
or get me closer anyway.

[RCveteran]

Great thread, I have been away for 15 years or so and just jumped in. I bought a B4.1 Brushless and though nice, I have dusted off my 1993 Gold Pan with 6 gear. Chassis is one of those drilled for both at the time and I have a stealth trans ready to go.

This thread has shown me don't be afraid to piece all sorts of stuff together. Part of me want to transfer whatever I can from my new 4.1 to the gold pan. Keep it one parts type so to speak. I have a theory with a dremel and some will anything will fit.

[tecnica2001]

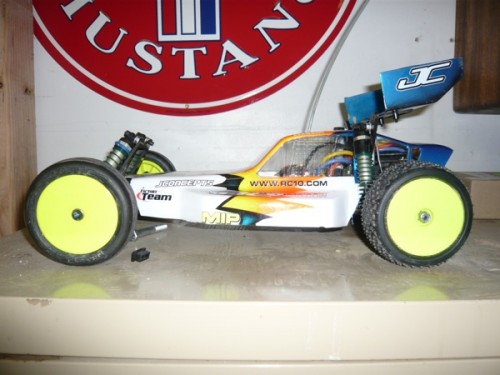

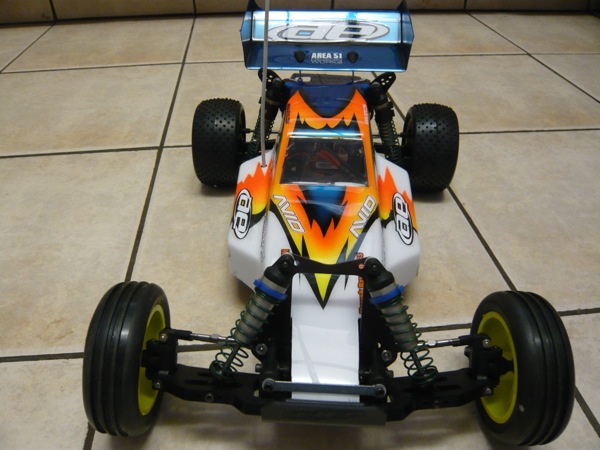

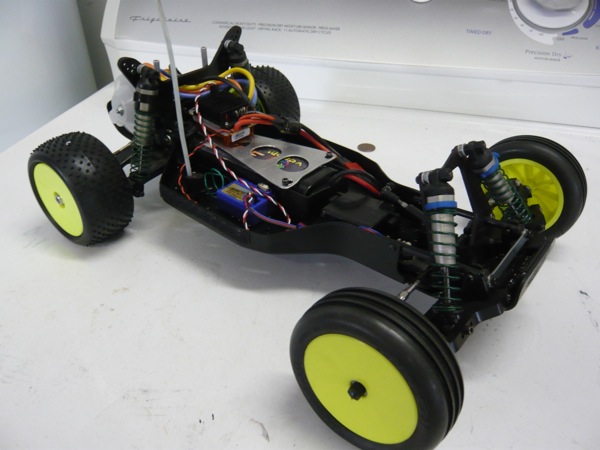

Here's my RC10:


Chassis parts
Truck nose plate
Nose brace tubes
Truck chassi -- powdercoated
RPM Tranny brace
Bearing Steering
Viper body
JC High Flow wing

Front
Dynotech Klein front suspension arms
B4 front wheel
RC10T2 Graphite front shock tower
RC10T front bulkhead
RPM front bumper
RC10 caster block 25 degree
Inline steering blocks
Lunsford Ti turnbuckles
RC10 1.02" shocks

Rear
Dynotech rear suspension arms
Proline B4 rear wheel
Rear B3 MIP CVD
RC10 hinge blocks 1.5 degree
RPM RC10GT rear hubs
RC10 1.32" shocks


Transmission
2.25:1 Stealth tranny
RPM gear cover

Electronics
Reedy 5000mah 35c pack
Novak 17.5
Novak GTB ESC
Hitec servo
DSM Spektrum receiver
AMB transponder

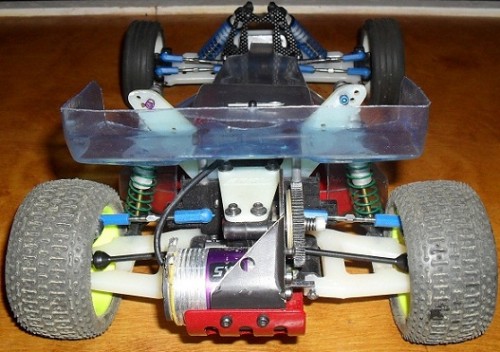

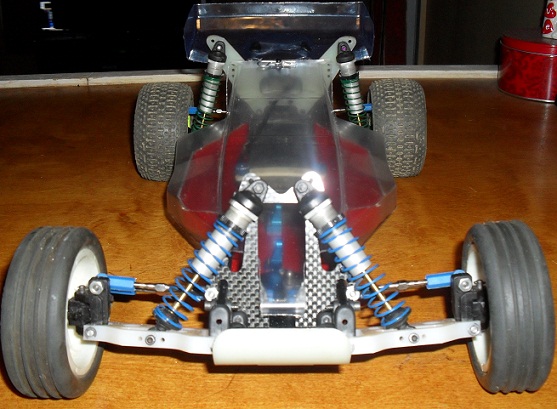

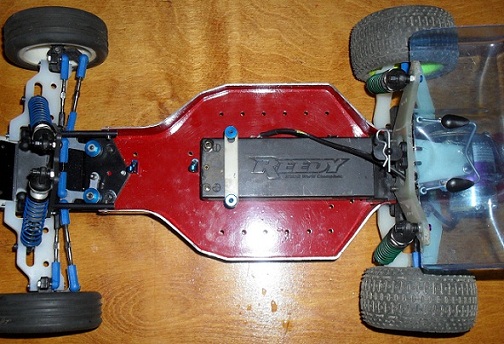

[Toasted Coastie]

ASC1207 B3 FT Turnbuckle Set (Tower) $24.39
ASC9706 B4 FT Battery Post Blue (Tower) $4.79
ASC1787 B4 FT Battery Strap Screws (Tower) $6.69
ASC9623 B4 FT In Line Axle Blue (Tower) $7.19
ASC9580 B4 25* Caster Block (Black) (Tower) $2.89
ASC9622 B4 Hinge Pin Set (Tower) $3.89
ASC7207 Truck Front Bulkhead (Black) (Tower) $4.79
ASC9756 B44 Rear CVA Kit (Tower) $26.99
Acer Ceramic Bearing 3/16X1/2 (2) (Tower) $31.96
ASC9608 Rear Axle Wheel Spacer (Tower) $3.89
Tower Hobbies 224 receiver (Tower) $18.99
ASC1414 1.125” FT Turnbuckles (Blue)(Tower) $8.59
Reedy/XP Brushless 4900KV Combo (Hobby Etc) $103.19
ASC6160 ProTech Buggy Body (Hobby Etc) $12.00
ASC6121 Viper Body (Hobby Etc) $12.00
ASC6186 Large Wing (Hobby Etc) $4.02
ASC6193B FT Wing Buttons Blue (Hobby Etc) $4.54
Fibre-Lyte RC10-02/-03 Shock Towers Carbon Fiber $45.05*
2701Klein Front Replacement A-Arm X2(Dynotech) $18.00
2700Klein Rear Replacement A-Arm X2 (Dynotech) $18.00
ASC1779 Associated Servo Mounts (eHobbies) $12.99
Fibre-Lyte RC10-01 (RPM) Shock Tower Carbon Fiber $16.85
Fibre-Lyte RC10-05 Transmission Brace(Fibre-Lyte) $5.53
Fibre-Lyte RC10-11 Battery Strap (Fibre-Lyte) $10.73
RC10GT Steering Bellcrank Blue $21.90
ASC9577 B4 FT Inline Steering Blocks Black $4.65
JConcepts 3306 Rulux Wheels (Rear) White $13.00
JConcepts 3305 Rulux Wheels (Front) White $11.00
RPM 70272 RC10GT Rear Carriers w/o bearings $5.88
ASC7013 RC10GT Nose Tubes Blue $4.13
RC10GT Nose Plate $17.88
RC10 Stealth Transmission w/MIP Lightdrives $59.50
ASC7208 Front Bulkhead Brace RC10GT $1.20
RC10 Wheel Nuts Blue Bean Knockoffs X2 $3.00
RPM RC10 Mini Bumper $2.99
Kyosho Lazer ZX 5 Aluminum Threaded Shock Dampers $24.99

*I ended up only using the rear tower (RC10 03) from this purchase and will save the front one for the next build.*

The Kyosho shocks were an almost exact fit, with only the rears needing any adjustment.

Turnbuckles: It would have been easier to get them seperately:
ASC1405 x2
ASC1414 x1
Would have cost the same amount as the set of 6, and been the correct sizes.

[newschool]

Hi im just in the beggining of deciding how I want to build my whats old is new build. I noticed that guys are using both the 10t and gt nose plates. Is there any difference in using these two nose plates? If the gt nose plate does work, does the 10t front bulkhead also bolt right on?

Any help here would be greatly appreciated!

[vintage AE]

the front bulkhead does bolt on and I think the two nose plates are the same.
