Re: RedBoxRacing
Did you make the mid conversion back in 1987? Anyway, really really cool project! I like the red box more now when it's opened
Cheers
Joel
Joel
Re: RedBoxRacing
Thank You !

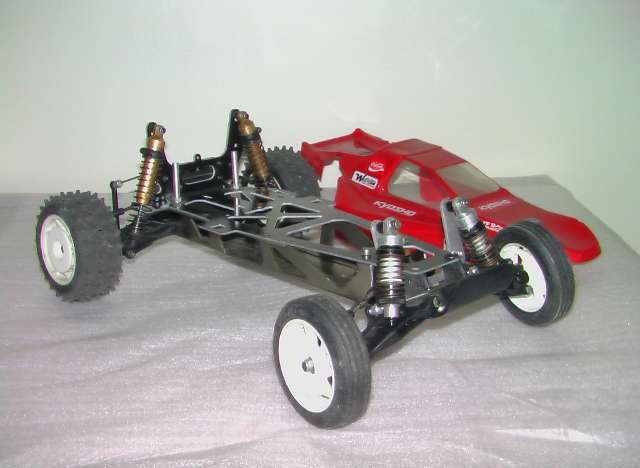

Yes i did make it 1987 and run it on low profile foam indoors. And the fun thing was when a good driver drove it he was faster than with his own car. I am a not so good driver, but i like to build fast cars. 1988 i build one other Ultima Mid with carbon fiber chassis
And that little beast i waiting for the camera shot
Yes i did make it 1987 and run it on low profile foam indoors. And the fun thing was when a good driver drove it he was faster than with his own car. I am a not so good driver, but i like to build fast cars. 1988 i build one other Ultima Mid with carbon fiber chassis
And that little beast i waiting for the camera shot
RedBoxRacer™
Re: RedBoxRacing
I got hold of my very old low profile foam wheels, kind of dry and cracked

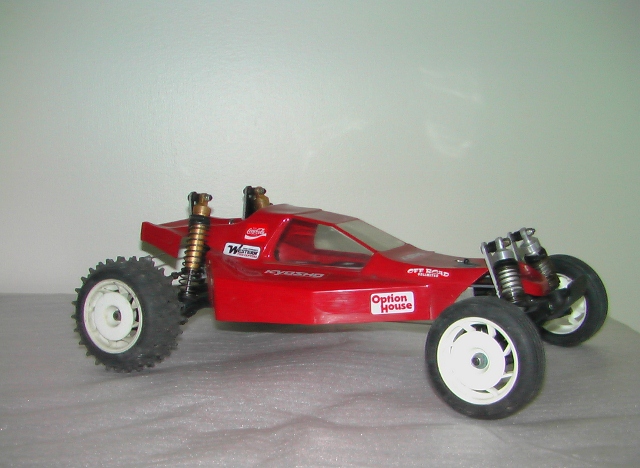

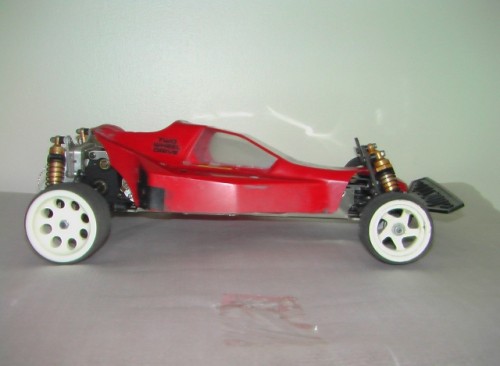

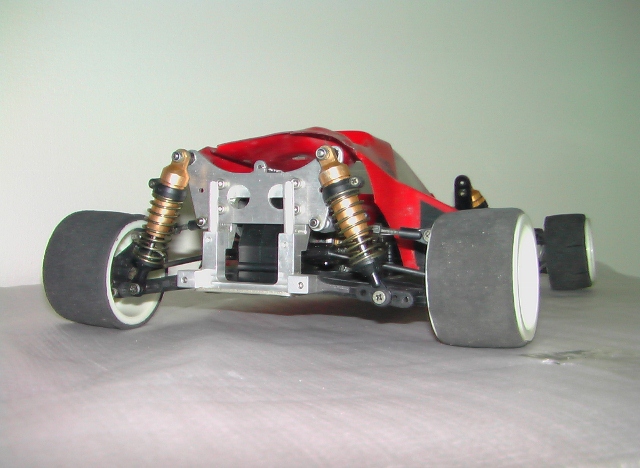

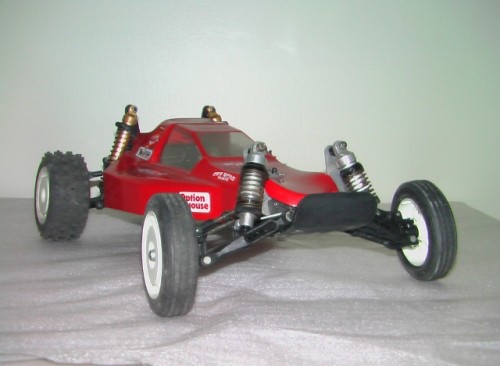

This is how the car look like 1987 indoor season.
This is how the car look like 1987 indoor season.
RedBoxRacer™
Re: RedBoxRacing

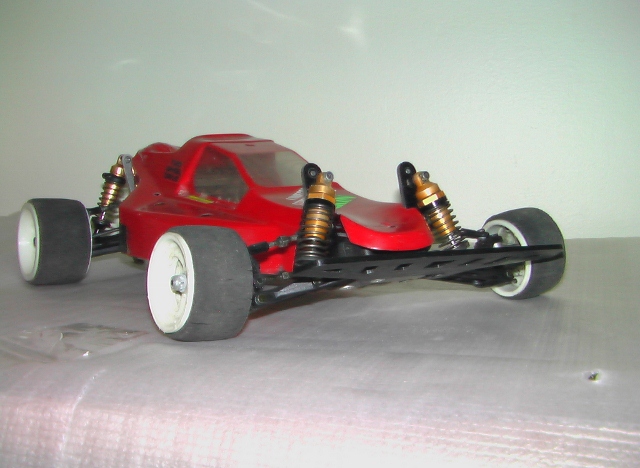

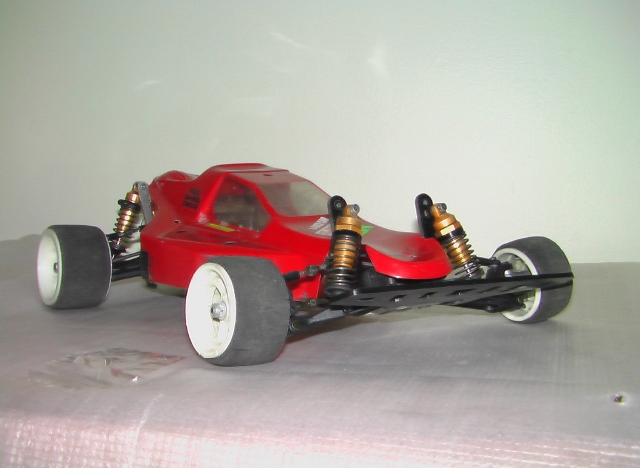

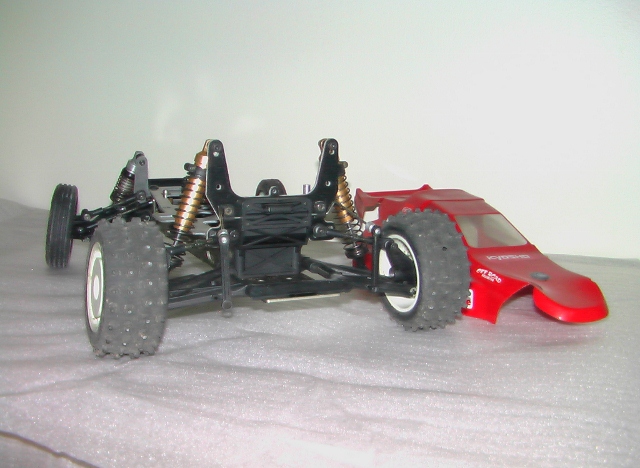

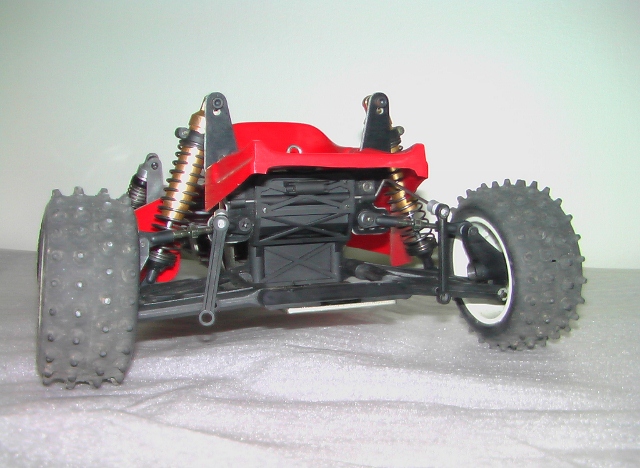

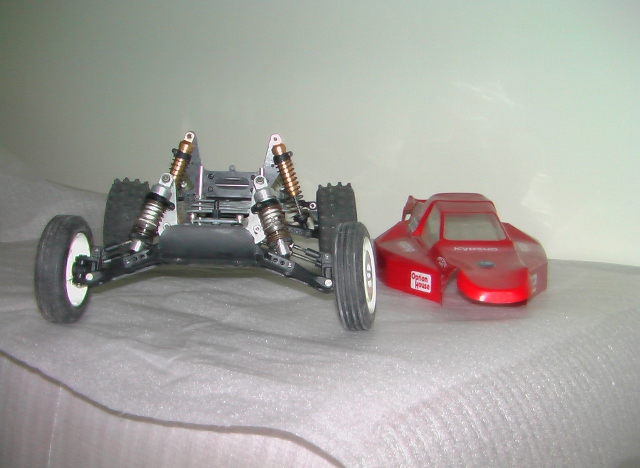

I forgot to finish this 1988 Time has come now. The wheels is just on for the pic. still digging for unpacked parts
RedBoxRacer™
- j0pp3
- Approved Member
- Posts: 425
- Joined: Tue Apr 17, 2012 10:47 am
- Location: Stockholm, Sweden
- Been thanked: 4 times
Re: RedBoxRacing
Nice!
Do you still remember which parts you replaced to make the mid conversion work? I don't mean you should list them here. Just curious
I suppose it was easier back then to turn a gear box 180 degrees because brushed motors can be run backwards just by switching the wires. Today the mid conversions need an extra gear as brushless motors do not like running backwards.
/j0pp3
Do you still remember which parts you replaced to make the mid conversion work? I don't mean you should list them here. Just curious
I suppose it was easier back then to turn a gear box 180 degrees because brushed motors can be run backwards just by switching the wires. Today the mid conversions need an extra gear as brushless motors do not like running backwards.
/j0pp3
Cheers
Joel
Joel
- j0pp3
- Approved Member
- Posts: 425
- Joined: Tue Apr 17, 2012 10:47 am
- Location: Stockholm, Sweden
- Been thanked: 4 times
Re: RedBoxRacing
Very true Dennis. I have never used a sensorless BL system and I forgot they exist
Cheers
Joel
Joel
Re: RedBoxRacing
Thank You Sirj0pp3 wrote:Nice!
Do you still remember which parts you replaced to make the mid conversion work? I don't mean you should list them here. Just curious
I suppose it was easier back then to turn a gear box 180 degrees because brushed motors can be run backwards just by switching the wires. Today the mid conversions need an extra gear as brushless motors do not like running backwards.
/j0pp3

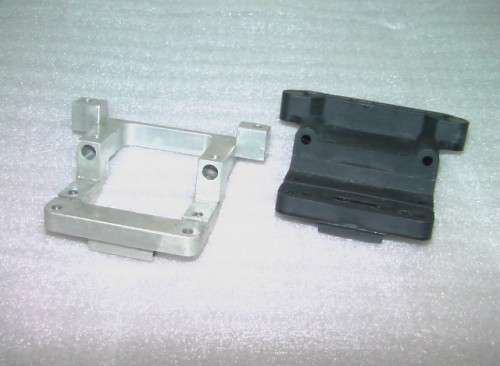

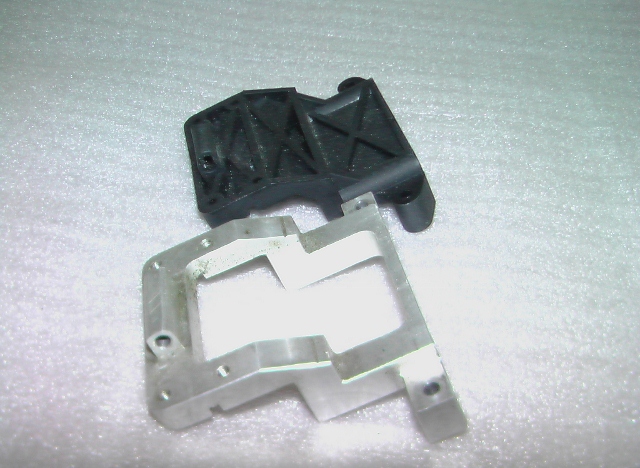

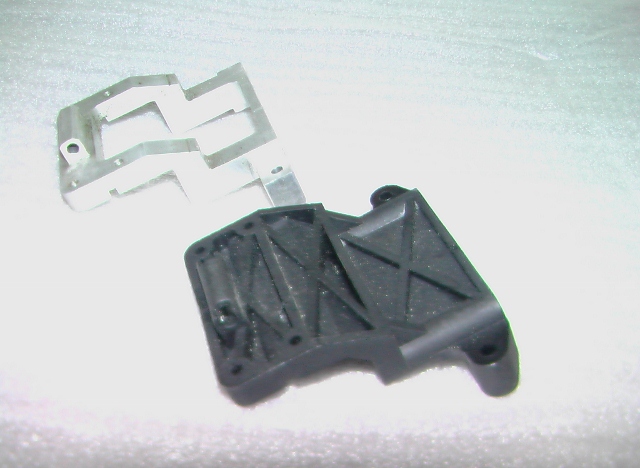

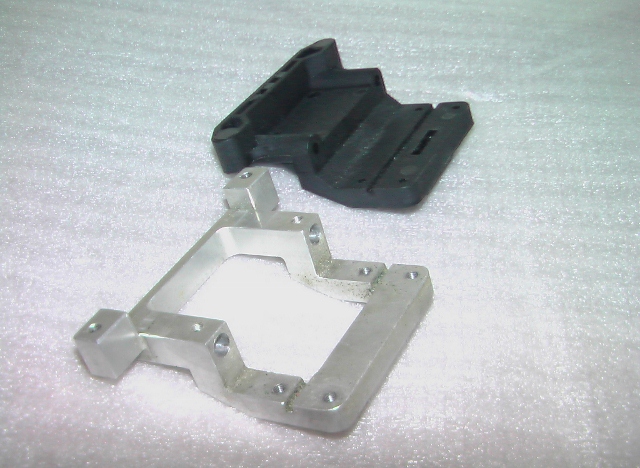

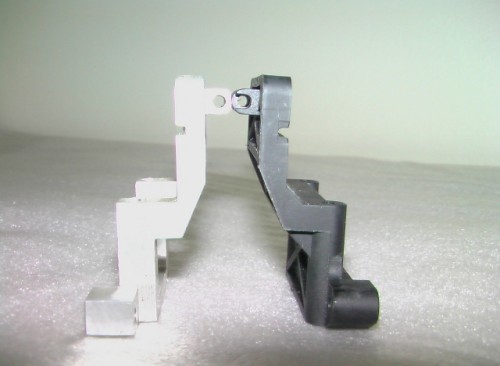

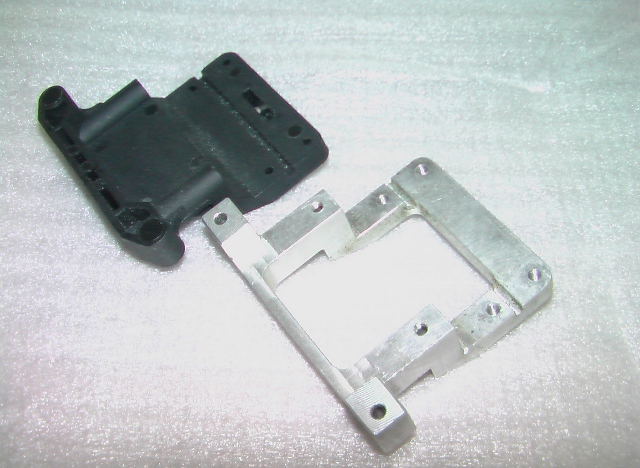

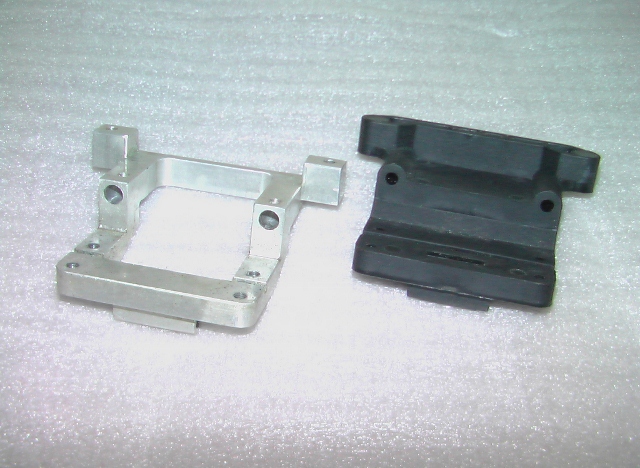

That will be a very short list, after consulting the RedBox (lack of memory) i find out only one part is replaced.....hmmmm
and i can't remember why i did it. Must have gone in custom mode again....can't let things just stay like they are.
You made me take it apart and look........that's a good thing The original plastic thing fit...so blame custom devil.
The next thing is running The motor backwards.......electric motors do not know any directions.....lucky me back then.
I did not know the brushless motors know directions, no experience yet. So now i got to leave the hill for a tour to the hobby shop
and get a set of lipos, brushless motor and speed control....ugh. This little beast is going for a ride. o my god.....still got a family pack of gearboxes. This mission cant end well
RedBoxRacer™
-
- Approved Member
- Posts: 8921
- Joined: Tue Apr 08, 2008 2:44 pm
- Location: USA
- Been thanked: 8 times
Re: RedBoxRacing

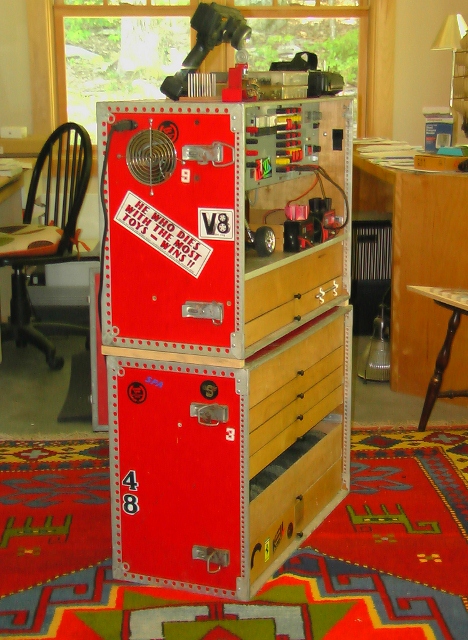

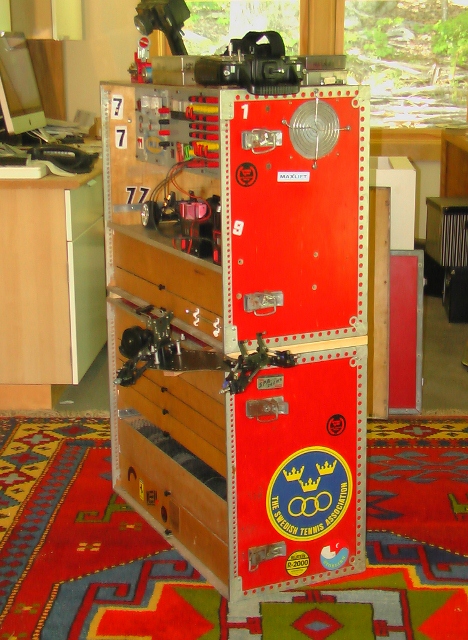

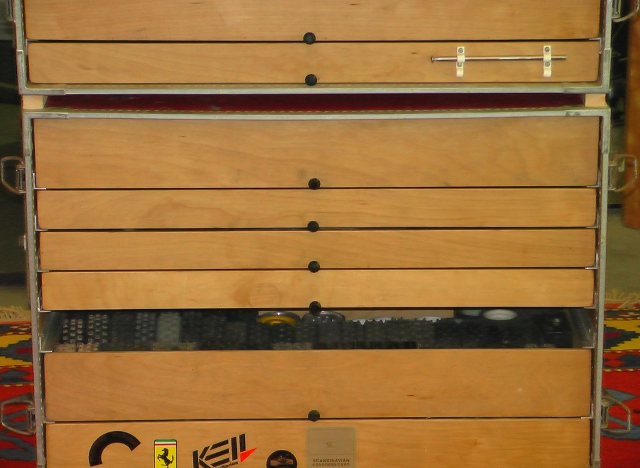

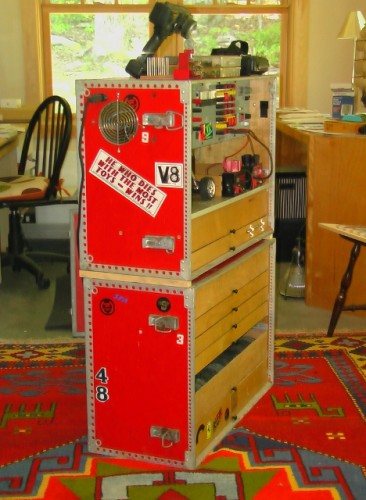

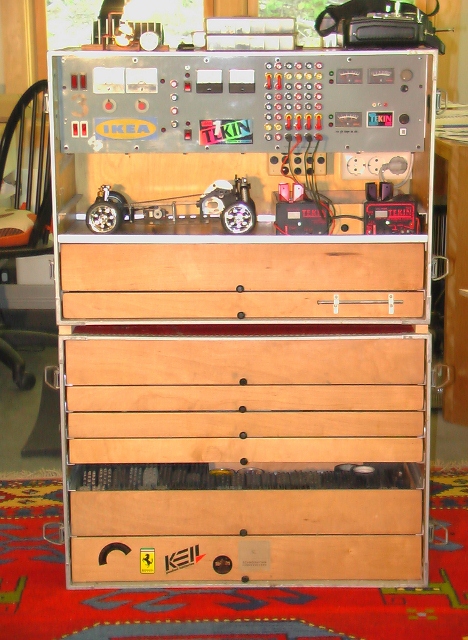

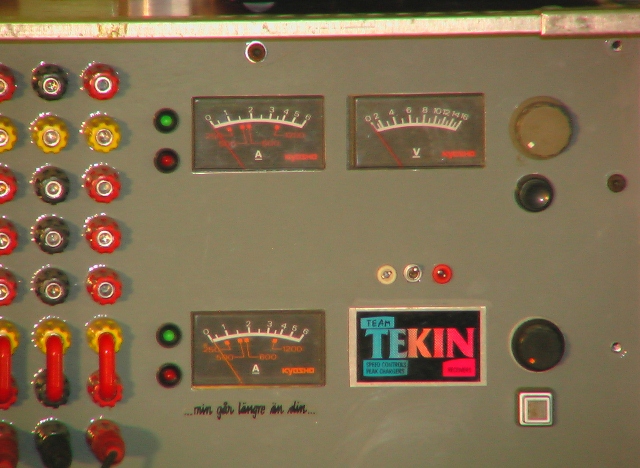

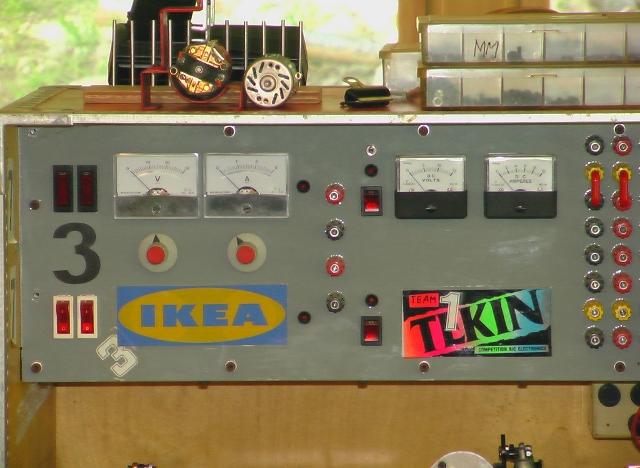

RedBox l & ll The Reveal
When i started RC Racing i used to go with plastic bags as transporting method Result a trail of parts on the ground
Get small Box to fit all i need for a race............Ooh my world so much stuff I need a BIG Box...........If i get this much crap now what will the near future look like Order Two BIG Boxes and stuff them until i can't lift them.
So here it comes folks You don't need to be crazy in RC Stuff But it helps a lot if You are.
If You still need more description Don't hesitate to ask. There is no stupid questions only stupid answers.
When i started RC Racing i used to go with plastic bags as transporting method Result a trail of parts on the ground
Get small Box to fit all i need for a race............Ooh my world so much stuff I need a BIG Box...........If i get this much crap now what will the near future look like Order Two BIG Boxes and stuff them until i can't lift them.
So here it comes folks You don't need to be crazy in RC Stuff But it helps a lot if You are.
If You still need more description Don't hesitate to ask. There is no stupid questions only stupid answers.
- Attachments
RedBoxRacer™
- EvolutionRevolution
- Approved Member
- Posts: 1495
- Joined: Tue Feb 01, 2011 3:24 pm
- Location: Netherlands
- Has thanked: 20 times
- Been thanked: 36 times
Re: RedBoxRacing
It's like a portable workbench - no wait, it IS a portable workbench. Really cool.
How did you move it? Isn't it really heavy with all of the stuff inside it?
How did you move it? Isn't it really heavy with all of the stuff inside it?
- Mr. ED
- Approved Member
- Posts: 5477
- Joined: Thu Dec 21, 2006 1:30 am
- Location: Back @ home: Belgium
- Has thanked: 58 times
- Been thanked: 56 times
Re: RedBoxRacing
the red stack needs wheels under it.
Could it be you made that alu part 'cause that's what's in the single picture of Joel Johnson's proto-type mid motered ultima?
and to correct : brushed moters are sensitive to reversing. First of all you need to physically change the the timing by turning the endbell about 15 ° and secondly you need to true the collector and put fresh brushes on if it's a moter that was run in the normal sense before, and then switch the leads , or turn the endbell 180° on top of the 15°
PS: I like how you used the mid front carriers, steering knuckles and wheels. I never understood why this wasn't a more popular mod in it days.
Could it be you made that alu part 'cause that's what's in the single picture of Joel Johnson's proto-type mid motered ultima?
and to correct : brushed moters are sensitive to reversing. First of all you need to physically change the the timing by turning the endbell about 15 ° and secondly you need to true the collector and put fresh brushes on if it's a moter that was run in the normal sense before, and then switch the leads , or turn the endbell 180° on top of the 15°
PS: I like how you used the mid front carriers, steering knuckles and wheels. I never understood why this wasn't a more popular mod in it days.
Re: RedBoxRacing
Thank You !EvolutionRevolution wrote:It's like a portable workbench - no wait, it IS a portable workbench. Really cool.
How did you move it? Isn't it really heavy with all of the stuff inside it?
So many races with something missing ugh. Getting tired and cranky of missing parts. And i knew i got them at home....far far away.
Solution center kick in....if i bring it all i will at least stay warm....
Heavy....30 Kg or 60 LBS each.
The only thing they don't do is making good coffee
If i go to a race i can replace anything at least three times.........if that's not enough i go to a bar and cry.
RedBoxRacer™
