As soon as Daryl starts pumping those out, I'm grabbing a few sets.a01butal wrote:looks like you could use an A & L Chassis stiffener kit to really pimp it out dude.59burst wrote:everything is pretty much finished except for the tranny now.
59burst's A&L trailing conversion
- RichieRich
- Approved Member
- Posts: 2352
- Joined: Wed Jun 14, 2006 11:42 pm
- Location: Los Angeles, CA
- Has thanked: 34 times
- Been thanked: 19 times
Re: 59burst's A&L trailing conversion
Re: 59burst's A&L trailing conversion

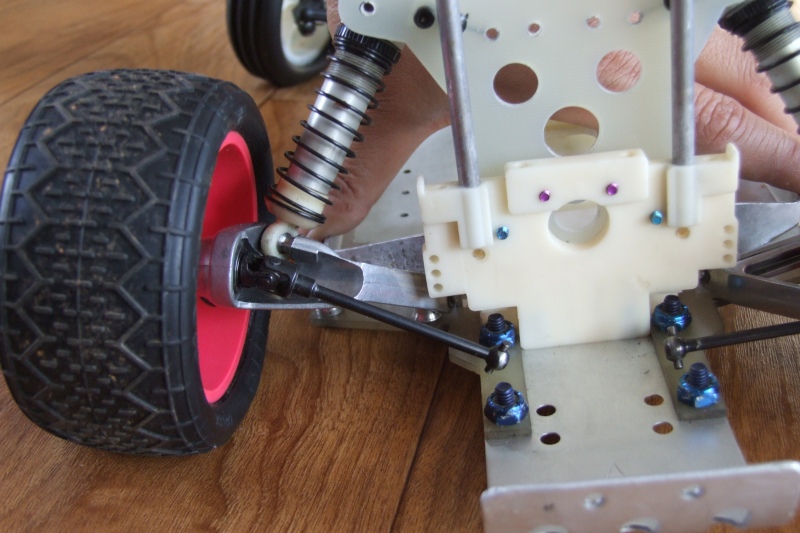

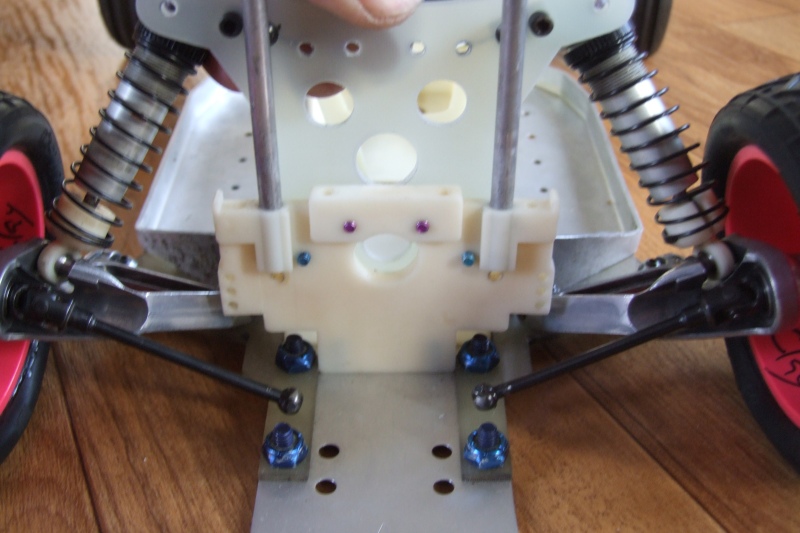

the shocks are 1.18 and with 1.02 shafts already. and the clearance is fine with one spacer for each rear shock. but, I still want "more" stroke (wheel travel) which is equivalent to my other runners. so I need to make the tower 2 to 3mm higher than this, then remove the spacers in the rear shocks. it's not for bumps or jumps. but for better handling at the corners. but who knows. it's already looking good and I'm lazy to move my butt for making a new tower. even I'm not a good racer at alllosiXXXman wrote:Hey that's a cool idea on redrilling the stock rear tower. I have been interested in a trailing arm conversion, but have not picked one up yet. Using the stock tower was something I wanted to try - nice to see that it works beforehand! Just a thought though, if the taller A&L tower for the trailing kit uses the stock rear length (1.32body/1.02shaft) shocks....couldn't you use the 1.18 shocks with the stock RC10 tower and the trailing arms? I don't think you would need a further shorter tower. Does that make sense?
and, thanks for the stiffener info Rich
Re: 59burst's A&L trailing conversion

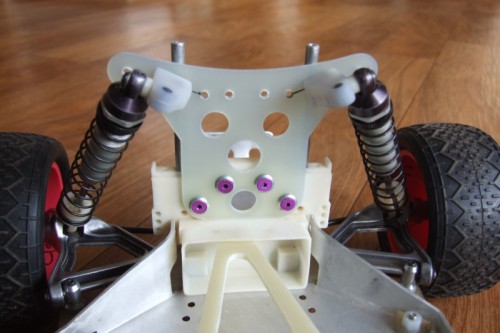

got an epoxy sheet for making the stiffener. but have changed my mind and started to make a rear tower for 1.18 shocks and finished it

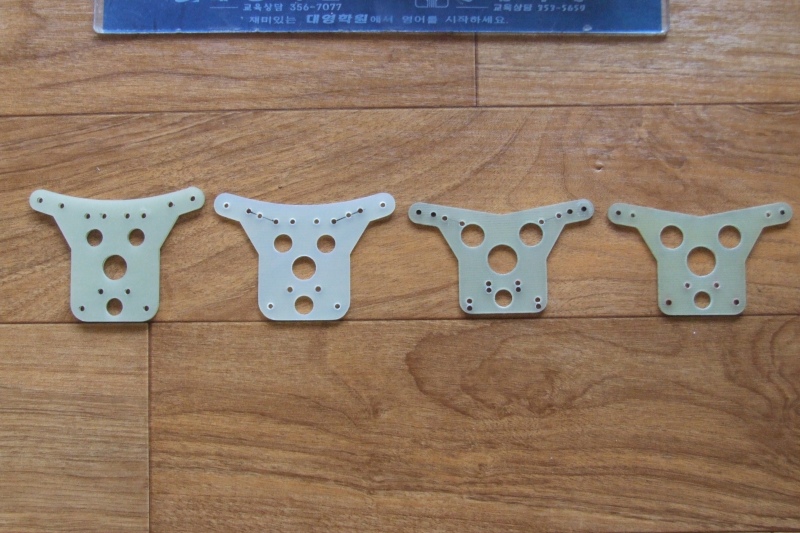

I can see 4 doggies
I can see 4 doggies
- Lonestar
- Approved Member
- Posts: 4270
- Joined: Wed Dec 12, 2007 5:17 am
- Location: Switzerland, yannow, in Europe (or almost)
- Has thanked: 626 times
- Been thanked: 166 times
Re: 59burst's A&L trailing conversion
Sweeeeeet I dig it!!!
looking forward for a running vid, I've always wanted to see what the trailing arms handle like!
Keep us posted!
Paul
looking forward for a running vid, I've always wanted to see what the trailing arms handle like!
Keep us posted!
Paul
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
Re: 59burst's A&L trailing conversion
x2Lonestar wrote: I've always wanted to see what the trailing arms handle like!
l
I can't wait to see it's running
Re: 59burst's A&L trailing conversion
I was wondering what's the tools for your custom shocks towers? CAD and machine?m_vice wrote:nice job on this, looks very cool.
- Asso_man!
- Approved Member
- Posts: 3959
- Joined: Thu Aug 03, 2006 7:49 am
- Location: EU
- Has thanked: 40 times
- Been thanked: 70 times
Re: 59burst's A&L trailing conversion

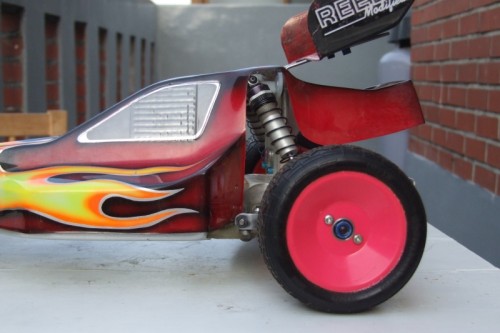

I think he is handcrafting all of them! Very nice project there, I ran a similar set up for quite a long time and ended up replacing everything with stock parts. The trailing arms are for sure different, but I had a hard time setting the rear end and especially the shocks to work properly. Can't find the thread back...59burst wrote:I was wondering what's the tools for your custom shocks towers? CAD and machine?m_vice wrote:nice job on this, looks very cool.
_____________________________________________
_____________________________________________
Come and visit the stable
_____________________________________________
Come and visit the stable
- Lonestar
- Approved Member
- Posts: 4270
- Joined: Wed Dec 12, 2007 5:17 am
- Location: Switzerland, yannow, in Europe (or almost)
- Has thanked: 626 times
- Been thanked: 166 times
Re: 59burst's A&L trailing conversion
The issue with most TA suspension designs is the wheel rate curve as the suspension compresses I think... looking at this one it accelerates (which is fine) and then slows down (which isn't) Let alone wheel base changes, and scrub angles with that kind of rear toe...Asso_man! wrote:I think he is handcrafting all of them! Very nice project there, I ran a similar set up for quite a long time and ended up replacing everything with stock parts. The trailing arms are for sure different, but I had a hard time setting the rear end and especially the shocks to work properly. Can't find the thread back...59burst wrote:I was wondering what's the tools for your custom shocks towers? CAD and machine?m_vice wrote:nice job on this, looks very cool.
but it looks SO cool I want one badly
Paul
AE RC10 - Made In The Eighties, Loved By The Ladies.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
Blue Was Better - now, Blue Is Bankrupt.
Facebook affiliate program manager: "They go out and find the morons for me".
Life is short. Waste it wisely.
- m_vice
- Approved Member
- Posts: 1313
- Joined: Fri Feb 23, 2007 12:46 pm
- Location: Dallas, TX
- Been thanked: 1 time
Re: 59burst's A&L trailing conversion
CAD, Hand saw with jewelers saw and Dremel.59burst wrote:I was wondering what's the tools for your custom shocks towers? CAD and machine?m_vice wrote:nice job on this, looks very cool.
what are you using? drill and then dremel?
This is my project, but I did something different on the rear towers (same shock location).
http://www.rc10talk.com/viewtopic.php?f=35&t=19514
Re: 59burst's A&L trailing conversion
pretty much same with you. but my dremel motor burned years ago. and didn't get it fixed yetm_vice wrote:
CAD, Hand saw with jewelers saw and Dremel.
what are you using? drill and then dremel?
This is my project, but I did something different on the rear towers (same shock location).
http://www.rc10talk.com/viewtopic.php?f=35&t=19514
but the difference is.. I never tried that complicated shapes you did. I can do such a simple job like this tower. even I ruined the first tower today
have been watching your nice build tread, and still got a question. where the servo mounts came form? I couldn't find that thick and strong one
- m_vice
- Approved Member
- Posts: 1313
- Joined: Fri Feb 23, 2007 12:46 pm
- Location: Dallas, TX
- Been thanked: 1 time
Re: 59burst's A&L trailing conversion
Technically any servo mounts would work any aluminum ones like mine or even plastic ones. I got mine on the Bay.
Re: 59burst's A&L trailing conversion
I remember the tread with comcom (FL) tub right?Asso_man! wrote:I ran a similar set up for quite a long time and ended up replacing everything with stock parts. The trailing arms are for sure different, but I had a hard time setting the rear end and especially the shocks to work properly. Can't find the thread back...
had to read some articles to understand what scrub angle was.Lonestar wrote: The issue with most TA suspension designs is the wheel rate curve as the suspension compresses I think... looking at this one it accelerates (which is fine) and then slows down (which isn't) Let alone wheel base changes, and scrub angles with that kind of rear toe...
but I can't still understand this part "looking at this one it accelerates (which is fine) and then slows down (which isn't)"
can you tell me more on this?
thanks for the servo mounts info, Miguel
-
