GoMachV's Pin Router thread (for reproducing 2d parts)

[R Cane]

Nice!

[GoMachV]

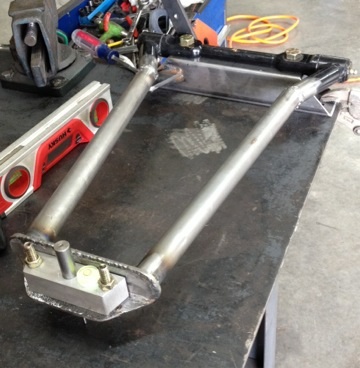

It's still being finished up but here is the modified control arm. Extra long reach and heavy duty to the max!

[j-sou]

Looks awesome, Jeff!

[GoMachV]

Thanks Jeff! I wanna try some more lexan at some point, I think it will be a lot nicer cut with less chatter. This will also allow me to cut some bigger material, the dually chassis is going to be a priority!

[GoMachV]

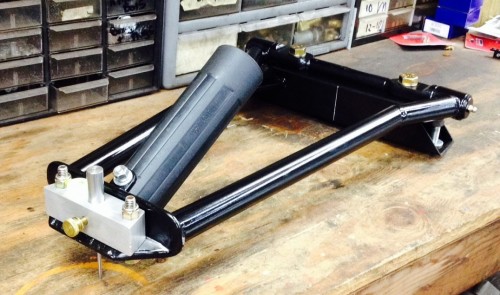

Just got a pic of the extended arm all finished up. He made a stop and machined it so there is no need for a adjustment bolt. Added a tab for the vacuum. Aligned and triple checked for dead square. I should have it soon and I can get to cutting!

[R Cane]

wow

[rc10johnny]

..............Did I Here "Dually" Chassis.....

[GoMachV]

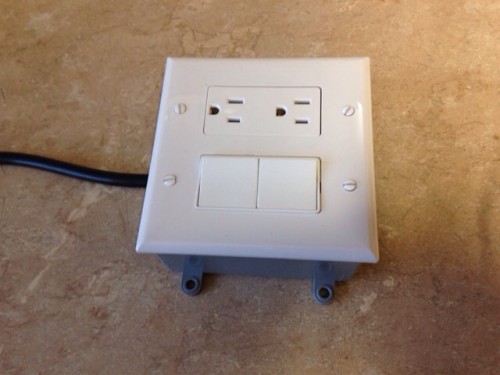

Finally got around to building a switch box. It probably seems lazy- and it is! But instead of reaching around for the vacuum switch and router switch now they are easily accessed

Plus I just like to build silly crap like this box lol

[jwscab]

nah, that seriously adds to the convenience and time savings. makes the job that much more enjoyable. How's the dust with the vacuum right there at the routing bit?

[GoMachV]

The dust isn't bad at all as long as I keep the router on the suction side of the part im doing. I'm just using a shop vac, not a dust collector, so considering that I'm quite pleased

I didn't realize until today that I have not updated my pics, I'll try to put up some of the finished piece tonight

[GoMachV]

Here are the pics showing it as I use it. Stocked and ready to cut some material.
Underneath is the shop vac and water/dust filter.

[RC10resto]

Looks great
Where's the purple ano

[GoMachV]

I almost sent the CNC router mount in...i couldn't be down for a whole week tho!

[JK Racing]

cmon...ill toss some stuff to ya for purple again share in the pain!
