TRX-1 hodgepodge - Bandit, Rustler, Slash gearbox parts?

[1911Colt]

Did you forget to die the shock parts?

j/k

[Frankentruck]

Did you forget to die the shock parts?

j/k

....yes

I still could (I have a crockpot of black dye) but not planning to yet.

[TRX-1-3]

[quote=Frankentruck post_id=561289 time=1706820133 user_id=14233]
Kermit is pretty well cleaned up, but now I need to figure out what to do for front wheels.
.
.
The rears here are Bandit 2474 pin drive wheels, but the matching Bandit 2475 are also a pin drive wheel. I would prefer the fronts to be the old fashioned bearing in wheel setup. Any thoughts what I might use?
[/quote]

JC Racing 5-spokes for Traxxas (2.2")
TRA 2671 (dished 2.1")
TRA 1775-X (2.1")

I'm not sure what the original Bandit bearing-in-wheel part number is..but they might be out there somewhere. And I've always thought that some Tamiya wheels might fit but have never confirmed.

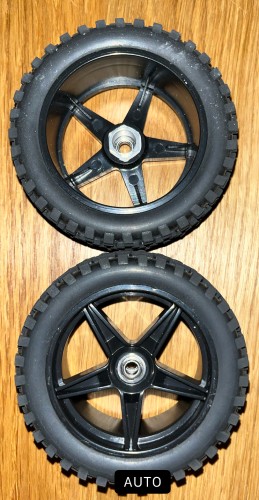

TRA1775-X
[attachment=0]20240202_075819.jpg[/attachment]

[Retro rc]

Those wheels look familiar

[Frankentruck]

Printed some shock bushings and put the shocks on Kermit. Speedy speedy progress.
.

[Chewbacca]

….

JC Racing 5-spokes for Traxxas (2.2")
TRA 2671 (dished 2.1")
TRA 1775-X (2.1")

I'm not sure what the original Bandit bearing-in-wheel part number is..but they might be out there somewhere. And I've always thought that some Tamiya wheels might fit but have never confirmed.

TRA1775-X

I can confirm that Tamiya biw rims will work just fine, also Kyosho rims (not sure about the offset) and HPI Super Stars if you can find them.

[Chewbacca]

Kermit is pretty well cleaned up, but now I need to figure out what to do for front wheels.
.
.
The rears here are Bandit 2474 pin drive wheels, but the matching Bandit 2475 are also a pin drive wheel. I would prefer the fronts to be the old fashioned bearing in wheel setup. Any thoughts what I might use?

If you have a drill press and a step drill with 1mm steps, you could take the current bandit wheels and drill the current 5mm hole out to 10mm - don’t go up to 11mm, there’s not enough material for that. You’ll get a nice snug bearing fit, if you drill the last step with a10mm (better 0.3932 inch = 9.978mm reamer) Add two 5x10x4mm FLANGED bearings and presto you’re all set.

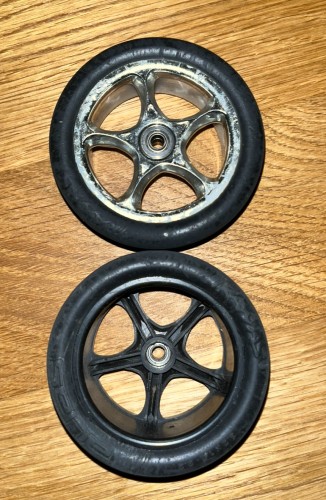

Here’s an example of mine:

[juicedcoupe]

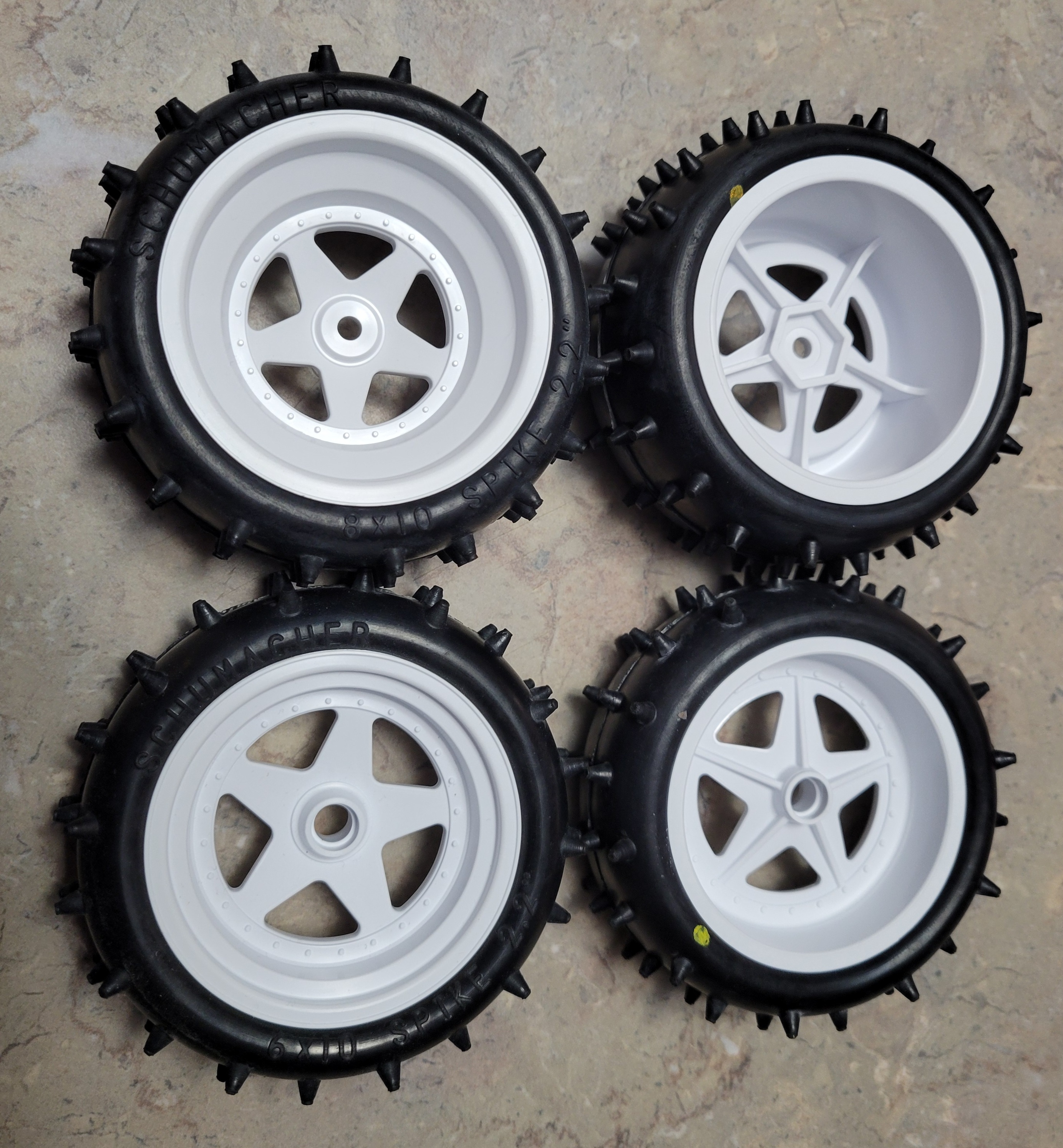

These are Kyosho Turbo Scorpion (re-re) wheels.

The rears are 12mm hex.

The fronts use an 8mm (or 5/16") OD bearing.

[Chewbacca]

These are Kyosho Turbo Scorpion wheels.

The rears are 12mm hex.

The fronts use an 8mm (or 5/16") OD bearing.


Ok, I stand corrected, I would have sworn, that Kyoshos are also metric, either 10 or 11mm OD.

Sorry if I mislead anyone.

[juicedcoupe]

Ok, I stand corrected, I would have sworn, that Kyoshos are also metric, either 10 or 11mm OD.

Sorry if I mislead anyone.

Some might be, especially newer models.

My post was simply showing those particular wheels as a possible option, not calling anyone out.

[Frankentruck]

I hadn't considered drilling out any front wheels. Interesting idea. Thanks.

[Chewbacca]

I’ve also converted front hex wheels. For those you have to add a 12mm hex with the according hole. Again 10mm in my case, but have also done 3/8 for a Losi Jrx Pro SE. For that conversion I used 12mm bar stock, and a lathe. bÄBut you could just drill out some non clamping hex adapters from Ali Express for example.
