Some losi parts variations

[JK Racing]

I want to say I've seen them before, but never paid much attention to them.

[BattleTrak]

Finally have a complete set of logo buggy wheels. I love all the fruit loop colors from that time!

[BattleTrak]

Plain steel and black coated H arm suspension pin sets.

[BattleTrak]

Different LRM outdrive spacers.. Early aluminum, black and later grey plastic.

[RogueIV]

Found this out while tearing down a parts truck. It appears later on in the production cycle Losi modified the LXT camber link locations on the front shock tower.

The newer tower has 4 camber locations. The 2 outside locations are the same as the original but the 3rd one in is about 2mm lower and a 4th hole is even lower by aprox 0.5mm.




I do know this variation was around for the GTX as it shows this version in the owner's manual but not sure exactly when it appeared.

[BattleTrak]

Steering arm variations.
Top: Jrx2 black
Middle: JrxT white
Bottom: Jrx Pro > LXT, red with short steering rack

[JK Racing]

Steering arm variations.
Top: Jrx2 black
Middle: JrxT white
Bottom: Jrx Pro > LXT, red with short steering rack

And I have seen bearing versions of the black and red, but not white.

[JK Racing]

Steering arm variations.
Top: Jrx2 black
Middle: JrxT white
Bottom: Jrx Pro > LXT, red with short steering rack

And I have seen bearing versions of the black and red, but not white.

[GoMachV]

Found this out while tearing down a parts truck. It appears later on in the production cycle Losi modified the LXT camber link locations on the front shock tower.

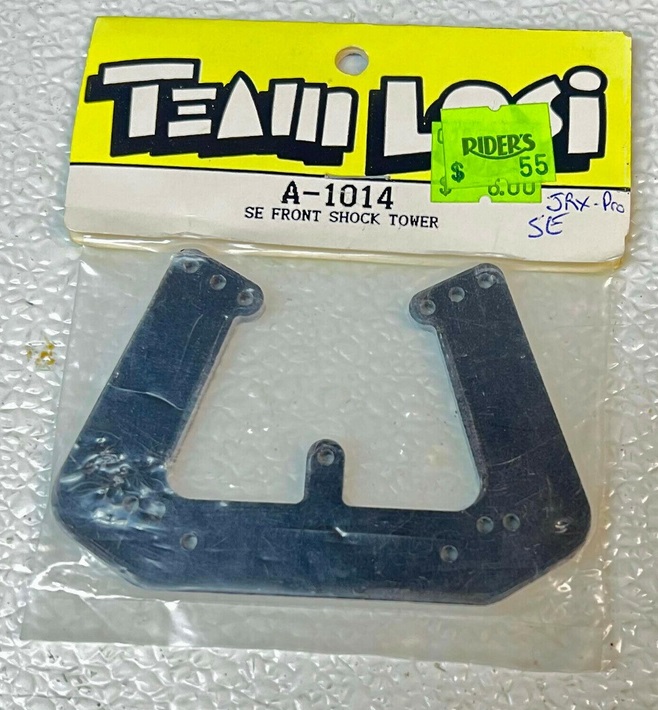

A1014 for the Pro SE had running changes as well. Here are the three camber link versions that I know of. I have compared it to the Jammin steering enhancement tower and none have holes matching the Jammin

[BattleTrak]

Found this out while tearing down a parts truck. It appears later on in the production cycle Losi modified the LXT camber link locations on the front shock tower.

A1014 for the Pro SE had running changes as well. Here are the three camber link versions that I know of. I have compared it to the Jammin steering enhancement tower and none have holes matching the Jammin

I never noticed that before! I went through my stash and have the bottom ones. That top one with the 2 holes looks a lot like both of my Jammin ones though. I wonder what the thickness is because my Jammin are 3mm vs 2.5mm of the Losi ones.

[RogueIV]

Found this out while tearing down a parts truck. It appears later on in the production cycle Losi modified the LXT camber link locations on the front shock tower.

A1014 for the Pro SE had running changes as well. Here are the three camber link versions that I know of. I have compared it to the Jammin steering enhancement tower and none have holes matching the Jammin

My guess is that the 2nd one is the closest to the Jammin' one as far as the inner position is concerned.

[GoMachV]

The Jammin I have on file has camber link holes higher than the highest one on the two of the three variations I have

[BattleTrak]

Here’s a shock detail I just noticed.. Earlier shock bodies -Left- have a prominent machining center point on the very top and the top of the body isn’t flat, but radiused/scooped out. Compare to the later style body -Right- ..with the flat top and reduced machining marks.

A side note.. these are both 1.2 silver body shocks and shows the difference between a early vs late JrxPro buggy.

[Frankentruck]

Looks like a variation in machinist skill.

[JK Racing]

Early shocks also had a longer 'tab' on top, with the hole closer to the upper portion (not centered top to bottom). I don't have a picture as a comparison.
