Mystery oilite bushing

[Lizardking]

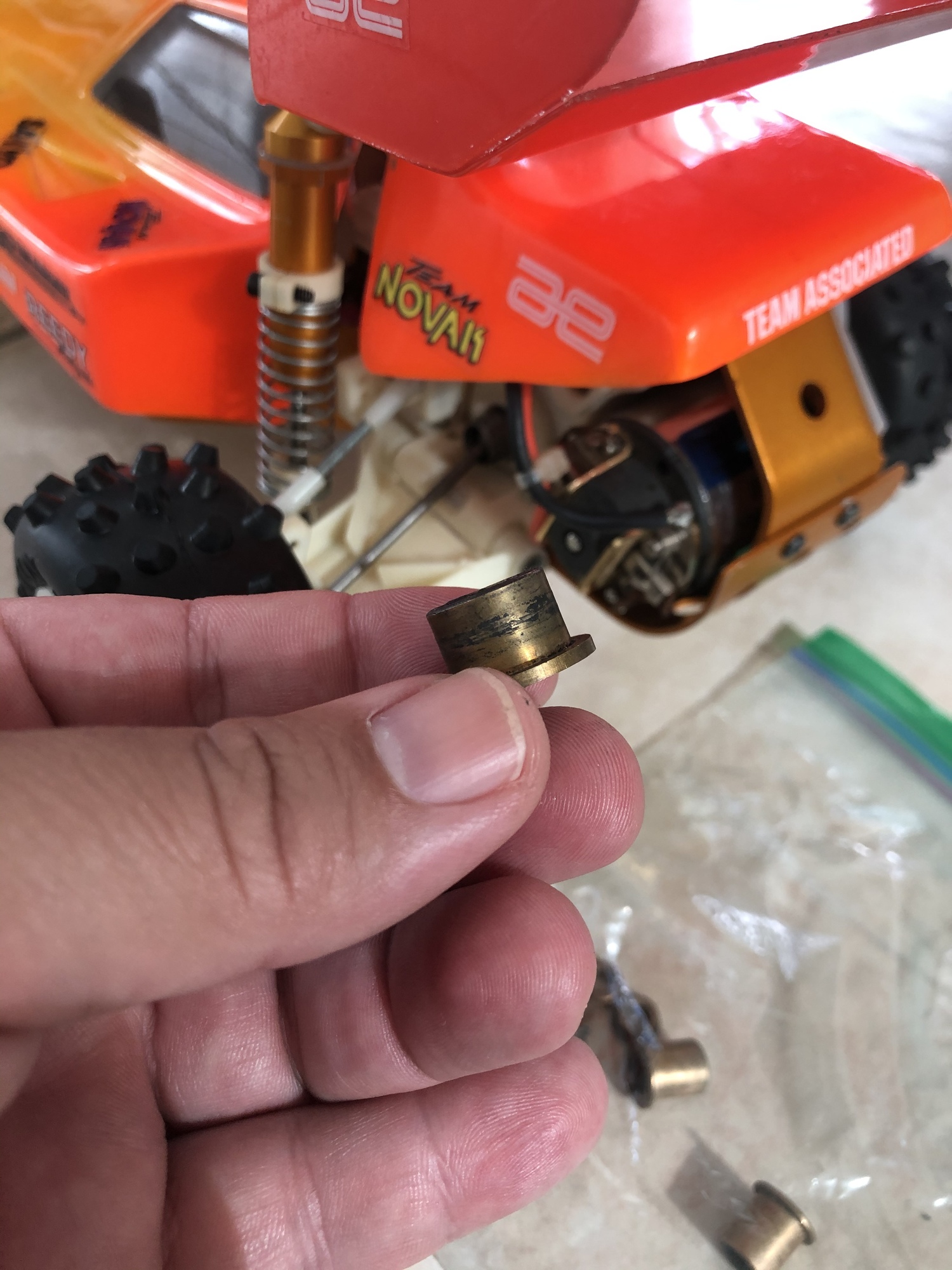

Can anyone tell me where this large bushing goes?

I had taken apart a 6-gear transmission for an RC10 I purchased because it was very crunchy, slipped and had no diff action (no counter rotating). So I ordered a set of bearings and diff balls, put all the Transmission parts on a zip lock bag and waited. The wait turned into a few months as kept working on other projects even after I had received the parts.

I finally had some time and re-assembled the 6 gear transmission carefully following the instructions. I have all of the bushings that were replaced by ball beatings but was left with this big one. For the life of me I don’t remember where it goes and can’t find it in the pdf.

Anyone know?

[GoMachV]

Bushing for rear axles, replaced by two flanged bearings

[Lizardking]

Wow thanks for the fast response. That must mean I have a second large bushing somewhere since I put bearings on the outdrives.
