*Parts needed to run modern 2.2 rims/tires on your rc10*

[JK Racing]

FYI, tower lists the B44 rear bone at 69mm and the center bone at 61mm, so yours are about 8mm too long (as you mentioned)

[Commercentre]

Aaaaaaaah! I knew I was being dumb somewhere...

Many thanks

[DirkaDirka]

Great thread! But I have one simple question I have not been able to find a simple answer to:

Will the #6371 CVA kit fit on a B2/B3? (http://www.ebay.com/itm/RC10-CVA-Set-3-16-in-Axle-Team-Associated-6371-/252202283467?hash=item3ab86d71cb:g:ci4AAOSw7FRWZNUY)

I just got mine out of a box after almost 20 years and am getting more modern for running with my son.

I was glad to find such a following and info for the RC10s of old. I never would have guessed.

[JK Racing]

Yes, but it may be a mm short. I still need to put my B3 CVDs next to the RERE CVAs.

[DirkaDirka]

I can add a couple of more shims to the inside to help with that, can't I? Or will that shorten the outside of the axle too much?

*Update - well I ordered them and the front axles as well. So I will find out for sure!

[JK Racing]

Yes, I shimmed mine in as well. Awesome, as you get it done, create a build thread so we can all see it.

[DirkaDirka]

They are indeed a mm or 2 short. I am getting more shims, but would it be a direct swap to use B4 rear arms and then the length would be correct with no additional shimming? The arms are only like $5.

[JK Racing]

In the re-release section, they talk about a different part # that is a couple mm longer. B4 arms will not work, both the inner and outer hinge pin locations are different, as well as the hinge pin size itself.

[DirkaDirka]

Thanks, I will take a look there. I have them installed with a little extra shimming and they are working I think. I have not hit it that hard yet.

[tuna.Rc]

im looking to run newer 2.2 rims & tires on my rc10 team car ( i have a set of jc concept spoked rims for it). I noticed the Rc10b2 MIP cvd's are no longer available.

Whats the next step if the b2 cvd's are gone ?!

[tuna.Rc]

im looking to run newer 2.2 rims & tires on my rc10 team car ( i have a set of jc concept spoked rims for it). I noticed the Rc10b2 MIP cvd's are no longer available.

Whats the next step if the b2 cvd's are gone ?!

http://www.ebay.com/itm/Associated-6371-CVA-3-16-inch-Axle-RC10-Classic-/131846937034?hash=item1eb2b099ca:g:yxYAAOSwmtJXXulI

is this all i need to get to run the newer 2.2 rims on a old rc10 ? along with the correct bearings?

http://www.ebay.com/itm/TEAM-ASSOCIATED-RC10-WORLDS-EDITION-AXLE-BALL-BEARINGS-SPACERS-WHEEL-ASC6002-/111847570240?hash=item1a0aa27b40:g:CM0AAOSwcBhWavMg

[guitronics]

For all of you who can live with hex wheel adapters here's what I use for modern 2.2" rims:

THESE HPI Adapters

The "red" ones are a direct fit to the 1/4" axles, BUT you have to sand down or cut off the part circled yellow (for buggy rims and non HPI truck rims)

If you combine the "blue" ones meant for Losi with the 3/16" axles you also gain about 4.2mm of offset per side which is a bit more than 5/32".

I hope this helps some of you guys.

Dead link.

[Lonestar]

For all of you who can live with hex wheel adapters here's what I use for modern 2.2" rims:

THESE HPI Adapters

The "red" ones are a direct fit to the 1/4" axles, BUT you have to sand down or cut off the part circled yellow (for buggy rims and non HPI truck rims)

If you combine the "blue" ones meant for Losi with the 3/16" axles you also gain about 4.2mm of offset per side which is a bit more than 5/32".

I hope this helps some of you guys.

Dead link.

well, the post dates back to 2009....and the part is long discontinued iirc. so not much of a surprise, really

[Chewbacca]

http://www.hpiracing.com/en/part/6120

I was talking about those adapters in the Link above.

The usually also show up when you search for HPI Super Star wheels

[rctenracer]

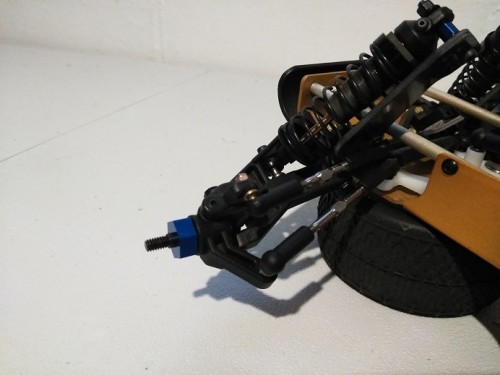

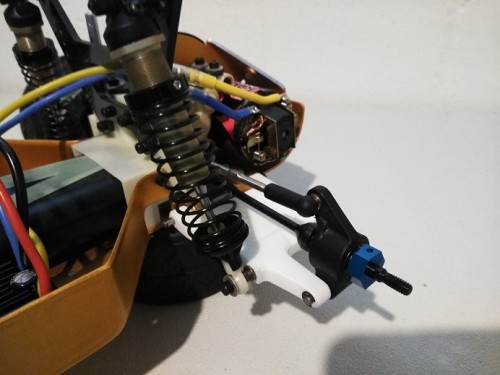

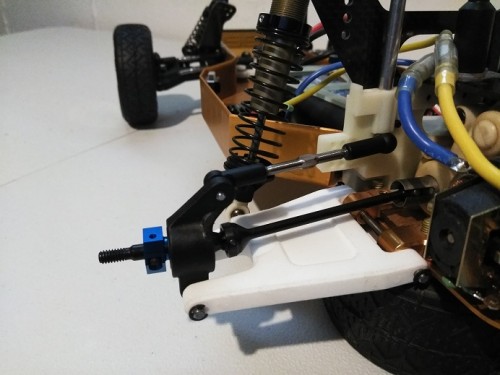

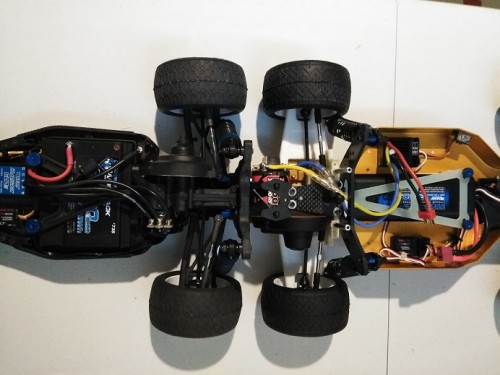

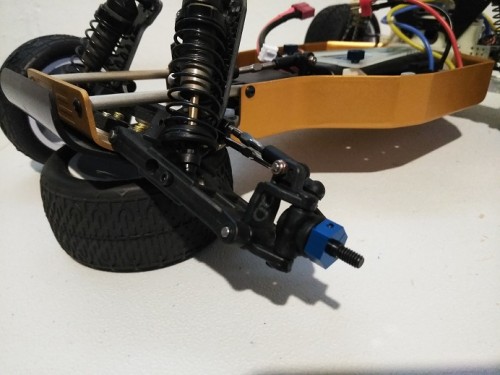

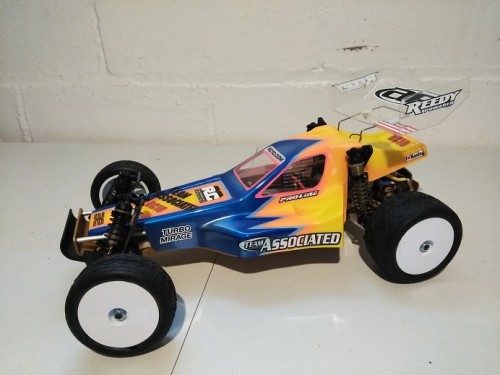

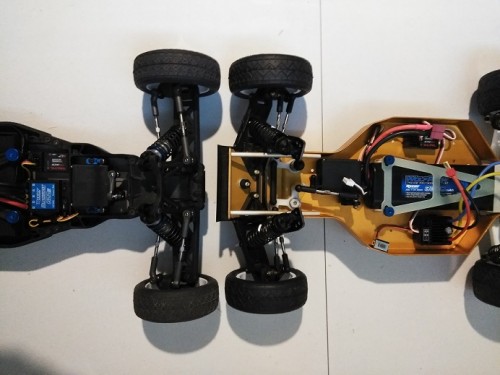

Hello . Well I guess these days 2.2 hex wheels are the new modern . This is my RC10 Conversion and comparison to a B5M. The shapeways arms seem to be duarable took couple hard hits and nothing broke (yet) .
Front - B4 20 degree caster blocks .
B4 steering blocks- lower hinge pins drilled to 1/8 inch.
Schelle racing spin free axles for SC10 .
SC10 front hex's .
B4 steering blocks hinge pin plus 2-56 X 1/8 keeper screws .
Rear - Shapeways wide rear arms NIX63551 .
B4 cvd's .
B4 rear hex's .
RPM RC10GT rear hubs plus 3/16 X1/2 inch bearings .
Punisher 3 X 50 mm turnbuckels .
Punisher ball cups .
Wheels - Proline 2.2 Velocity B6/22/RB6/ZX6 Hex front and rear .
