Carbon Fiber NIX91 Chassis Kit - Orders Now Accepted!!!

[Seabass]

Updated on 11 Nov 15

Please make sure you read and understand everything here. First I am very happy to offer the ability for many of you to build this car. My goal is to provide a the parts you need to build a car of your own with parts that are of high quality and machined to have the best fit and finish as possible. What does this mean.....time is required. All the materials for this kit are readily available; however, the material for the chassis is expensive and will be made to order. There is not much I can do here and rushing through the panel work or machine work will only cause frustration for you and I combined.

Many have personally seen examples of my work and I pride myself on quality work. This kit is no exception. With that being said, there are bound to be small problems encountered along the way even though I will do everything to catch them on my end. I will honor all purchases and make sure any problems encountered are corrected.

Follow this link to the build thread.

http://www.rc10talk.com/viewtopic.php?f=35&t=24084

CURRENTLY ACCEPTING ORDERS.

The cost per chassis kit will be $200.00 USD. A 50% deposit will be required upon each order with the remaining 50% required once the parts are ready to ship. If you want to pay in full, you can do so. Currently the lead time on the chassis is approximately three to four weeks. Patience is key.

Shipping in the lower 48 will be $12.00 priority mail with a supplied tracking number.

Shipping overseas will be $17.00 USD

Orders can be processed through private message here or if you are not a member of the forum, my email address. There is no need to email me prior to placing your order unless you require me to send you a payment request.

[email protected]

All payments will be processed through Paypal.

The chassis kit will include the following items:

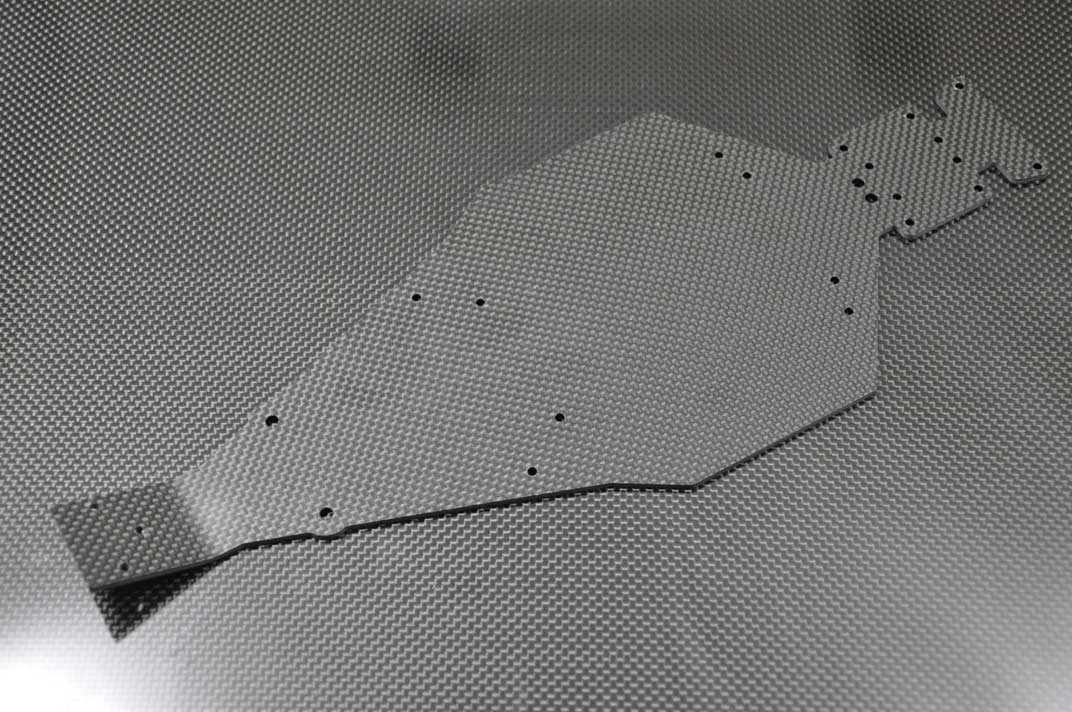

Part Number Pending - 25 Degree Chassis (Carbon Fiber)
NIX91-017 - Upper Deck (Carbon Fiber)
NIX91-015 - Front Shock Tower (G10)
NIX91-004 - Rear Shock Tower (G10)
CNCRC-006 - Tranny Brace (Carbon Fiber)
CNCRC-003 - Aluminum Wing Mounts with Set screw (2pcs)
CNCRC-004 - Aluminum Chassis Stand Off (4pcs) (Non-tapered)
CNCRC-001 - Front Bumper
8-32 Small pattern Nuts (2 pcs) - Used to secure steering bell crank hardware to the chassis

Please be aware, if you purchased one of the original run kits, a small change was made after seeing chassis failure (broken chassis at the rear arm mount due to screws pulling through the Carbon Fiber) from on of our racing members. The rear arm mounts and chassis have relocated screw holes to keep chassis failure down. This change was made to strengthen the rear of the chassis but retain the the factory appearance for those of you wanting to build replicas. If you plan to run this chassis, it is highly recommended that you opt for the race version of the rear arm mounts as it eliminated chassis failure.

Those who purchased a Nix91 from the original run, can still get the ream arms mounts needed for that chassis at Shapeways.

[Seabass]

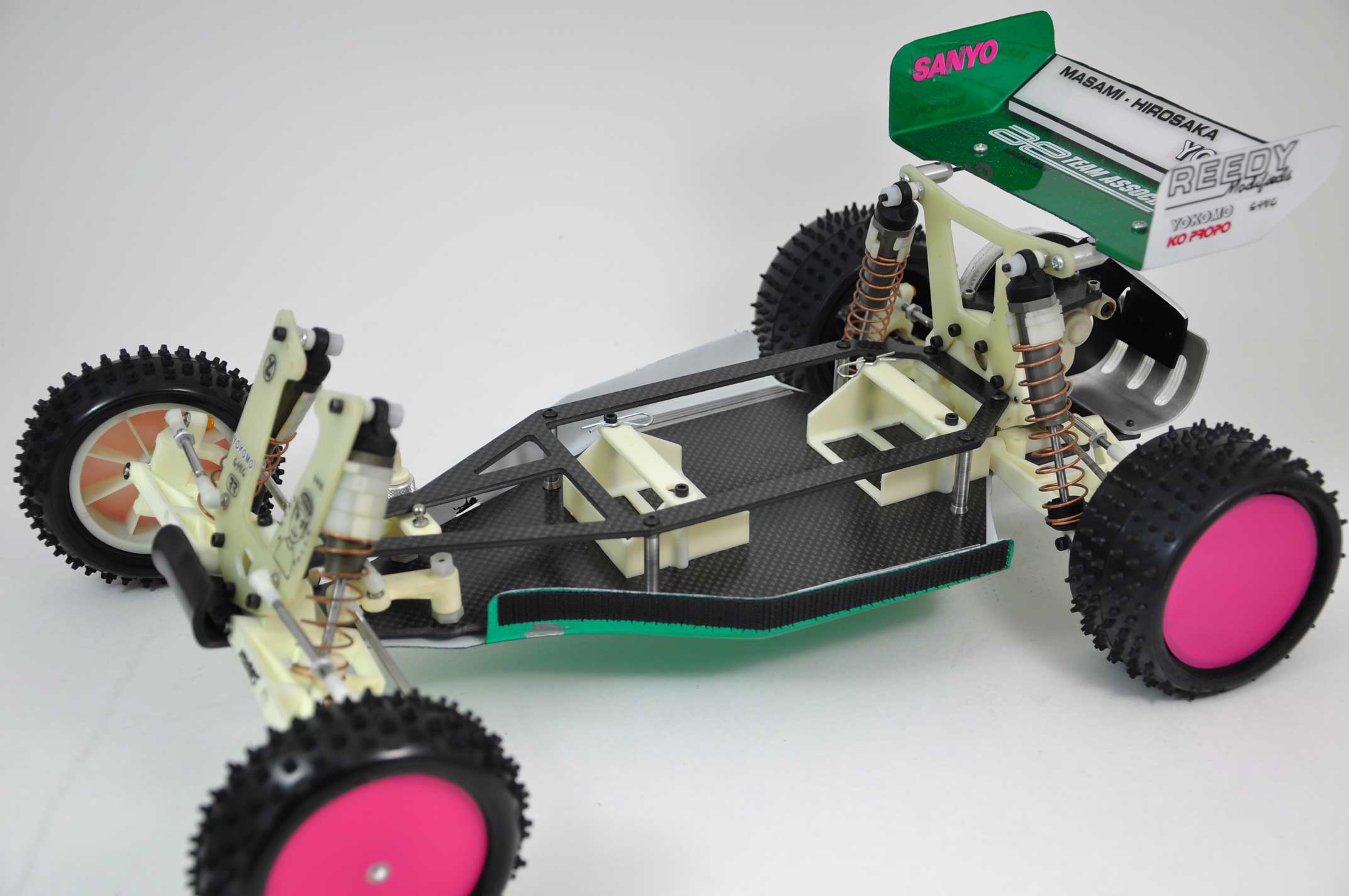

There are two ways you CF NIX91 can be built, a replica or race ready.

The biggest difference in the replica and race ready version comes down to strength. We added strength to many of the parts designated for race versions simply because they can withstand more hits without the chance of breaking. You can race your replica version successfully as well, as many still do but there is a higher probability of parts failure.

Race Ready Part Numbers

NIX91-022 Front Bulkhead
NIX91-023 Race steering bell crank left
NIX91-024 Race steering bell crank right
NIX91-025 Race steering bell crank nut
NIX91-026 Race steering bell crank body mount
NIX91-005 Steering block left
NIX91-006 Steering block right
NIX91-007 Steering block carrier left
NIX91-008 Steering block carrier right
NIX91-030 Race front suspension arm
NIX91-028 Race rear suspension arm left
NIX91-029 Race rear suspension arm right

There are several variations to the rear arms mounts, I recommend getting all versions which will aid in tuning your car.

NIX91-320 Race rear arm mount (3deg toe-in/side & 0deg anti-squat)
NIX91-321 Race rear arm mount (3deg toe-in/side & 1deg anti-squat)
NIX91-322 Race rear arm mount (3deg toe-in/side & 2deg anti-squat)
NIX91-323 Race rear arm mount (3deg toe-in/side & 3deg anti-squat)

Replica Part Numbers

NIX91-022 Front Bulkhead
NIX91-011 Steering bell crank left
NIX91-012 Steering bell crank right
NIX91-013 Steering bell crank
NIX91-014 Steering bell crank body mount
NIX91-005 Steering block left
NIX91-006 Steering block right
NIX91-007 Steering block carrier left
NIX91-008 Steering block carrier right
NIX91-009 Front suspension arm
NIX91-002 Race rear suspension arm left
NIX91-003 Race rear suspension arm right

These parts can be sourced through Shapeways or IMaterialise.

https://i.materialise.com/shop/designer/nixconcepts

http://www.shapeways.com/shops/nixconcepts

[Seabass]

If you are looking for turnbuckles and hinge pins, Kelley Lundsford from Lundsford Racing makes titanium hinge pins and turnbuckles specific to this buggy.

http://www.lunsfordracing.com/mm5/merchant.mvc?Session_ID=0a8d0f7a7c2b6de2f88af78c5f63a766&Screen=CTGY&Store_Code=LUNS&Category_Code=CARS-NIX91RC10
