What are these belt drive parts?

[RCveteran]

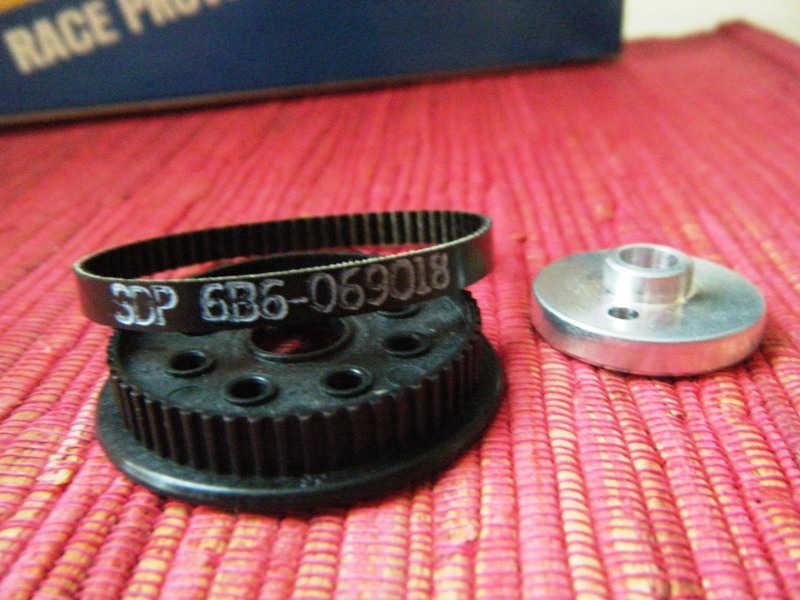

They came with a JRX2 I just got that was never driven and built in 1989 (I will have pics up soon) but what the heck are these?

[a01butal]

Those would be Hyperdrive belt drive parts.

[RCveteran]

Is hyperdrive the A&L transmission?

[a01butal]

No it is a different system and manufacturer. There is some info in the Scans section, I'll see if I can find it.

[a01butal]

No it is a different system and manufacturer. There is some info in the Scans section, I'll see if I can find it.

Here is the link: http://www.rc10talk.com/viewtopic.php?f=7&t=1180&hilit=hyperdrive

there are pictures of cars in the RC10 section using the Hyperdrive system just have to search for Hyperdrive in the section.

[RCveteran]

Pretty cool, unlikely I will ever have the rest of the parts to make one.

[a01butal]

Here's a picture of someone's car I found in the RC10 section with the Hyperdrive belt system - note I believe that the motor has to turn in reverse rotation for this application.

[RCveteran]

That is very cool. I love all the little companies back then that were always trying to innovate or at the very least come out with something unique.

[Mr. ED]

I believe hyperdrive is still around. They concentrated on their main products later on: pan cars and the accesories that go with those.

[aconsola]

They came with a JRX2 I just got that was never driven and built in 1989 (I will have pics up soon) but what the heck are these?


Thanks for the pic, that is perfect as I have been looking for a belt. I have a couple HD spurs and pinions, but nothing to connect them.

the belt is from stock drive products SDP,
https://sdp-si.com/eStore/PartDetail.asp?Opener=Group&PartID=51098&GroupID=213

Part Number A 6B 6-069018
Unit Inch
Belt Type Single Sided
Pitch .0816" (40D.P.)
No. Of Grooves 69
Belt Width 3/16"
Material Urethane
Tension Member Kevlar
Pitch Length 5.63"

[LTO_Dave]

I have some old magazines with the HD ads when they were first coming out, and it shows an orange belt like the one shown above.

[Asso_man!]

I have a full bag of belts, spurs and pinions if you would like to complete your set. Just drop me a PM.
