Tamiya Blackfoot Re-Worked

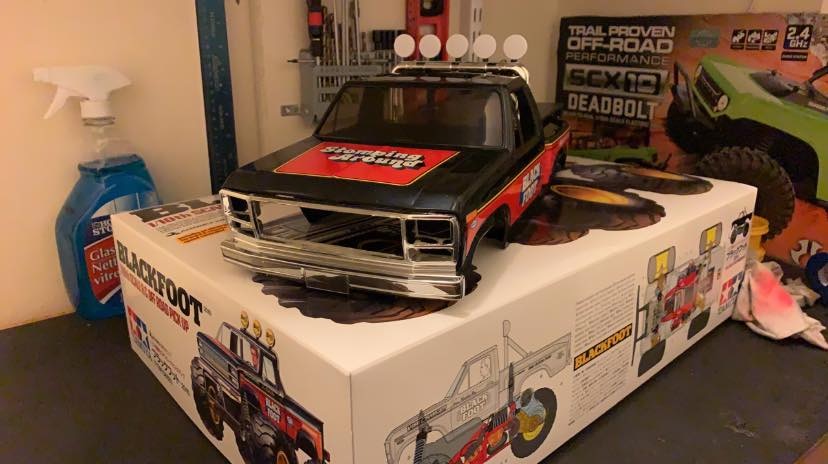

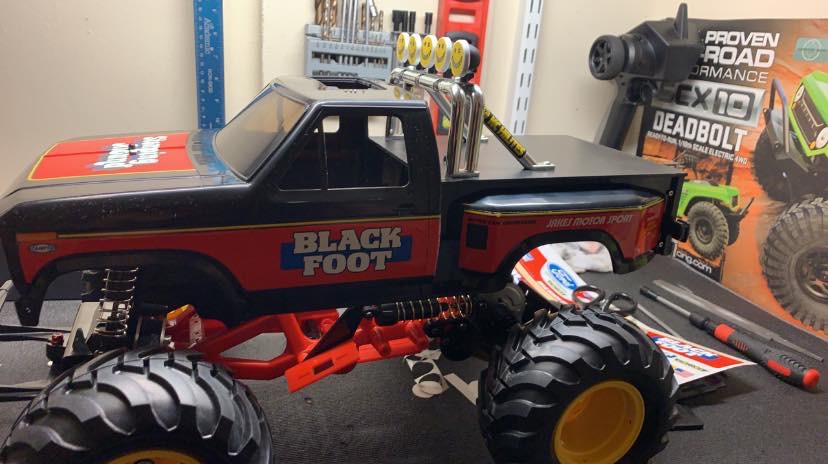

Here’s the Tamiya Blackfoot that I got for Christmas from my wife and kids and as much as I’ve always liked the box art version of it, I felt like there’s always room for improvement...

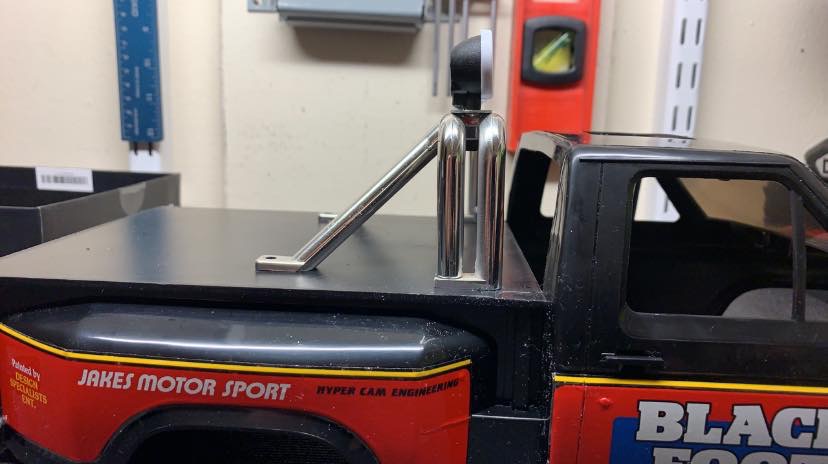

I never liked the roll/light bar, I always felt like the light buckets were too big for the truck, and the fact that they would flap down, make me like them even less.

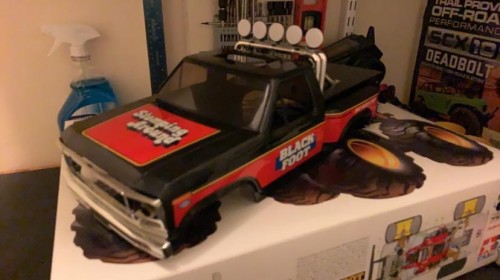

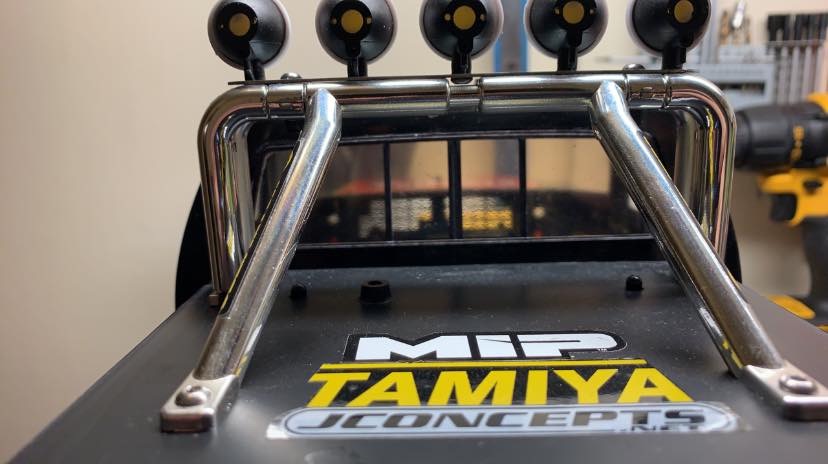

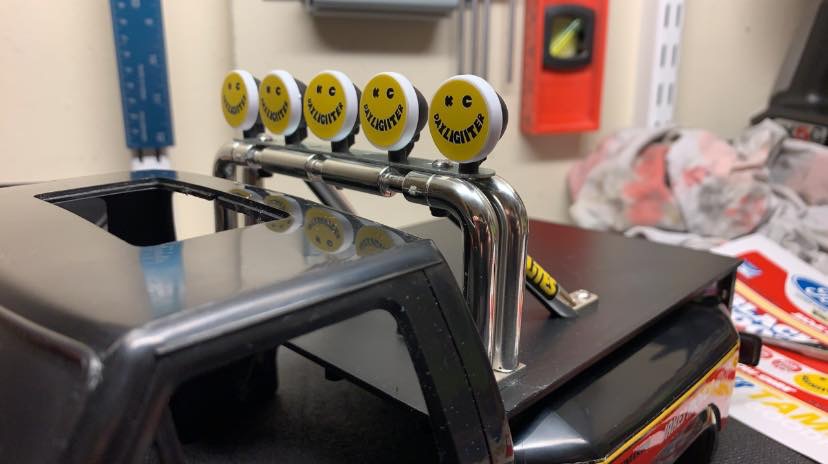

I had a Clodbuster light bar laying around and wanted to see if the holes lined up, and they did, so I drilled up the remaining holes and voila, new light bar.

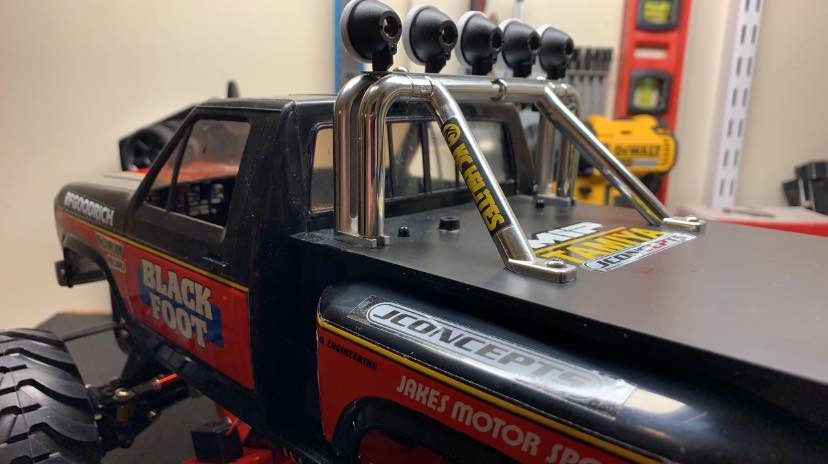

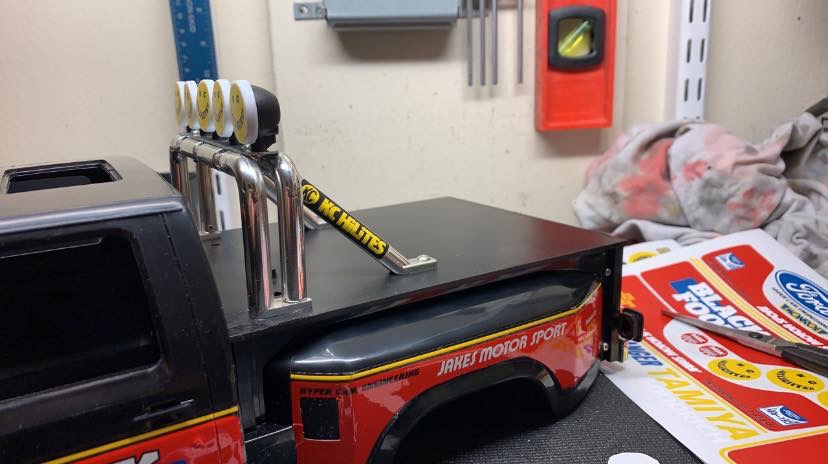

As for the light buckets, I mounted some working light buckets onto a metal brace, added and some MCI racing KC decals and it looks like it’s meant to be there, well, in my opinion
I never liked the roll/light bar, I always felt like the light buckets were too big for the truck, and the fact that they would flap down, make me like them even less.
I had a Clodbuster light bar laying around and wanted to see if the holes lined up, and they did, so I drilled up the remaining holes and voila, new light bar.
As for the light buckets, I mounted some working light buckets onto a metal brace, added and some MCI racing KC decals and it looks like it’s meant to be there, well, in my opinion
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!
-
- Approved Member
- Posts: 1047
- Joined: Mon Jun 30, 2008 3:17 am
- Location: East Haven, Connecticut
- Has thanked: 19 times
- Been thanked: 29 times
Re: Tamiya Blackfoot Re-Worked

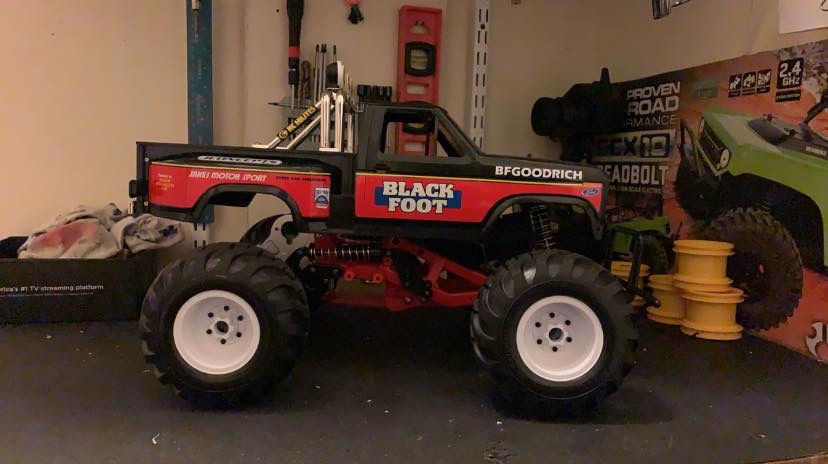

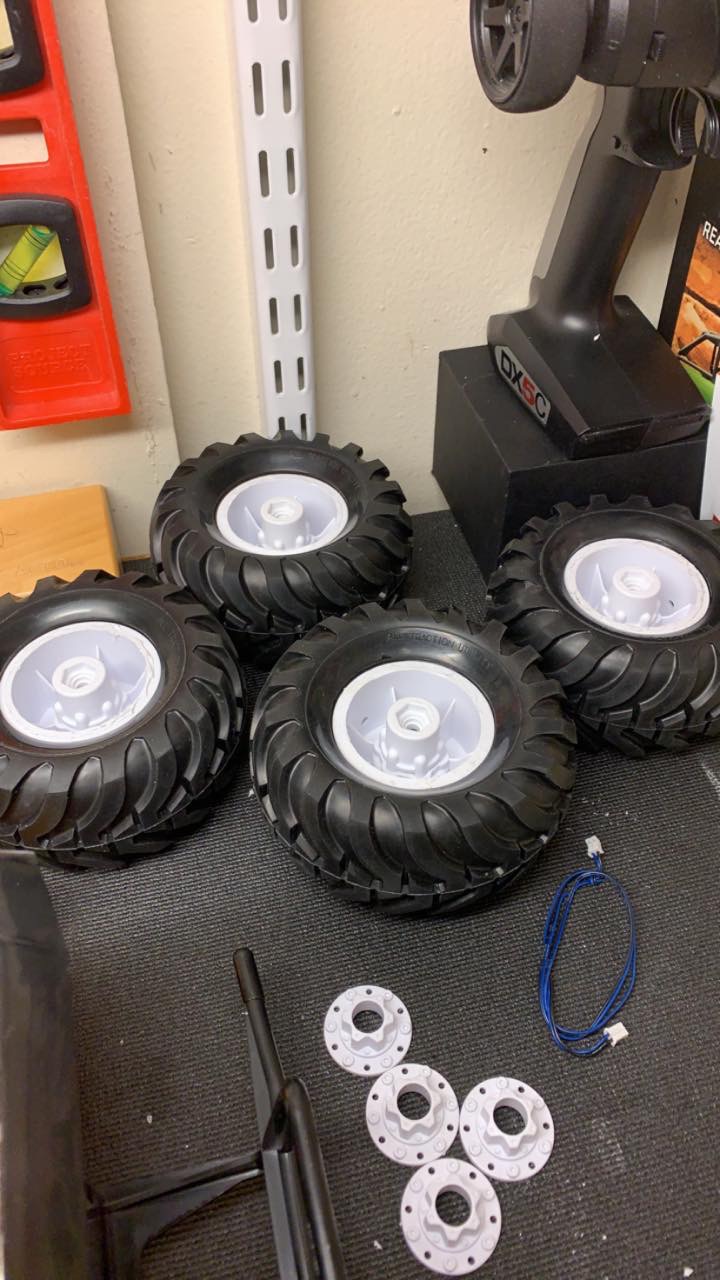

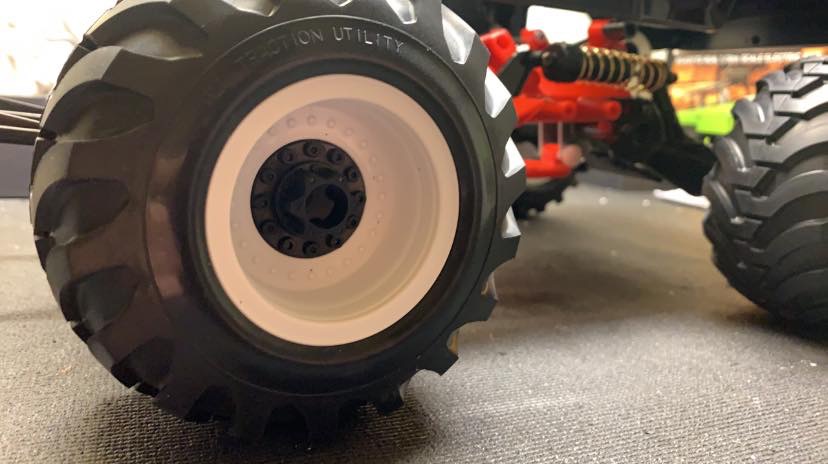

Here are the wheels I’ll be running on this:

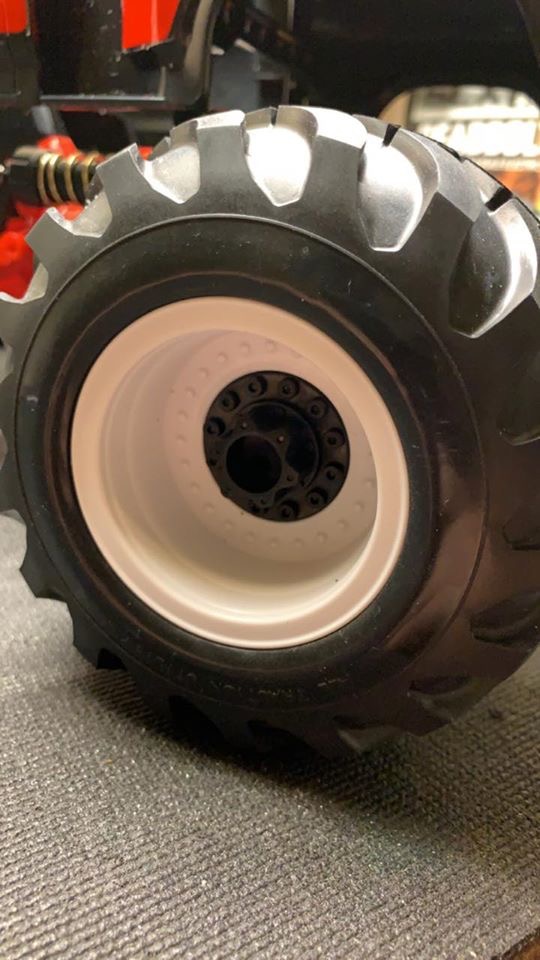

Jconcepts 2.2 Midwest wheels, with the rear lip cut off the fit the narrower Blackfoot tires.
Jconcepts 2.2 Midwest wheels, with the rear lip cut off the fit the narrower Blackfoot tires.
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!
- Traffic22
- Regular Member
- Posts: 12
- Joined: Mon Dec 23, 2019 2:01 pm
- Location: SF Bay Area
- Has thanked: 1 time
Re: Tamiya Blackfoot Re-Worked
That looks really good. Really like the white wheels. I’ve been trying to get a hold of a re re for the last month but they are on back order or out of stock everywhere. Hopefully will be easier after 01/08, when Tamiya finishes inventory.
Like the different lights too.
Like the different lights too.
-
- Approved Member
- Posts: 1047
- Joined: Mon Jun 30, 2008 3:17 am
- Location: East Haven, Connecticut
- Has thanked: 19 times
- Been thanked: 29 times
Re: Tamiya Blackfoot Re-Worked

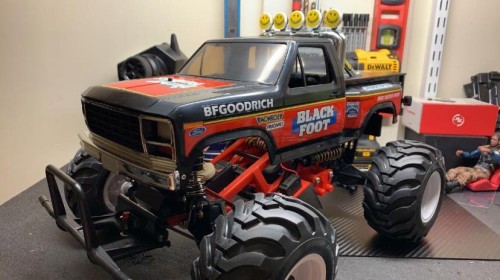

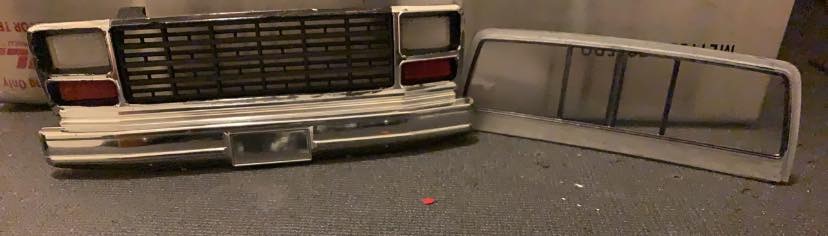

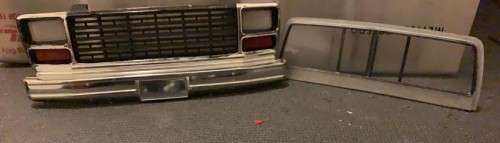

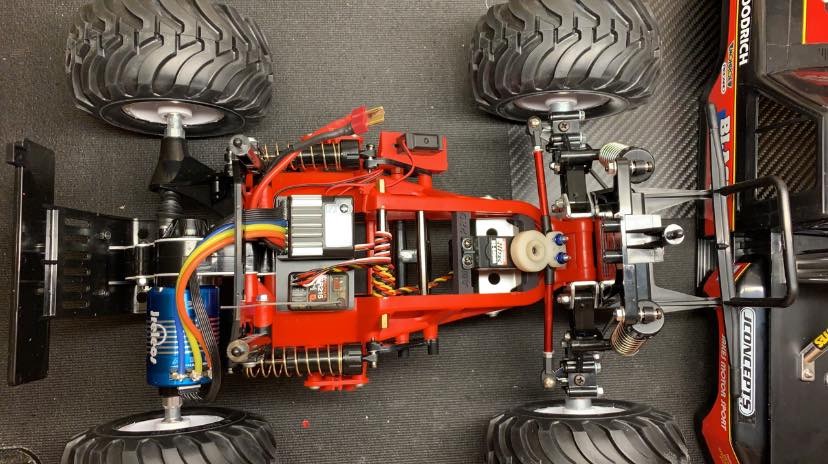

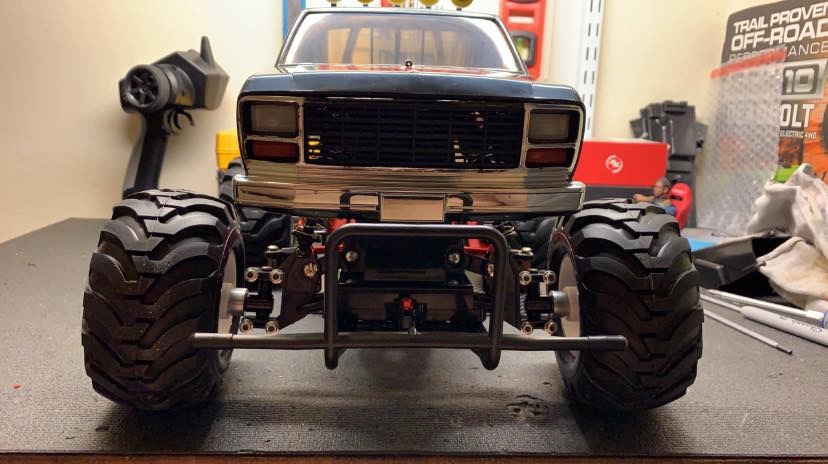

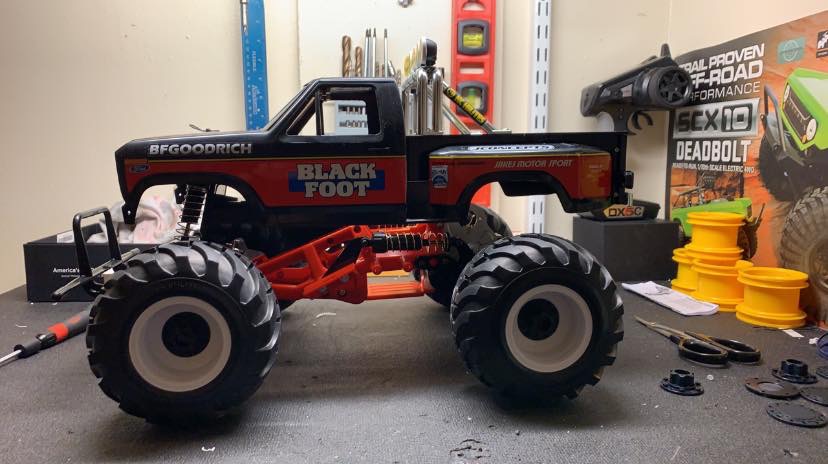

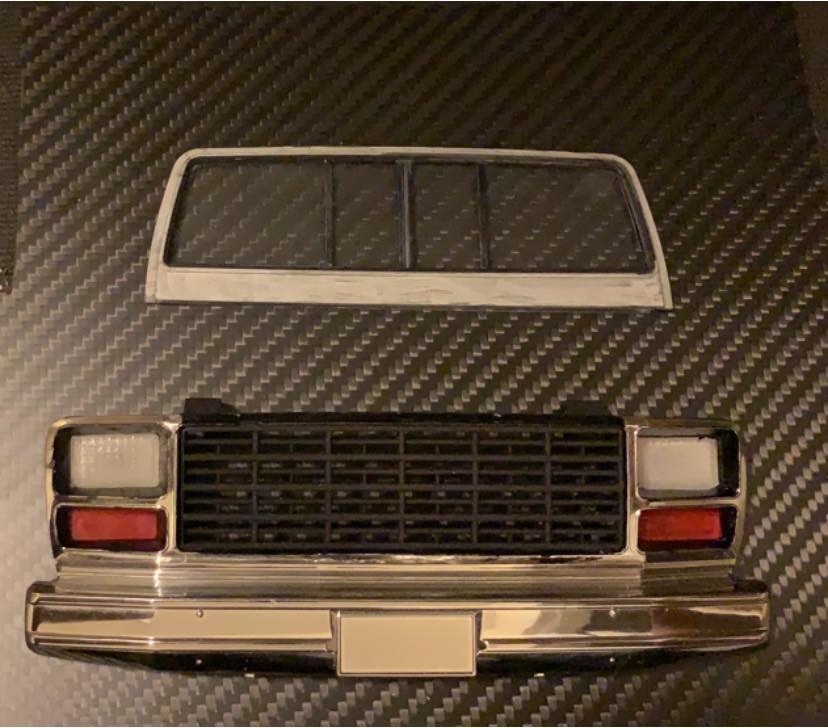

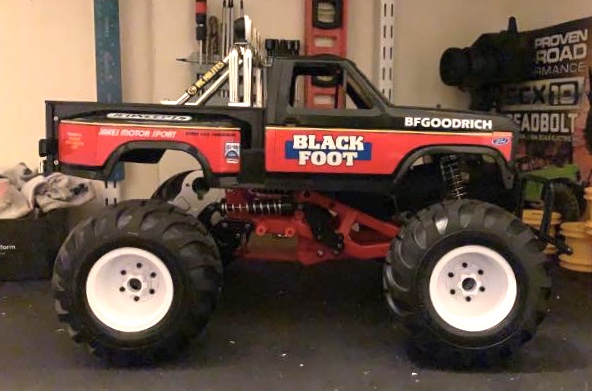

Ampro goodies arrived from shapeways, Grille, Headlight Buckets, Servo Center Mount, and rear window....installed...along with the electronics
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!
- coxbros1
- Super Member
- Posts: 2187
- Joined: Mon Dec 24, 2018 8:50 am
- Location: Energy, Illinois
- Has thanked: 1975 times
- Been thanked: 1756 times
- Traffic22
- Regular Member
- Posts: 12
- Joined: Mon Dec 23, 2019 2:01 pm
- Location: SF Bay Area
- Has thanked: 1 time
Re: Tamiya Blackfoot Re-Worked
I’ve been watching your build for a while, very nice. I have a box of shapeways parts and a brand new re re Blackfoot sitting on my workbench just waiting for me to get to it.
Really like how yours is coming along, going to keep watching.
C
Really like how yours is coming along, going to keep watching.
C
-
- Approved Member
- Posts: 171
- Joined: Sun Jan 11, 2009 8:10 am
- Has thanked: 1 time
- Been thanked: 7 times
Re: Tamiya Blackfoot Re-Worked
Nice Blackfoot for sure!
May I know which adaptors you are using to mount the 12mm jconcept wheels to the front axle and uses bearings?
May I know which adaptors you are using to mount the 12mm jconcept wheels to the front axle and uses bearings?
-
- Approved Member
- Posts: 1047
- Joined: Mon Jun 30, 2008 3:17 am
- Location: East Haven, Connecticut
- Has thanked: 19 times
- Been thanked: 29 times
Re: Tamiya Blackfoot Re-Worked

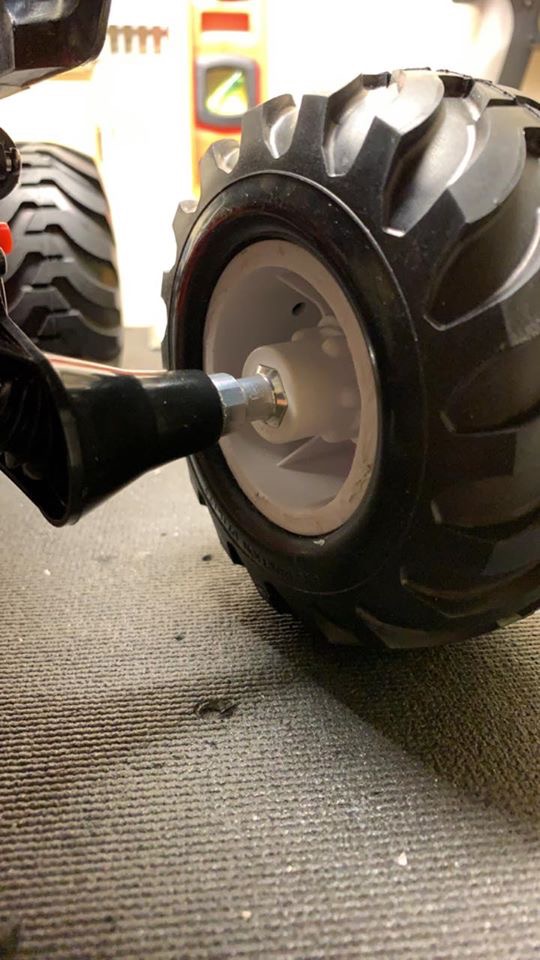

There are a couple of options, but for me, these work the best.
Here’s the link on eBay of the ones I’m using:
https://www.ebay.com/itm/HPI-Proline-12mm-Front-Hex-Wheel-Adapter-Tamiya-Blackfoot-Hornet-Lunch-Box-RC10-/303362145237
Life is like a box of chocolate, you never know what R/C car you're gonna get next!!!
-
- Regular Member
- Posts: 2
- Joined: Wed May 22, 2024 3:47 am
Re: Tamiya Blackfoot Re-Worked
hi nice build wish mine looked as good as that but just spent all my pocket money on rebuilding a tamiya bigwig i got for christmas . I have a vintage tamiya blackfoot and ii have put a chinese brushless motor and esc in it dont know if i made the right choice as it seems to be ratteling itself to pieces i have done the trick to flip the steering links to the underside of the servo saver and it has improved its steering by a mile the one issue i do have though is those thin metal arm things that connect to the front of the chassis (you know the ones that come out of the front of the front arms ) one of those mounts had broken and i lost the screw what should i do to fix that and how can i make the car to handle alot better as it is alot faster than i think a tamiya blackfoot was intended to be
- juicedcoupe
- Super Member
- Posts: 2989
- Joined: Sun Aug 16, 2020 4:05 pm
- Location: Pascagoula, MS
- Has thanked: 231 times
- Been thanked: 1747 times
Re: Tamiya Blackfoot Re-Worked

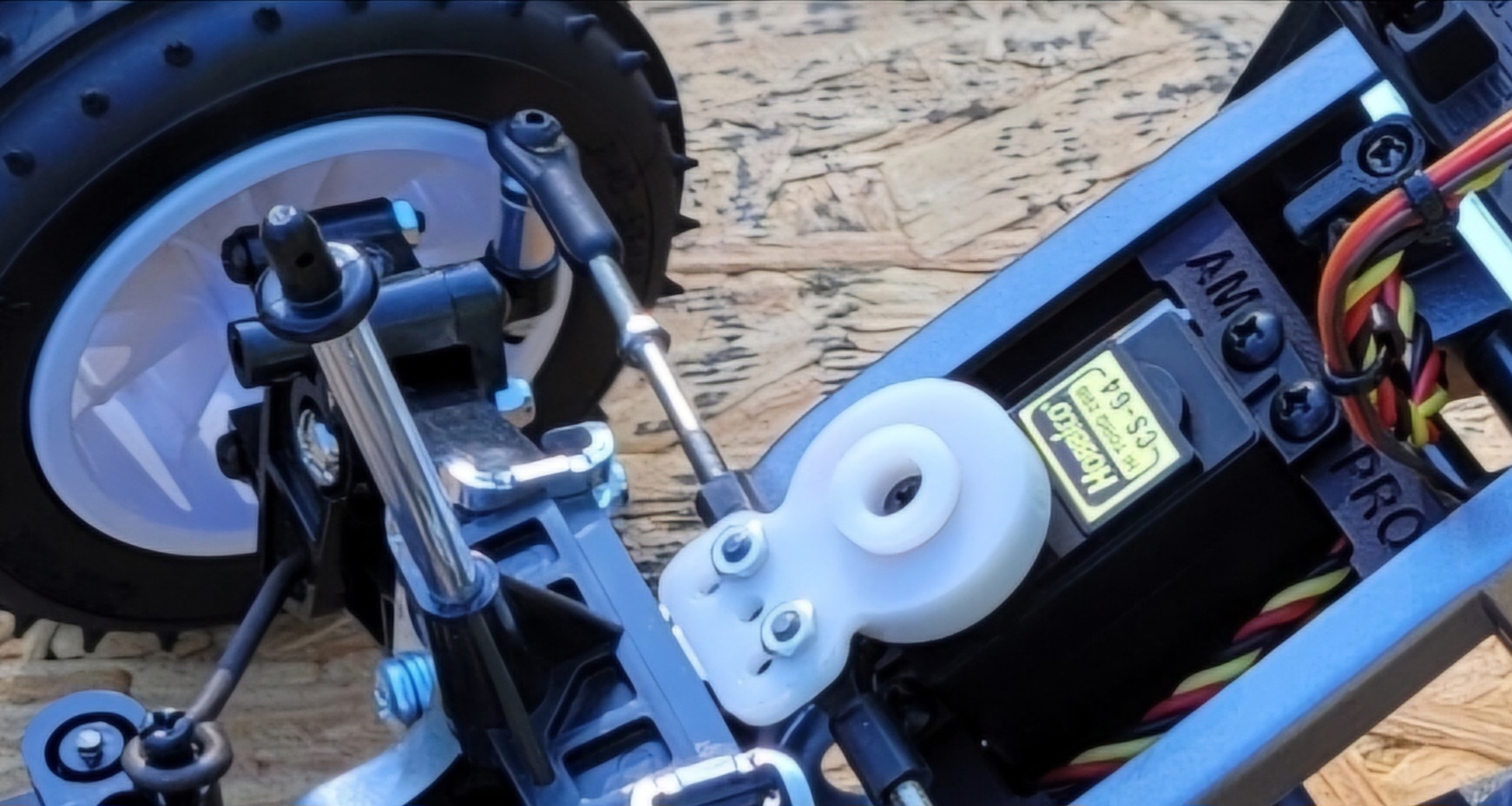

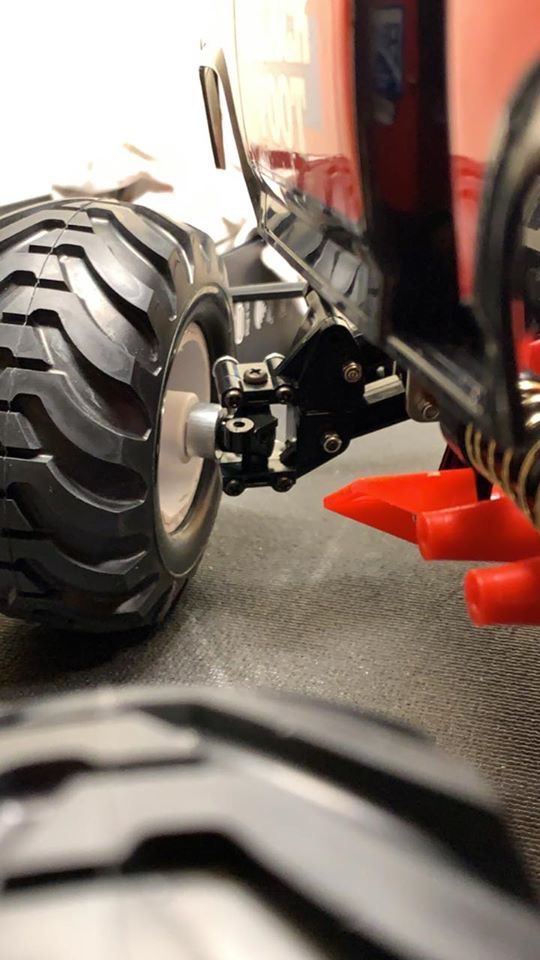

This is how I setup the steering on all of mine.Dillon1349 wrote: ↑Fri May 24, 2024 3:58 am i have done the trick to flip the steering links to the underside of the servo saver and it has improved its steering by a mile
the one issue i do have though is those thin metal arm things that connect to the front of the chassis (you know the ones that come out of the front of the front arms ) one of those mounts had broken and i lost the screw what should i do to fix that.
Center mount servo, Traxxas servo saver, and spacers on the uprights (or Am-Pro/ CRP uprights).
New parts are available. Due to the re-release, lots of new take-off parts are on Ebay.
Always looking for new and interesting ways to waste money.
