Hey, I am NOT the bad guy. I got a few things from you (Emerson) and minimini IS the bad guy who chopped up the wing tower. I was just saying that I 'would' do the same but I have yet to do it. Nice product.emerson_shih wrote:I now understand why you ask me to give you one more shelf.tiger1 wrote:Why cut the wing mount?....
I think I can speak on behalf of minimini: it is simply smarter to mount the wing on the rear shock tower!
I would do the same
Oh tiger~ you are bad
Next time I may take away the shelf to save some cost.
Project Red Hotshot (11th Mar,2010 updated)
-
- Approved Member
- Posts: 777
- Joined: Sun Sep 07, 2008 12:38 pm
- Location: Singapore
- Been thanked: 2 times
Re: Project Red Hotshot (11th Mar,2010 updated)
- minimini
- Approved Member
- Posts: 610
- Joined: Fri May 16, 2008 11:31 am
- Location: KWS@Hong Kong; 3.5 hours' trip to meet tiger1 and only 7,777 miles from Doug
- Been thanked: 9 times
Re: Project Red Hotshot (11th Mar,2010 updated)
ahaha...........I do not mind being a bad guy.........provided that I am doing the right & meaningful thing.........tiger1 wrote:Hey, I am NOT the bad guy. I got a few things from you (Emerson) and minimini IS the bad guy who chopped up the wing tower. I was just saying that I 'would' do the same but I have yet to do it. Nice product.emerson_shih wrote:I now understand why you ask me to give you one more shelf.tiger1 wrote:Why cut the wing mount?....
I think I can speak on behalf of minimini: it is simply smarter to mount the wing on the rear shock tower!
I would do the same
Oh tiger~ you are bad
Next time I may take away the shelf to save some cost.
as you all know.......DIY is one of the major components of vintage R/C cars........& every single car got their own character........no compromise........
mini@vintage Team Yokomo/Associated
-
- Approved Member
- Posts: 777
- Joined: Sun Sep 07, 2008 12:38 pm
- Location: Singapore
- Been thanked: 2 times
Re: Project Red Hotshot (6th Mar,2010 updated)
Hey, which Kyosho car was this metal piece (heat sink) from??minimini wrote:overheating of motor was a common problem in the Hotshot series...........many racers in the old days did experience melting of the rear gear box because of the great heat generated by the motor..........horrible.........
in view of this.........I prepared two pieces of motor insulator plates........plus a metal heat sink (from a kyosho car) in between.........make it like a piece of Orio......... ...........hope to improve a bit........
- minimini
- Approved Member
- Posts: 610
- Joined: Fri May 16, 2008 11:31 am
- Location: KWS@Hong Kong; 3.5 hours' trip to meet tiger1 and only 7,777 miles from Doug
- Been thanked: 9 times
Re: Project Red Hotshot (6th Mar,2010 updated)
during that time .......... every kyosho car came with this metal piece........I got mine from one of my optimas........tiger1 wrote:Hey, which Kyosho car was this metal piece (heat sink) from??minimini wrote:overheating of motor was a common problem in the Hotshot series...........many racers in the old days did experience melting of the rear gear box because of the great heat generated by the motor..........horrible.........
in view of this.........I prepared two pieces of motor insulator plates........plus a metal heat sink (from a kyosho car) in between.........make it like a piece of Orio......... ...........hope to improve a bit........
mini@vintage Team Yokomo/Associated
-
- Approved Member
- Posts: 777
- Joined: Sun Sep 07, 2008 12:38 pm
- Location: Singapore
- Been thanked: 2 times
Re: Project Red Hotshot (11th Mar,2010 updated)
Many people said the hotshot diff was stiff and sometimes noisy. Some blamed it on the e-clip that was used to retain the diff outdrive.

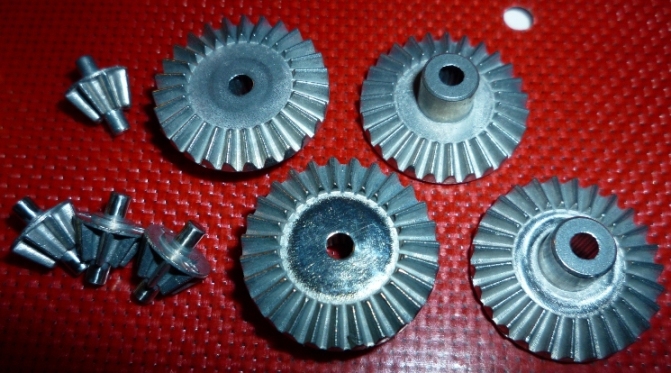

Here is what I did, I polished the contact surfaces of the gears (not the 'teeth' though), just polish them so that they are smooth but not mirror shine.
The set on top was original condition. The set in the bottom was the polished set.
I put them into my front gearbox, just nice and smooth with perfect tightness!!
Here is what I did, I polished the contact surfaces of the gears (not the 'teeth' though), just polish them so that they are smooth but not mirror shine.
The set on top was original condition. The set in the bottom was the polished set.
I put them into my front gearbox, just nice and smooth with perfect tightness!!
-
- Approved Member
- Posts: 777
- Joined: Sun Sep 07, 2008 12:38 pm
- Location: Singapore
- Been thanked: 2 times
Re: Project Red Hotshot (11th Mar,2010 updated)

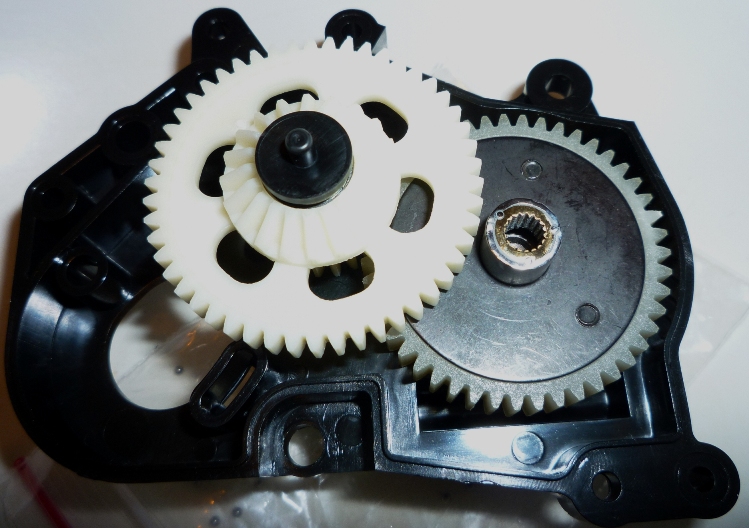

I tried to get something special for my red hotshot. I remember long ago someone made some ball differential for hotshot. I also know they cost a tons of $$ now, only if one is lucky to find them....
Then I saw a Paranoia Fox diff for sale here. I know fox and hotshot has the same 47 gear but the drive cups fits differently. But I decided some surgery is all it takes
The width of hotshot diff was approximately 15.9mm. This Paranoia fox diff was approximately 21.0mm in width. First, I removed that excess ~5mm width from the diff hubs. I heard that the original hotshot gear diff was a little tight, so I arbitrarily reduce the width of my ball diff so that the resulting width is approximately 15.4mm. At 15.4mm, the differential spins freely in the assembled gearbox
Then what I did was I sacrificed a pair of 959 wheel hubs, shaved it down to about 1mm thick in diameter. Opened up the diff to house the modified hubs, made sure I left about 1mm think material as well. Use some 0.75mm stainless steel wire to key the pieces together and bonded them with JB Weld epoxy. All these were done without a lathe, just hand held rotary tools. The challenge was to keep things center and true. Anyway, the result was rock solid!!!
A ball diff for the hotshot
Then I saw a Paranoia Fox diff for sale here. I know fox and hotshot has the same 47 gear but the drive cups fits differently. But I decided some surgery is all it takes
The width of hotshot diff was approximately 15.9mm. This Paranoia fox diff was approximately 21.0mm in width. First, I removed that excess ~5mm width from the diff hubs. I heard that the original hotshot gear diff was a little tight, so I arbitrarily reduce the width of my ball diff so that the resulting width is approximately 15.4mm. At 15.4mm, the differential spins freely in the assembled gearbox
Then what I did was I sacrificed a pair of 959 wheel hubs, shaved it down to about 1mm thick in diameter. Opened up the diff to house the modified hubs, made sure I left about 1mm think material as well. Use some 0.75mm stainless steel wire to key the pieces together and bonded them with JB Weld epoxy. All these were done without a lathe, just hand held rotary tools. The challenge was to keep things center and true. Anyway, the result was rock solid!!!
A ball diff for the hotshot
- Attachments
-
- diff 1.JPG (168.02 KiB) Viewed 695 times
- diff 1.JPG (168.02 KiB) Viewed 695 times
-
- diff 4.JPG (148.43 KiB) Viewed 695 times
- diff 4.JPG (148.43 KiB) Viewed 695 times
-
- Approved Member
- Posts: 230
- Joined: Tue Feb 02, 2010 11:24 am
- Location: USA/Canada
- Been thanked: 4 times
Re: Project Red Hotshot (11th Mar,2010 updated)
Nice mod on the ball diff..
Rc10 newbie...
Turbo ultima
Turbo optima project
Srb projects
Turbo ultima
Turbo optima project
Srb projects
-
- Approved Member
- Posts: 777
- Joined: Sun Sep 07, 2008 12:38 pm
- Location: Singapore
- Been thanked: 2 times
Re: Project Red Hotshot (11th Mar,2010 updated)
Thanks for the comment
More work is being done on my red-shot
More work is being done on my red-shot
